Toyota 4-Runner Truck (NAP)

1992-02 → 1995-01 · chassis RN101,110,VZN100,110 · catalogue 674450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

20 part groups · 8 illustrations

Illustrations

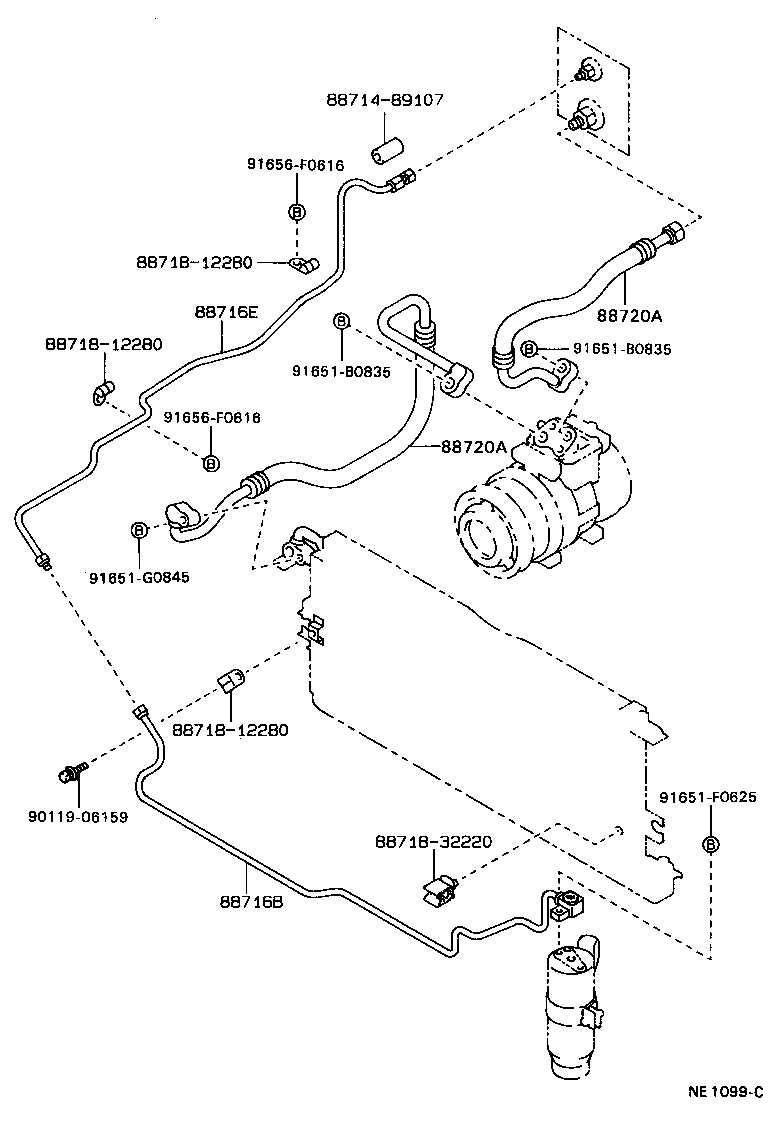

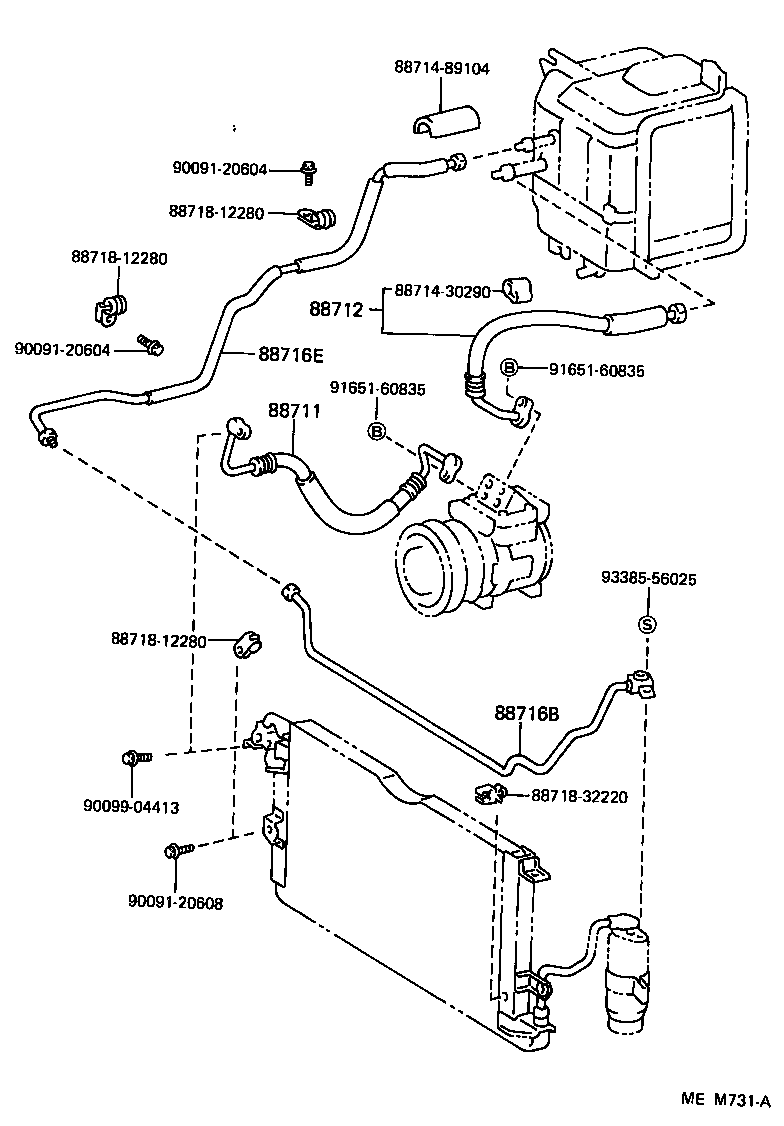

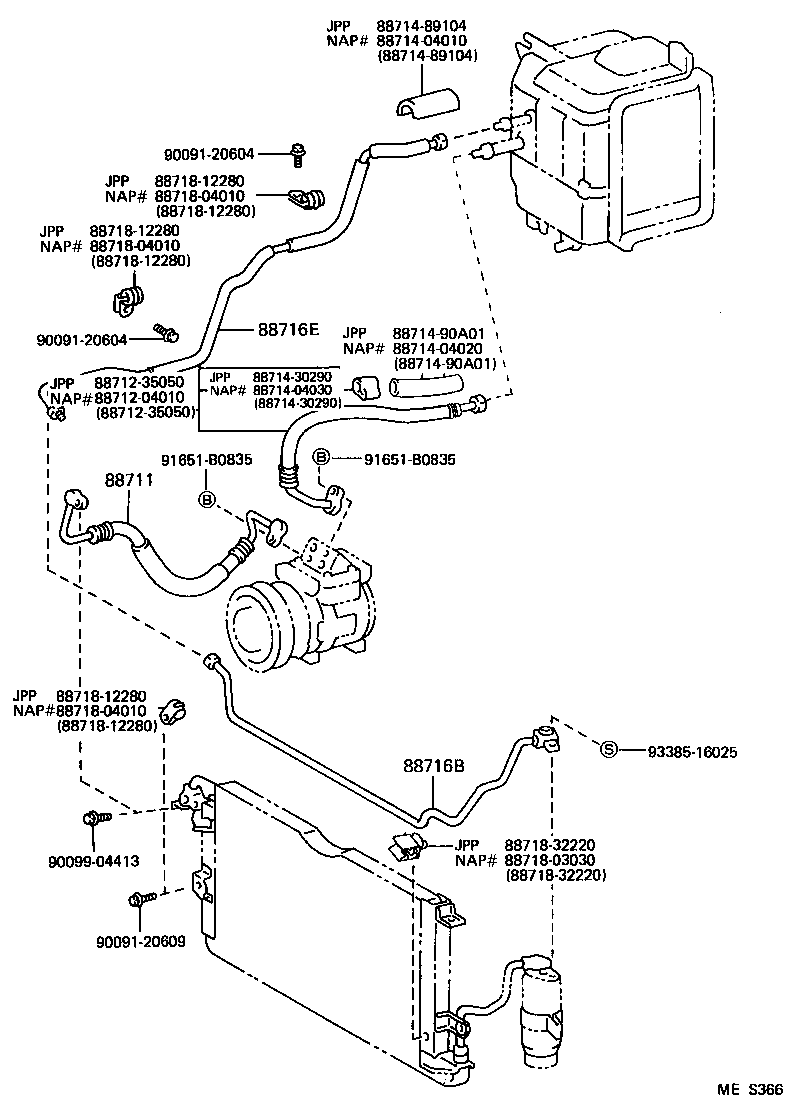

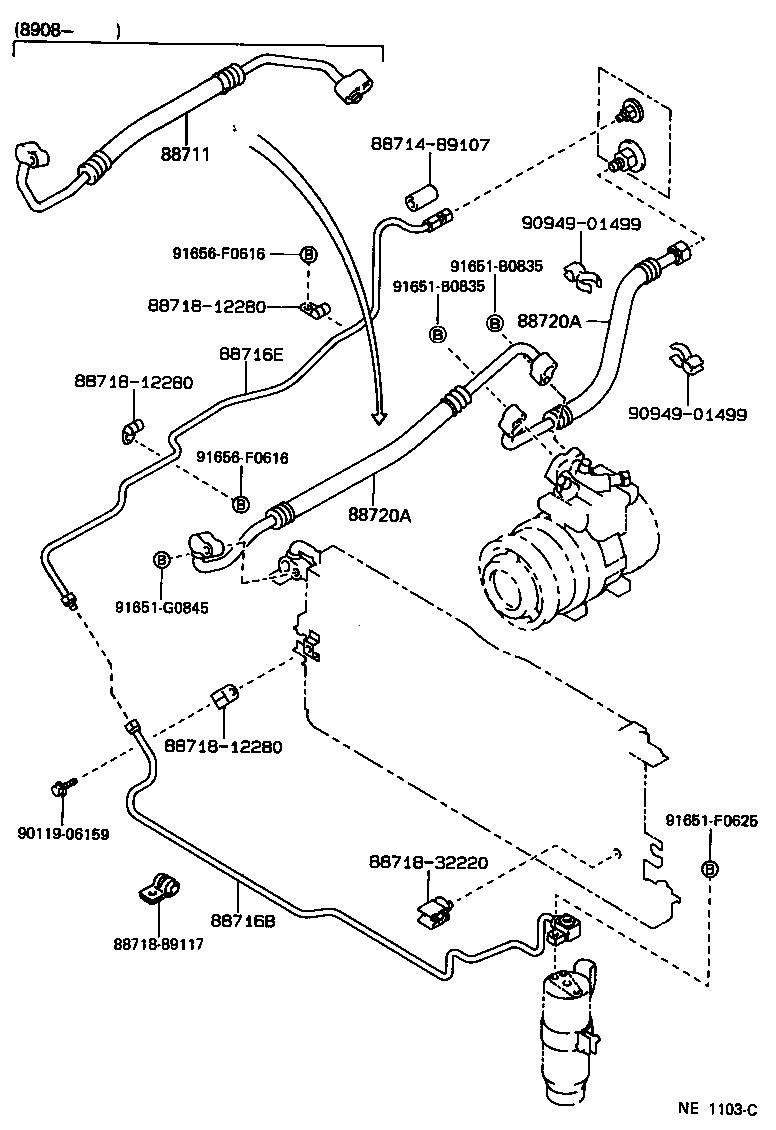

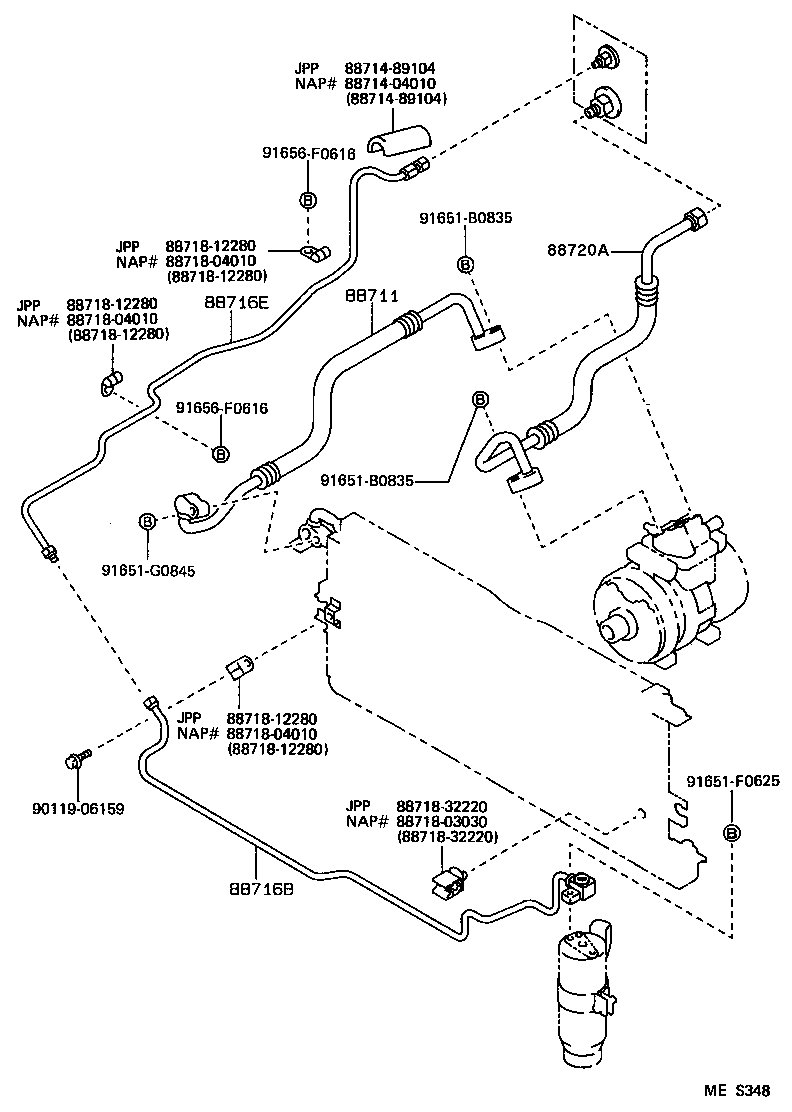

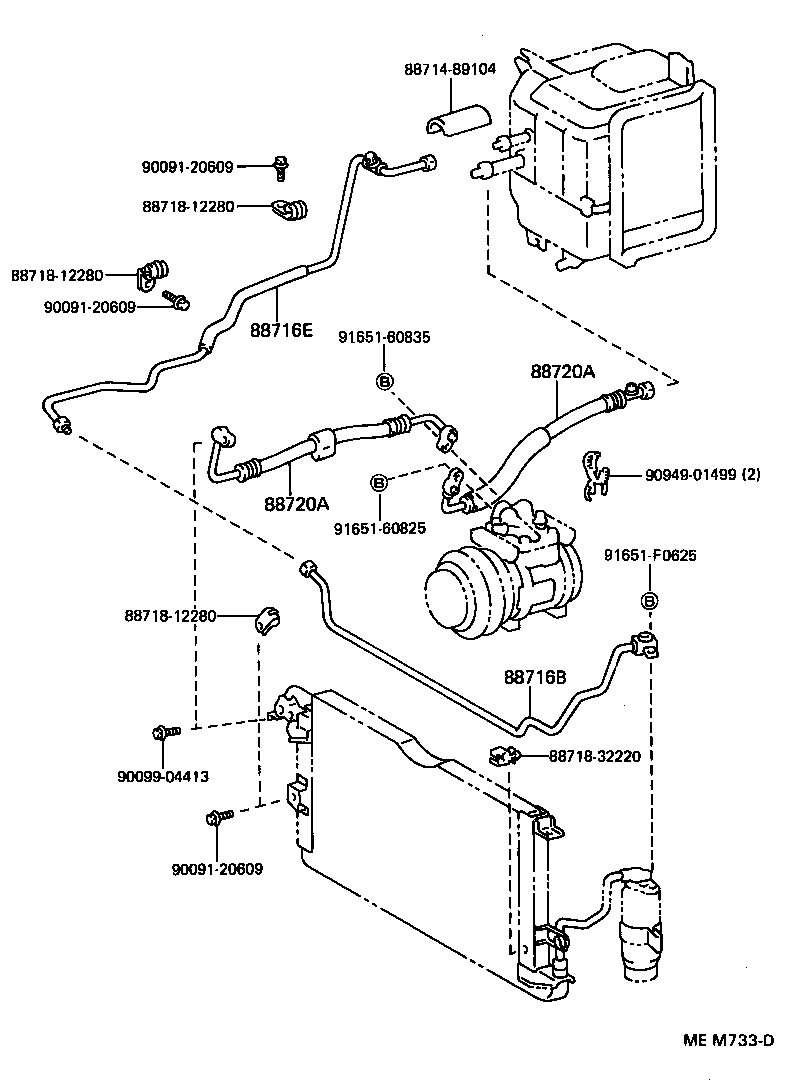

Figure NE1094D NE1094D 1988-08 → — Figure MES347C MES347C 1992-02 → — Figure NE1099C NE1099C 1988-08 → — Figure MES348 MES348 1992-02 → — Figure MEM731A MEM731A 1988-08 → — Figure MES366 MES366 1992-02 → — Figure NE1103C NE1103C 1988-08 → — Figure MEM733D MEM733D 1988-08 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88596C Plate, Caution, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88720A Hose & Accessory, Air Conditioner
88723B Label, Cooler Service Caution
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
88891G Packing G (FOR COOLER)
88892C Plate, Condenser, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
