Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

30 part groups · 2 illustrations

Illustrations

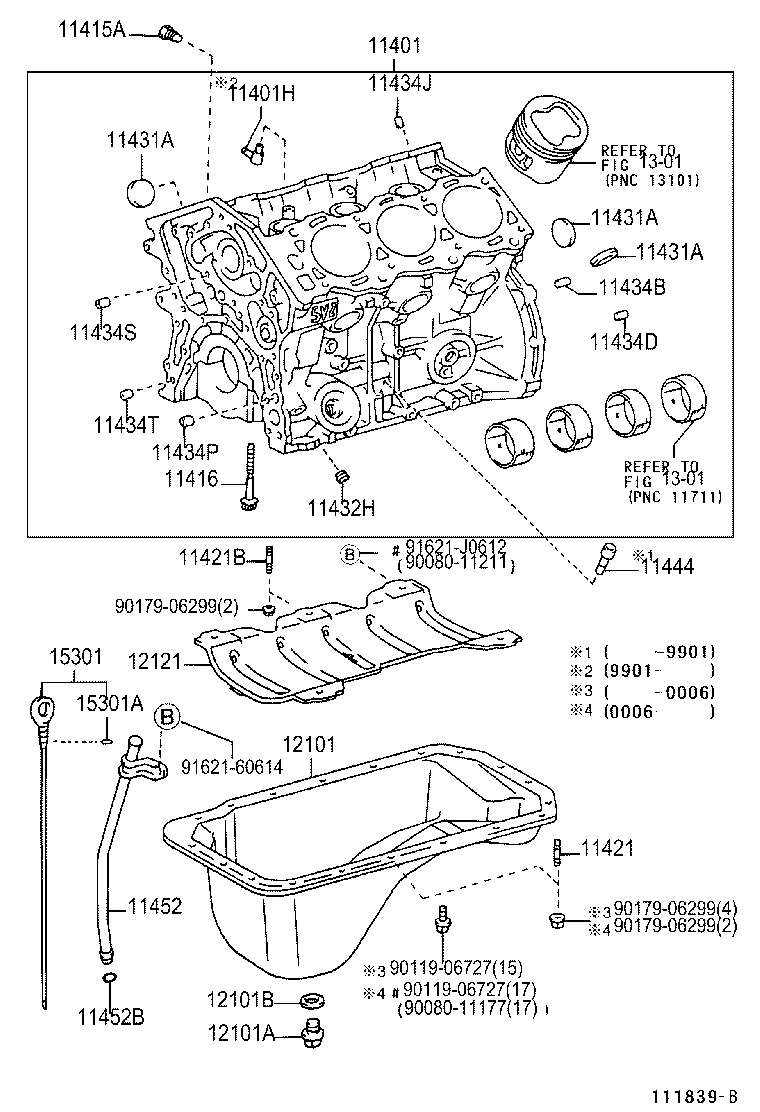

Figure 112242 112242 1995-01 → — Figure 111839B 111839B 1995-01 → 2004-09

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401H Union(FOR CYLINDER BLOCK LLC DRAIN)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11421B Bolt, Stud(FOR OIL PAN BAFFLE PLATE)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432H Plug, W/Head Taper Screw, NO.5
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434P Pin, Straight(FOR OIL PUMP SET)
11434S Pin, Ring(FOR WATER PUMP SET)
11434T Pin, Ring(FOR TIMING BELT IDLER BRACKET SET)
11444 Plug, Hole
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11452C Union(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
