Toyota Tacoma
1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States
Discontinued model
Data version 2005-04

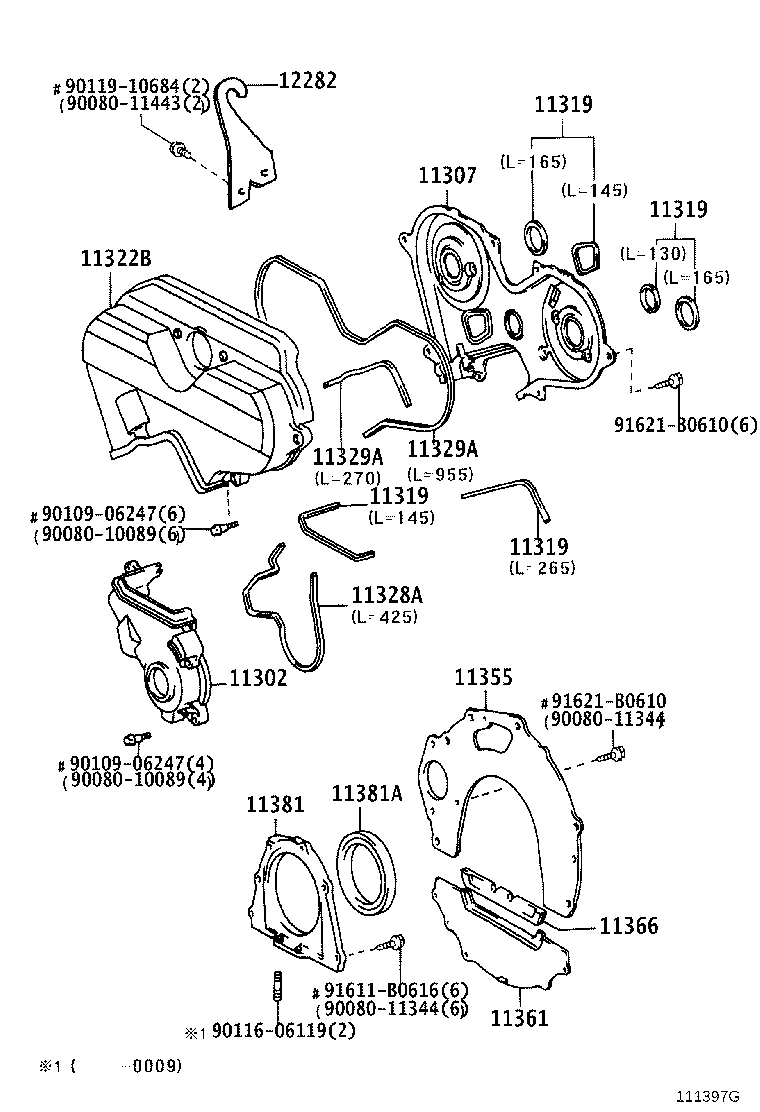

Timing Gear Cover & Rear End Plate
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11307 | Cover, Sub-assy, Timing Belt, NO.3 |
| 11319 | Gasket, Timing Belt Cover, NO.3 |
| 11322B | Cover, Timing Belt, NO.2 |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11328A | Gasket, Timing Belt Cover, NO.1 |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11329A | Gasket, Timing Belt OR Chain Cover, NO.2 |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11361 | Cover, Flywheel Housing Under |
| 11366 | Seal, Flywheel Housing Under Cover Dust |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 12282 | Hanger, Engine, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
