Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

53 part groups · 8 illustrations

Illustrations

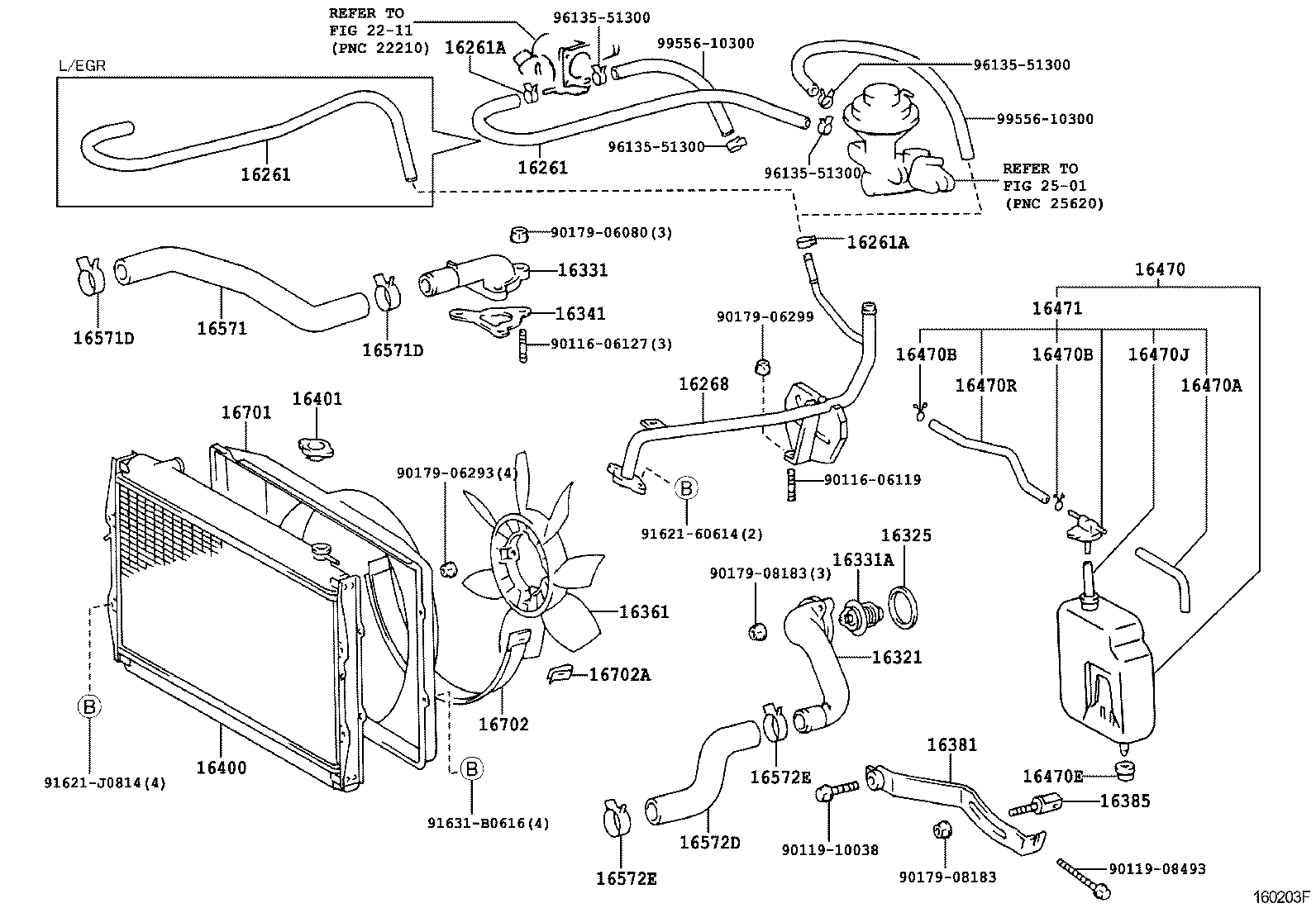

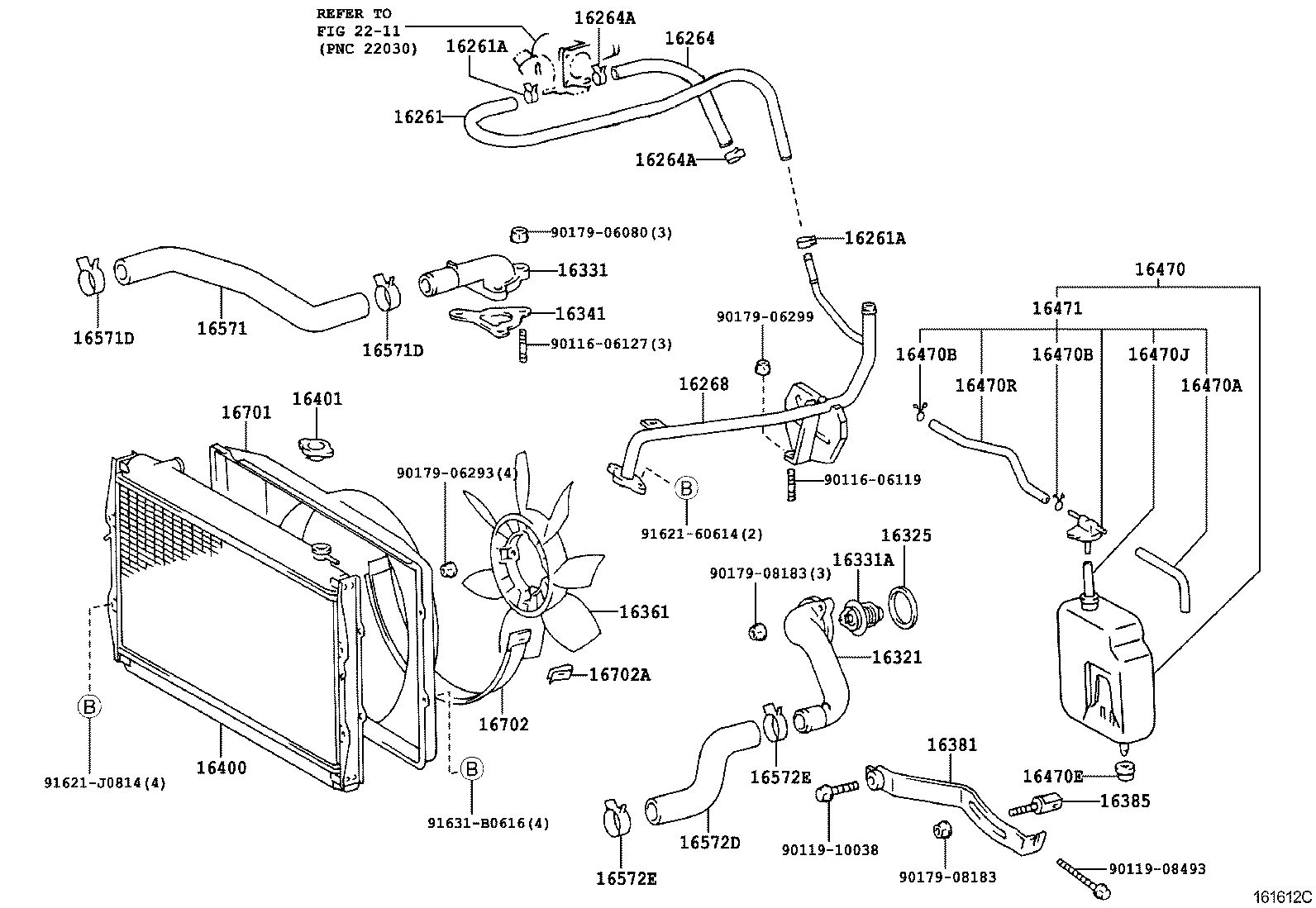

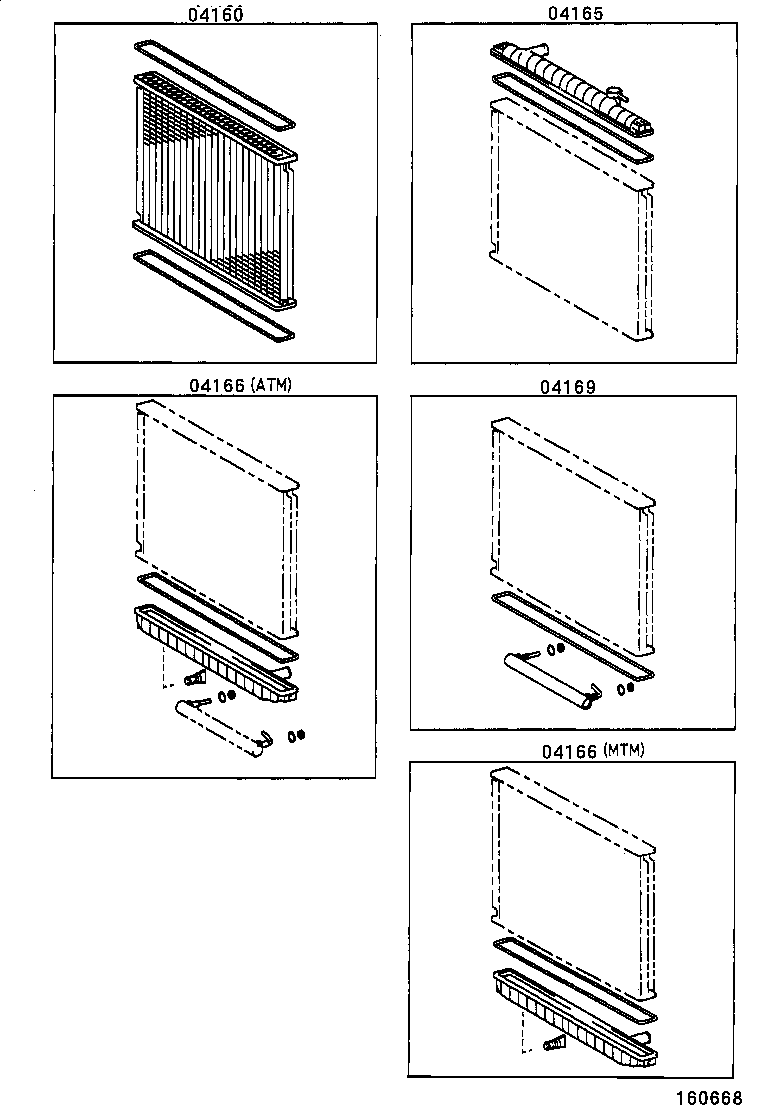

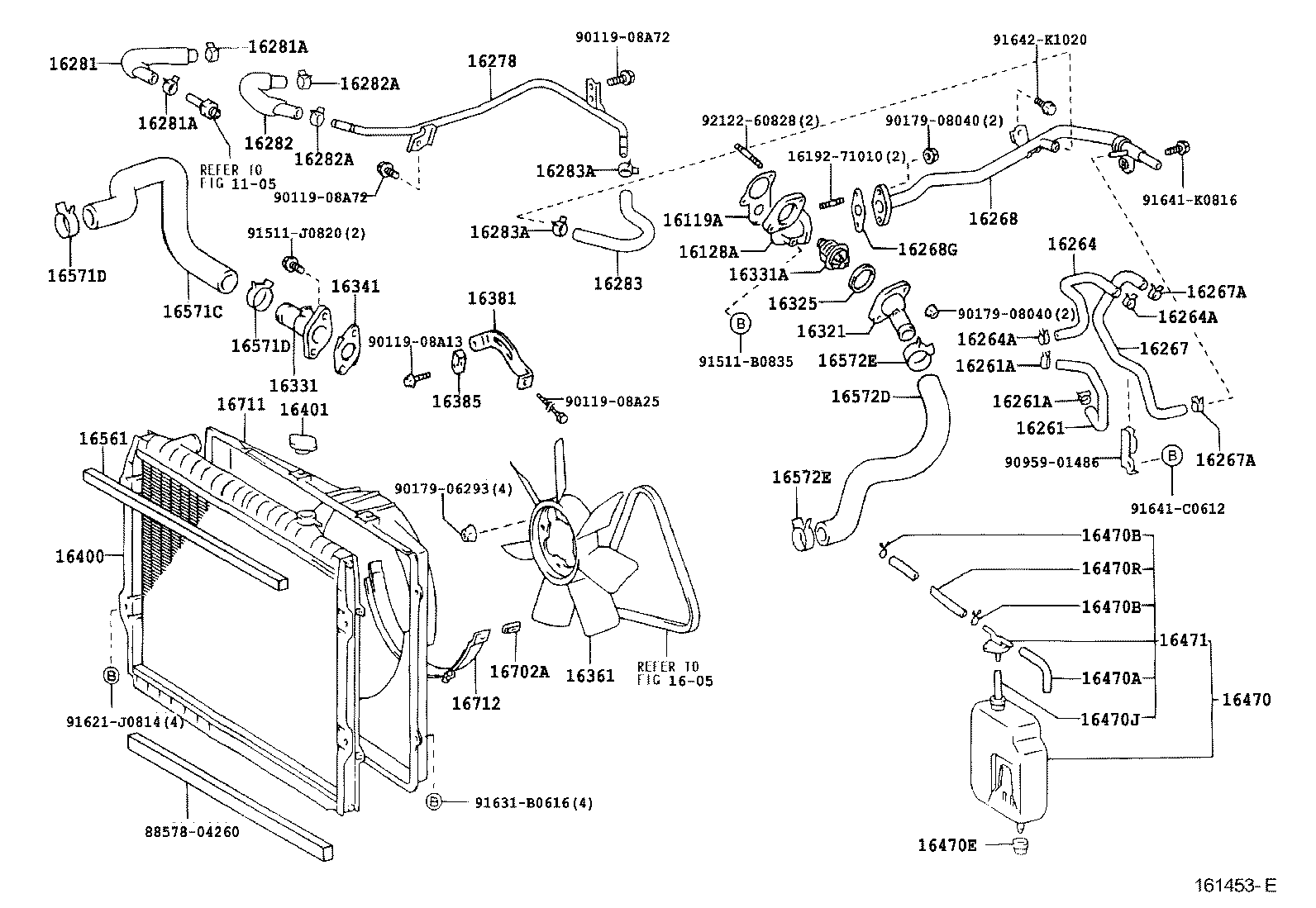

Figure 160185E 160185E 1995-01 → 2001-09 Figure 161453E 161453E 2001-09 → — Figure 160979B 160979B 1995-01 → — Figure 160668 160668 1995-01 → — Figure 160203F 160203F 1995-01 → 2002-09 Figure 161612C 161612C 2002-09 → 2004-09 Figure 160979C 160979C 1995-01 → 2004-09 Figure 160668 160668 1995-01 → 2004-09

Part groups

PNCDescription
04160 Core Kit, Radiator
04165 Tank Kit, Radiator, Upper
04166 Tank Kit, Radiator, Lower
04169 Cooler Kit, Oil(FOR ATM)
16119A Gasket, Thermostat Guide
16128A Plate, Water Pump Thermostat Guide
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16341 Gasket, Water Outlet
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400A Cock Sub-assy, Radiator Drain
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470E Grommet, Radiator Reserve Tank Hose
16470J Hose, NO.3(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16561 Seal, Radiator TO Support, NO.1
16571 Hose, Radiator, Inlet
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16701 Shroud Sub-assy, Fan
16702 Shroud Sub-assy, Fan, NO.2
16702A Clip(FOR FAN SHROUD NO.2)
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
