Toyota Tacoma
1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States
Discontinued model
Data version 2005-04
Manifold

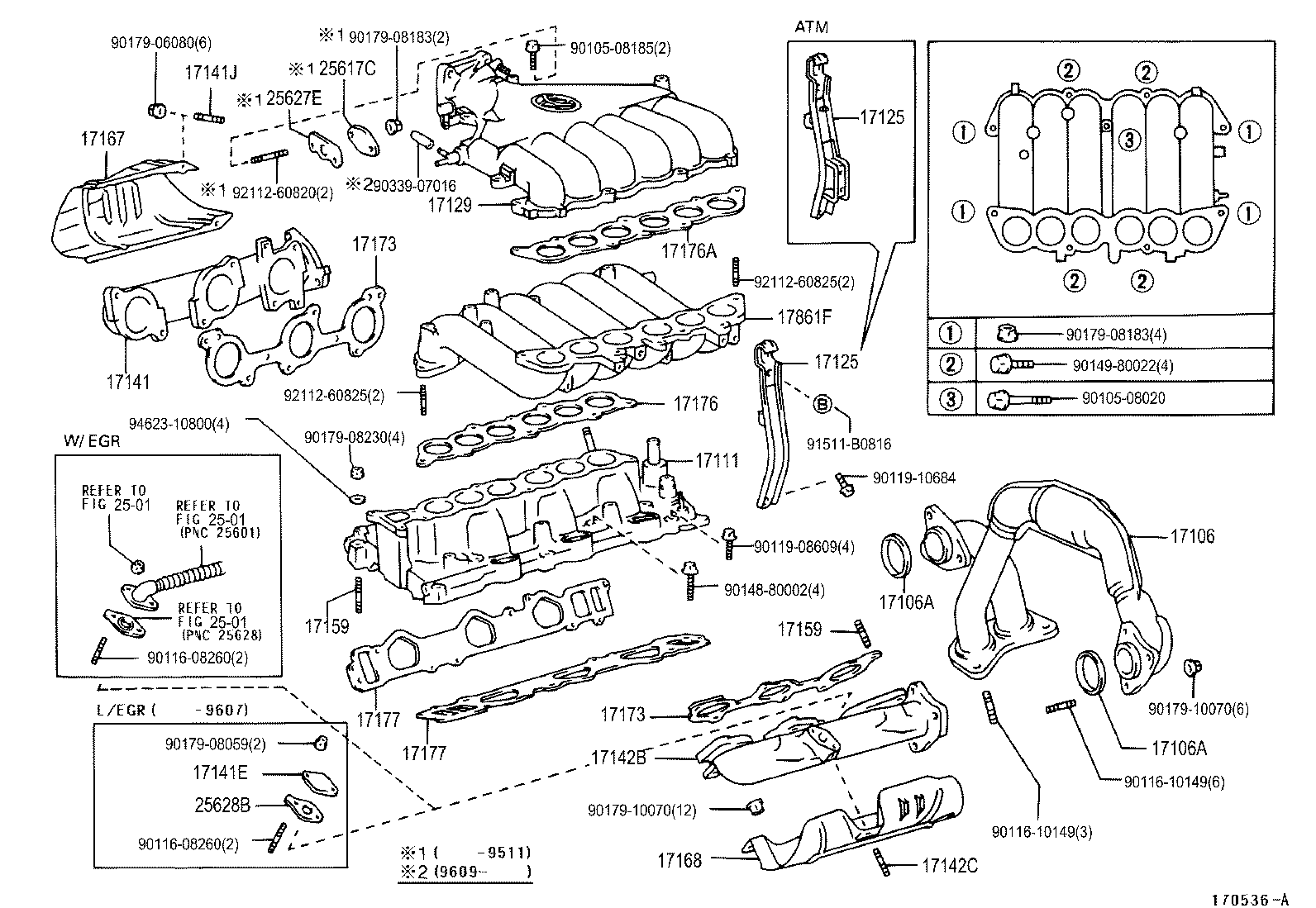

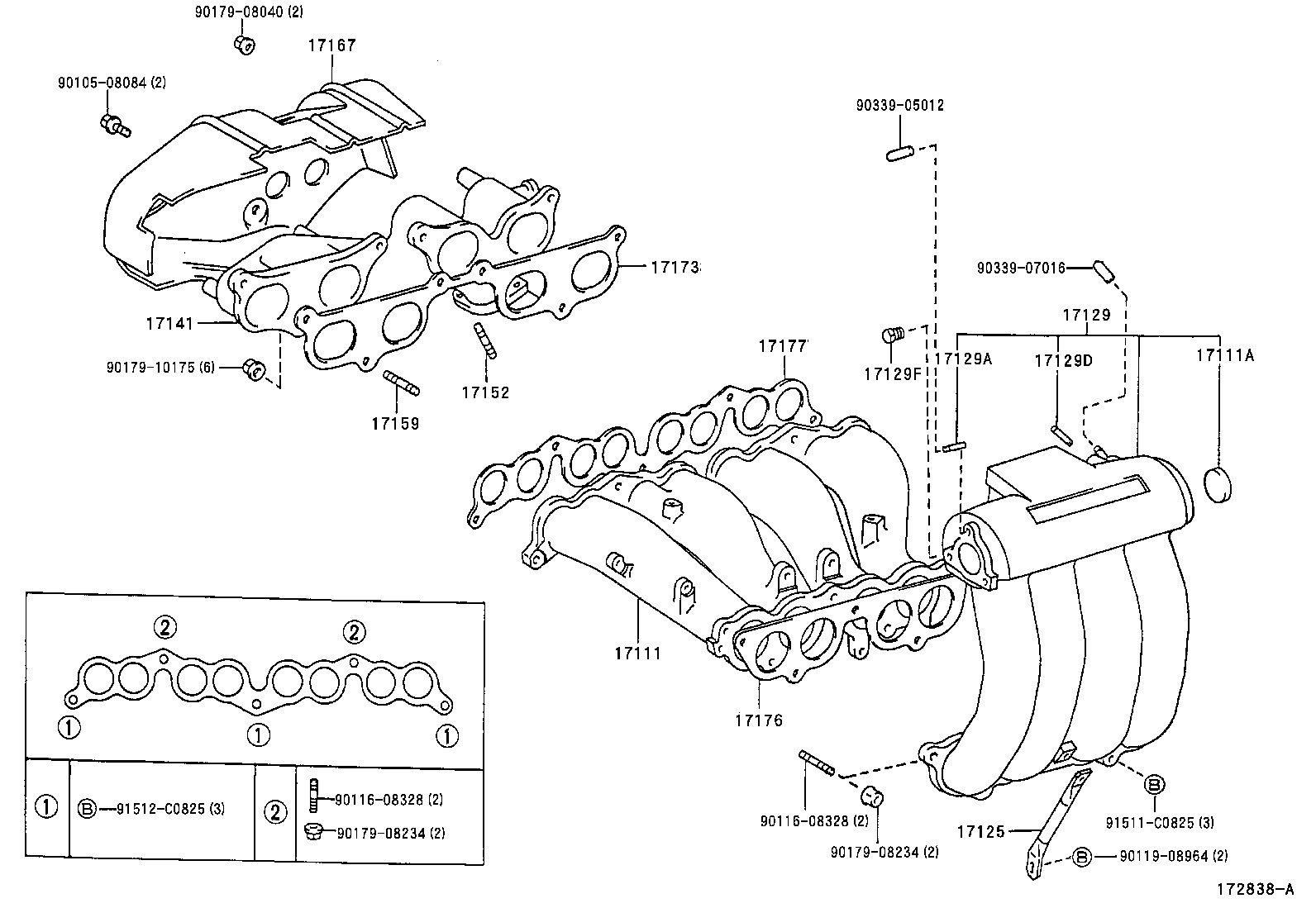

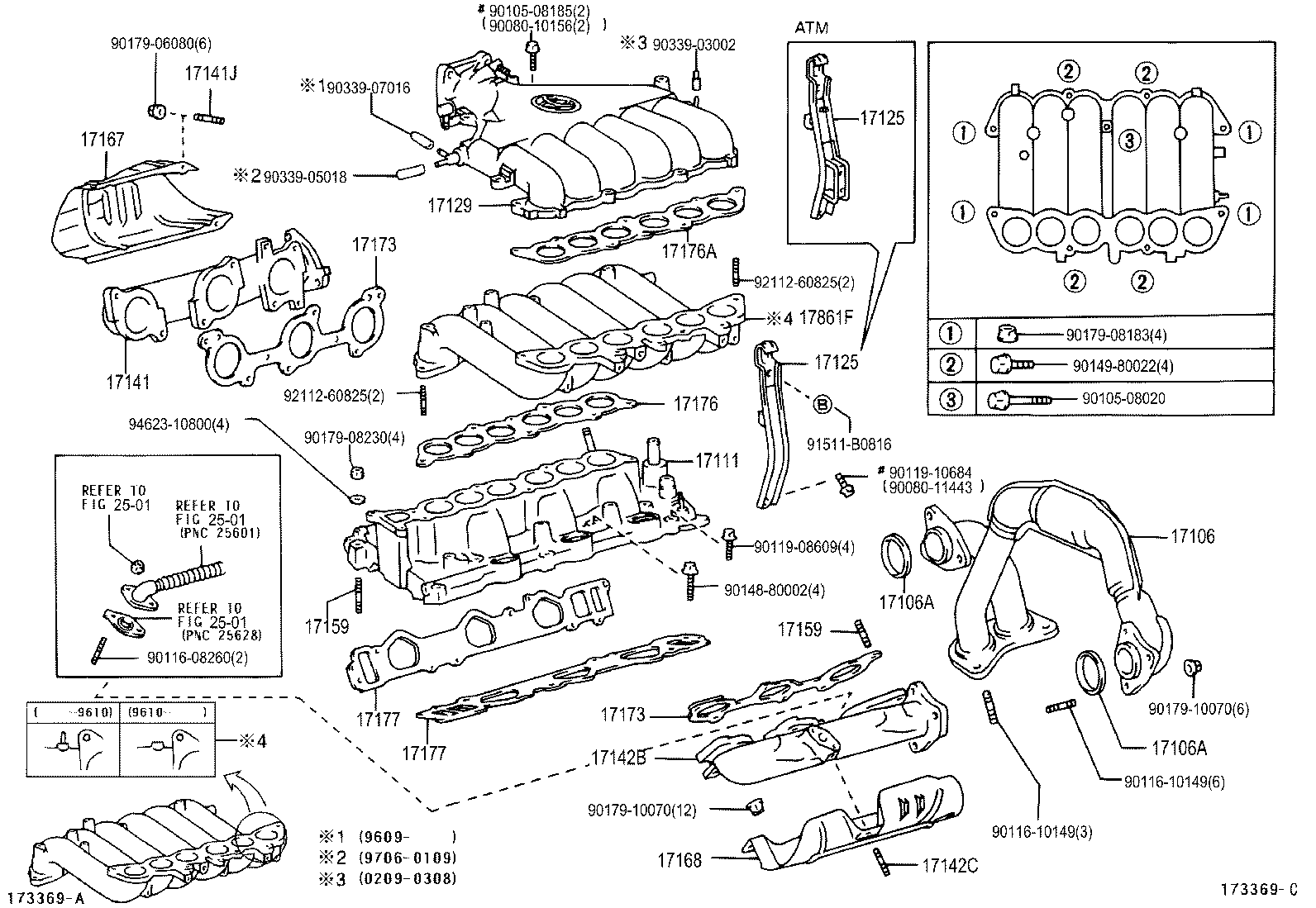

26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17106 | Pipe Sub-assy, Exhaust Crossover |
| 17106A | Gasket, Exhaust Pipe |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129D | Union, NO.2 |
| 17129F | Plug, Intake Manifold Suction Hole |
| 17141 | Manifold, Exhaust |
| 17141E | Plate, Exhaust Manifold |
| 17141J | Bolt, Stud(FOR EXHAUST MANIFOLD, RH) |
| 17142B | Manifold, Exhaust, LH |
| 17142C | Bolt, Stud(FOR EXHAUST MANIFOLD, LH) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17176A | Gasket, Air Surge Tank TO Intake Manifold, NO.2 |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17861F | Connector, Intake Air |
| 25617C | Plate, Egr Hole Cover |
| 25627E | Gasket, Egr Valve |
| 25628B | Gasket, Egr Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
