Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 6 illustrations

Illustrations

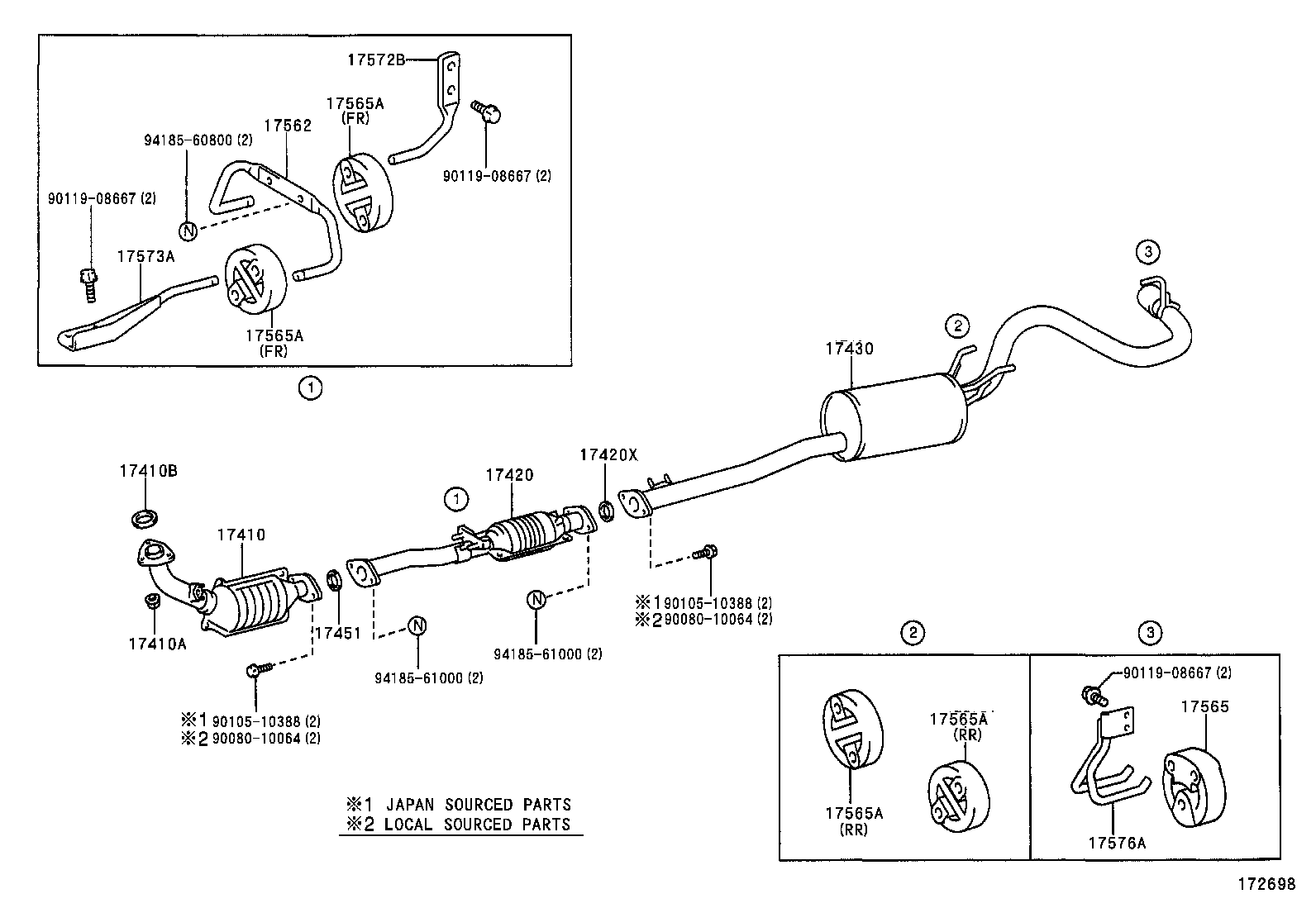

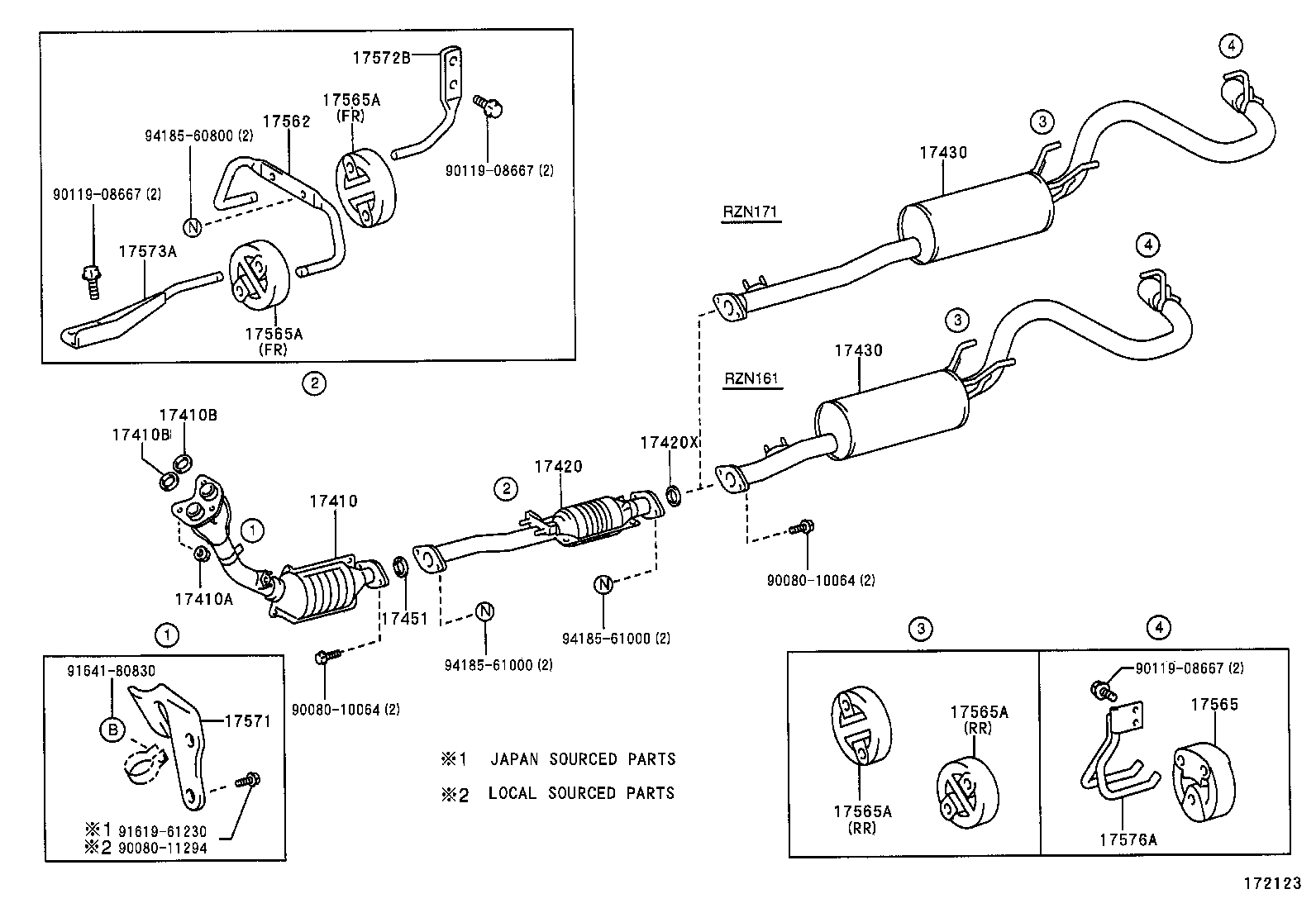

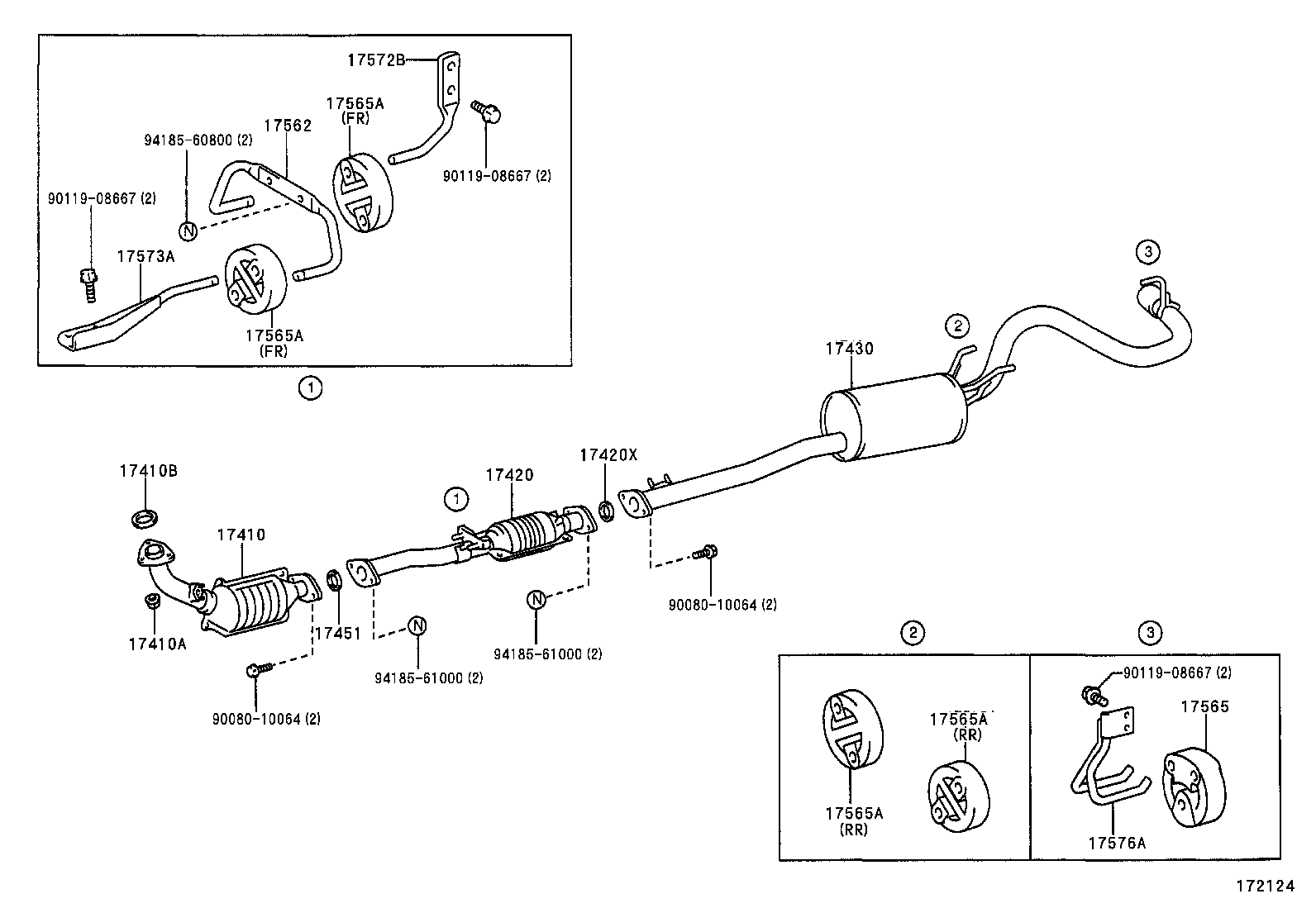

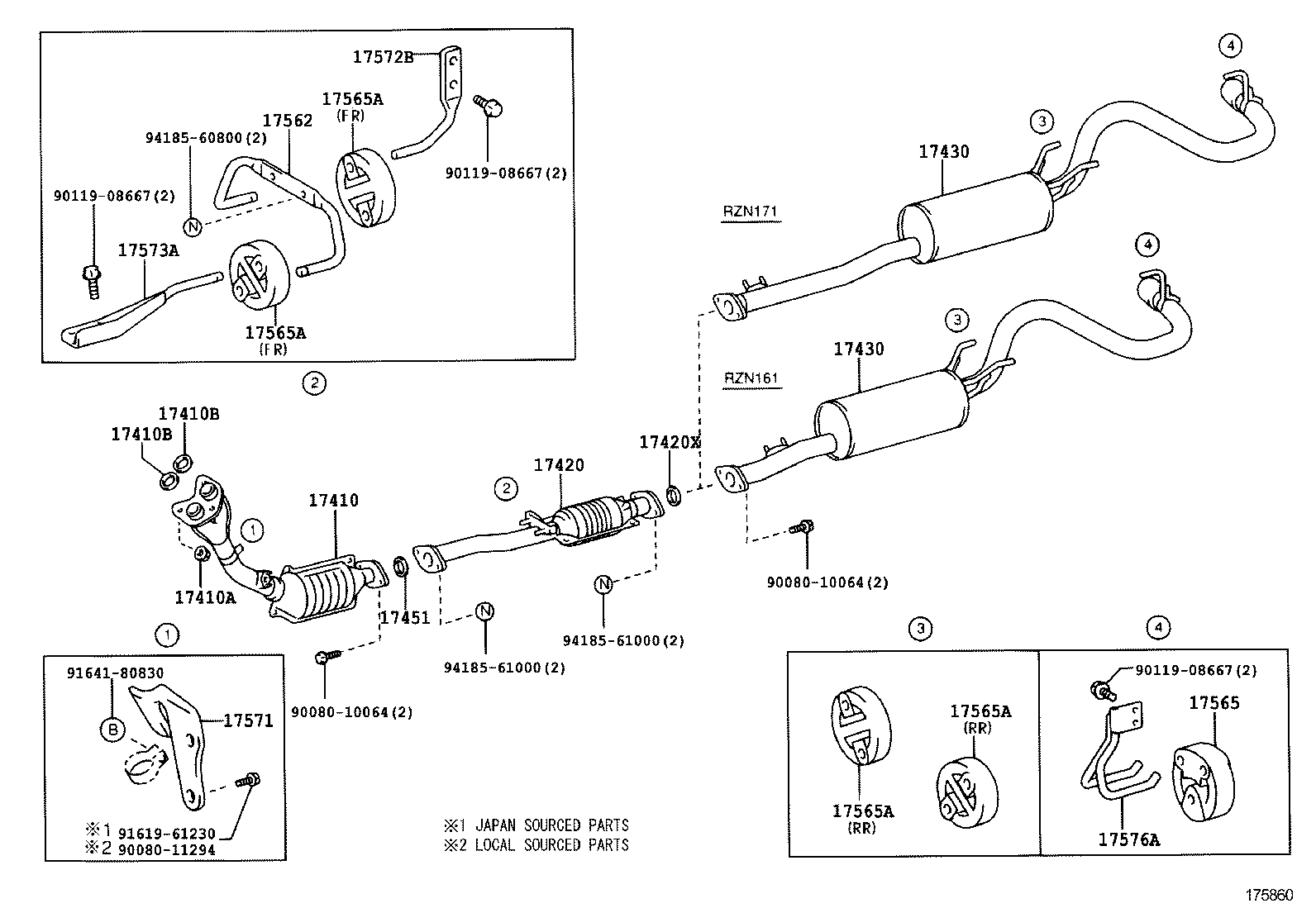

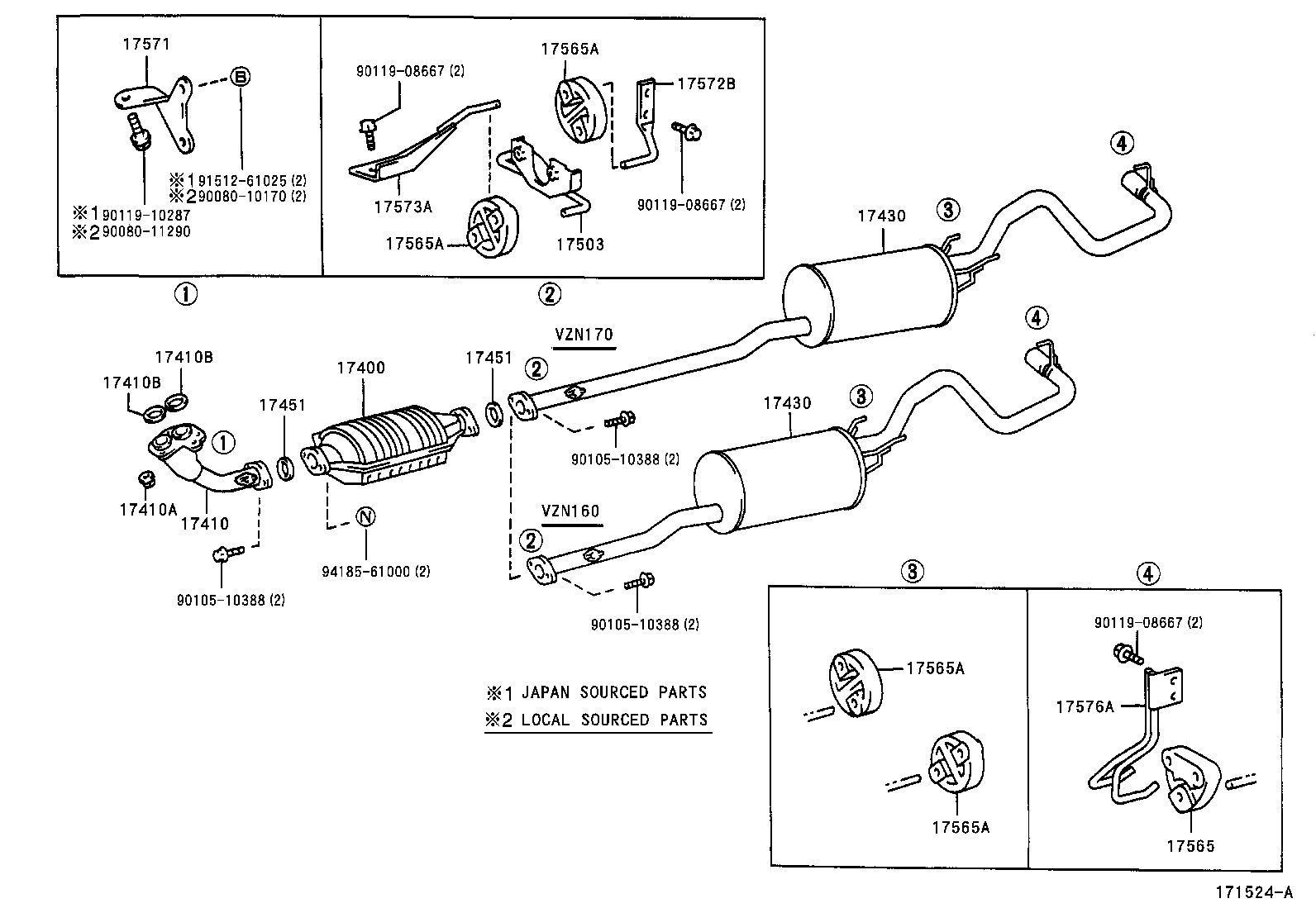

Figure 170468B 170468B 1995-01 → 2000-09 Figure 172123 172123 1999-08 → 2000-09 Figure 175860 175860 2000-09 → — Figure 171524A 171524A 1995-01 → 2000-09 Figure 172124 172124 1999-08 → 2000-09 Figure 172698 172698 2000-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17562 Support, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
