Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

48 part groups · 10 illustrations

Illustrations

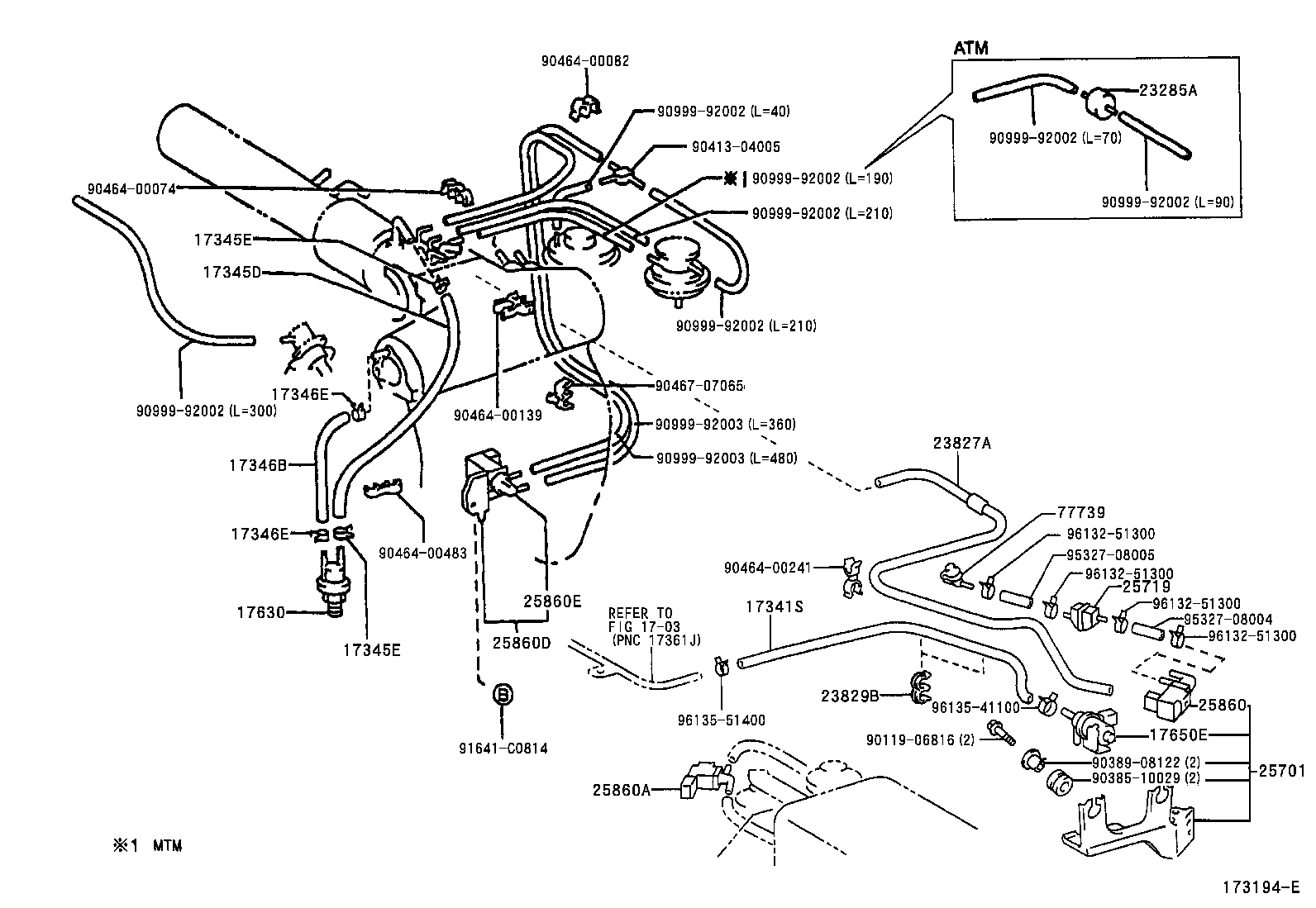

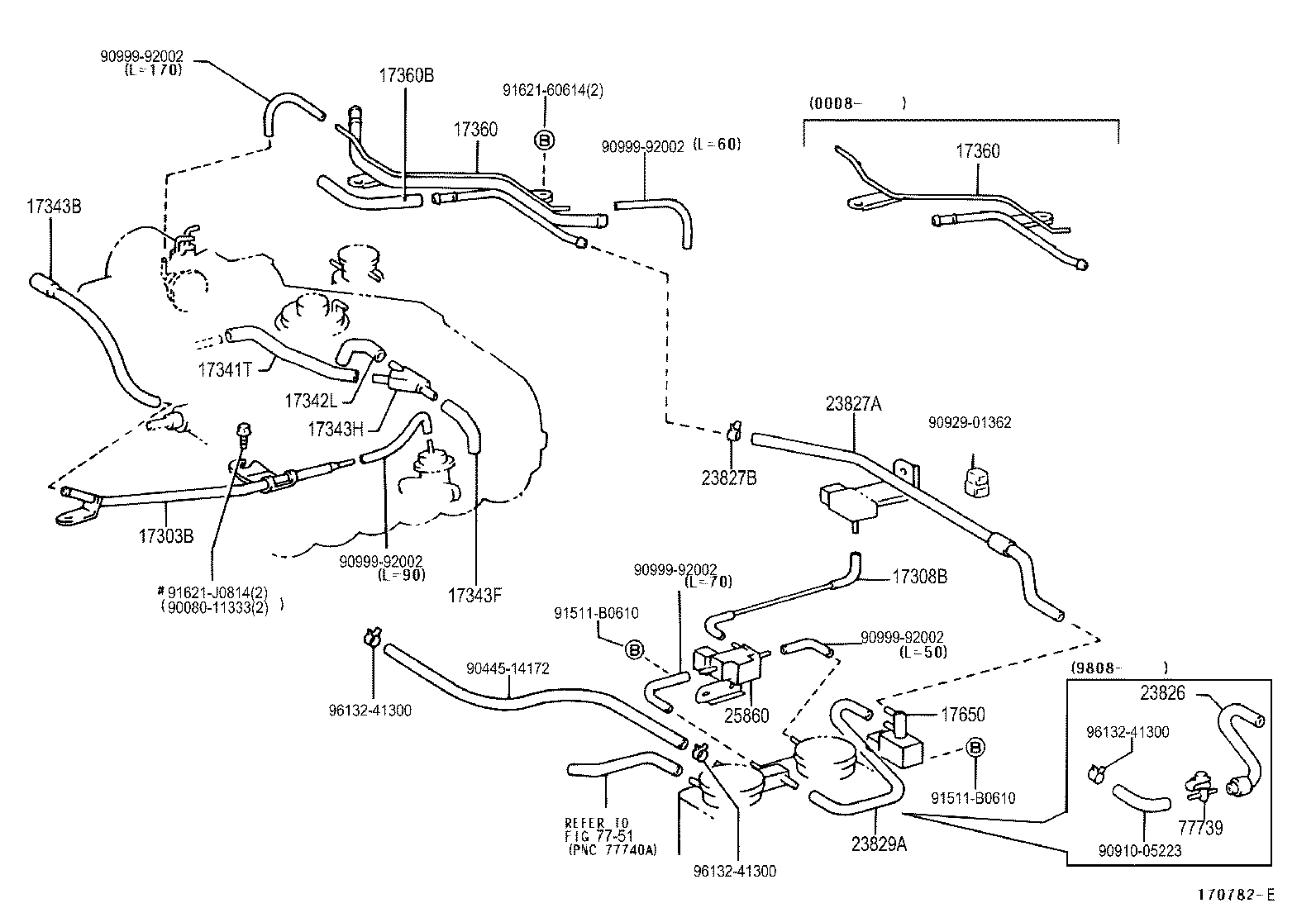

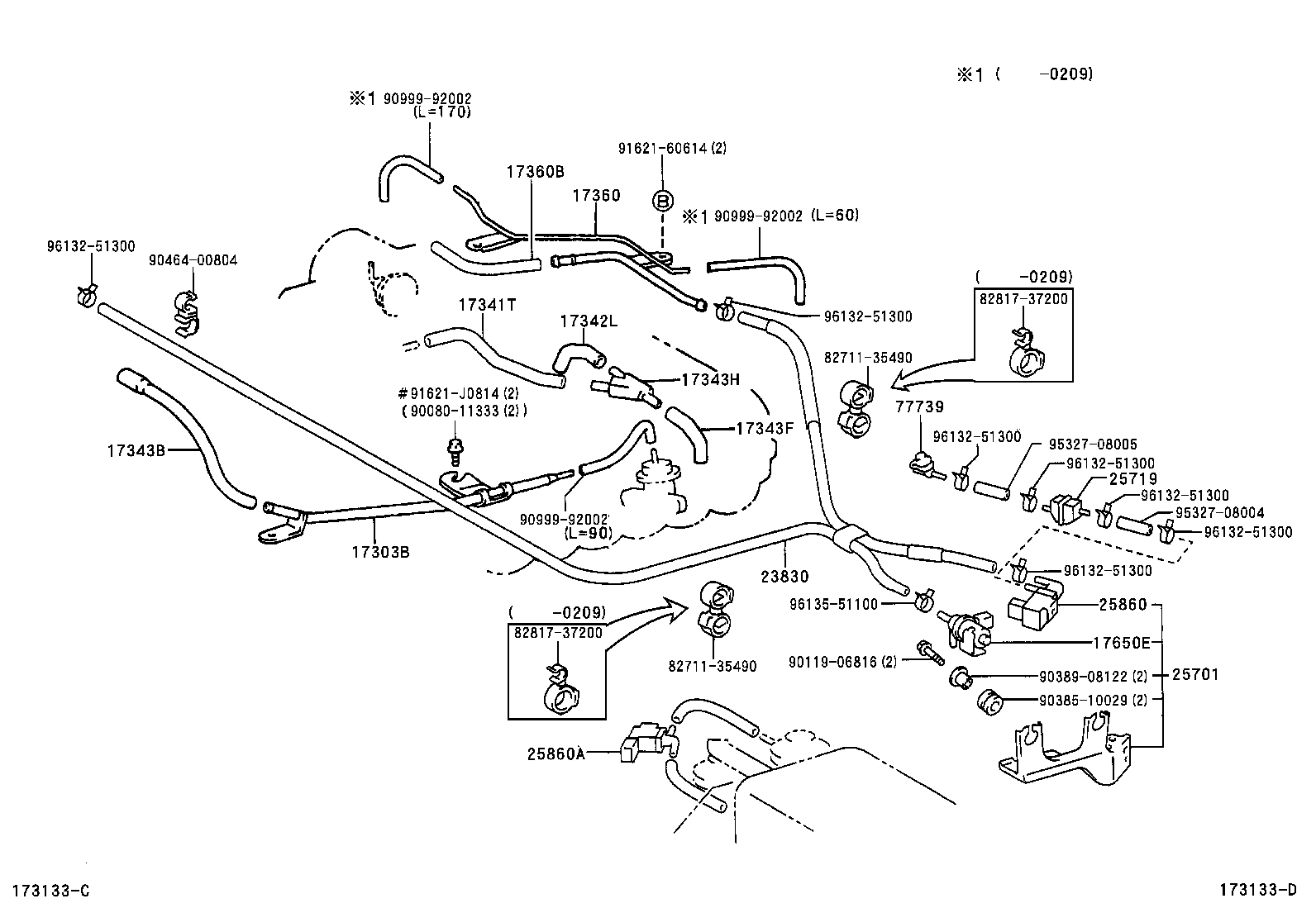

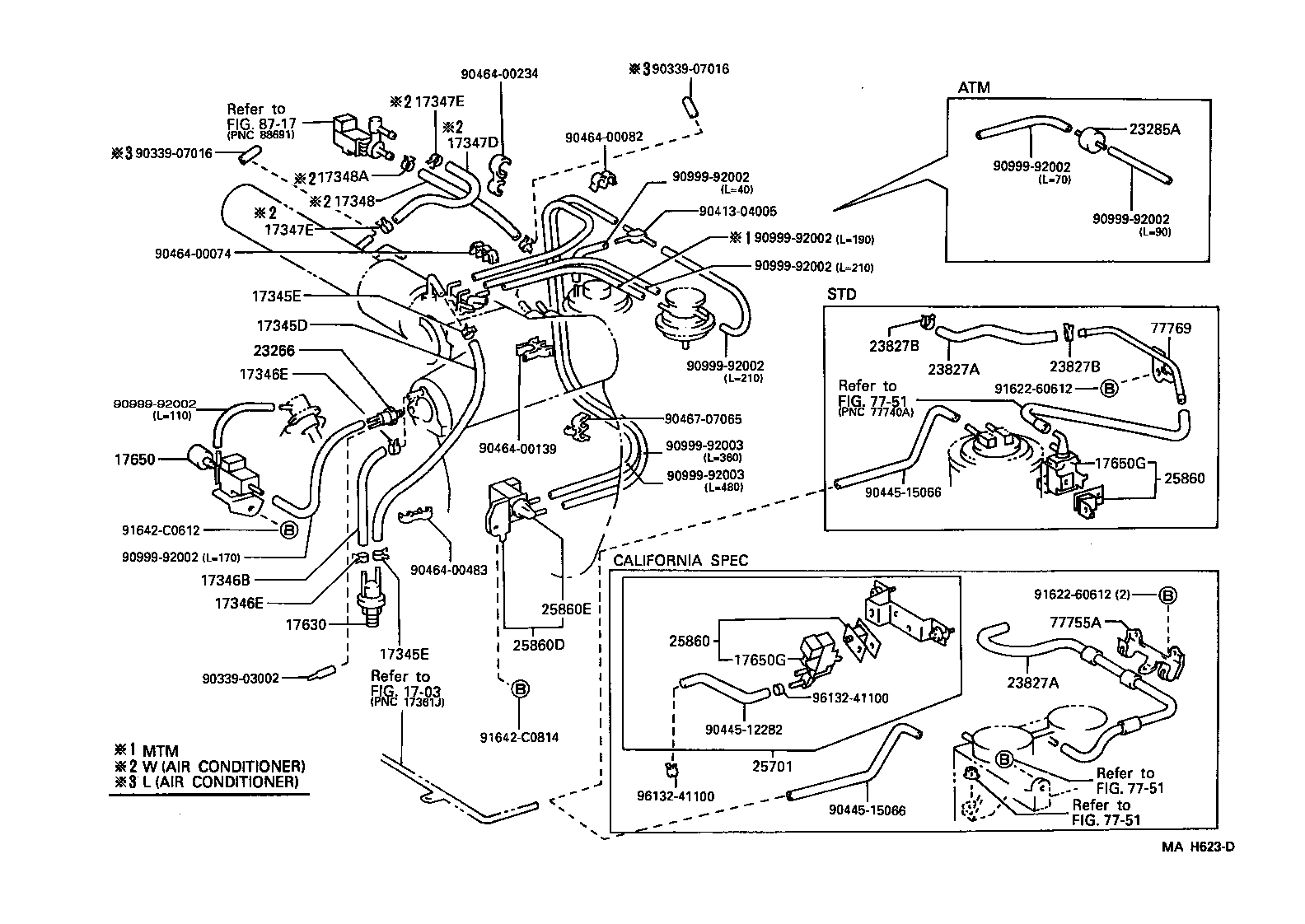

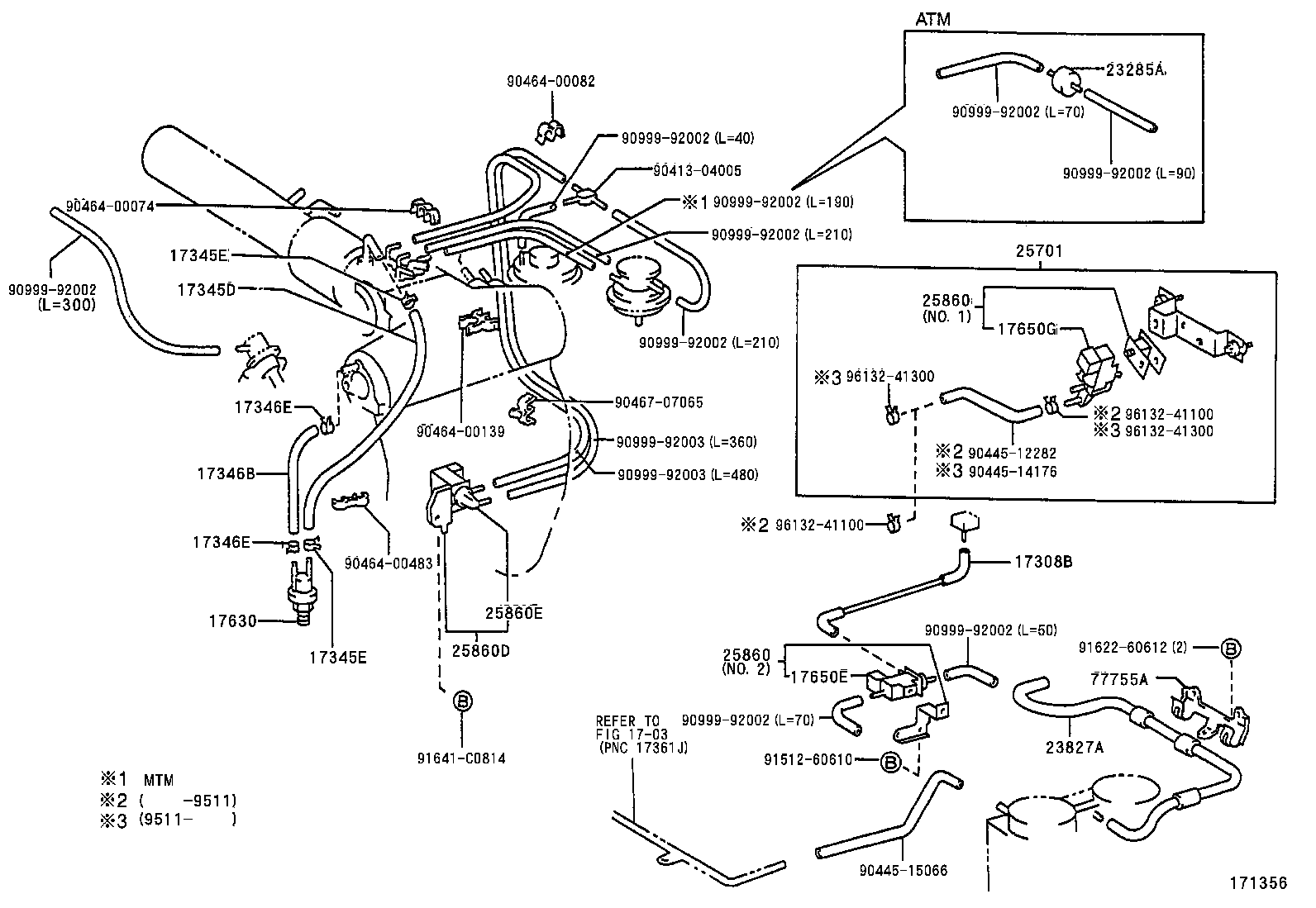

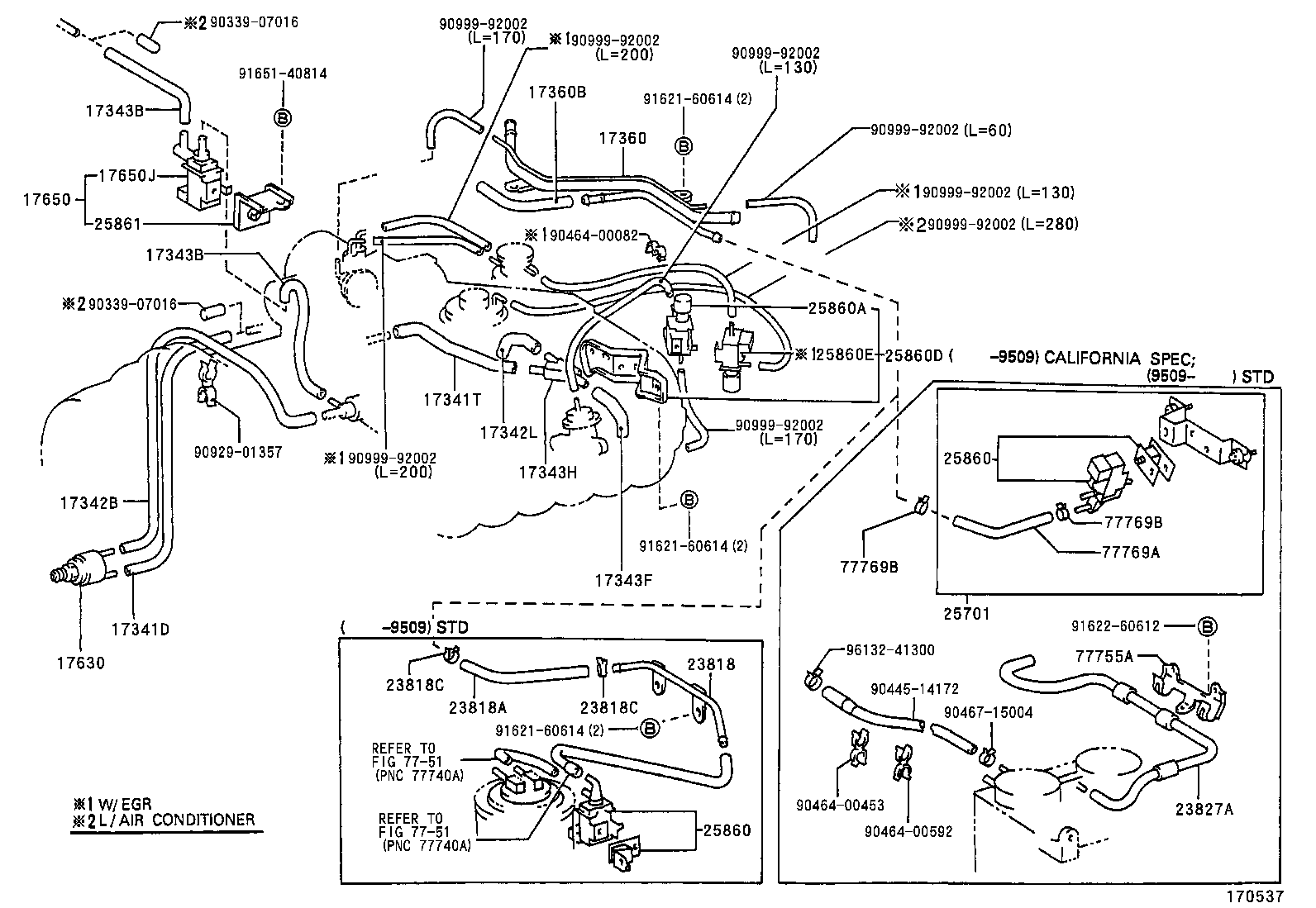

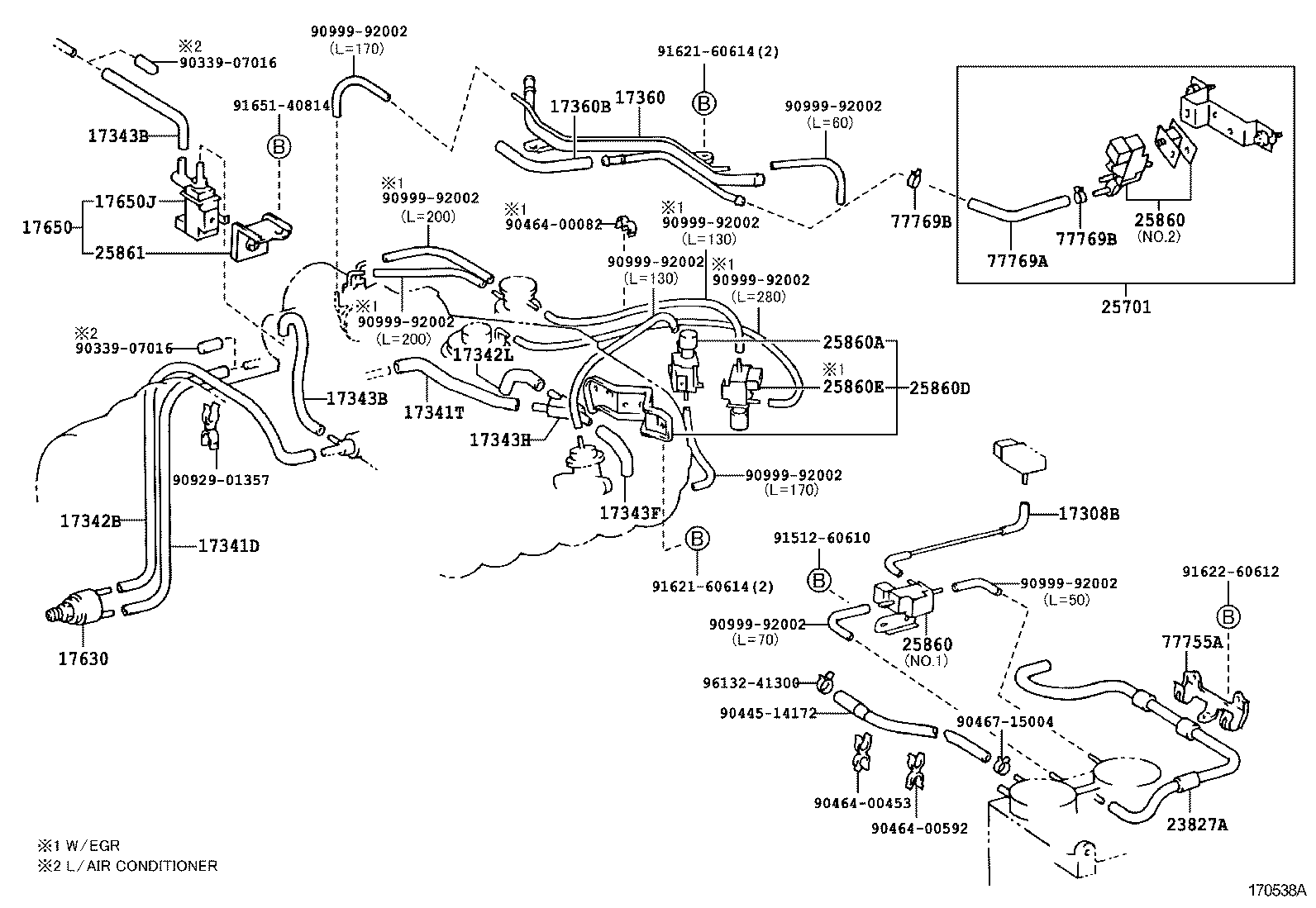

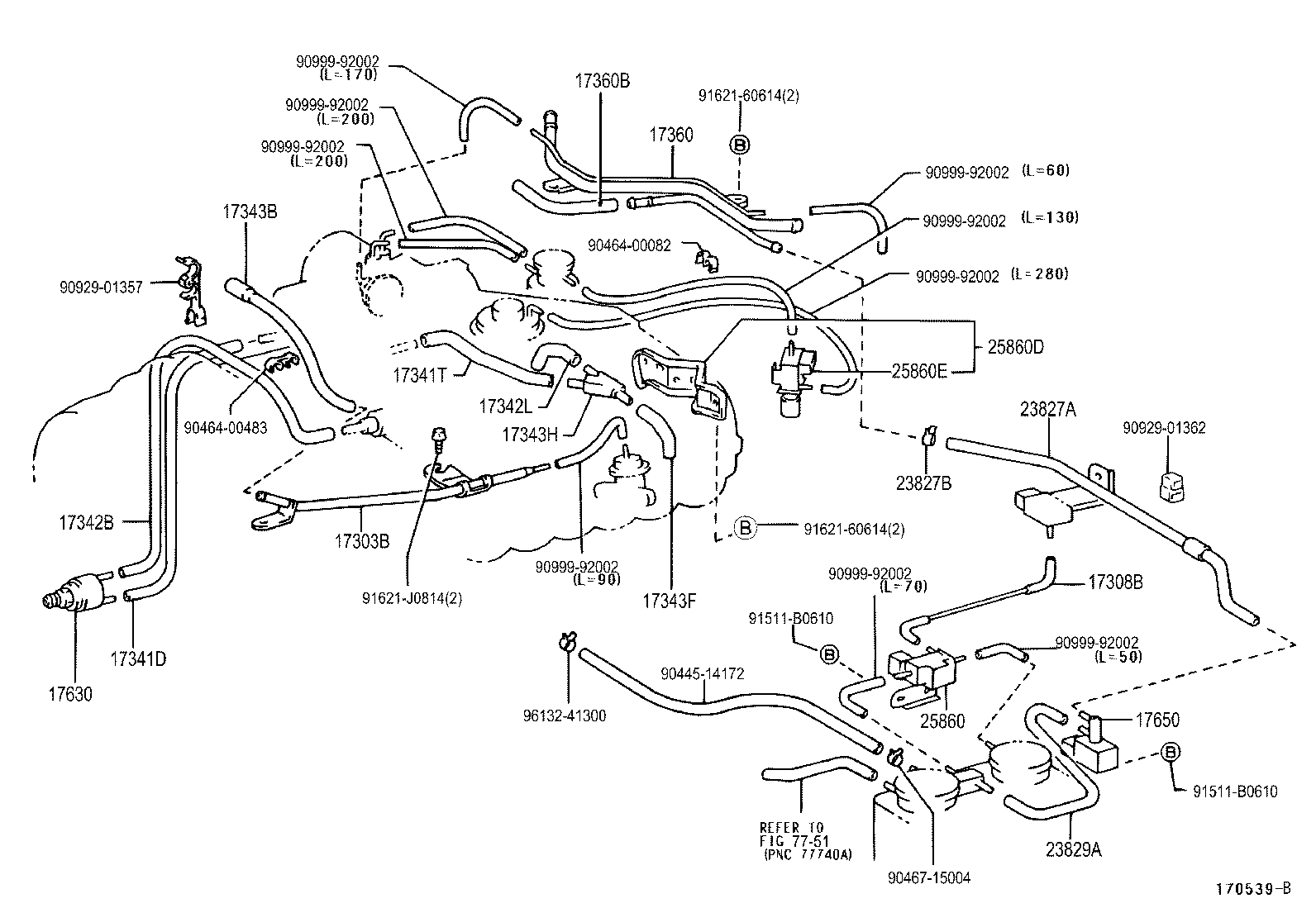

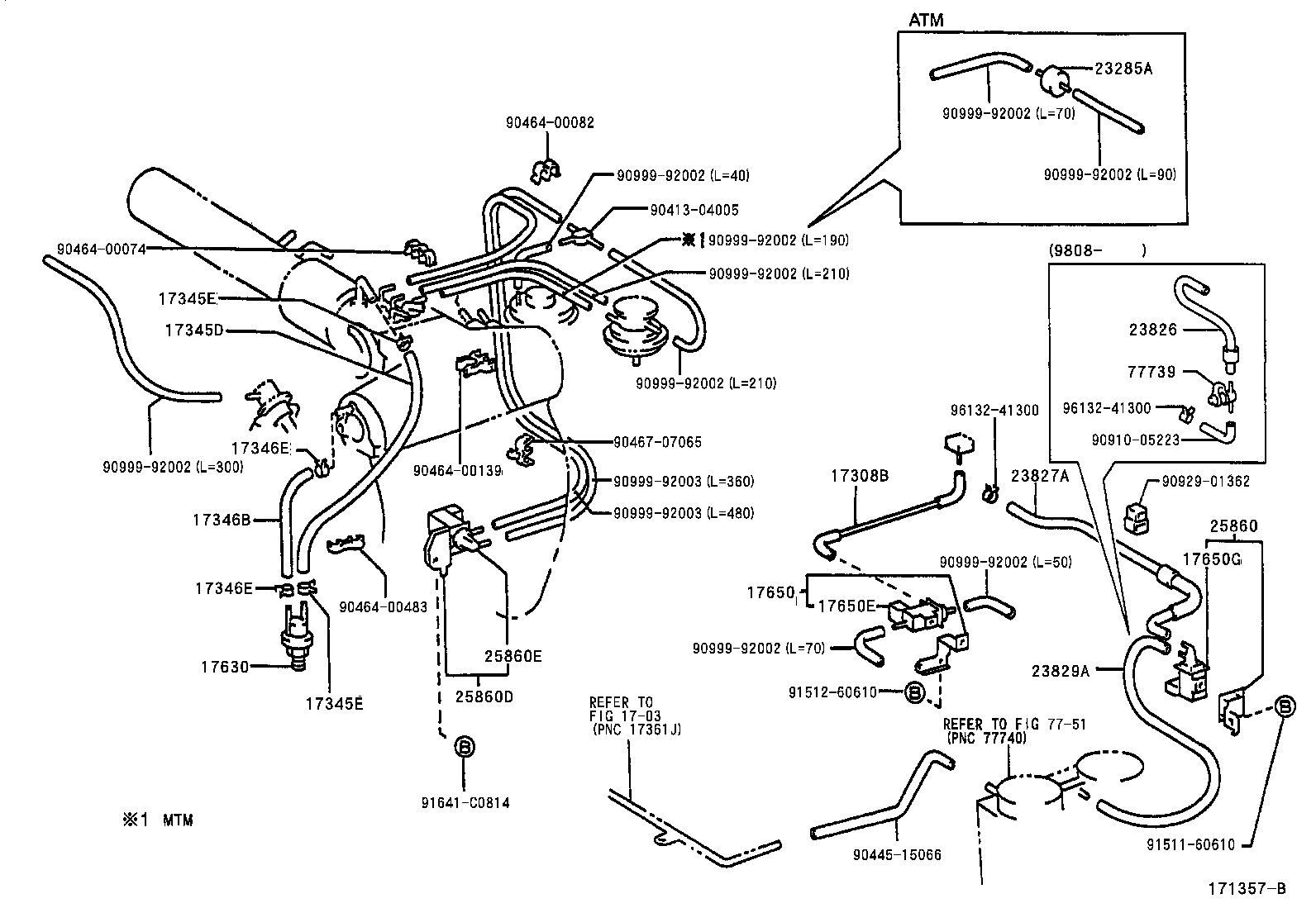

Figure 170021 170021 1995-01 → — Figure MAH623D MAH623D 1995-01 → 1995-09 Figure 171356 171356 1995-09 → 1996-09 Figure 171357B 171357B 1996-09 → 2001-09 Figure 173194E 173194E 2001-09 → — Figure 170537 170537 1995-01 → 1995-09 Figure 170538A 170538A 1995-09 → 1996-09 Figure 170539B 170539B 1996-09 → 1997-06 Figure 170782E 170782E 1997-06 → 2001-09 Figure 173133D 173133D 2001-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308B Hose Sub-assy, Vacuum
17341D Hose, NO.1(FOR IDLE-UP)
17341S Hose, Air
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343F Hose, Air, NO.3
17343H Way, 3(FOR AIR HOSE)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347D Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
17348 Hose, Air, NO.8
17348A Clip(FOR AIR HOSE NO.8)
17360 Tube Assy, Air
17360B Hose(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650J Valve, Solenoid W/Adjust Screw
23266 Filter, Gas, NO.2
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23818A Hose(FOR FUEL VAPOR FEED PIPE)
23818C Clip(FOR FUEL VAPOR FEED HOSE)
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25701 Valve Set, Emission Control
25719 Tank, Vacuum Surge
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
77739 Valve, Evap Service Port
77755A Bracket, Charcoal Canister Outlet Hose
77769 Pipe, Vapor Guide
77769A Hose(FOR VAPOR GUIDE PIPE)
77769B Clip(FOR VAPOR GUIDE PIPE HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
