Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

20 part groups · 5 illustrations

Illustrations

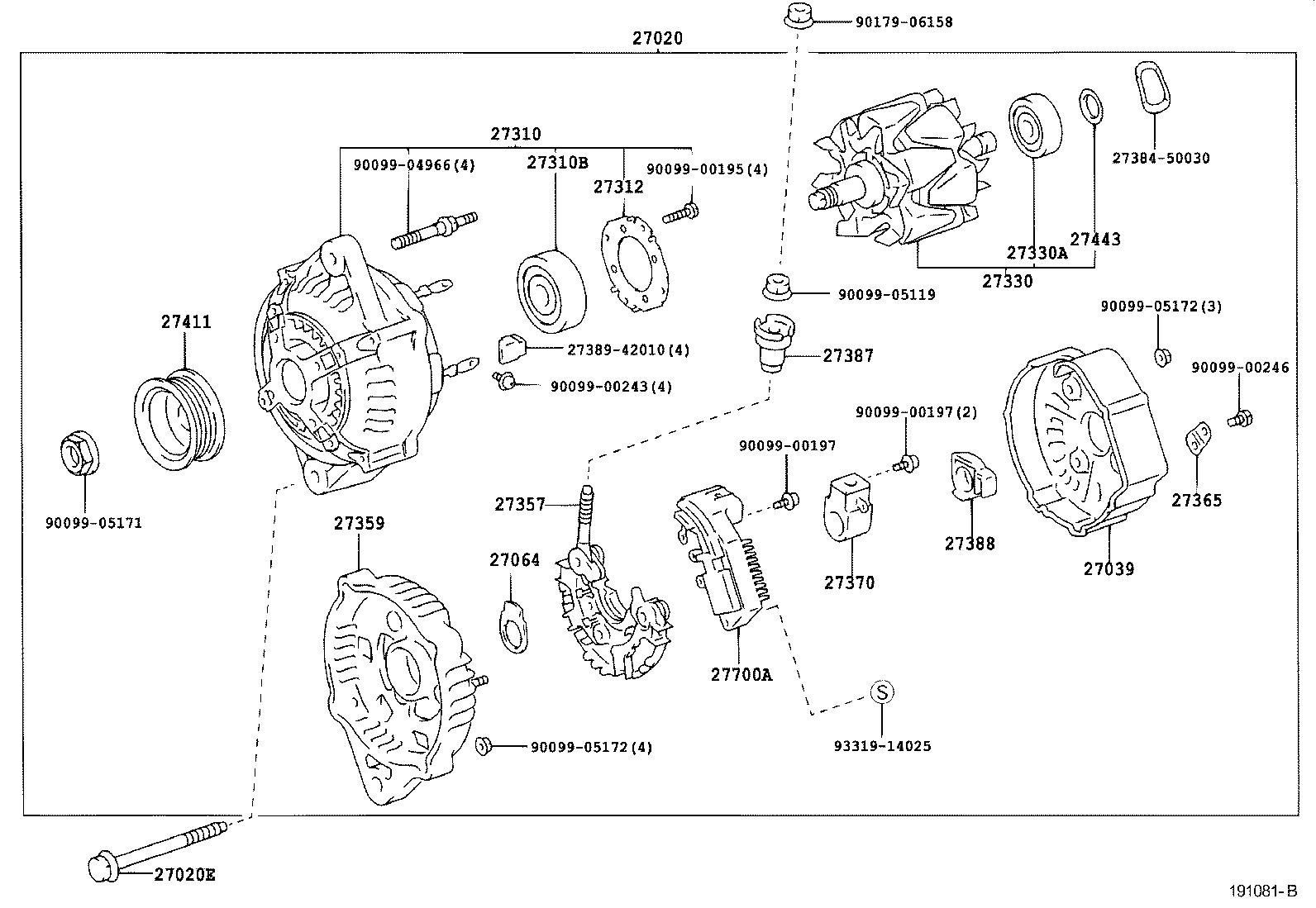

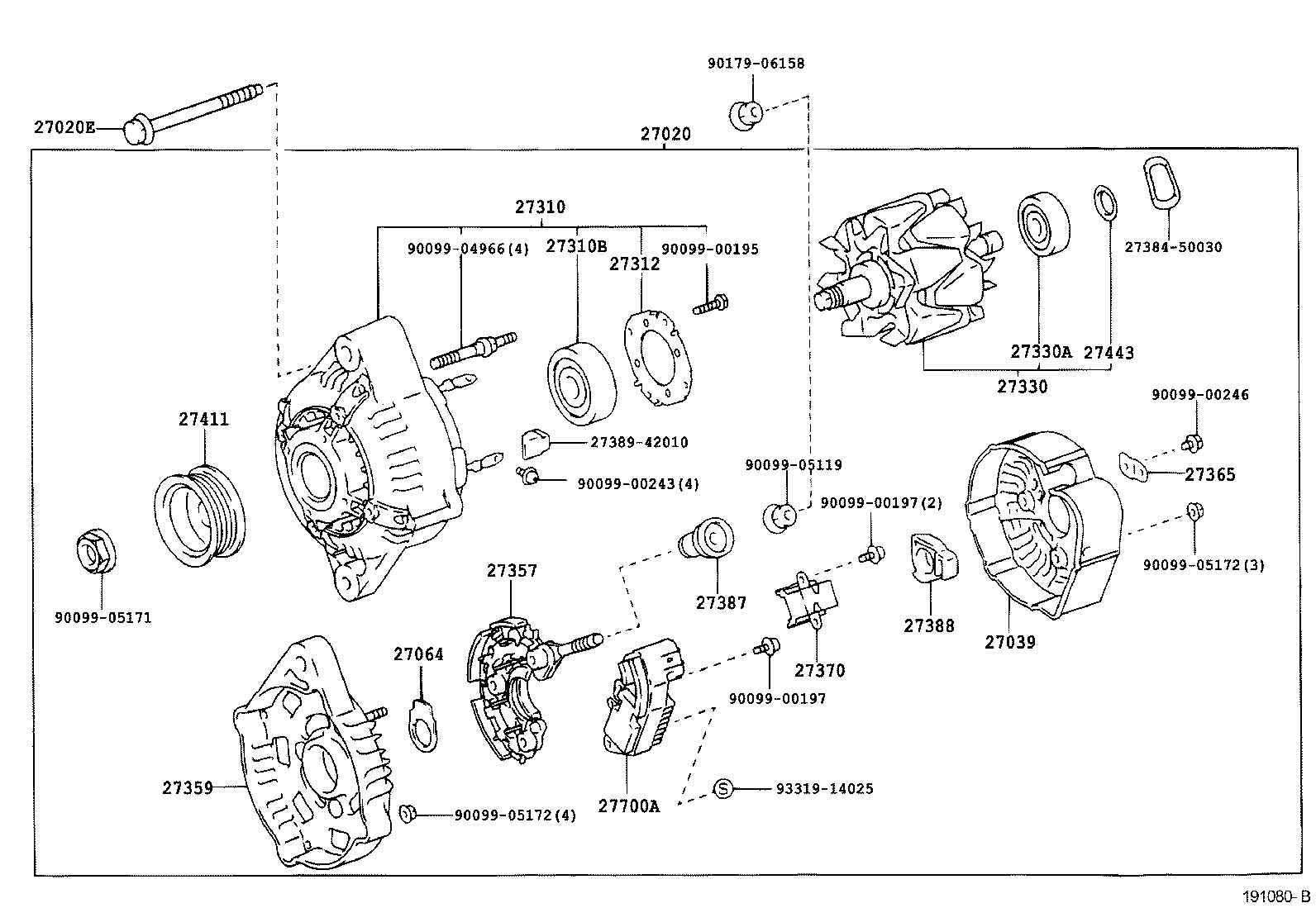

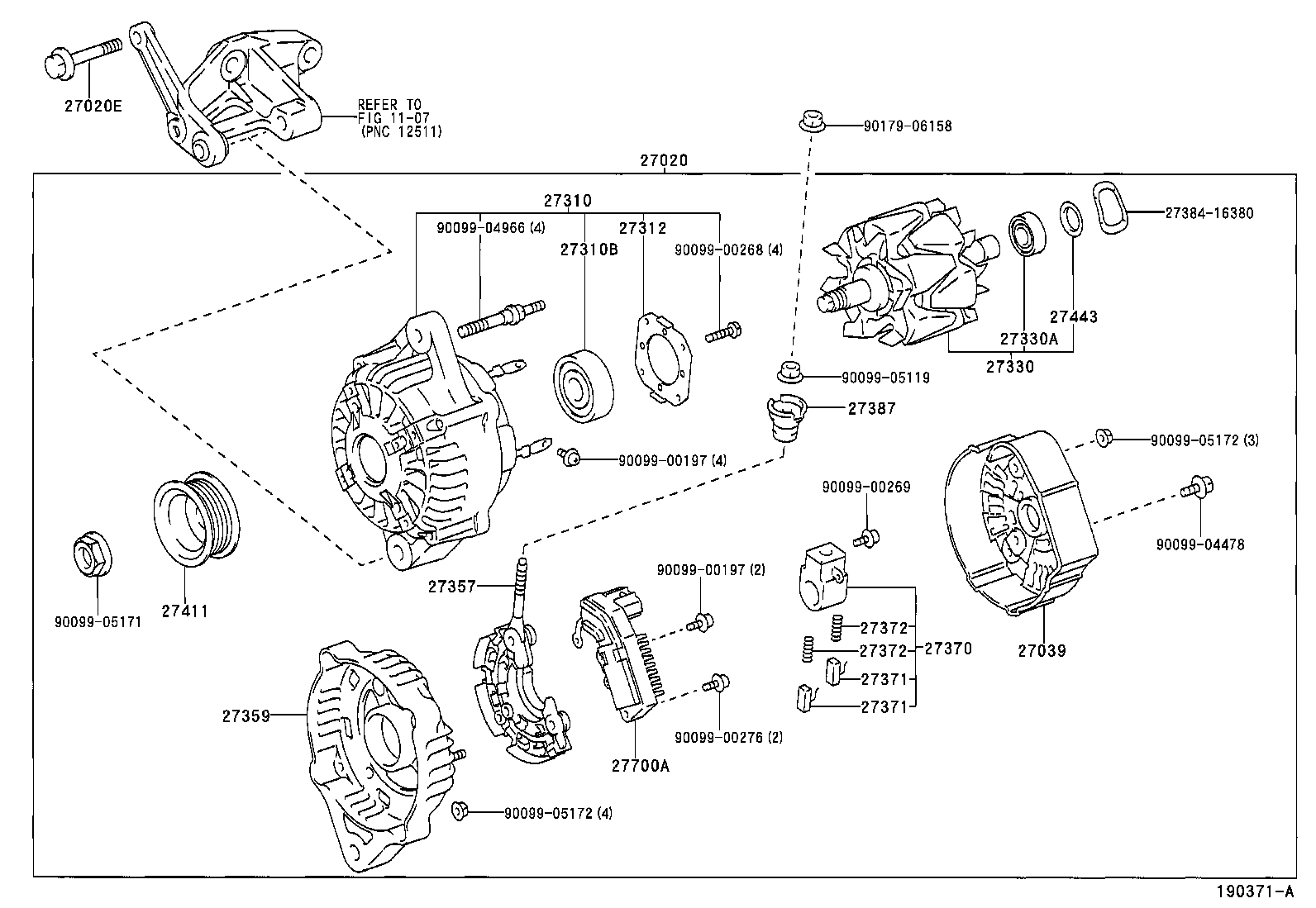

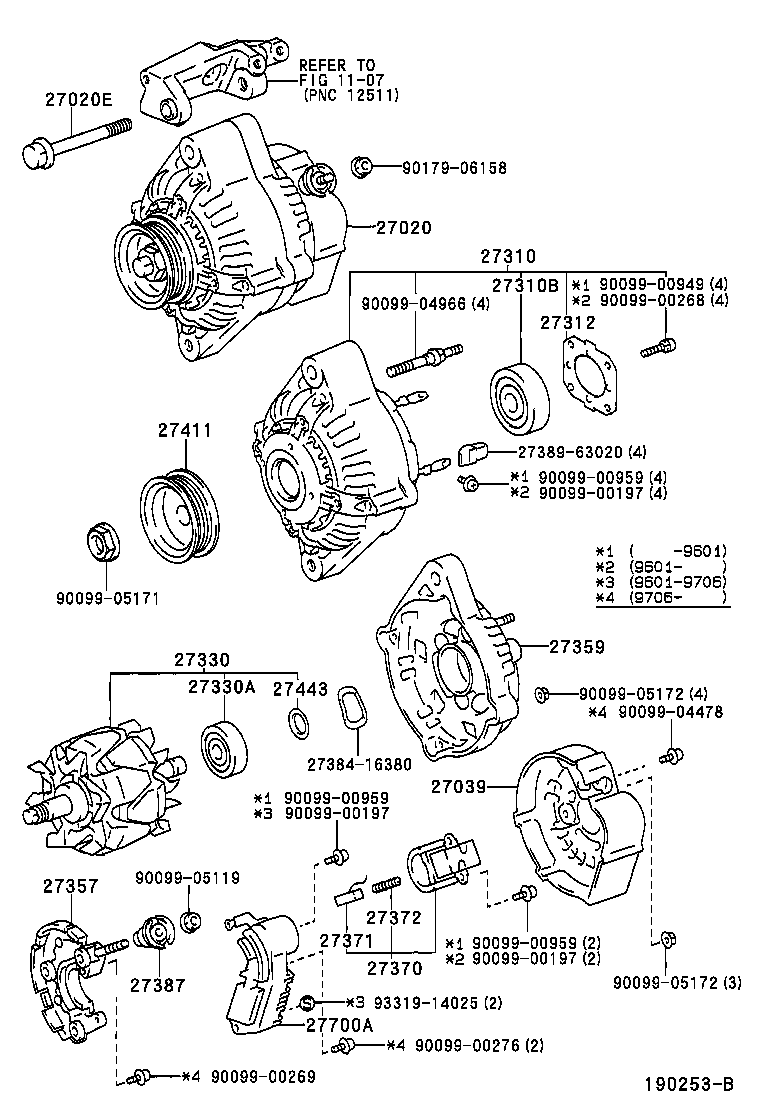

Figure 190252A 190252A 1995-01 → 1997-04 Figure 190371A 190371A 1997-04 → 1999-09 Figure 190253B 190253B 1995-01 → 1999-09 Figure 191081B 191081B 1999-09 → — Figure 191080B 191080B 1999-09 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27365 Plate, Terminal
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27387 Insulator, Terminal
27388 Cover, Alternator Brush
27411 Pulley, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
