Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

25 part groups · 3 illustrations

Illustrations

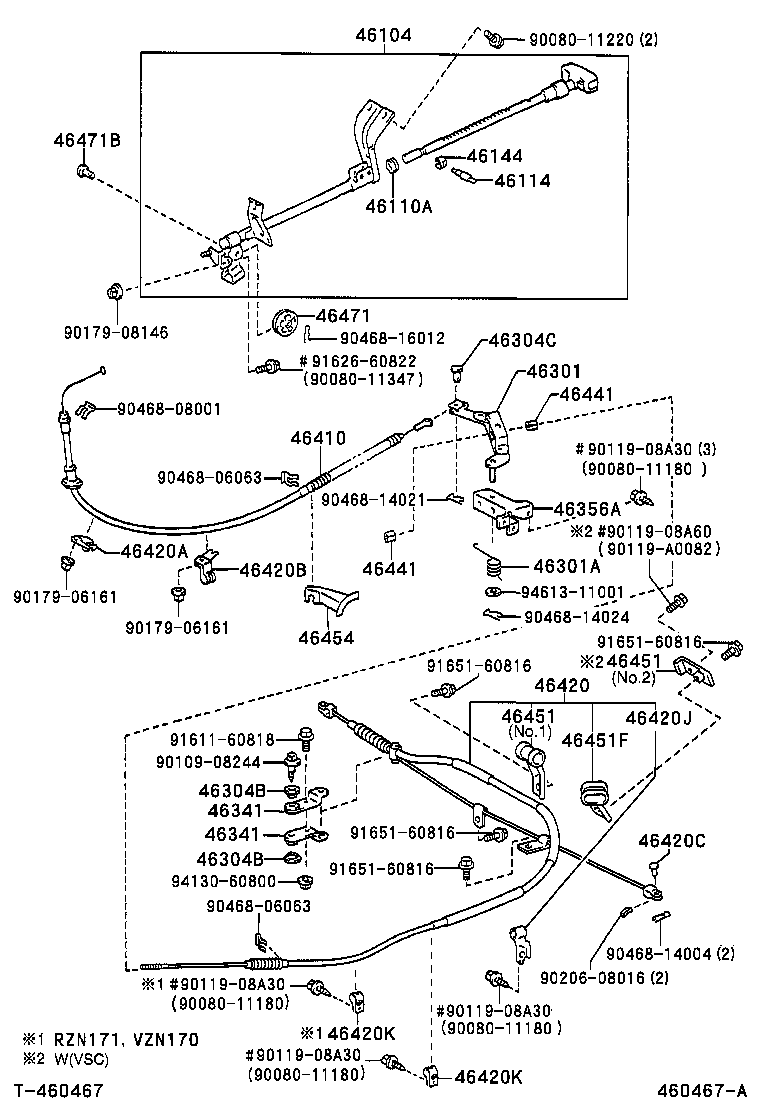

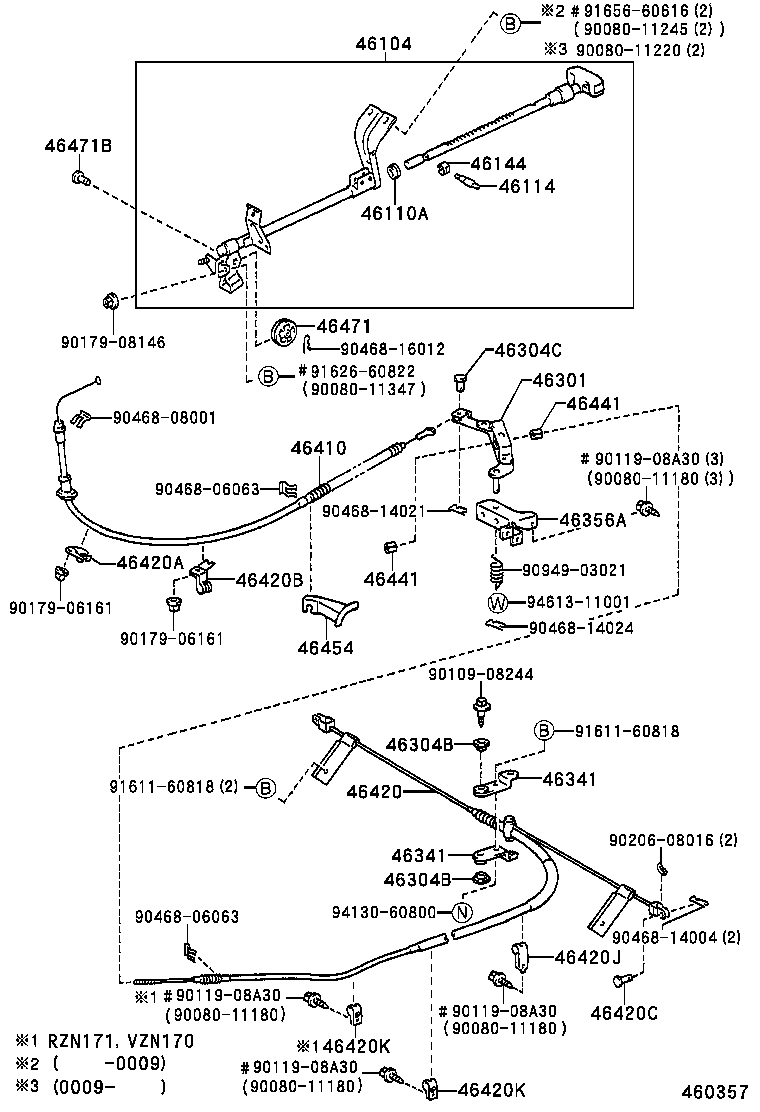

Figure 460044F 460044F 1995-01 → 1997-01 Figure 460357 460357 1997-01 → 2002-09 Figure 460467A 460467A 2002-09 → —

Part groups

PNCDescription
46104 Handle Sub-assy, Parking Brake Control
46110A Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
46114 Pin, Parking Brake Plunger
46144 Anti-rattle, Parking Brake Plunger
46301 Lever Sub-assy, Parking Brake Intermediate
46301A Spring, Tension(FOR INTERMEDIATE LEVER)
46304B Bush(FOR PARKING BRAKE EQUALIZER)
46304C Pin(FOR PARKING BRAKE EQUALIZER)
46341 Equalizer, Parking Brake
46356A Bracket, Intermediate Lever(FOR PARKING BRAKE)
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420C Pin, W/Hole(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
46451F Bracket, Cable Support
46454 Bracket, Cable Retainer, Front
46469 Lever, Cable Guide Support
46471 Pulley, Wire
46471B Pin, W/Hole(FOR WIRE PULLEY SET)
46479 Lever, Cable Guide Sapport, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
