Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 3 illustrations

Illustrations

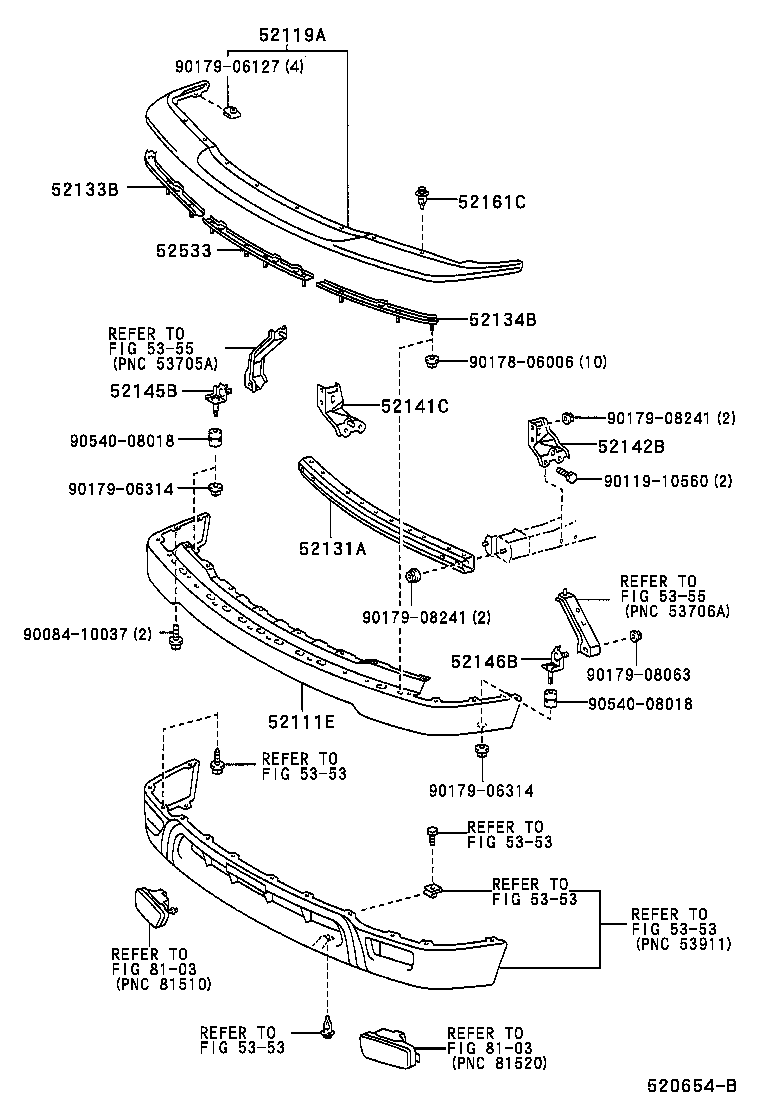

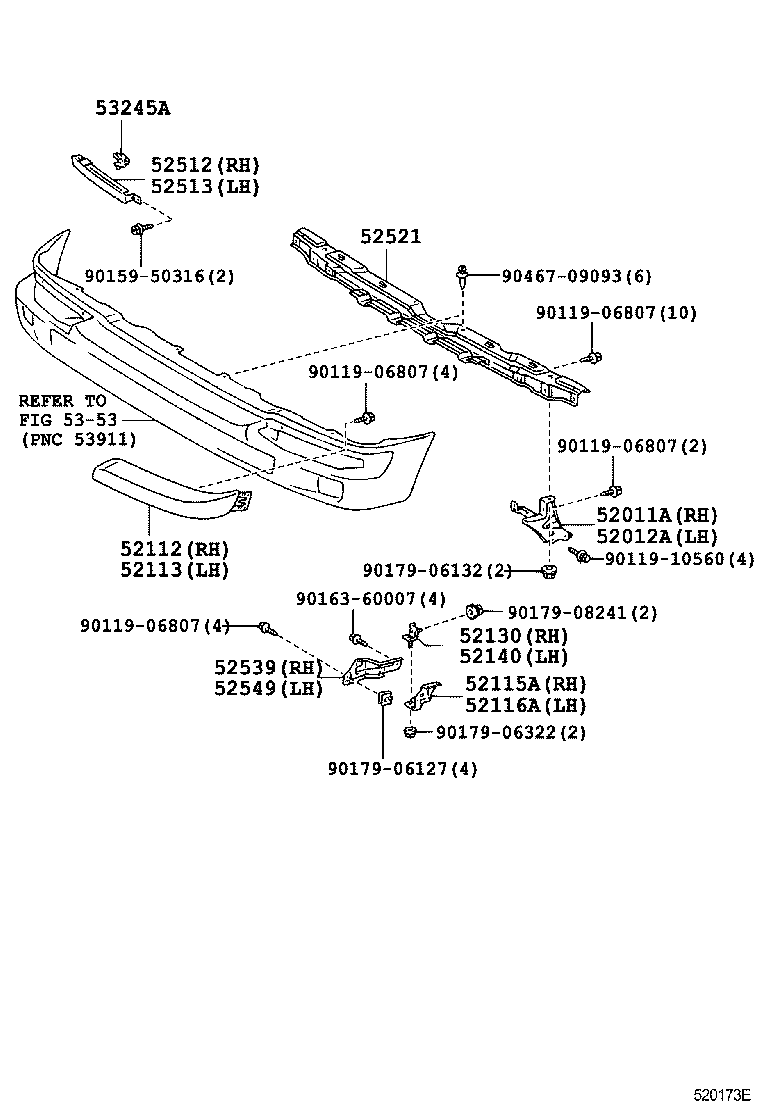

Figure MBY602 MBY602 1995-01 → 1997-06 Figure 520173E 520173E 1997-06 → 2000-09 Figure 520654B 520654B 2000-09 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52111E Bar, Front Bumper
52112 Bar, Front Bumper, RH
52113 Bar, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52130 Bracket Assy, Front Bumper Side Mounting, RH
52131A Reinforcement, Front Bumper
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52141C Arm, Front Bumper, RH
52142B Arm, Front Bumper, LH
52145B Bracket, Front Bumper Side Mounting
52146B Bracket, Front Bumper Side Mounting, LH
52161C Piece, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52533 Bracket, Front Bumper Retainer, NO.1
52539 Retainer, Front Bumper Side, NO.3 RH
52549 Retainer, Front Bumper Side, NO.3 LH
53245A Bracket, Headlamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
