Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

26 part groups · 2 illustrations

Illustrations

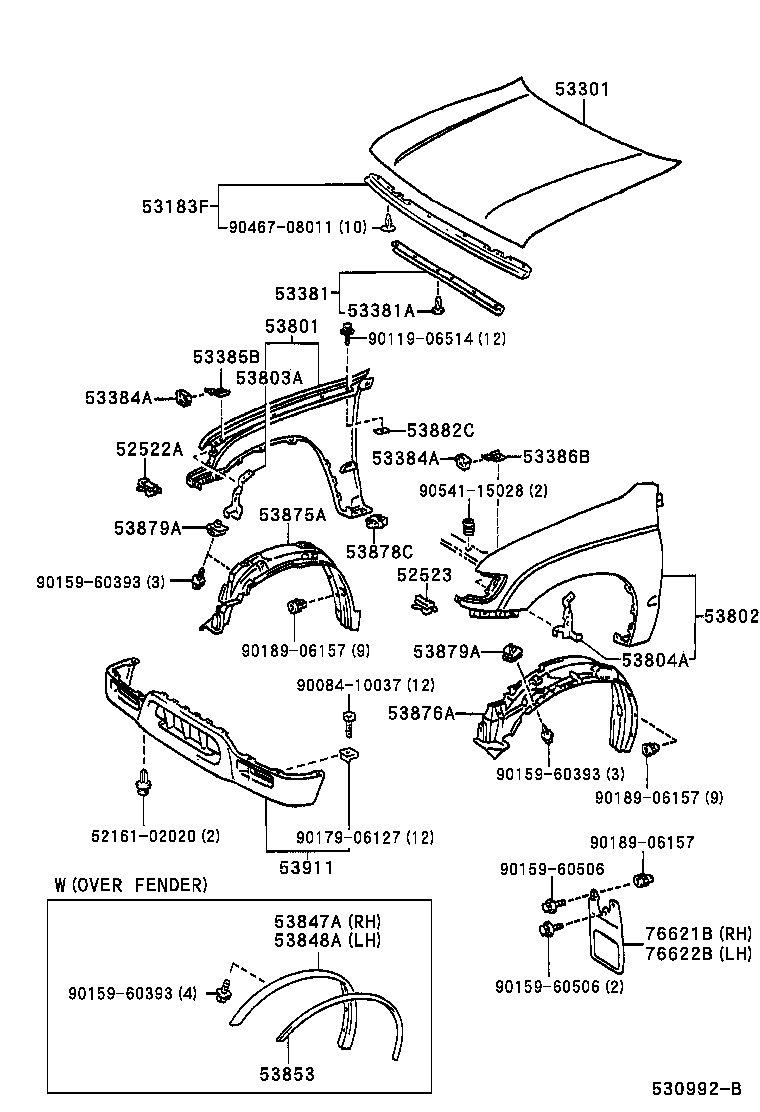

Figure 530532B 530532B 1995-01 → 2000-09 Figure 530992B 530992B 2000-09 → —

Part groups

PNCDescription
52522A Retainer, Front Bumper Filler, NO.2
52523 Retainer, Front Bumper Filler, NO.3
53183F Seal, Headlamp Cover TO Hood
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A Bumper, Fender TO Hood
53385B Bracket, Fender TO Hood Bumper, RH
53386B Bracket, Fender TO Hood Bumper, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53803A Bracket Sub-assy, Front Side Panel, RH
53804A Bracket Sub-assy, Front Side Panel, LH
53847A Extension, Front Wheel Opening OR Arch Moulding, RH
53848A Extension, Front Wheel Opening OR Arch Moulding, LH
53853 Pad, Front Wheel Opening Extension, NO.3
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53878C Spacer, Front Fender
53879A Retainer, Front Fender Liner
53882C Seal, Front Fender Main
53911 Panel, Front Valance
76621B Mudguard, Front Body, RH
76622B Mudguard, Front Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
