Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

13 part groups · 2 illustrations

Illustrations

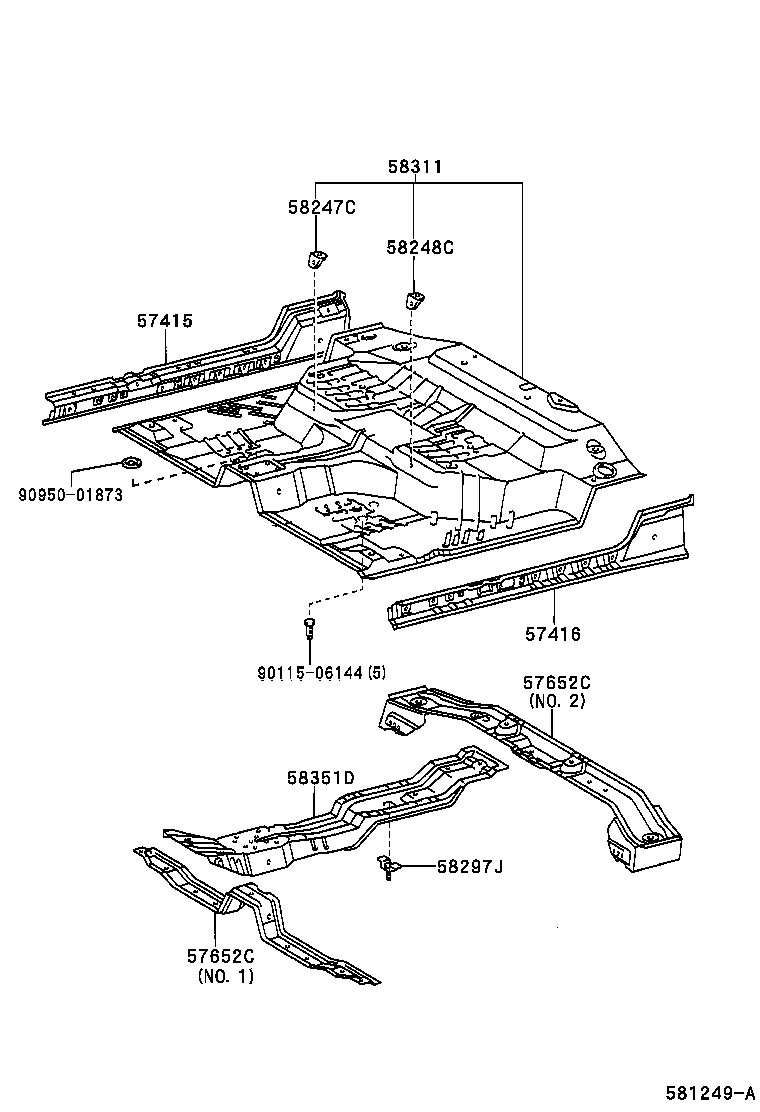

Figure 580915D 580915D 1995-01 → — Figure 581249A 581249A 2000-09 → —

Part groups

PNCDescription
57401D Member Sub-assy, Floor Side, Inner RH
57402D Member Sub-assy, Floor Side, Inner LH
57415 Rail, Floor Side, Rear RH
57416 Rail, Floor Side, Rear LH
57652C Member, Rear Floor Cross, NO.1
58161A Reinforcement, Belt Anchor TO Floor Pan, RH
58247C Reinforcement, Rear Seat Cushion Hinge, RH
58248C Reinforcement, Rear Seat Cushion Hinge, LH
58295A Reinforcement, Seat Belt Anchor Floor
58297J Retainer, Floor Clamp
58311 Pan, Rear Floor
58351D Reinforcement, Rear Floor Panel
58965B Holder, Jack
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
