Toyota Tacoma
1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States
Discontinued model
Data version 2005-04

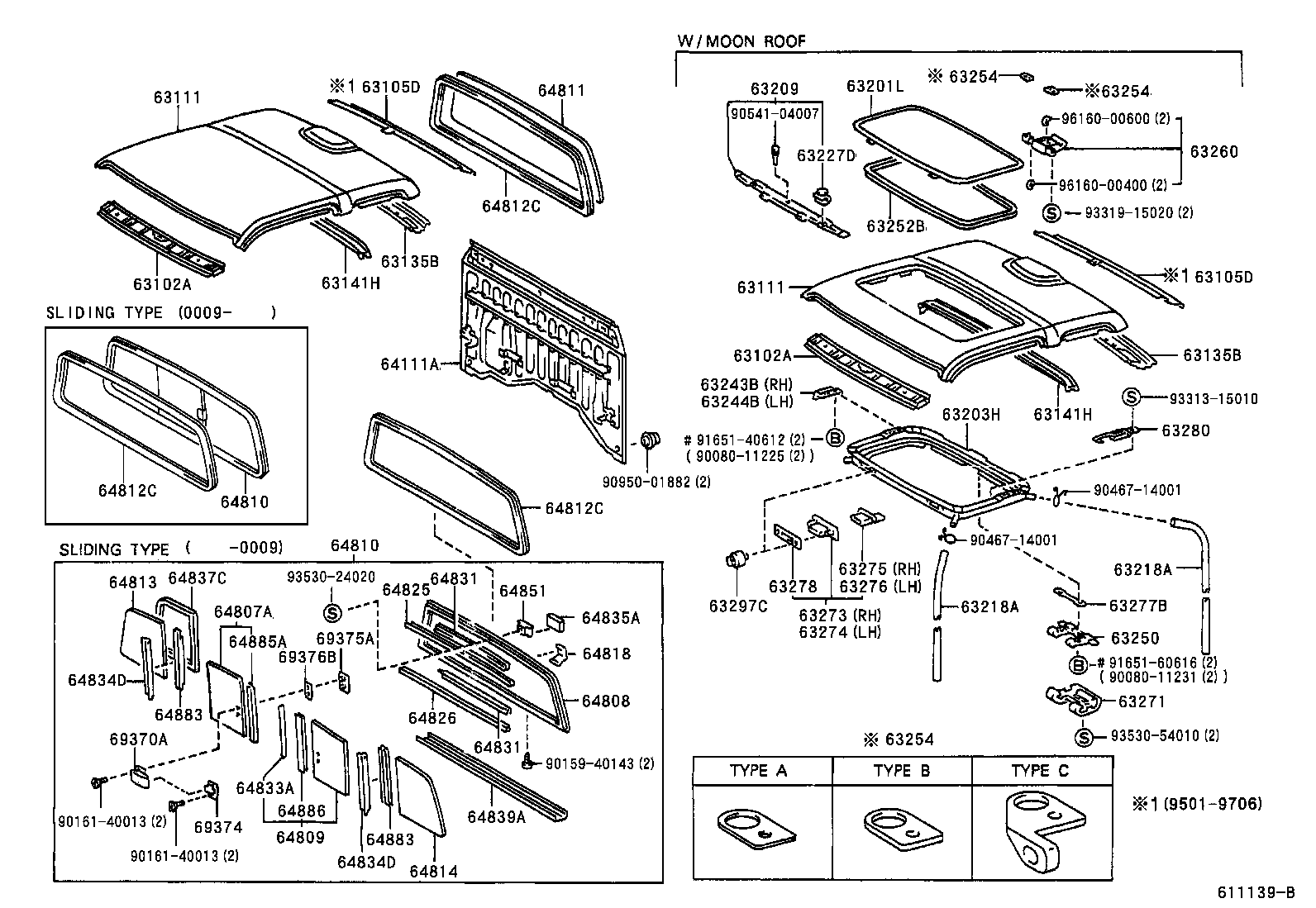

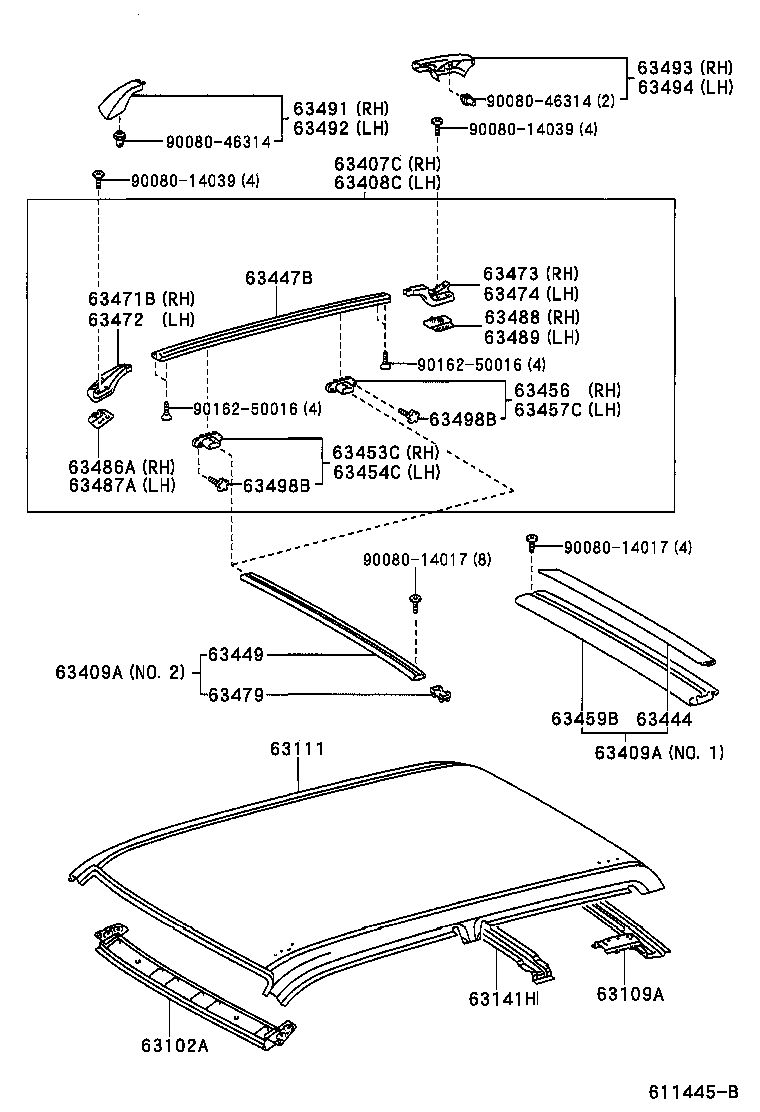

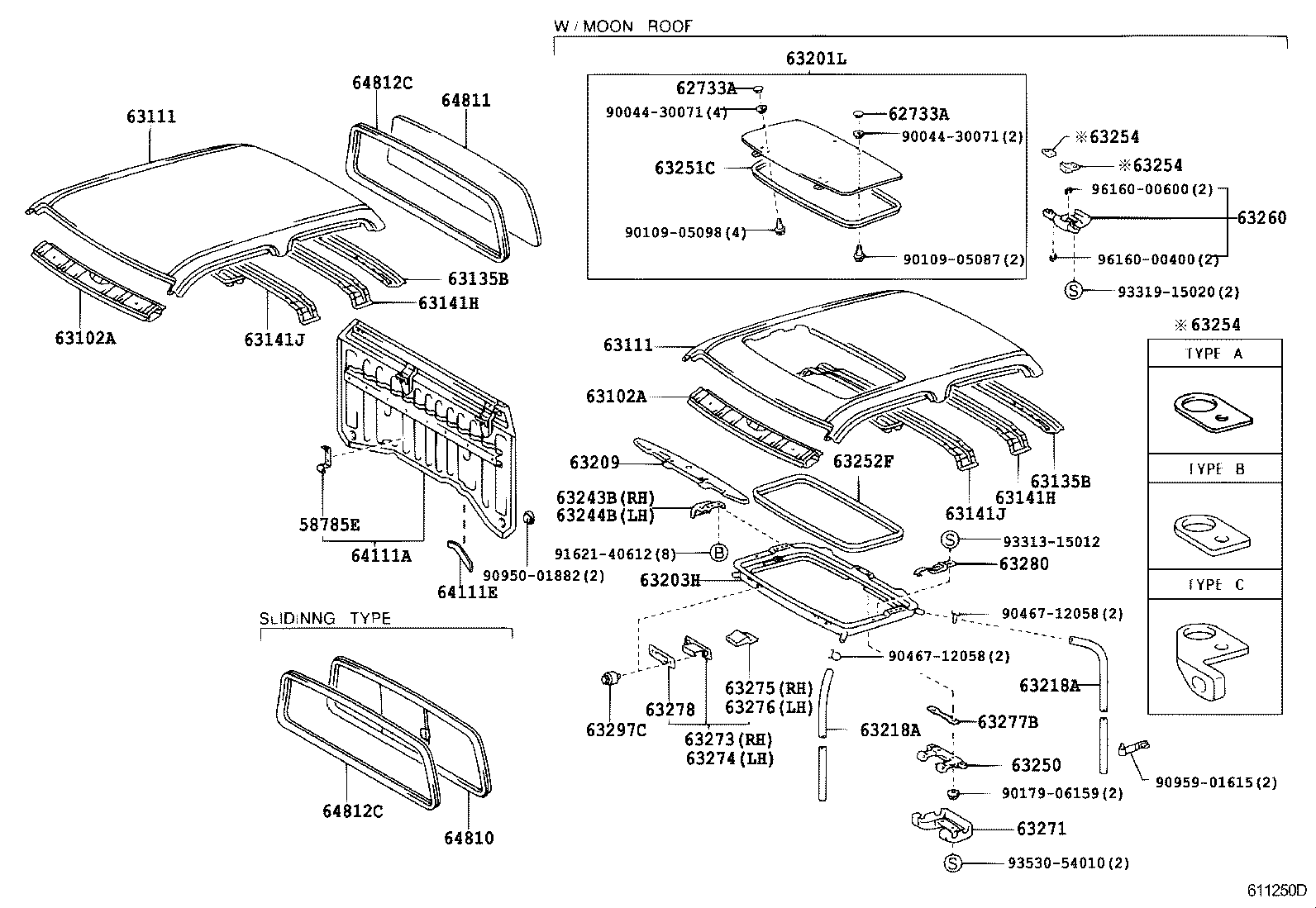

Roof Panel & Back Panel
84 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58785E | Bracket, Tool Bag Band |
| 62733A | Retainer, Quarter Window Hinge |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63109A | Panel Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63135B | Panel, Back Window, Upper Inner |
| 63141H | Reinforcement, Roof Panel, Center |
| 63141J | Reinforcement, Roof Panel |
| 63201L | Glass Sub-assy, Removable Roof |
| 63203H | Housing Sub-assy, Removable Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63227D | Clip, Roof Wind Deflector Panel |
| 63243B | Bracket, Removable Roof Housing Side Mounting, RH |
| 63244B | Bracket, Removable Roof Housing Side Mounting, LH |
| 63250 | Base Assy, Removable Roof Lock |
| 63251C | Weatherstrip, Removable Roof |
| 63252B | Weatherstrip, Removable Roof, Rear |
| 63252F | Weatherstrip, Removable Roof, Inner |
| 63254 | Holder, Removable Roof Glass, Inner Rear |
| 63260 | Handle Assy, Removable Roof Lock |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63274 | Case, Removable Roof Hinge, LH |
| 63275 | Holder, Removable Roof Hinge, RH |
| 63276 | Holder, Removable Roof Hinge, LH |
| 63277B | Spacer, Removable Roof Lock Base |
| 63278 | Seal, Removable Roof Hinge Case |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63297C | Bolt, Removable Roof Hinge Case |
| 63407C | Carrier Sub-assy, Roof, RH |
| 63408C | Carrier Sub-assy, Roof, LH |
| 63409A | Support Sub-assy, Roof Rack, Center |
| 63444 | Protector, Roof Carrier, NO.1 |
| 63447B | Bar, Roof Carrier, RH |
| 63449 | Bar, Roof Carrier Side |
| 63453C | Stay, Roof Rack, Front RH |
| 63454C | Stay, Roof Rack, Front LH |
| 63456 | Joint, Roof Rack Bar |
| 63457C | Joint, Roof Rack Bar, NO.2 |
| 63459B | Retainer, Roof Carrier, NO.2 |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 63479 | Retainer, Roof Inner Rack |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63498B | Cap, Roof Carrier |
| 64111A | Panel, Back |
| 64111E | Protector, Fuel Hose |
| 64292 | Clamp, Jack Handle |
| 64807A | Glass Sub-assy, Back Window Slide, RH |
| 64808 | Channel Sub-assy, Back Window Slide Glass |
| 64809 | Glass Sub-assy, Back Window Slide, LH |
| 64810 | Window Assy, Back |
| 64811 | Glass, Back Window |
| 64812C | Weatherstrip, Back Window Glass |
| 64813 | Glass, Back Window Corner, RH |
| 64814 | Glass, Back Window Corner, LH |
| 64818 | Spacer, Back Window Glass |
| 64825 | Run, Back Window Channel, Upper |
| 64826 | Run, Back Window Channel, Lower |
| 64831 | Weatherstrip, Back Window Glass |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64834D | Weatherstrip, Back Window Slide Glass |
| 64835A | Weatherstrip, Back Window Glass, Center |
| 64837C | Weatherstrip, Back Window Corner Glass |
| 64839A | Packing, Back Window |
| 64851 | Stop, Back Window Slide Glass |
| 64883 | Frame, Back Window |
| 64885A | Channel, Back Window Glass, RH |
| 64886 | Channel, Back Window Glass, LH |
| 69370A | Lock Assy, Back Window |
| 69374 | Catch, Back Window Lock |
| 69375A | Retainer, Back Window Lock |
| 69376B | Packing, Back Window Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
