Toyota Tacoma
1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States
Discontinued model
Data version 2005-04

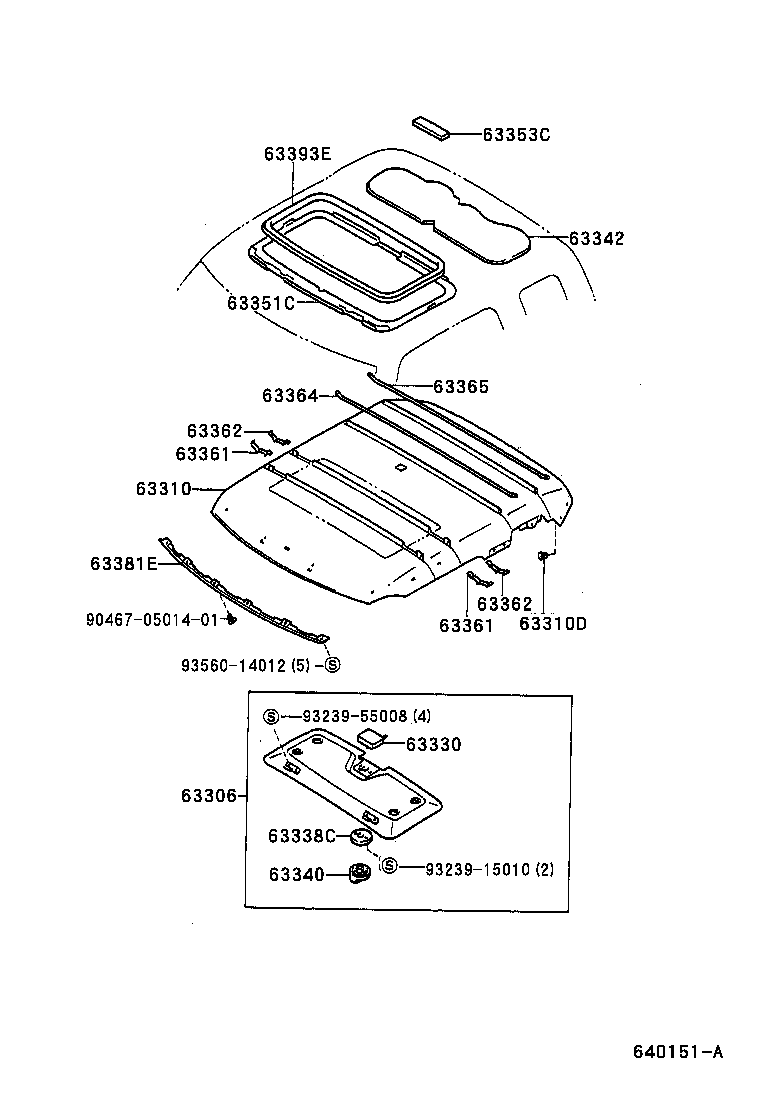

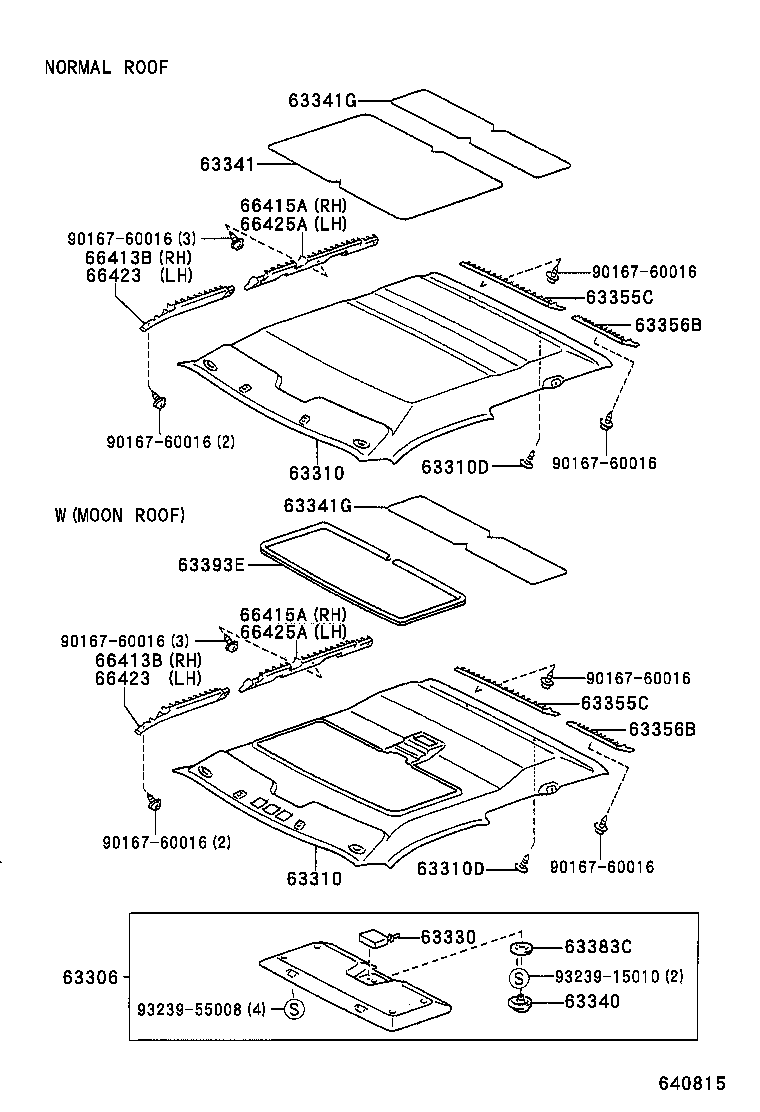

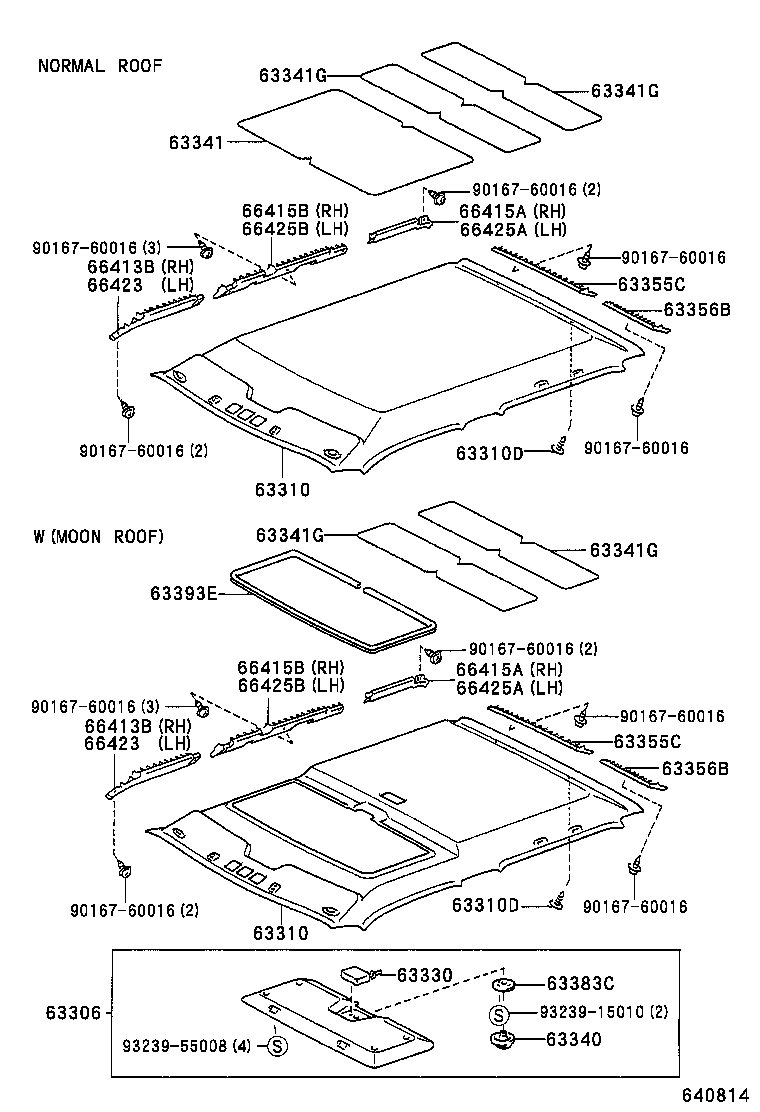

Roof Headlining & Silencer Pad
27 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63330 | Lock Assy, Sunshade Trim |
| 63338C | Stopper, Sunshade Lock, NO.2 |
| 63340 | Handle Assy, Sunshade Trim Lock |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63351C | Pad, Roof Headlining |
| 63353C | Pad, Roof Headlining, Center |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63383C | Retainer, Roof Headlining Trim, Rear |
| 63393E | Trim, Roof Headlining |
| 66413B | Spacer, Side Rail, Front RH |
| 66415A | Spacer, Side Rail, Rear NO.2 RH |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66425A | Spacer, Side Rail, Rear NO.2 LH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
