Toyota Tacoma
1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States
Discontinued model
Data version 2005-04

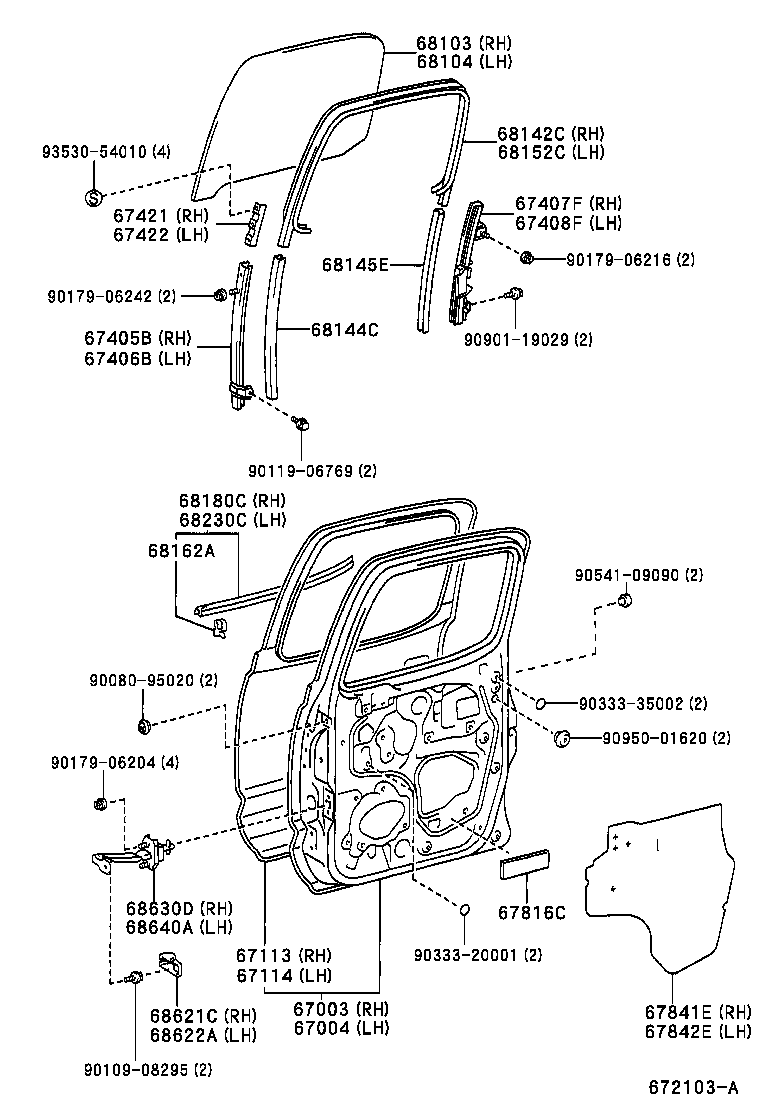

Rear Door Panel & Glass
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67421 | Frame, Rear Door Window, Front Upper RH |
| 67422 | Frame, Rear Door Window, Front Upper LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67816C | Pad, Access Panel Silencer, Inside |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68144C | Run, Rear Door Glass, Lower Front |
| 68145E | Run, Rear Door Glass, Lower Rear |
| 68152C | Run, Rear Door Glass, LH |
| 68162A | Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68621C | Cover, Rear Door Check, RH |
| 68622A | Cover, Rear Door Check, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
