Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

125 part groups · 13 illustrations

Illustrations

715742 1995-01 → —

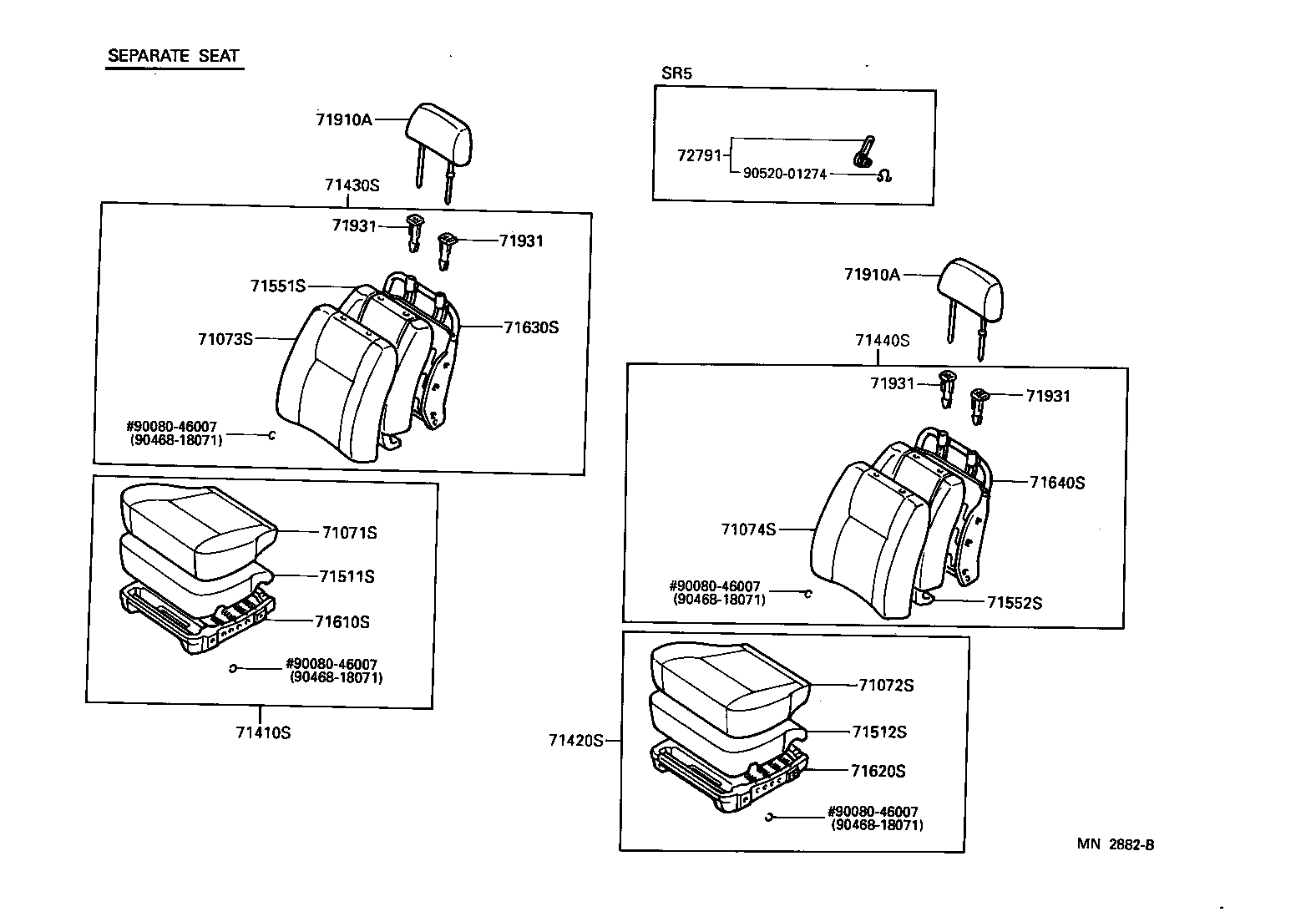

MN2882B 1995-01 → 2000-09

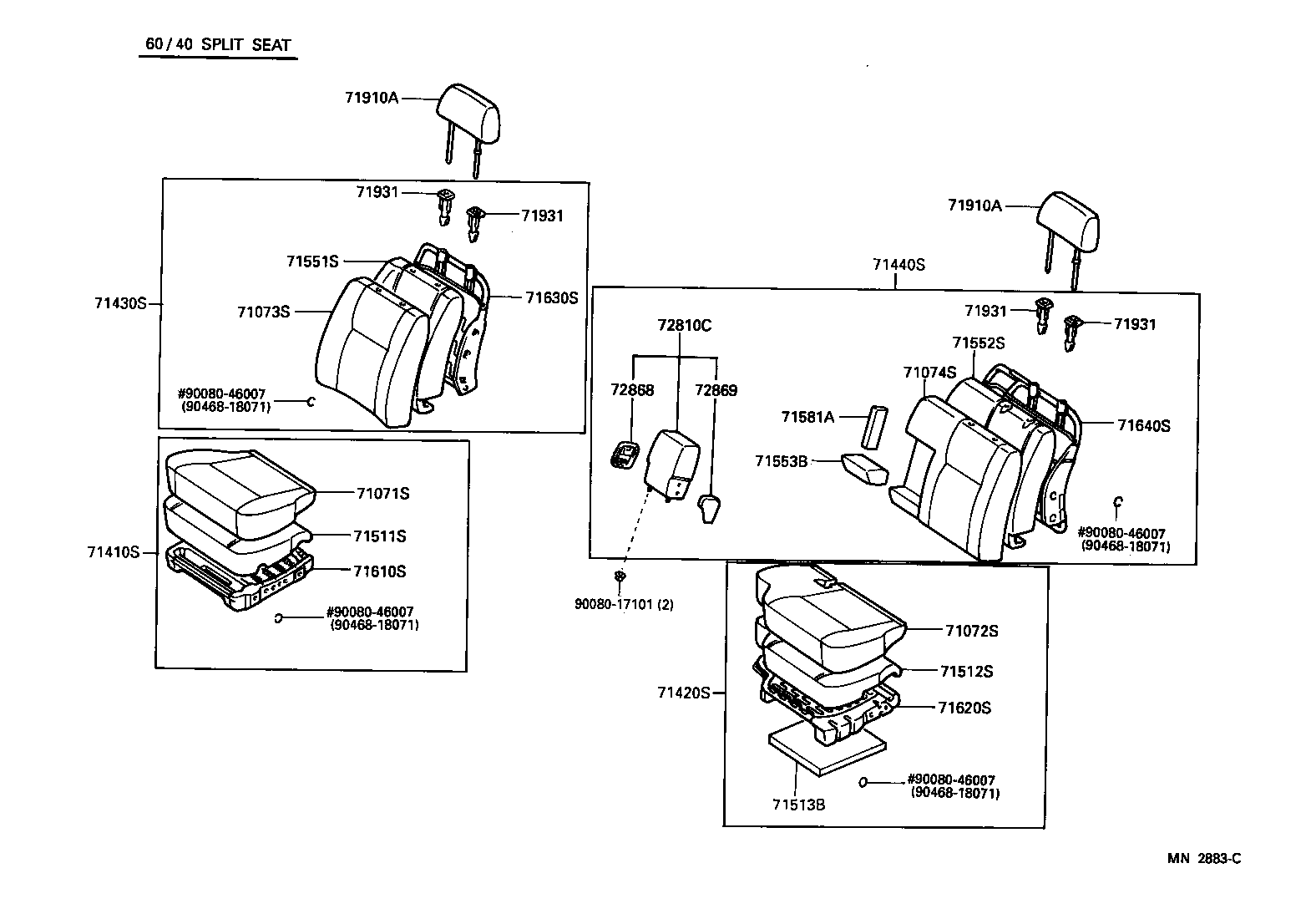

MN2883C 1995-01 → 2000-09

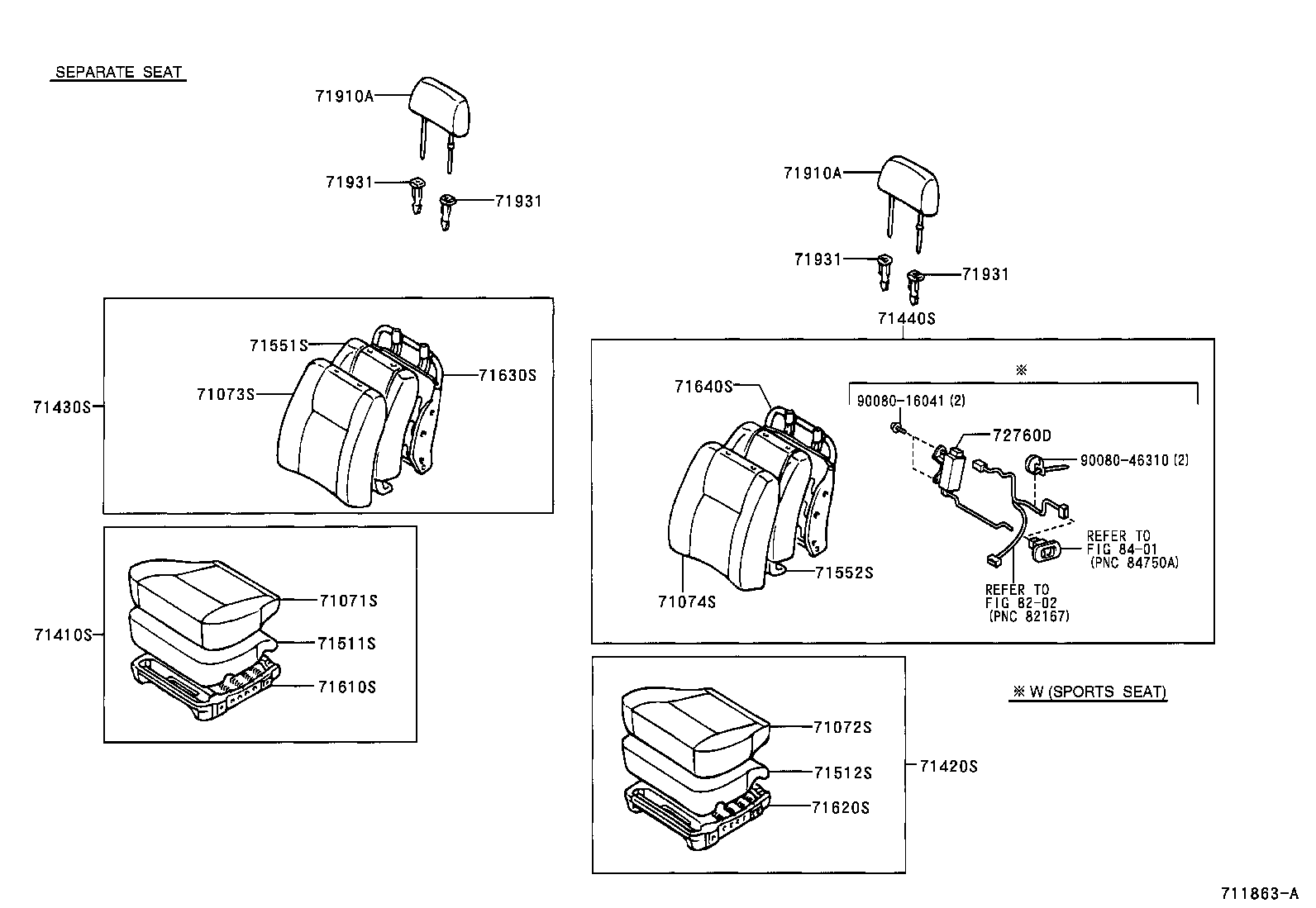

711863A 2000-09 → —

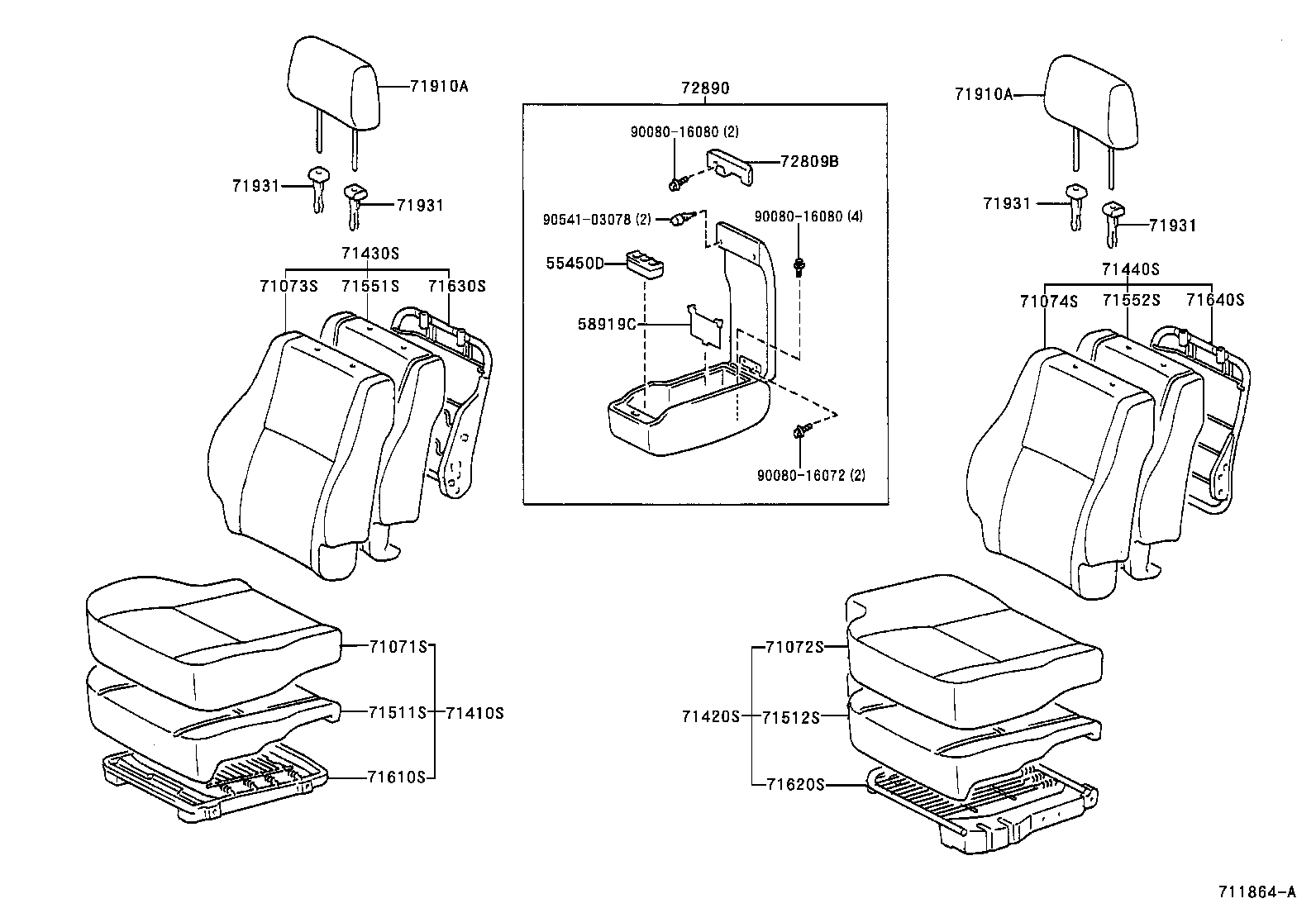

711864A 2000-09 → —

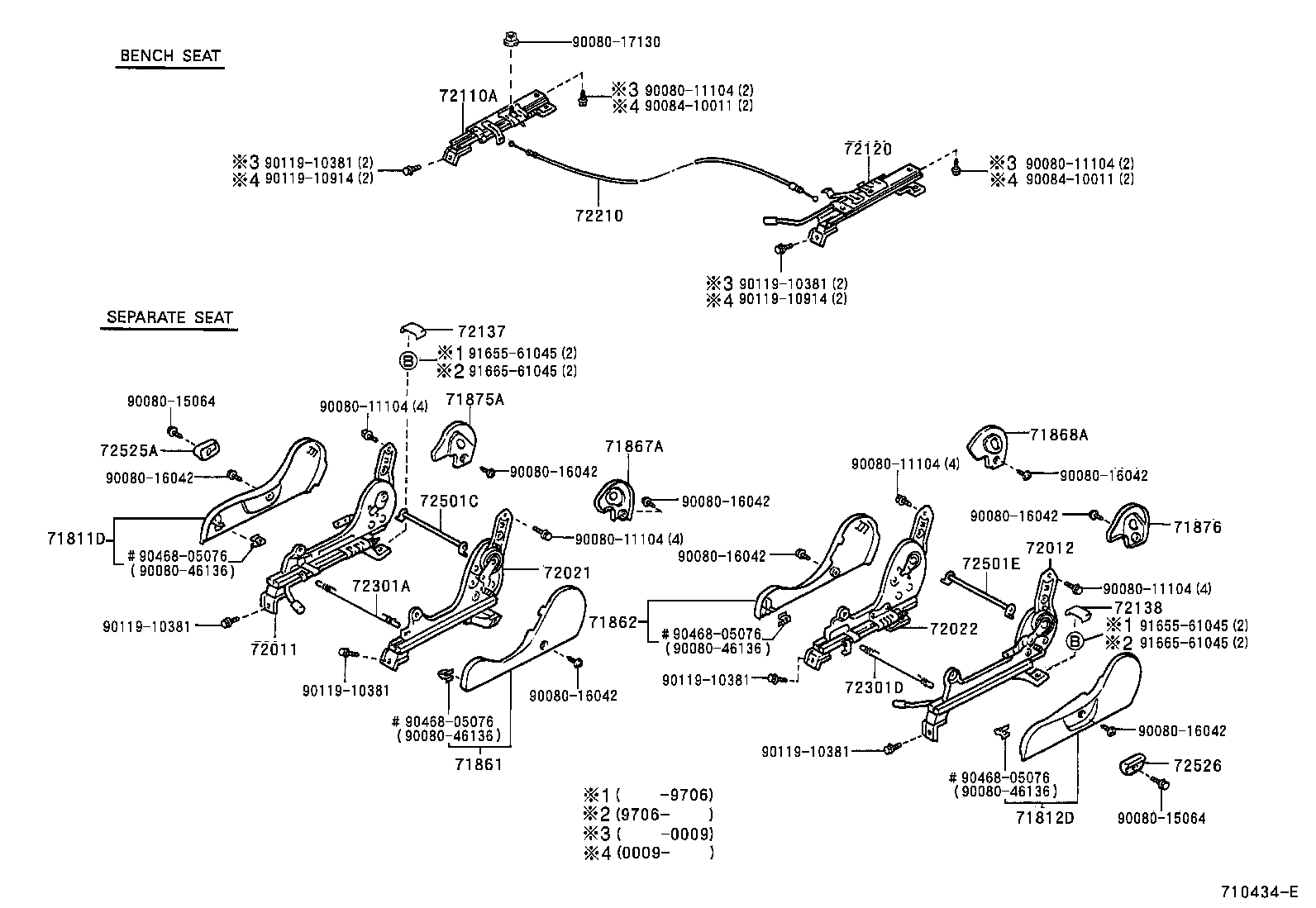

710434E 1995-01 → 2000-09

710434E 2000-09 → —

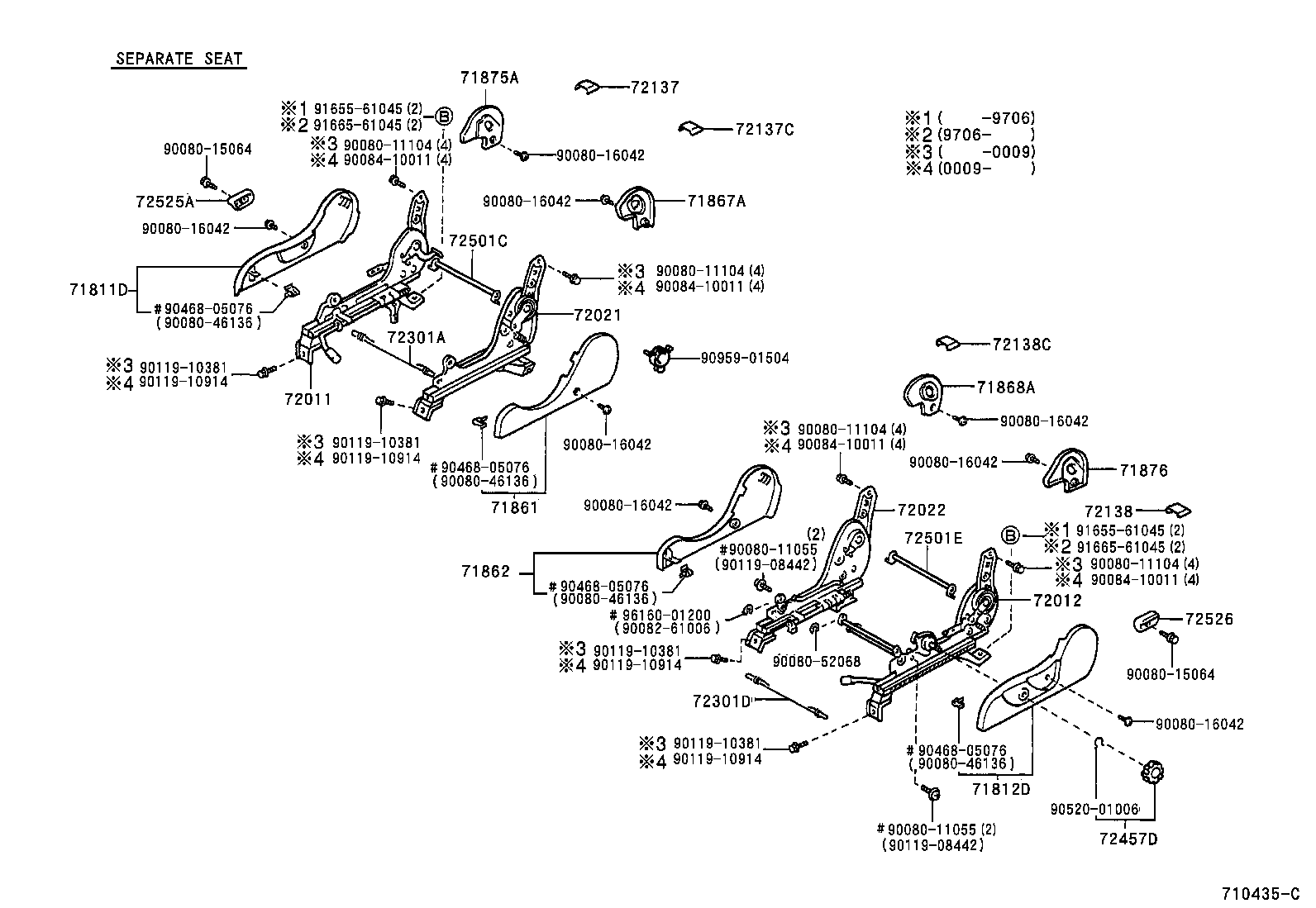

710435C 1995-01 → 2000-09

710435C 2000-09 → —

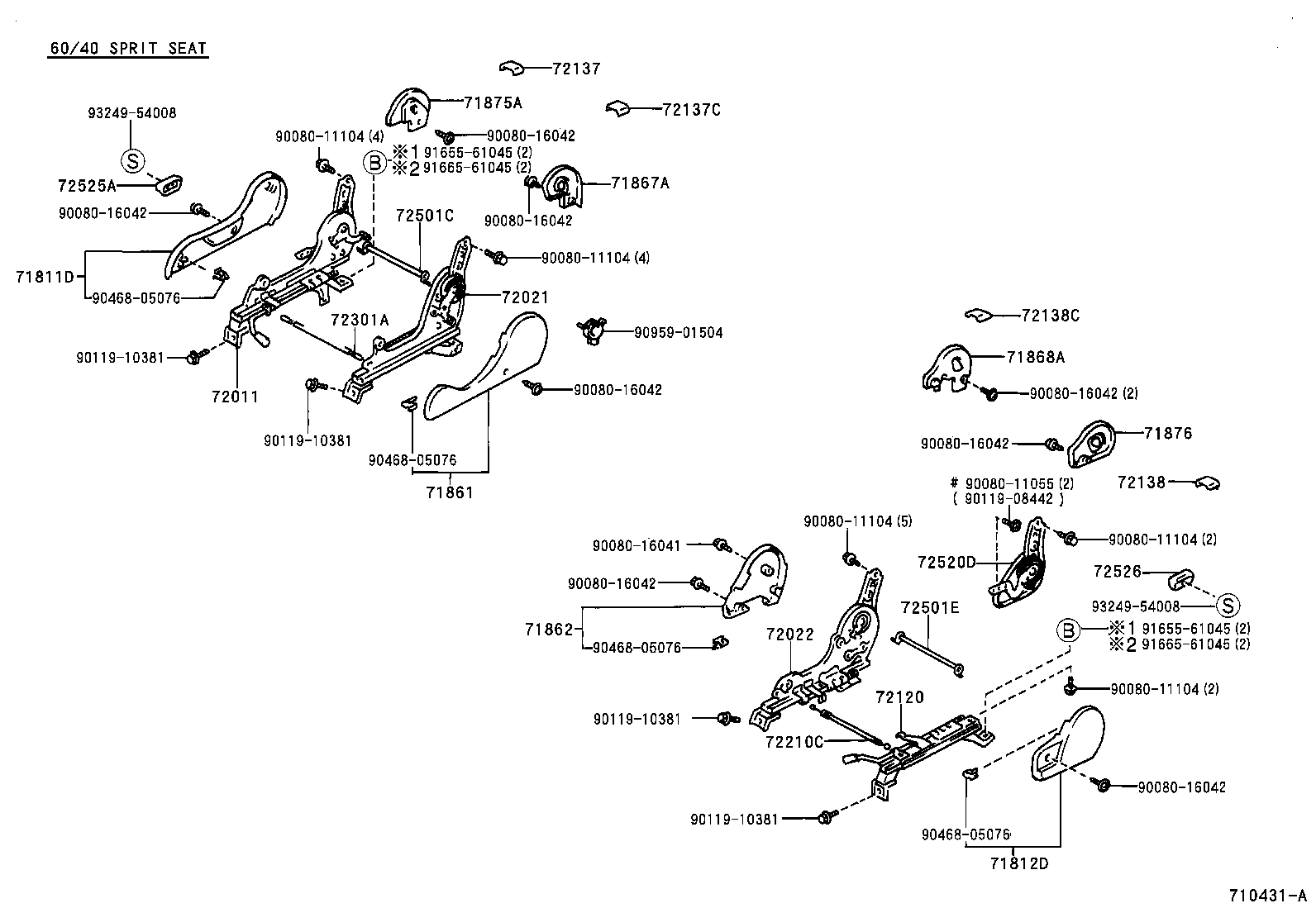

710431A 1995-01 → 2000-09

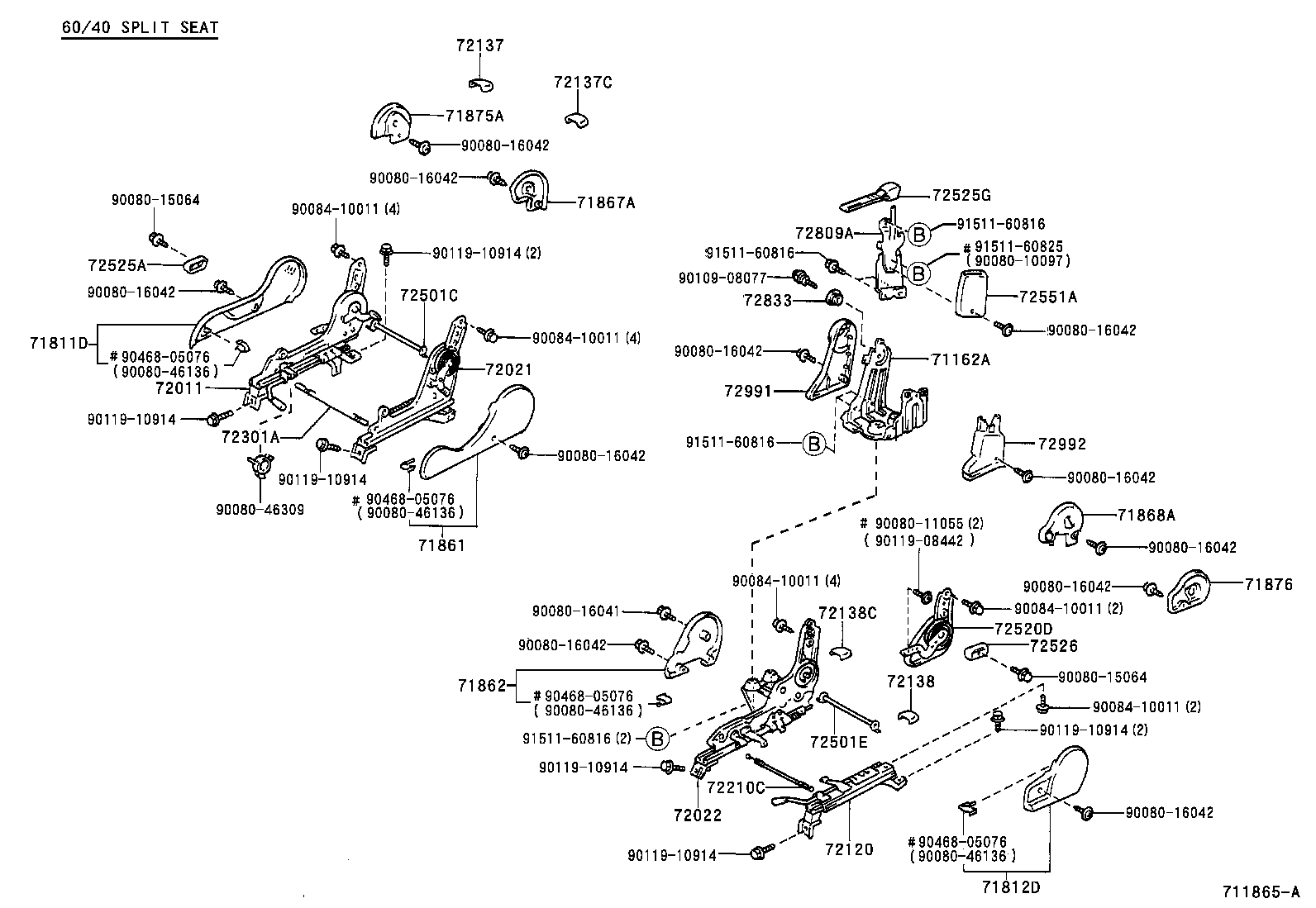

711865A 2000-09 → —

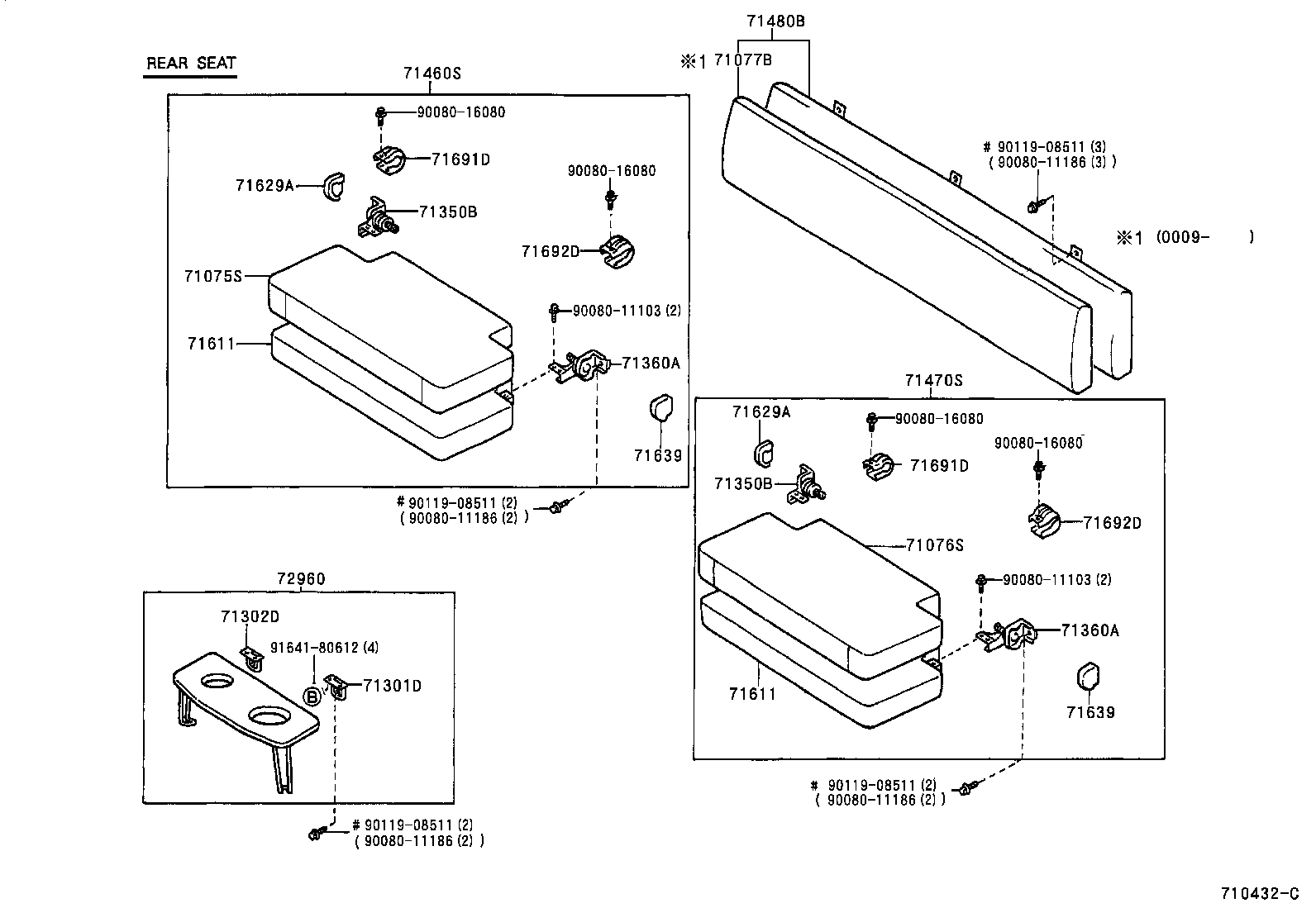

710432C 1995-01 → —

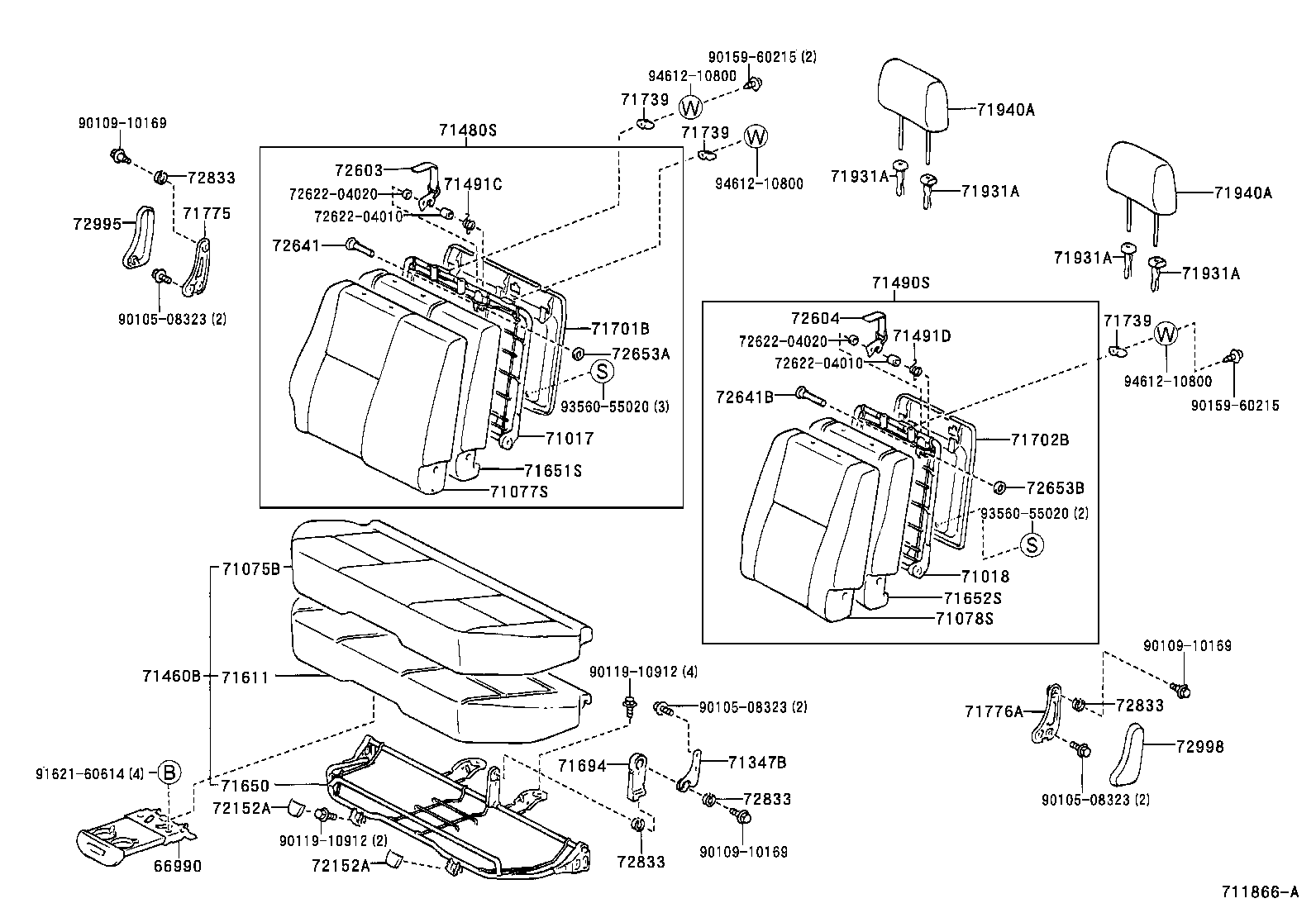

711866A 2000-09 → —

Part groups

PNC	Description
55450D	Box Assy, Coin
58919C	Plate, Console Box
66990	Holder Assy, Cup
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071B	Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B	Cover, Front Seatback(FOR BENCH TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71162A	Bracket, Front Seatback, Lower
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71311	Pin, Front Seat Hinge
71347B	Bracket, Rear Seatback Stay, NO.1
71350B	Hinge Assy, Rear Seat, RH
71360A	Hinge Assy, Rear Seat, LH
71410B	Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B	Back Assy, Front Seat(FOR BENCH TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71491C	Spring, Rear Seat Set
71491D	Spring, Rear Seatback, NO.10
71511B	Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71513B	Pad, Front Seat Cushion, B
71551B	Pad, Front Seatback(FOR BENCH TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B	Pad, Front Seatback, B
71561B	Pad, Front Seatback, Upper
71581A	Pad, Front Seatback Corner, A
71610B	Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629A	Cover, Rear Seat Cushion Hinge, RH
71630B	Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639	Cover, Rear Seat Cushion Hinge, LH
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71650	Spring Assy, Rear Seat Cushion
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71701B	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71739	Cushion, Seat Support
71775	Plate, Rear Side Seat Hinge, Upr RH
71776A	Plate, Rear Side Seat Hinge, Upr LH
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71875A	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72137	Cover, Seat Track, Outer RH
72137C	Cover, Seat Track Inner, RH
72138	Cover, Seat Track, Outer LH
72138C	Cover, Seat Track, LH
72152A	Cover, Rear Seat Track Bracket, Inner
72210	Cable Assy, Seat Track Control
72210C	Cable Assy, Seat Track Control, LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72457D	Knob, Vertical Seat Adjuster, LH
72501C	Pipe Sub-assy, Reclining Connecting
72501E	Pipe Sub-assy, Reclining Connecting, LH
72520D	Adjuster Assy, Reclining Seat, Outer LH
72525A	Handle, Reclining Adjuster Release, RH
72525G	Handle, Front Seatback Lock
72526	Handle, Reclining Adjuster Release, LH
72551A	Cover, Reclining Hinge
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72641	Pin, Rear Seatback Lock
72641B	Pin, Rear Seatback Lock, NO.1
72653A	Snap, Rear Seatback Lock Rod
72653B	Snap, Rear Seatback Lock Rod
72760D	Adjuster Assy, Lumbar Support, LH
72791	Lever, Lumbar Support
72809A	Lock Sub-assy, Center Armrest
72809B	Lock Sub-assy, Center Armrest
72810C	Armrest Assy, Front Seat, Center
72833	Plate, Seat Center Armrest, Inner RH
72868	Cover, Center Armrest Hinge, RH
72869	Cover, Center Armrest Hinge, LH
72890	Armrest Assy, Seat, C LH
72960	Table Assy, Rear Seat Turn
72991	Cover, Front Seat Cushion, RH
72992	Cover, Front Seat Cushion, LH
72995	Cover, Rear Seat Cushion, RH
72998	Cover, Rear Seat Cushion, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
