Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

22 part groups · 7 illustrations

Illustrations

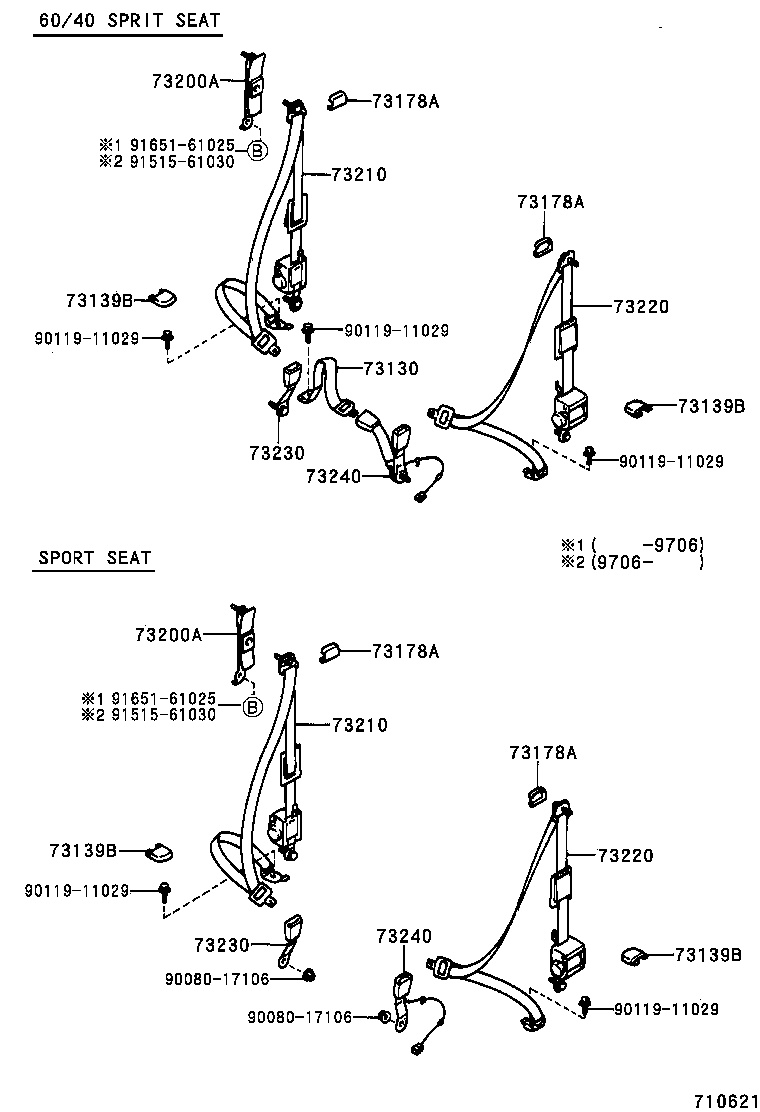

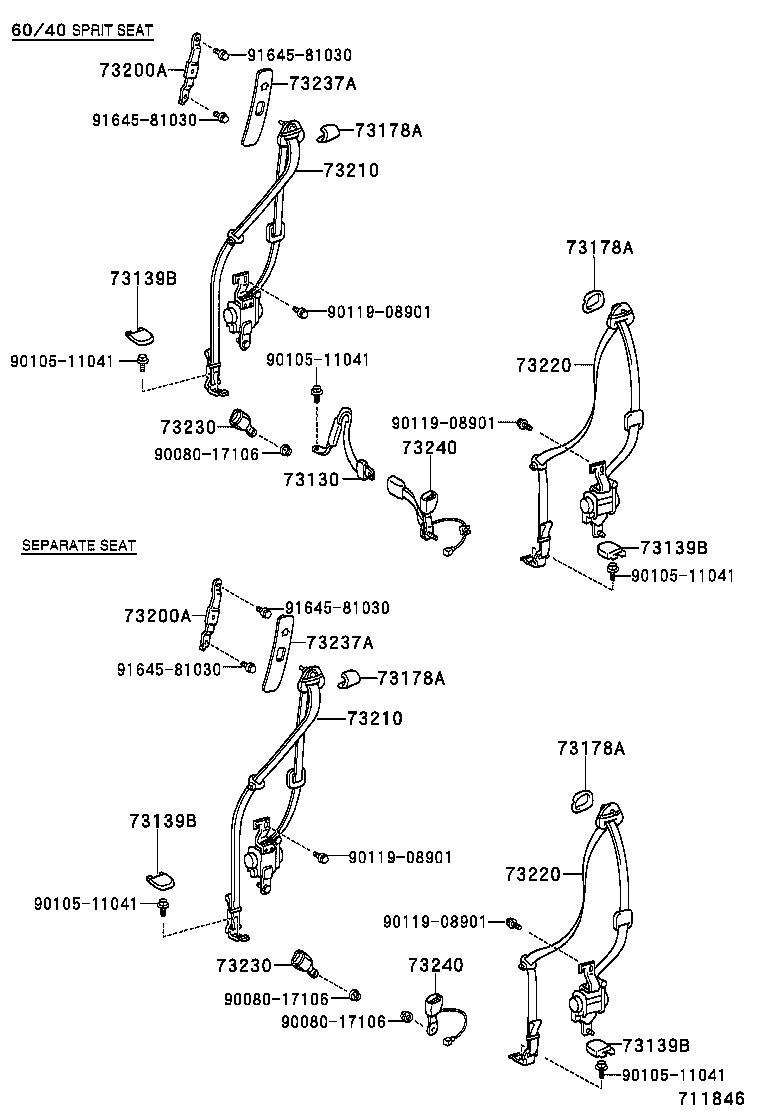

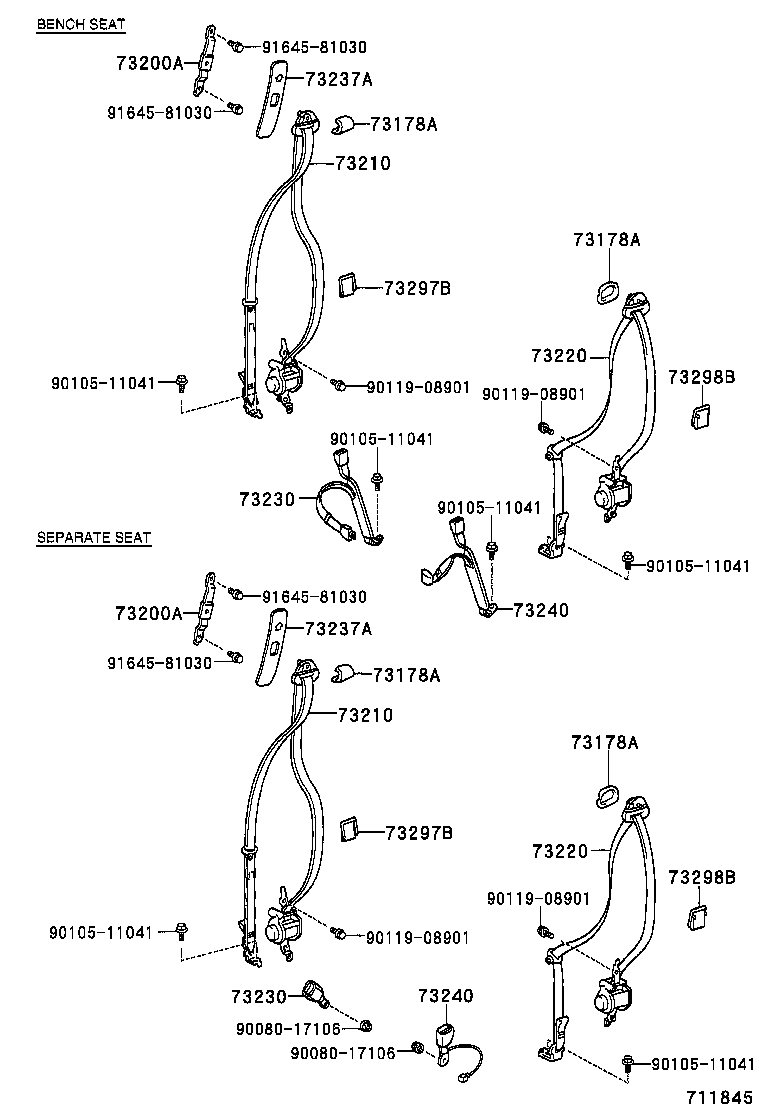

Figure 710620C 710620C 1995-01 → 2000-09 Figure 710621 710621 1995-01 → 2000-09 Figure 711845 711845 2000-09 → — Figure 711846 711846 2000-09 → — Figure 711847A 711847A 2000-09 → — Figure MN2897 MN2897 1995-01 → 2000-09 Figure 711848 711848 2000-09 → —

Part groups

PNCDescription
73130 Belt Assy, Front Seat Lap Type, RH
73139B Cover, Seat Belt Anchor
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73223C Clip, Front Seat Belt Retractor Cover
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73297B Cover, Quarter Trim Belt Hole, RH
73298B Cover, Quarter Trim Belt Hole, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73380D Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73390A Belt Assy, Rear Seat, Inner
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
