Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 2 illustrations

Illustrations

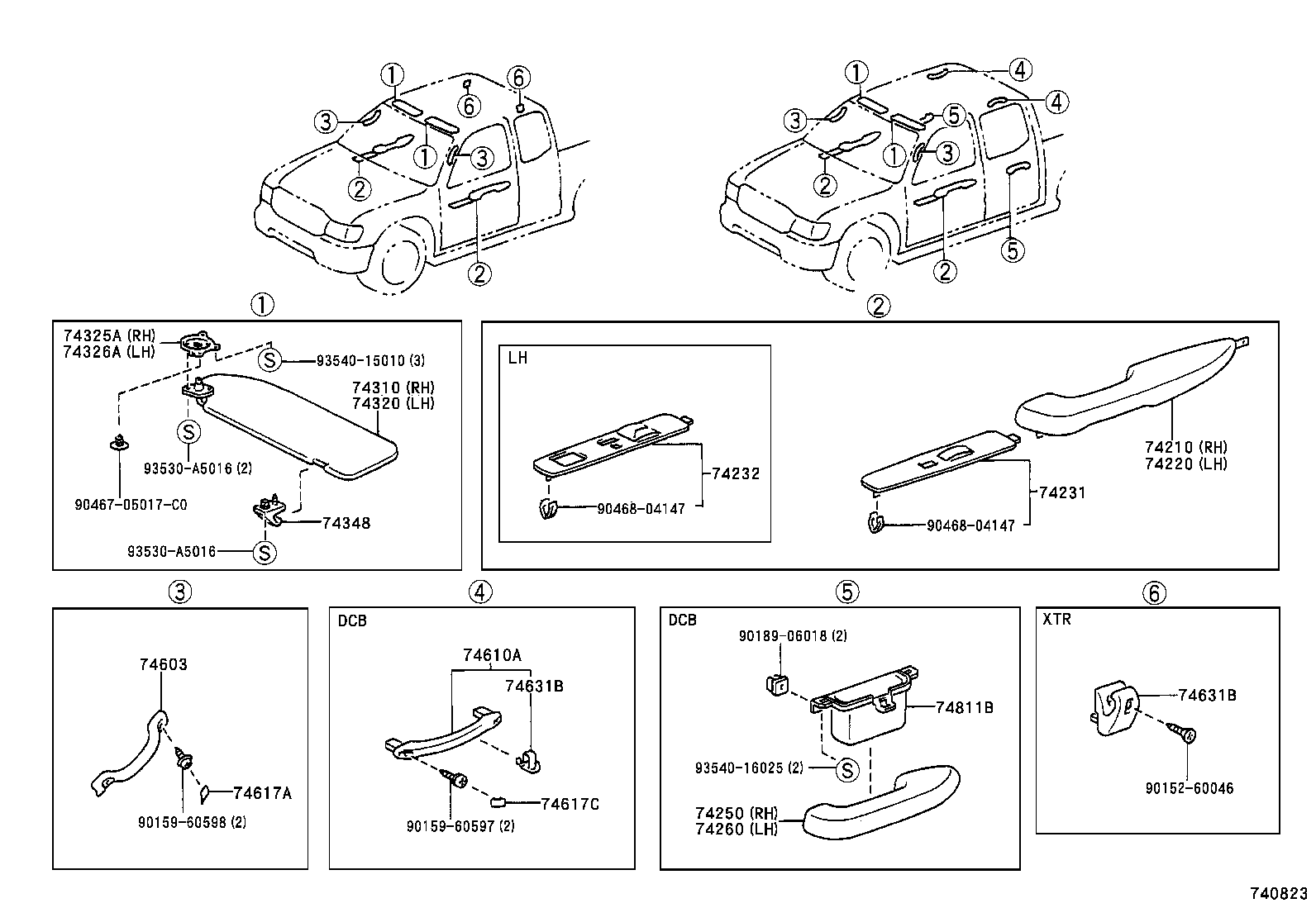

Figure 740209B 740209B 1995-01 → 2000-09 Figure 740823 740823 2000-09 → —

Part groups

PNCDescription
55524H Cover, Switch Base Hole
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233A Panel, Front Door Armrest Base, Lower RH
74234A Panel, Front Door Armrest Base, Lower LH
74237B Cap, Door Armrest Base
74250 Armrest Assy, Rear RH
74260 Armrest Assy, Rear LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325A Support, Front Visor, NO.1
74326A Support, Front Visor, NO.2
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74610A Grip Sub-assy, Assist
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74631B Hook, Coat
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
