Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

11 part groups · 2 illustrations

Illustrations

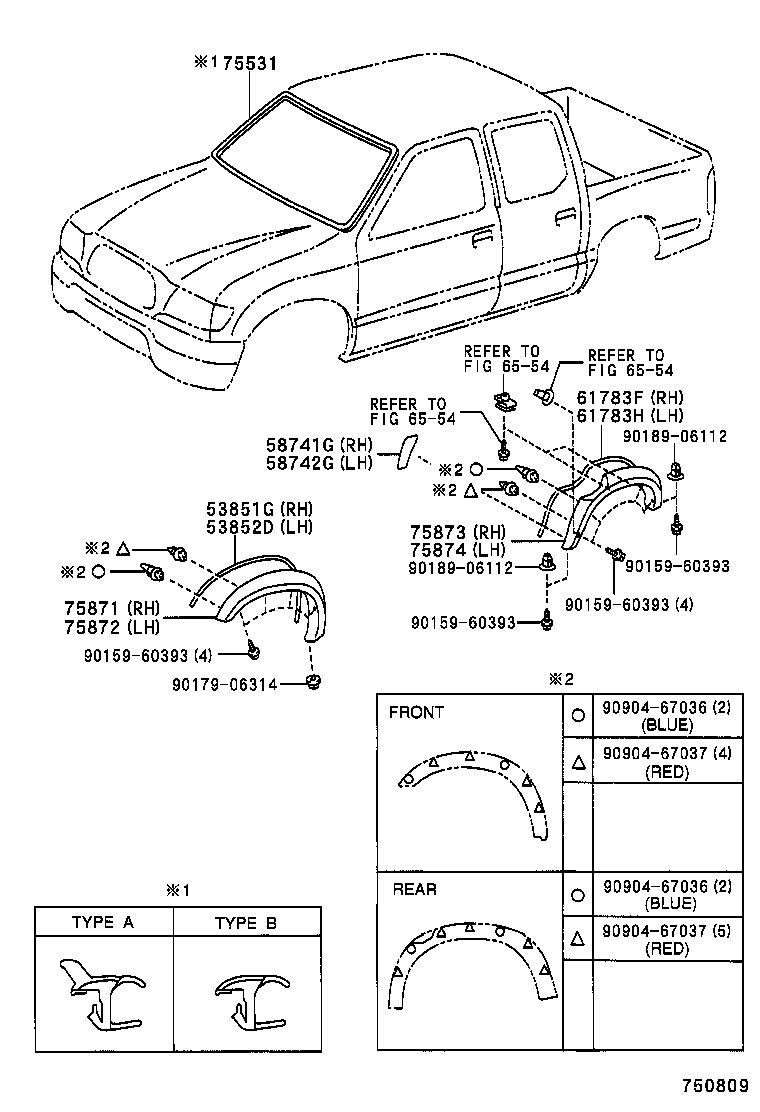

Figure 750206C 750206C 1995-01 → 2000-09 Figure 750809 750809 2000-09 → —

Part groups

PNCDescription
53851G Pad, Front Wheel Opening Extension, RH
53852D Pad, Front Wheel Opening Extension, LH
58741G Protector, Rear Wheel Extension, RH
58742G Protector, Rear Wheel Extension, LH
61783F Pad, Rear Wheel Opening Extension NO.1
61783H Pad, Reae Wheel Opening Extension, NO.2
75531 Moulding, Windshield, Outer Upper
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
