Fuel Tank & Tube

67 part groups · 13 illustrations

Illustrations

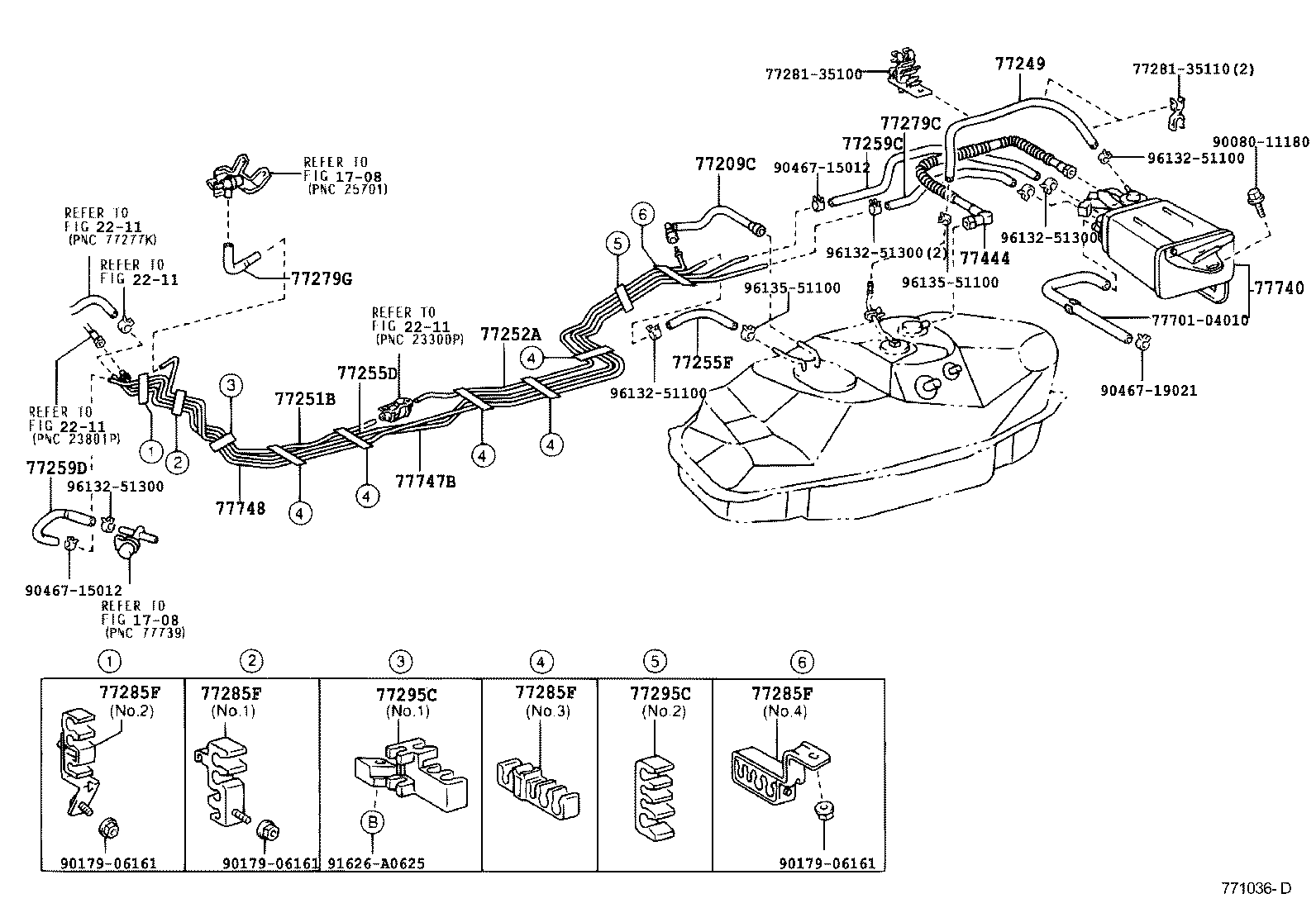

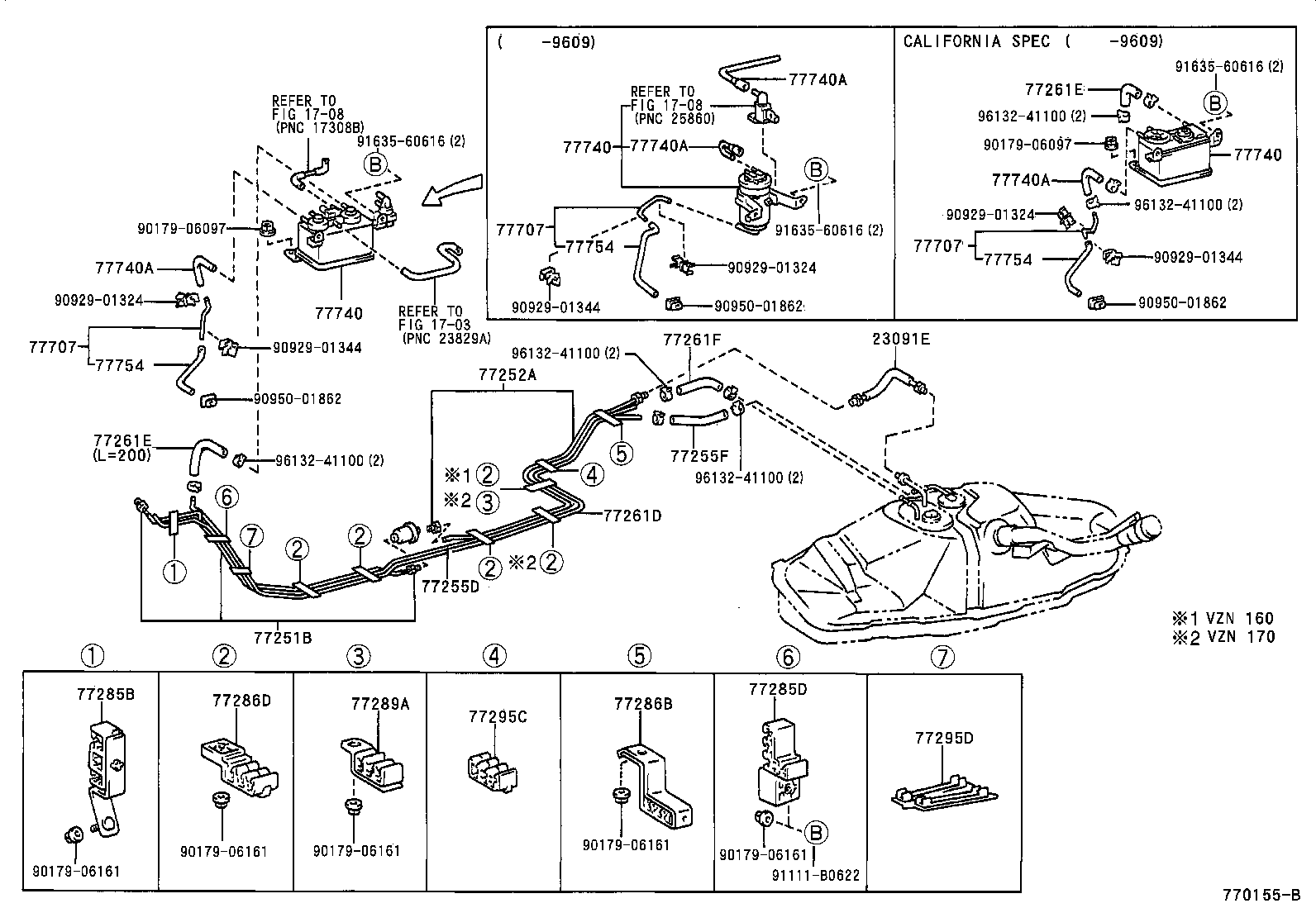

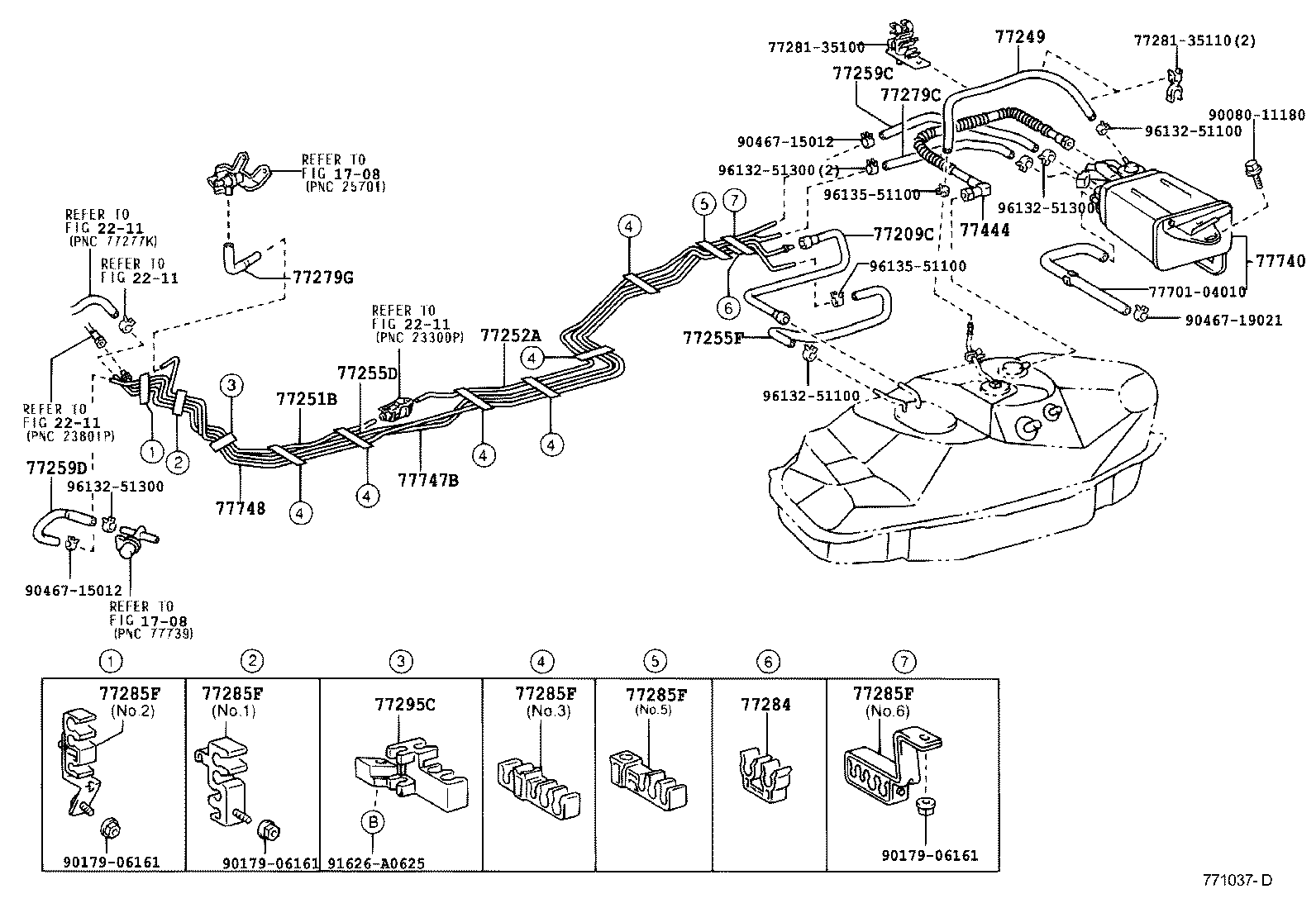

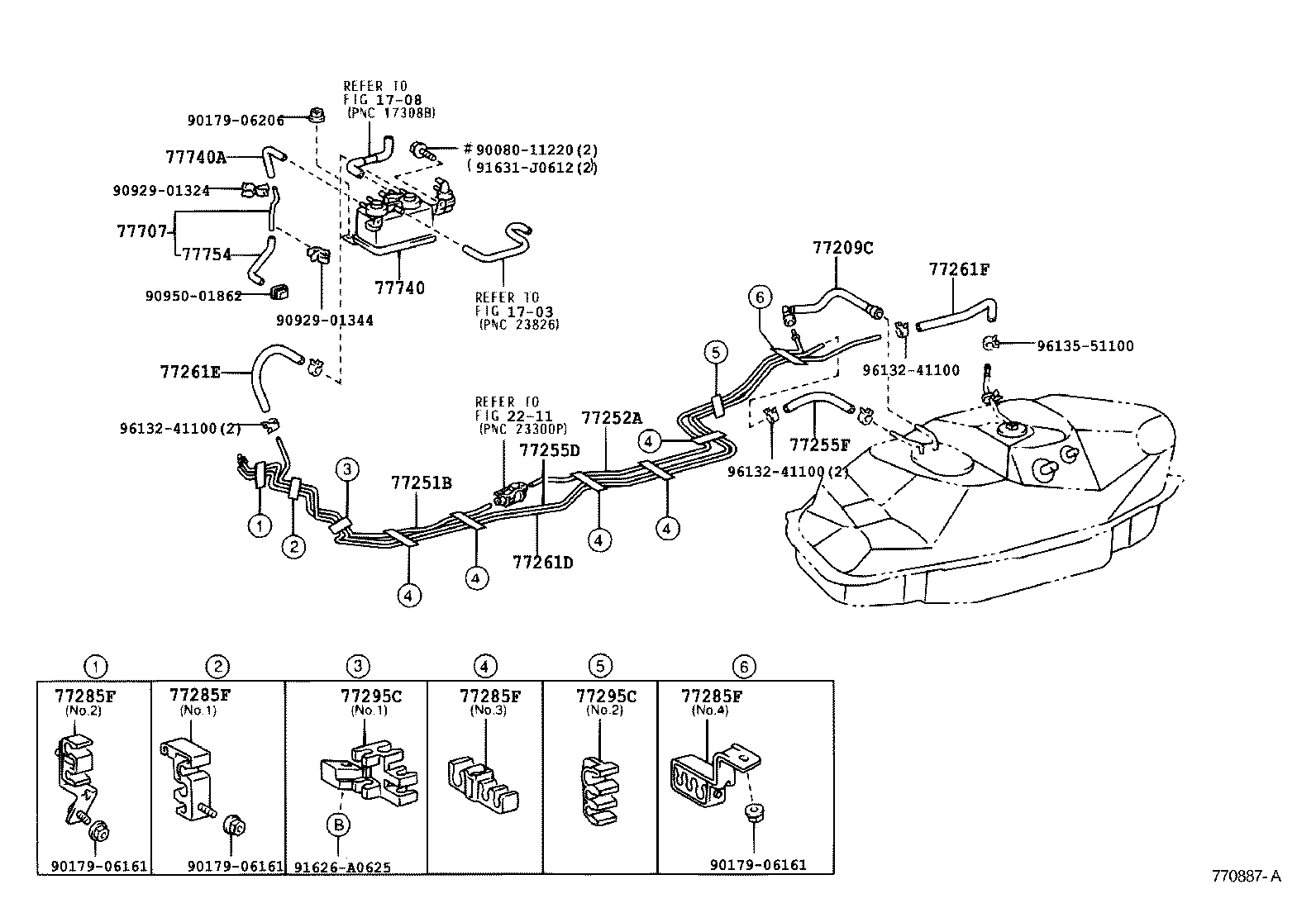

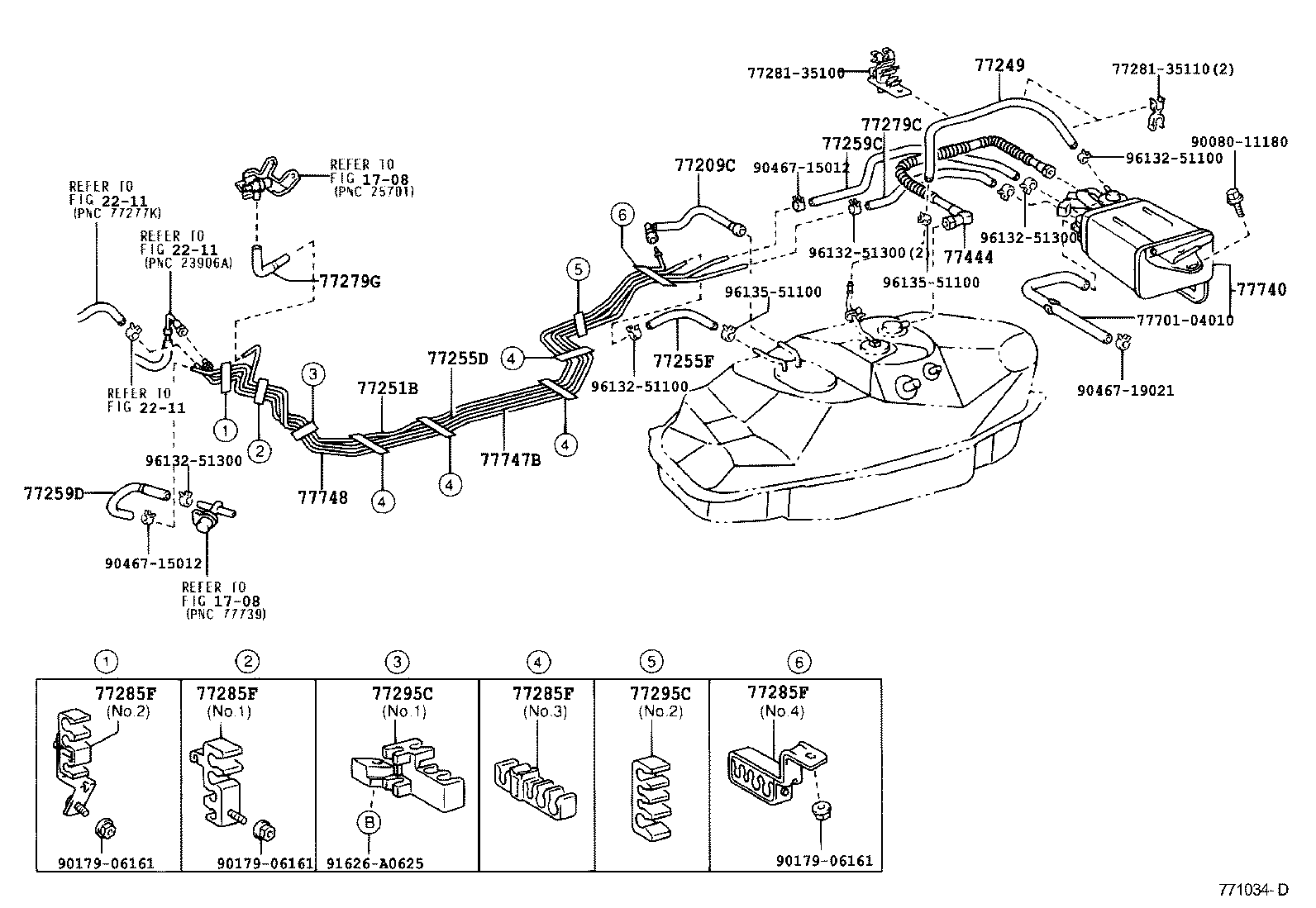

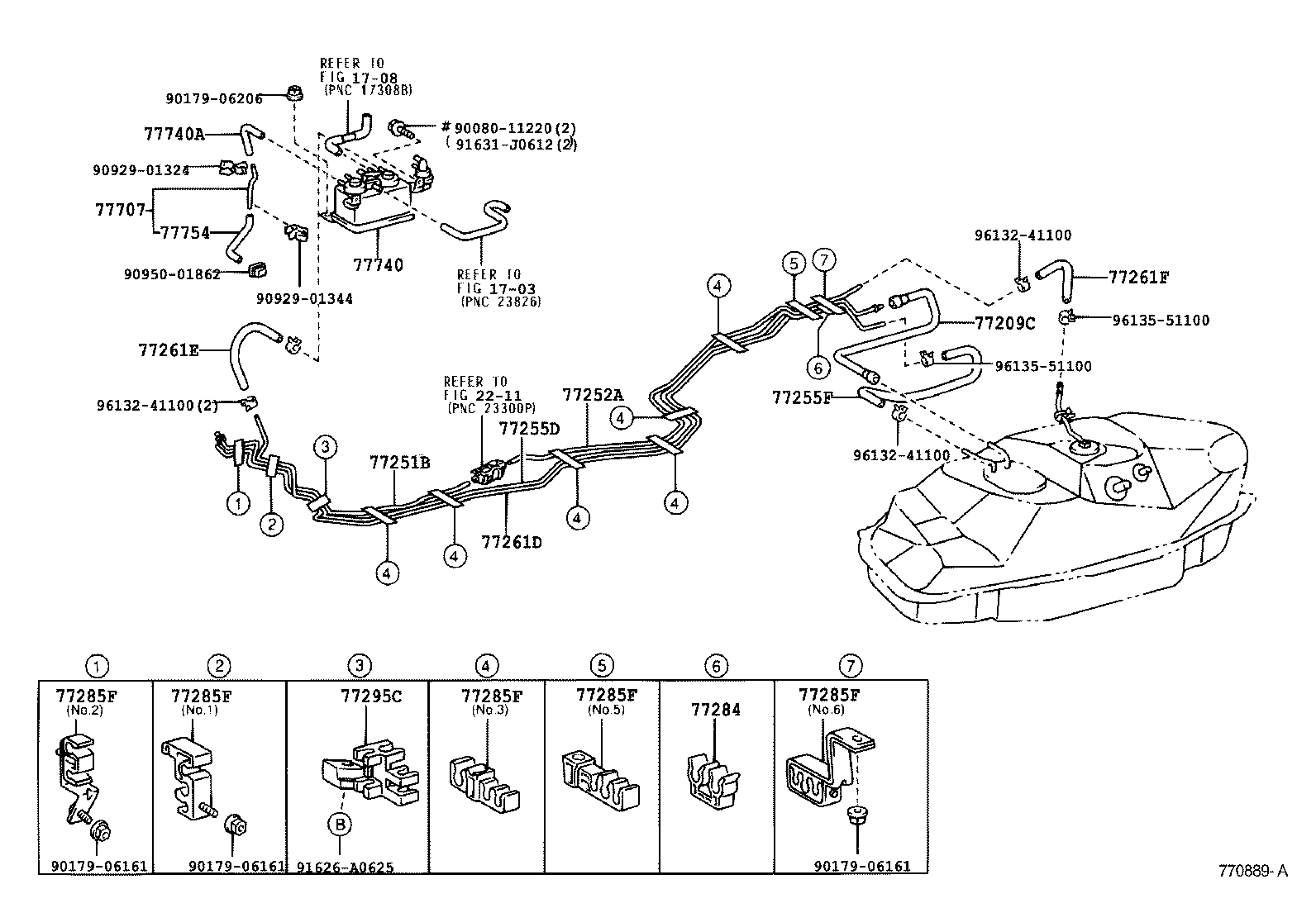

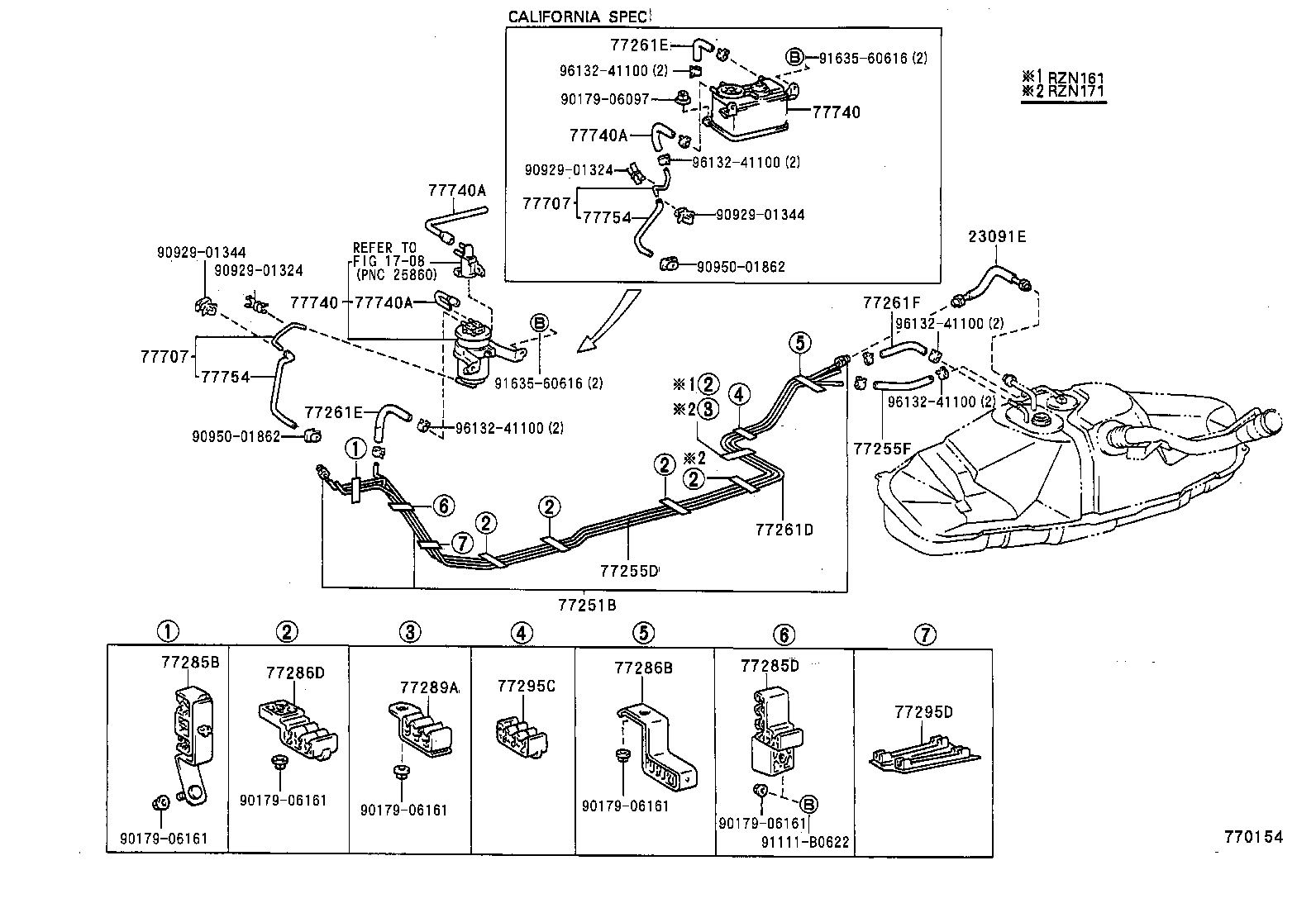

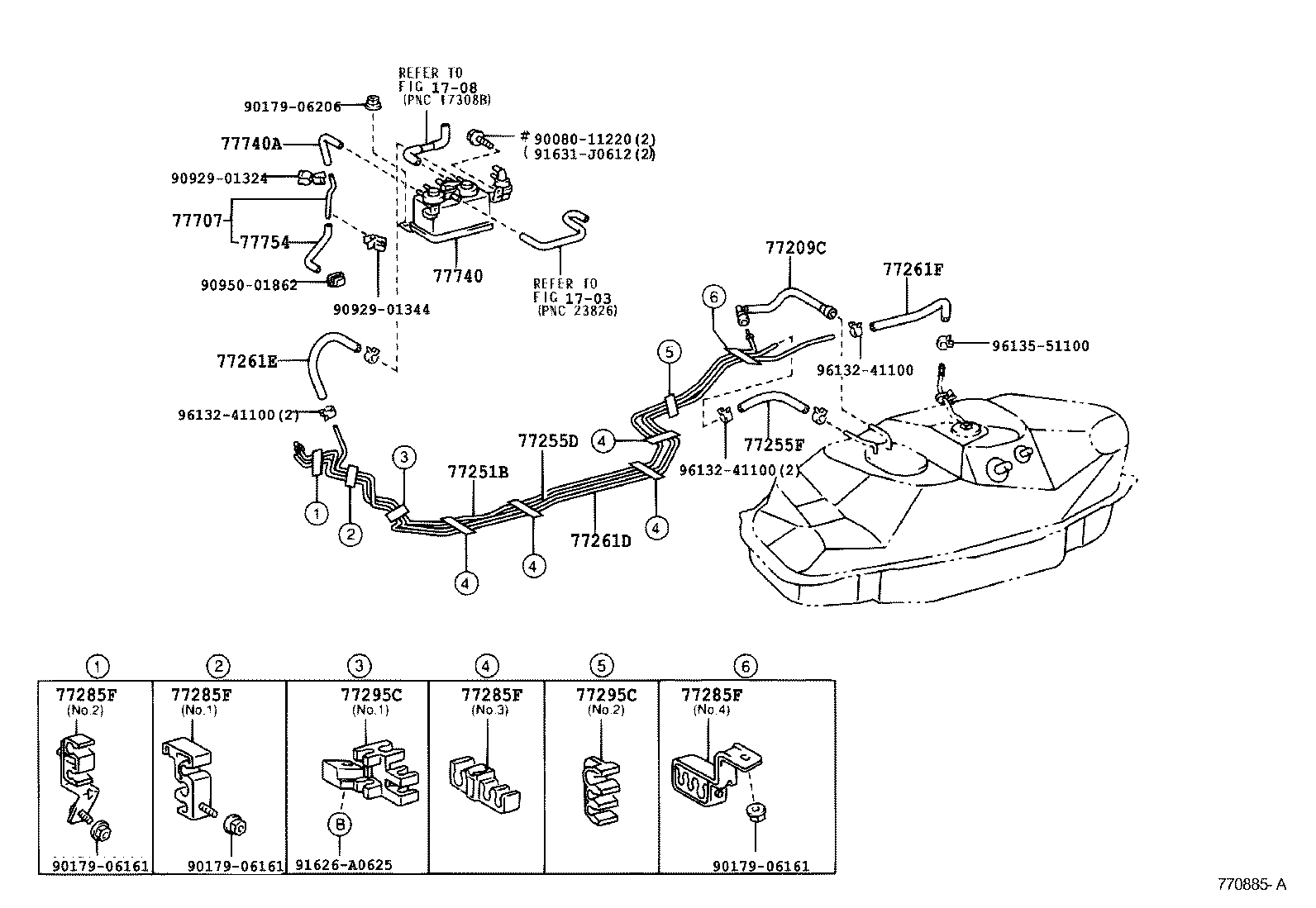

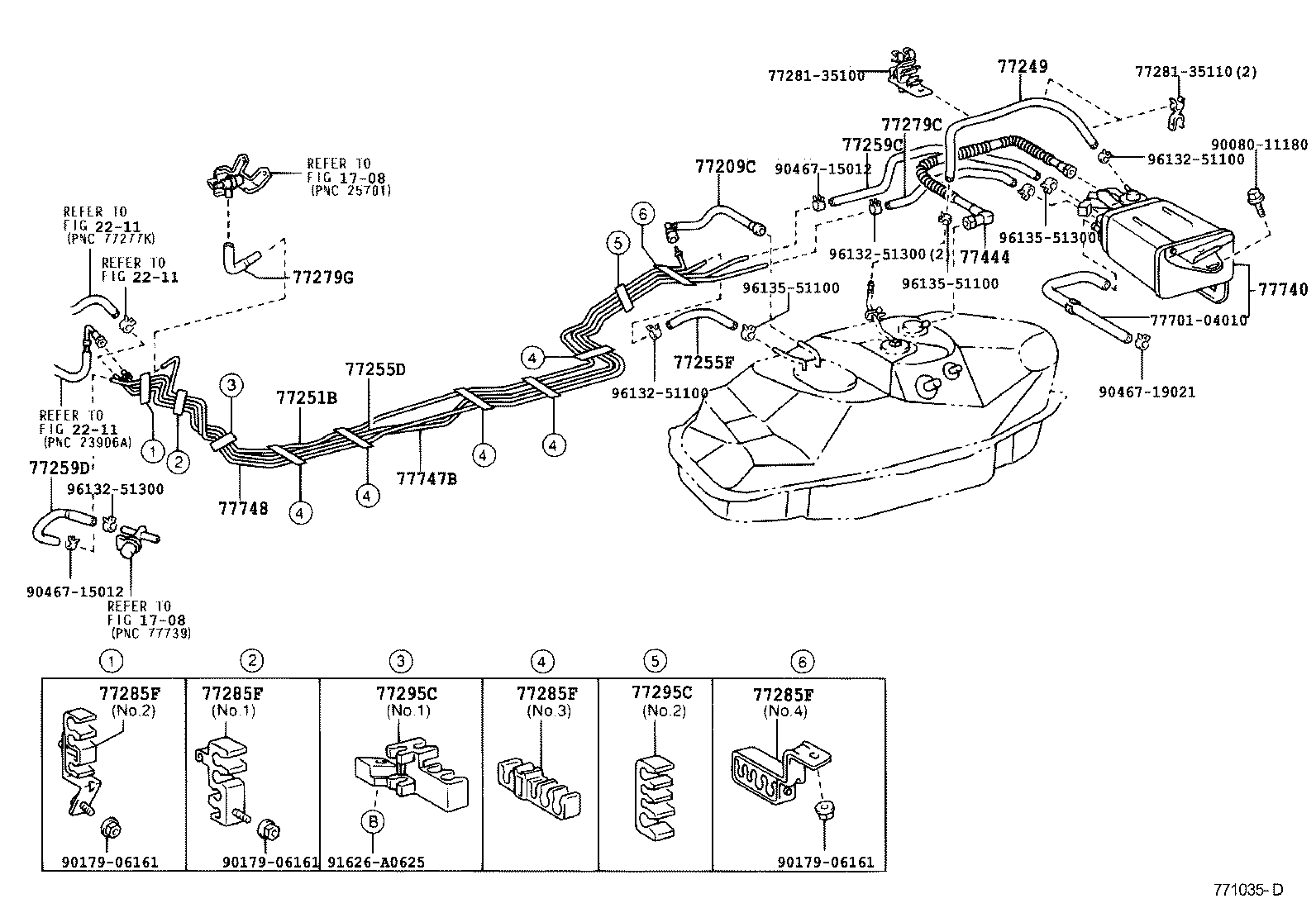

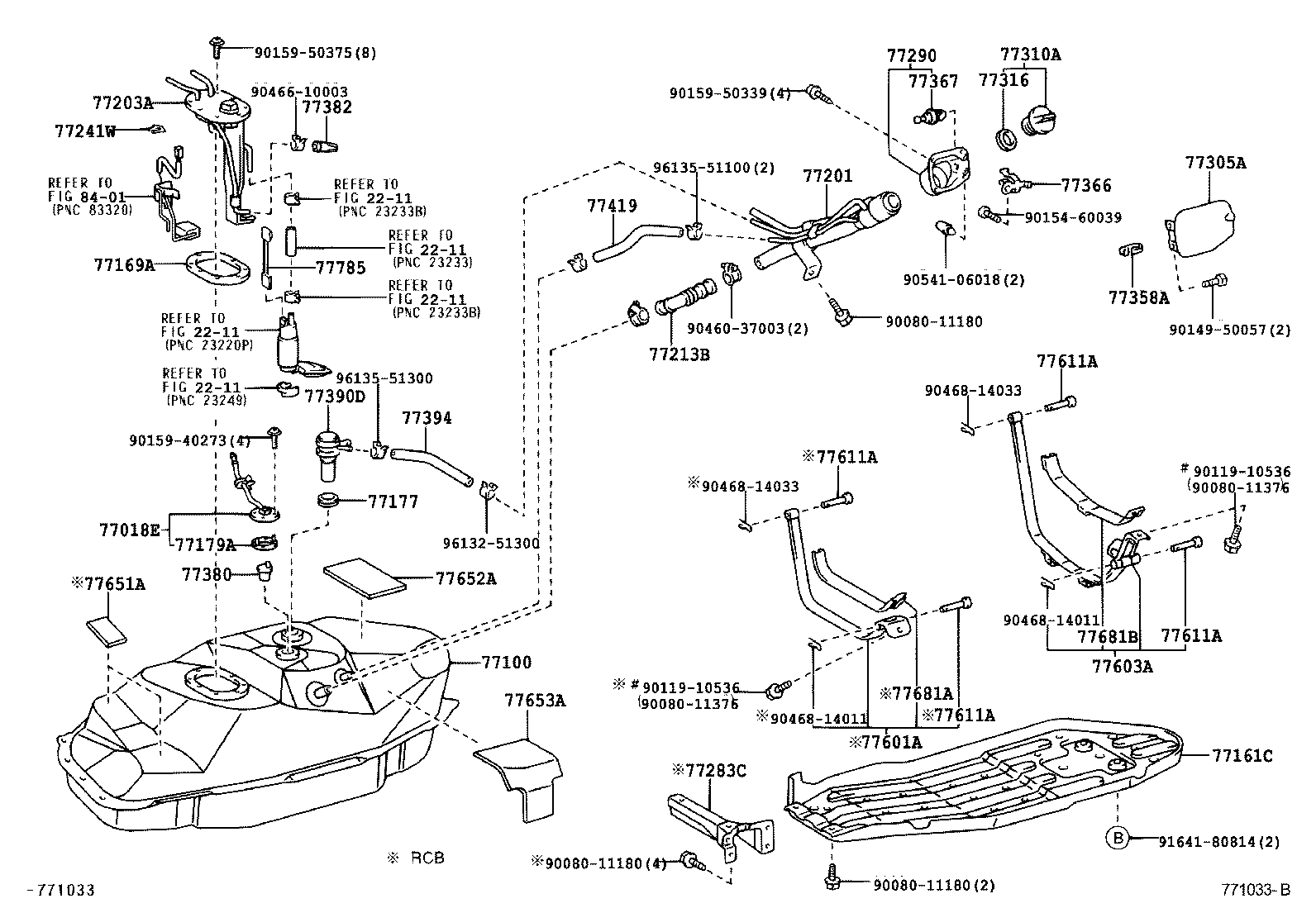

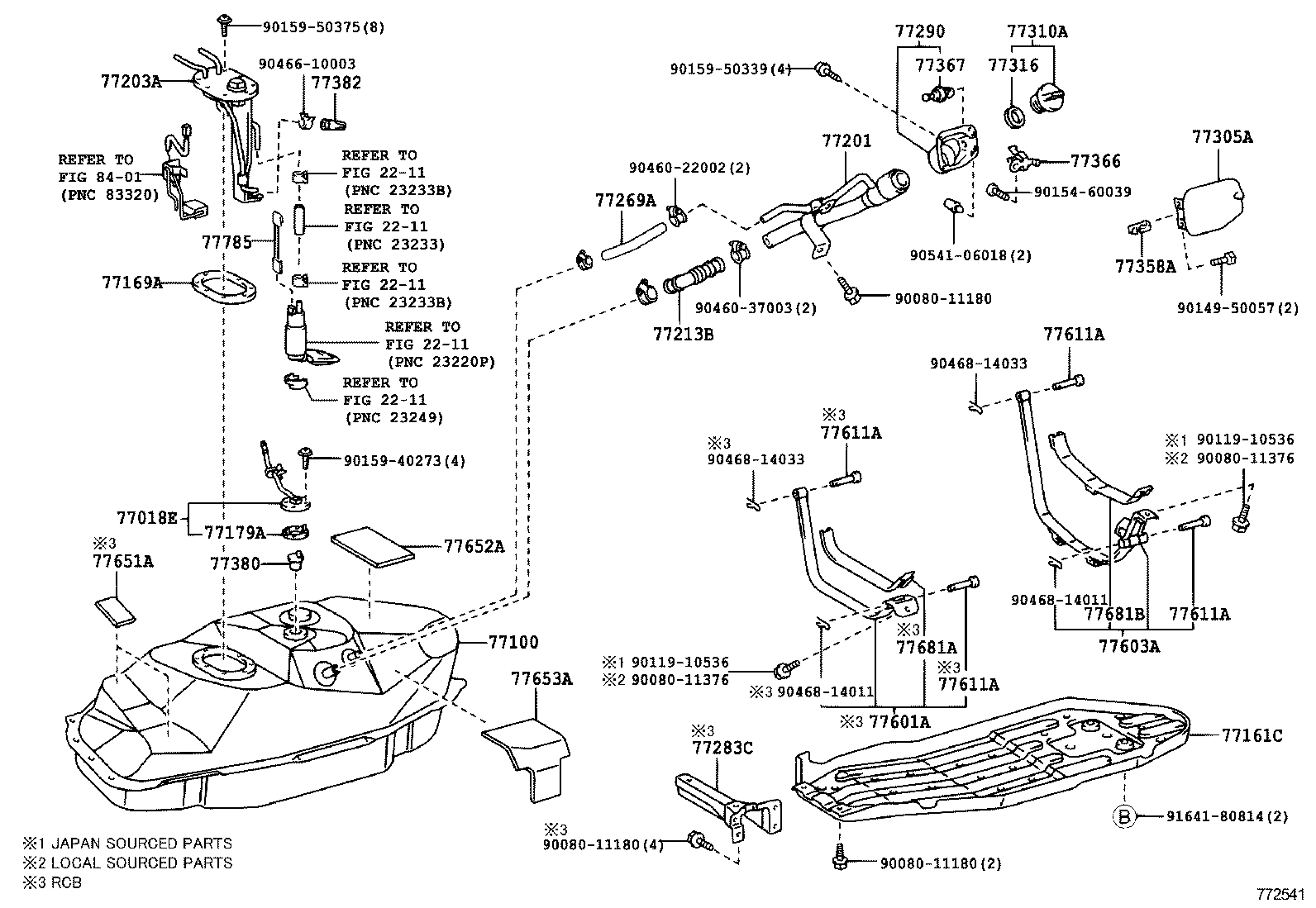

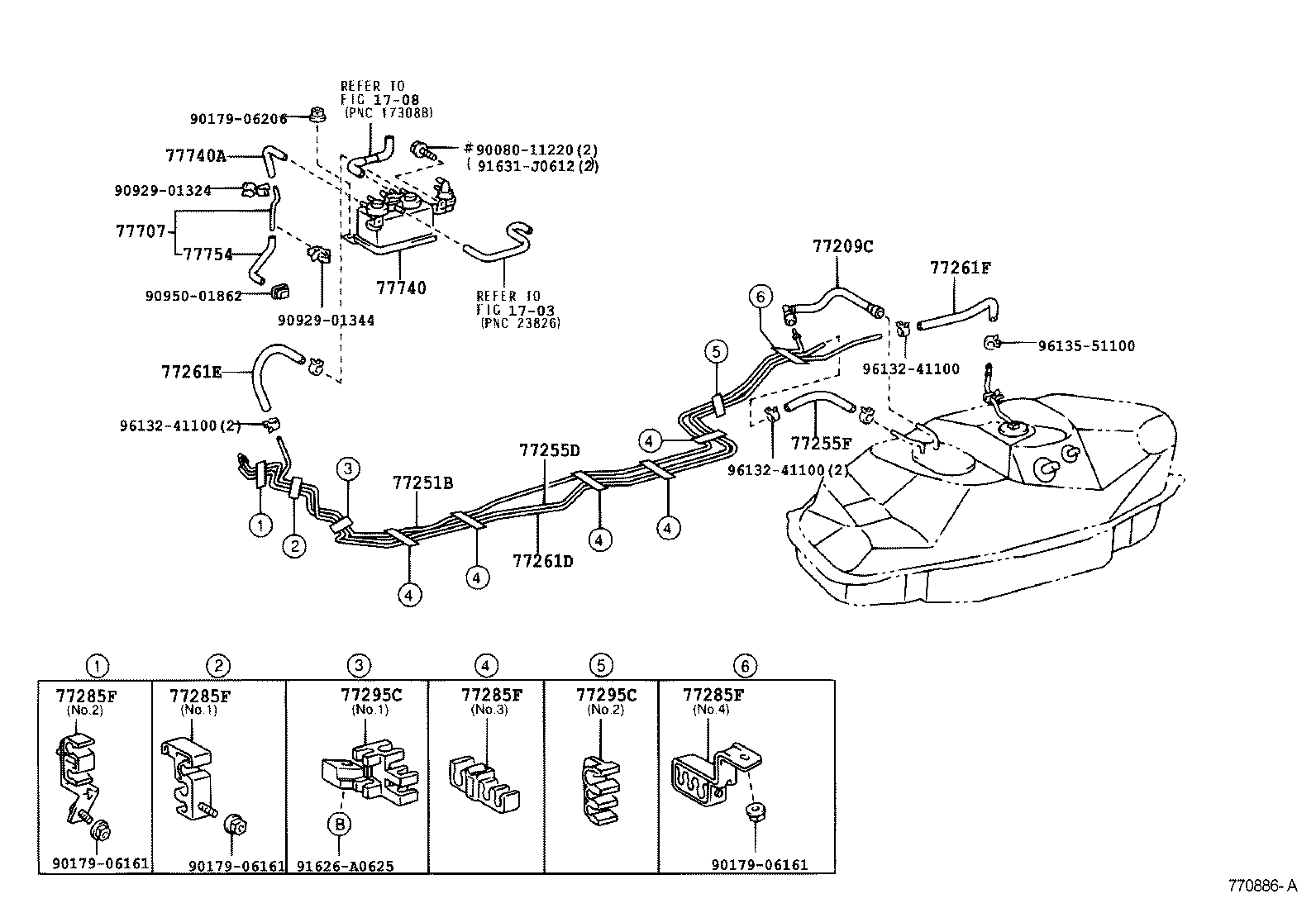

Figure 770153C 770153C 1995-01 → 2000-09 Figure 772541 772541 2000-09 → 2001-09 Figure 771033B 771033B 2001-09 → — Figure 770154 770154 1995-01 → 2000-09 Figure 770155B 770155B 1995-01 → 2000-09 Figure 770885A 770885A 2000-09 → 2001-09 Figure 770886A 770886A 2000-09 → 2001-09 Figure 770887A 770887A 2000-09 → 2001-09 Figure 770889A 770889A 2000-09 → 2001-09 Figure 771034D 771034D 2001-09 → — Figure 771035D 771035D 2001-09 → — Figure 771036D 771036D 2001-09 → — Figure 771037D 771037D 2001-09 → —

Part groups

PNCDescription
23091E Tube Sub-assy, Fuel Pump
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77100 Tank Assy, Fuel
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77131 Bracket, Fuel Tank Filler Pipe Support
77161C Protector, Fuel Tank, Lower
77169A Gasket, Fuel Suction Tube Set
77177 Gasket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77203A Tube Sub-assy, Fuel Suction
77209C Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77241W Clip, Tube Joint
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77269A Hose, Fuel Tank Breather
77279C Hose, Fuel
77279G Hose, Fuel, NO.2
77283C Bracket, Fuel Tank Protector
77284 Clamp, Fuel Tube
77285B Clamp, Fuel Tube W/Grommet, NO.1
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77286D Clamp, Fuel Tube, NO.2
77289A Clamp, Fuel Tube W/Grommet, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77358A Stopper, Fuel Filler Opening Lid
77366 Spring, Fuel Filler Opening Lid Hinge
77367 Stopper, Fuel Filler Opening Lid
77380 Valve Assy, Fuel Cut Off
77382 Valve, Fuel Cut Off
77390D Valve Assy, Fuel Tank Over Fill Check
77394 Hose, Valve TO Fuel Filler Pipe
77419 Hose, Fuel, NO.3
77444 Hose, Fuel Tank Vent
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77654 Cushion, Fuel Tank, NO.2
77681A Seat, Fuel Tank Band
77681B Seat, Fuel Tank Band
77707 Tube Sub-assy, Charcoal Canister Outlet
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77747B Tube, Charcoal Canister, NO.1
77748 Pipe, Charcoal Canister, NO.2
77754 Hose, Charcoal Canister Outlet, NO.1
77785 Harness, Fuel Pump
