Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

16 part groups · 3 illustrations

Illustrations

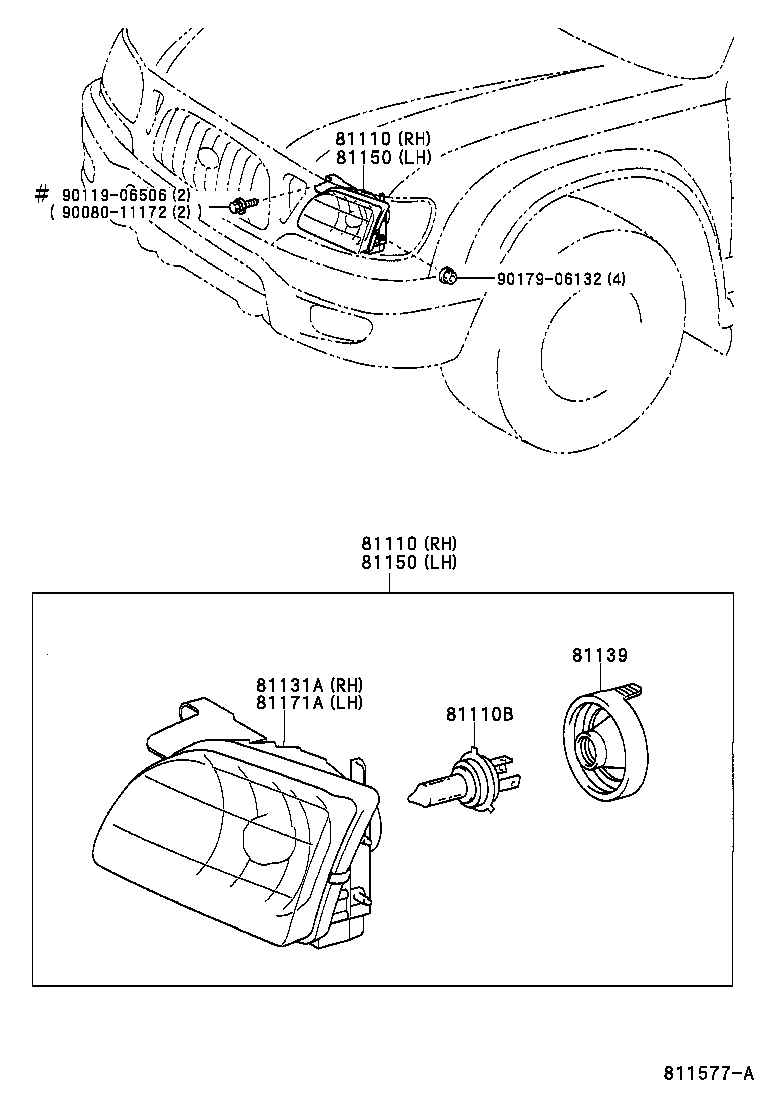

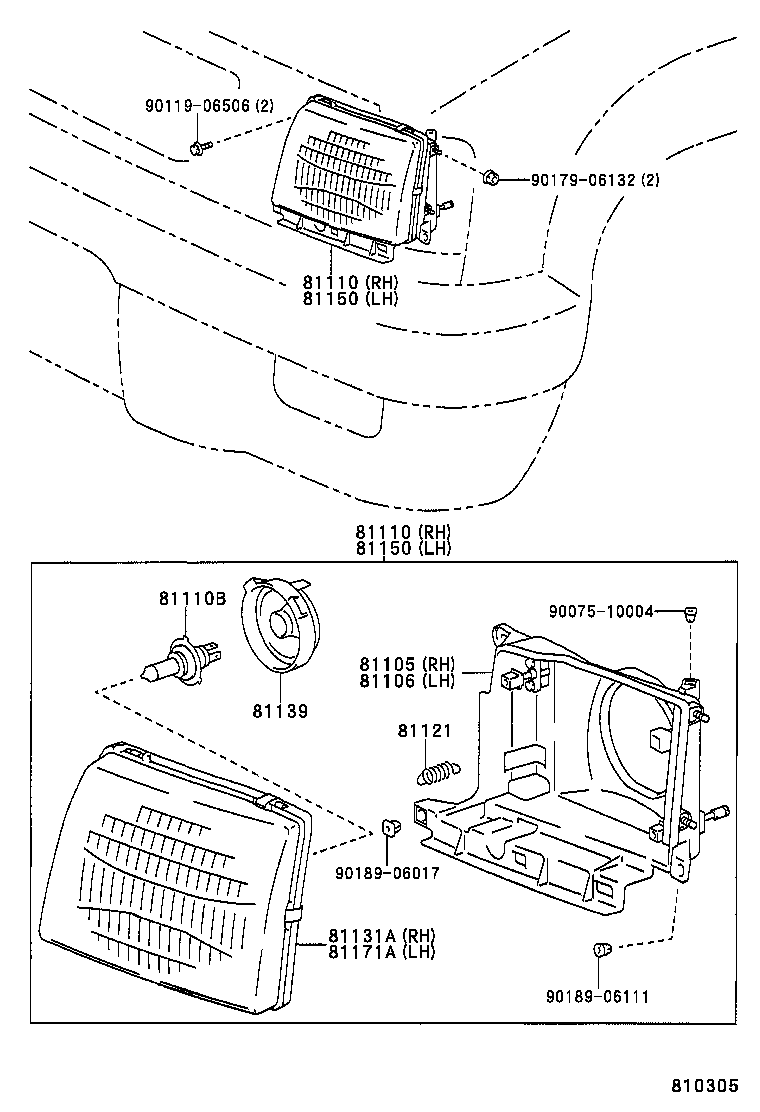

Figure 811415 811415 1995-01 → 1997-06 Figure 810305 810305 1997-06 → 2000-09 Figure 811577A 811577A 2000-09 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81126 Plate, Headlamp
81131A Unit, Headlamp, RH
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81171A Unit, Headlamp, LH
81195 Screw, Headlamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
