Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 12 illustrations

Illustrations

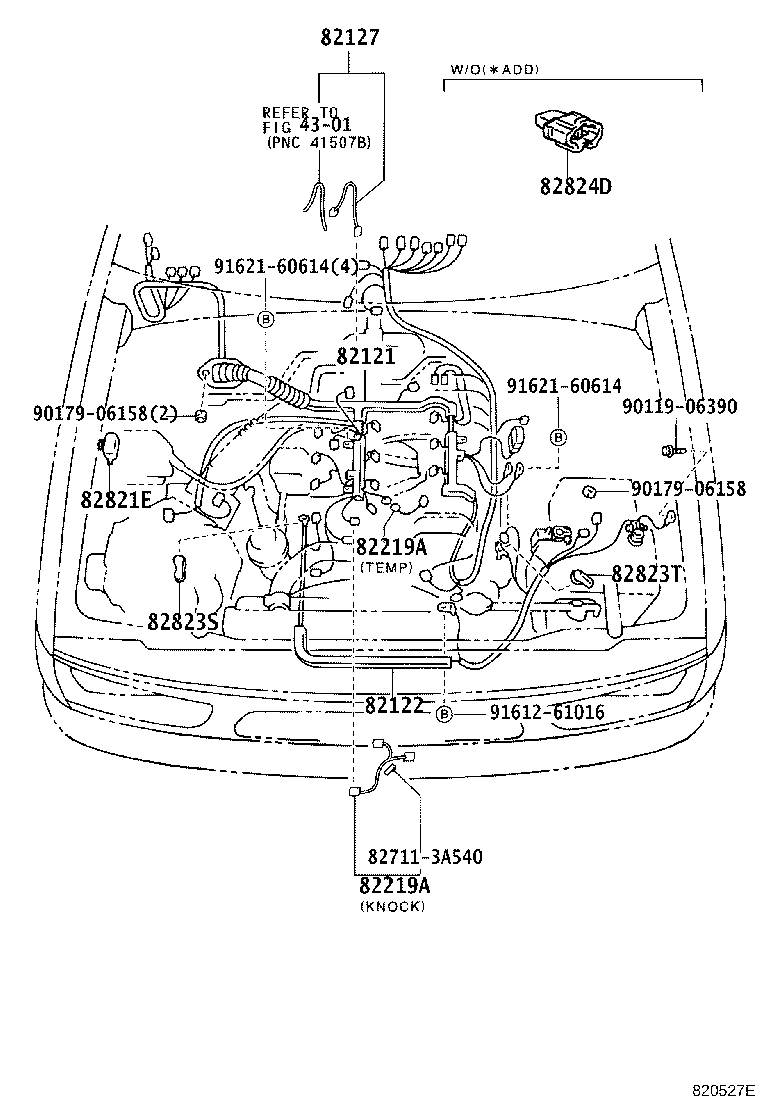

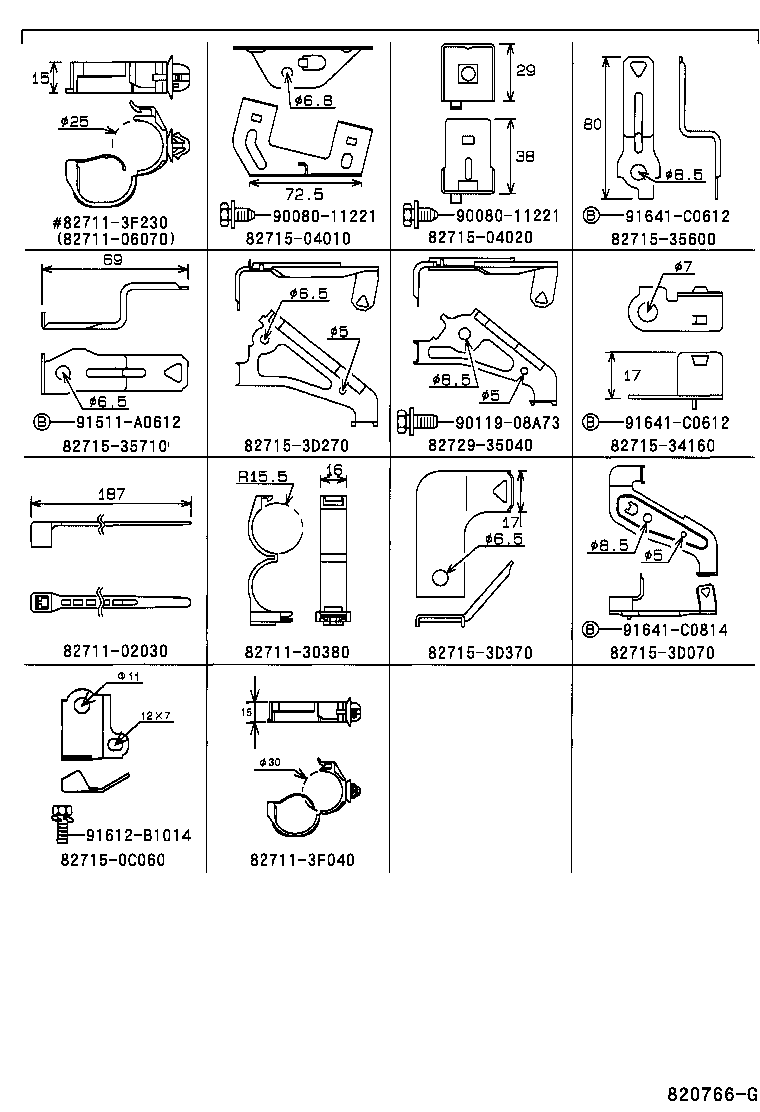

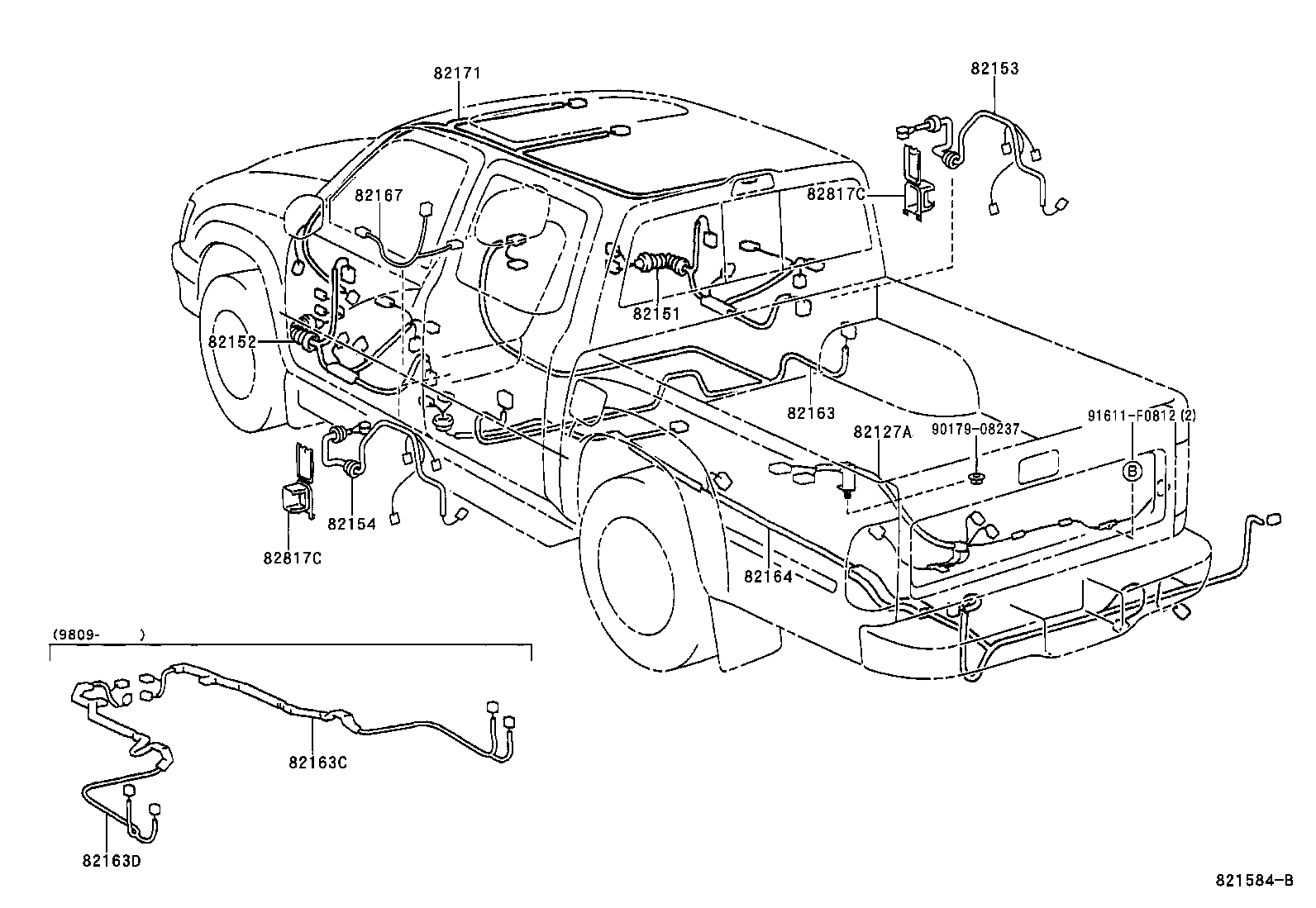

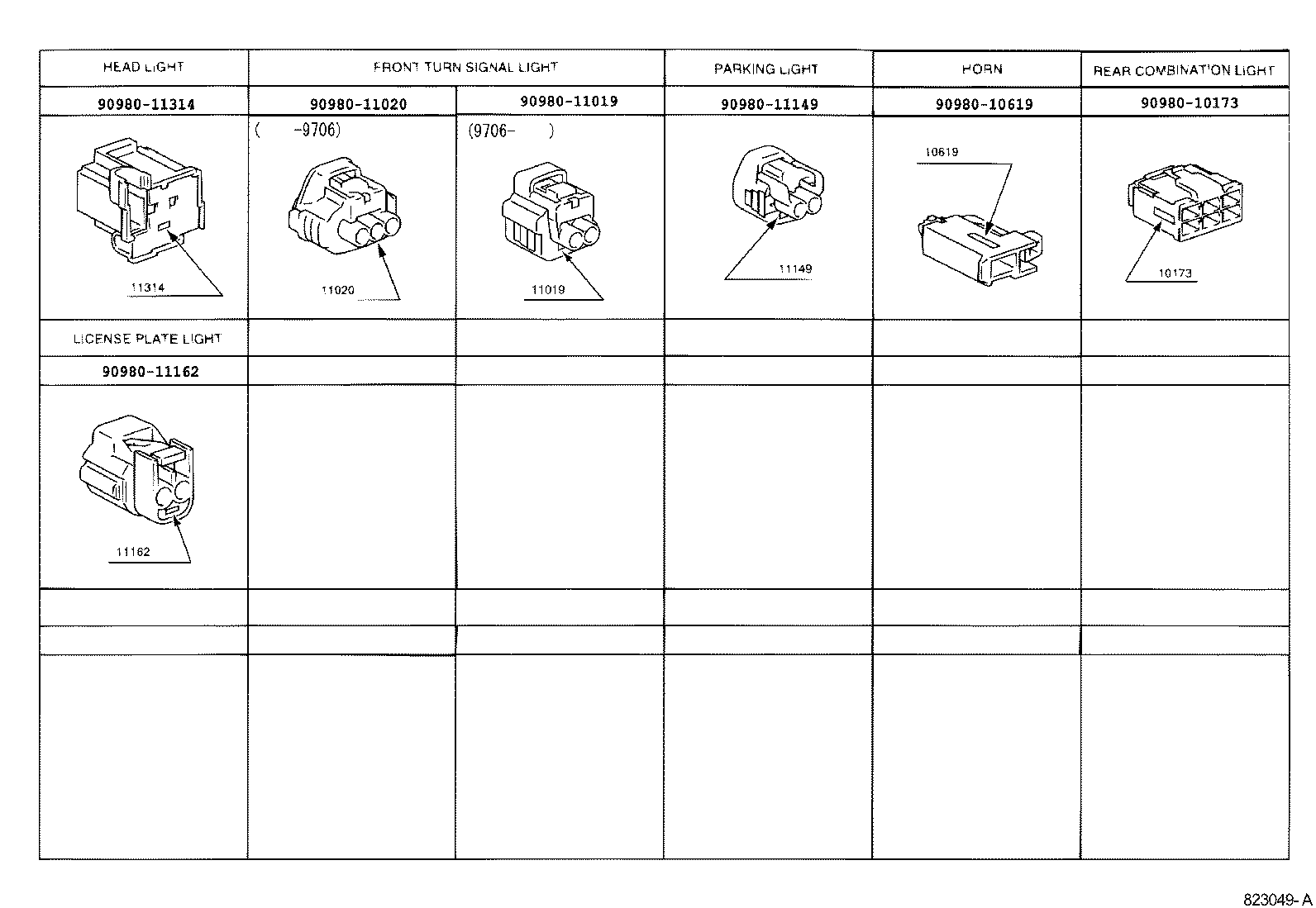

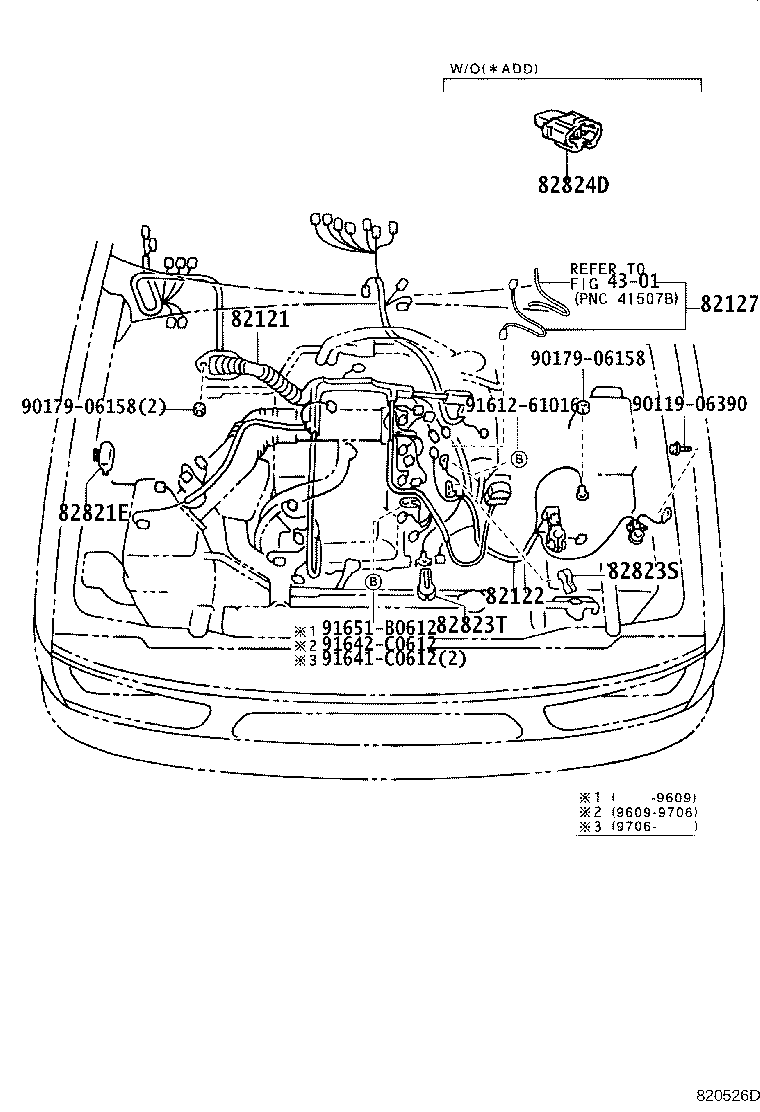

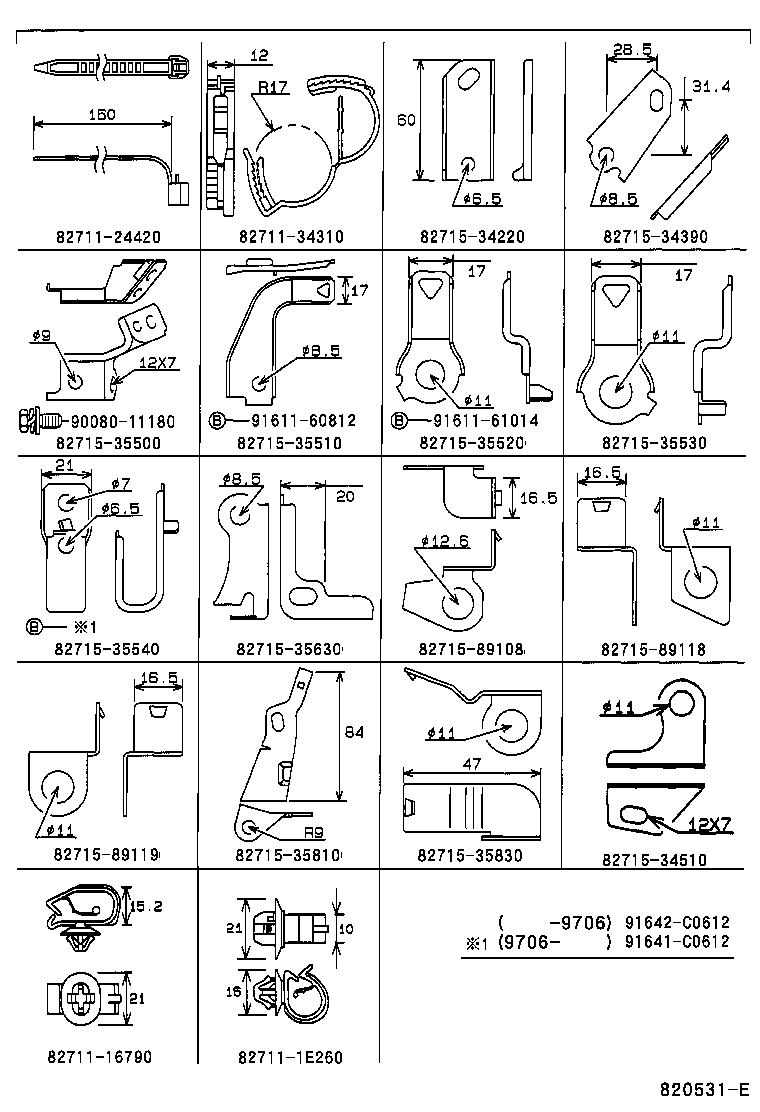

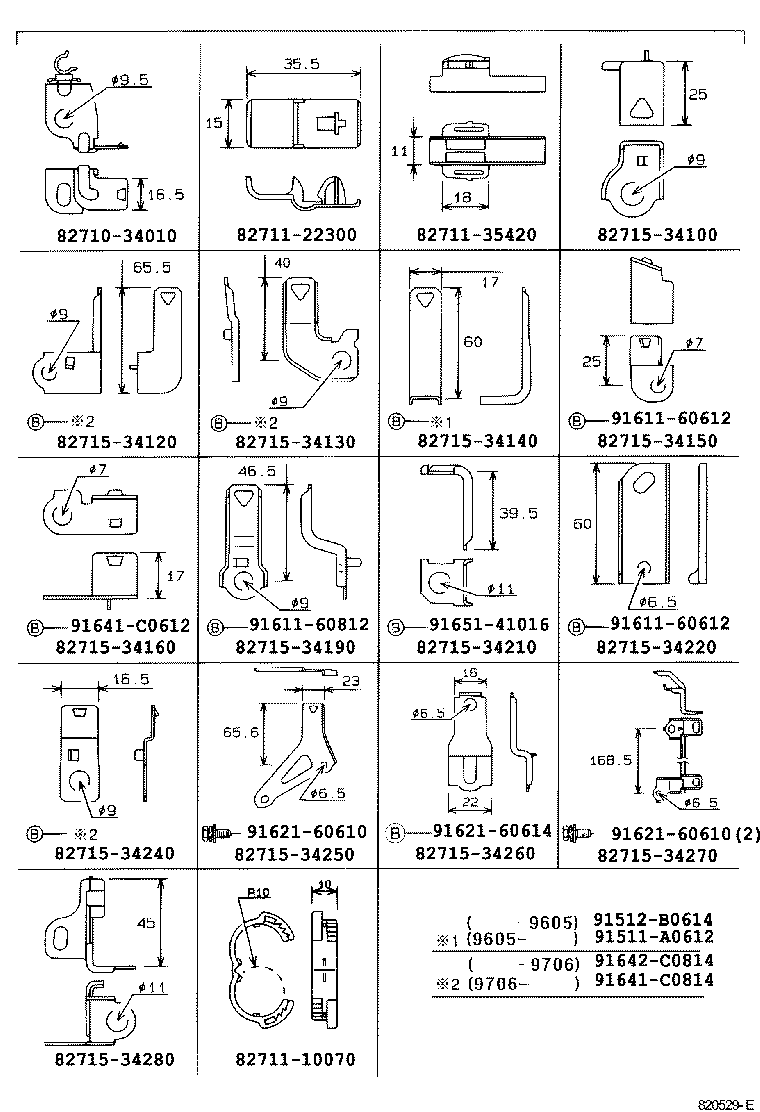

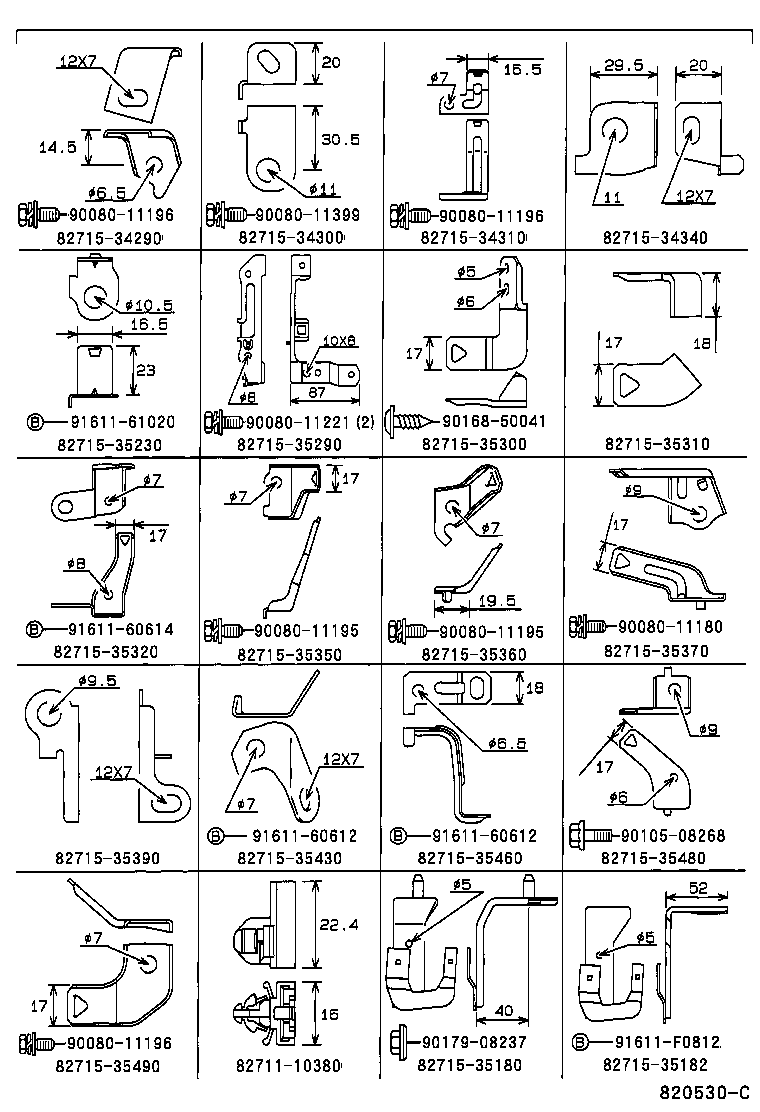

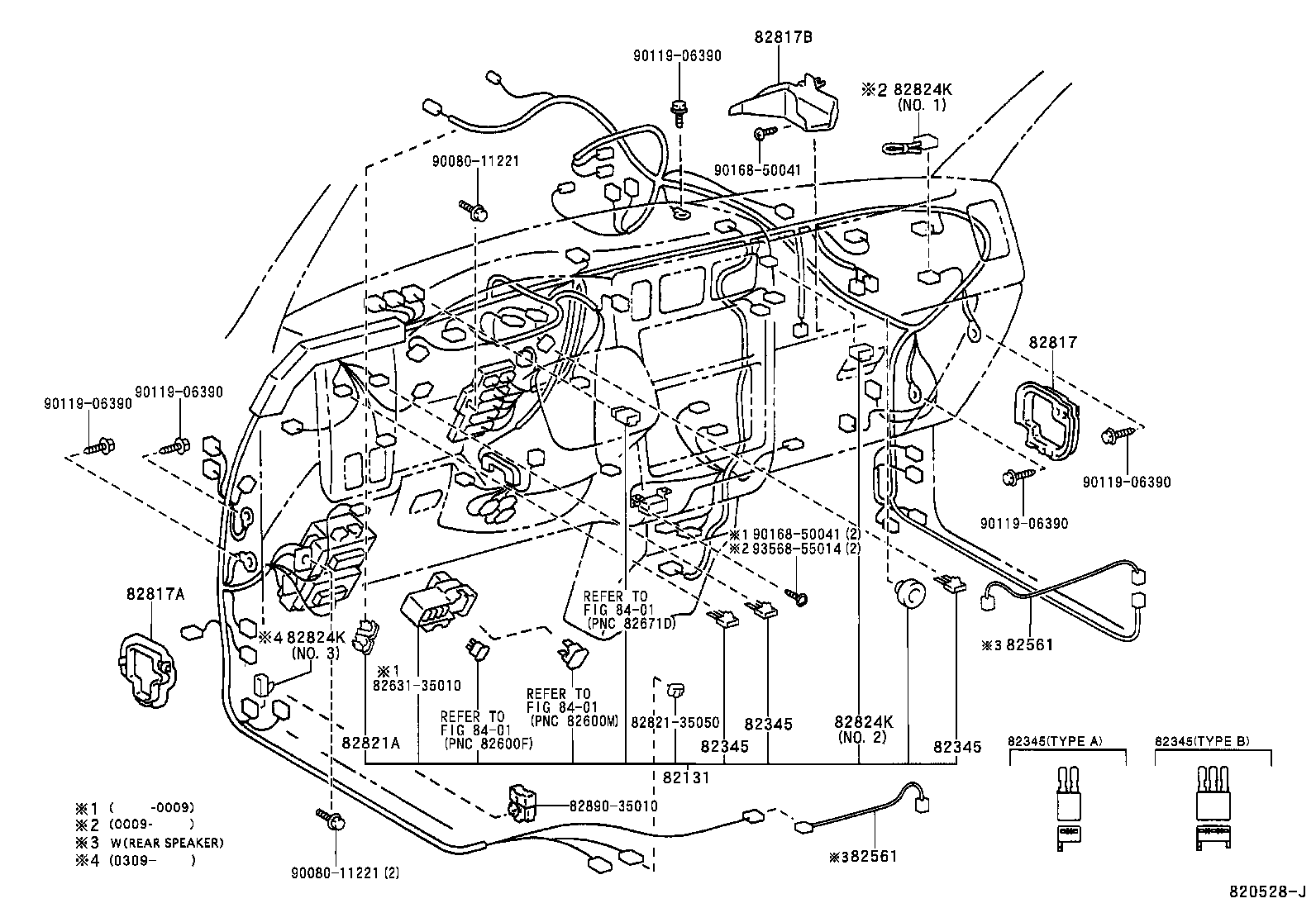

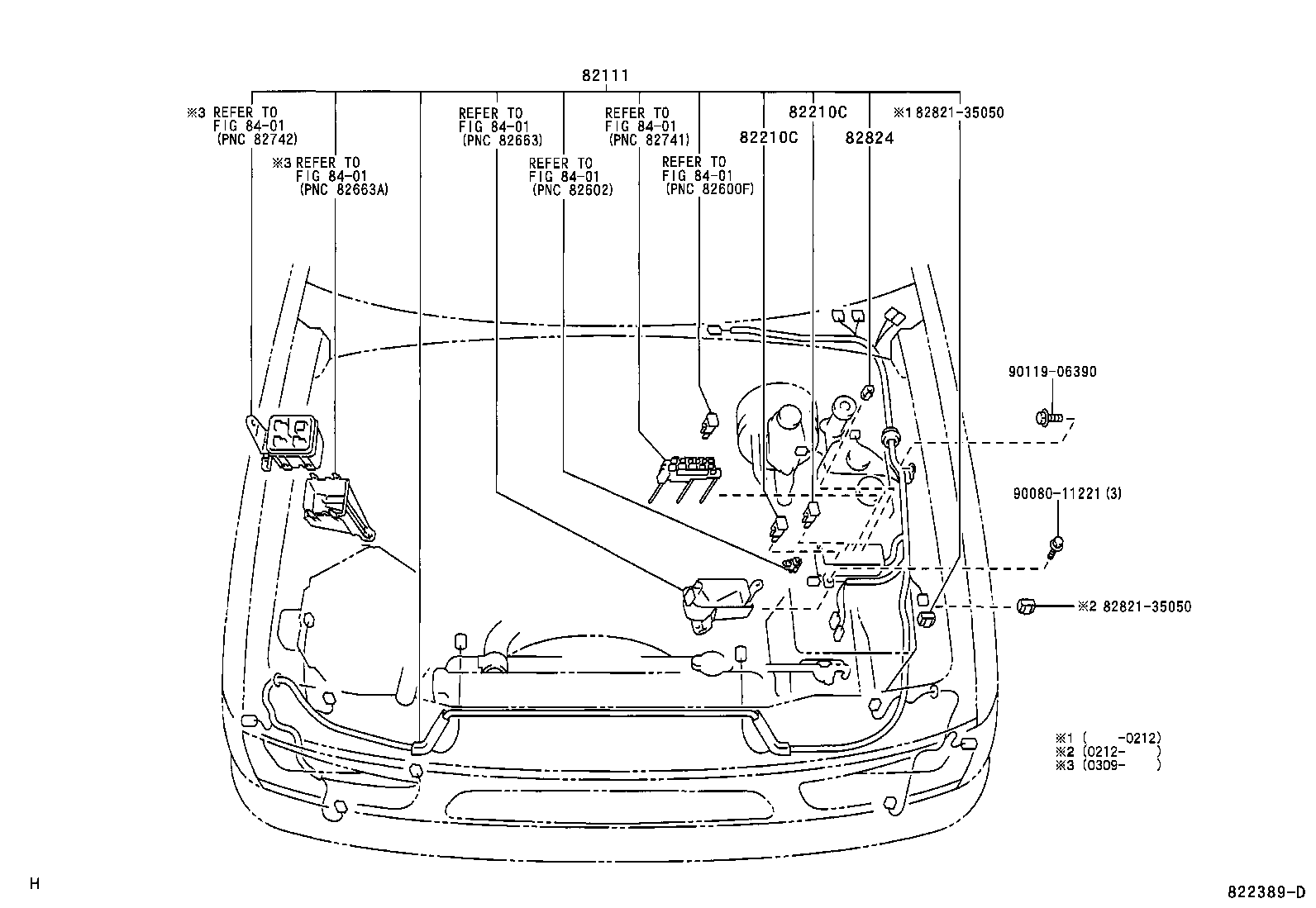

Figure 820525D 820525D 1995-01 → 2000-09 Figure 822389D 822389D 2000-09 → — Figure 820526D 820526D 1995-01 → — Figure 820527E 820527E 1995-01 → — Figure 820528J 820528J 1995-01 → — Figure 821584B 821584B 1995-01 → — Figure 820529E 820529E 1995-01 → — Figure 820530C 820530C 1995-01 → — Figure 820531E 820531E 1995-01 → — Figure 820766G 820766G 1995-01 → — Figure 820532B 820532B 1995-01 → — Figure 823049A 823049A 1995-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82127 Wire, Differential
82127A Wire, Differential (TO WIRE FRAME)
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82163 Wire, Floor, NO.3
82163C Wire, Floor NO.3 RH
82163D Wire, Floor NO.3 LH
82164 Wire, Frame
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82345 Diode
82561 Wire, Rear Speaker
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
