Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

20 part groups · 8 illustrations

Illustrations

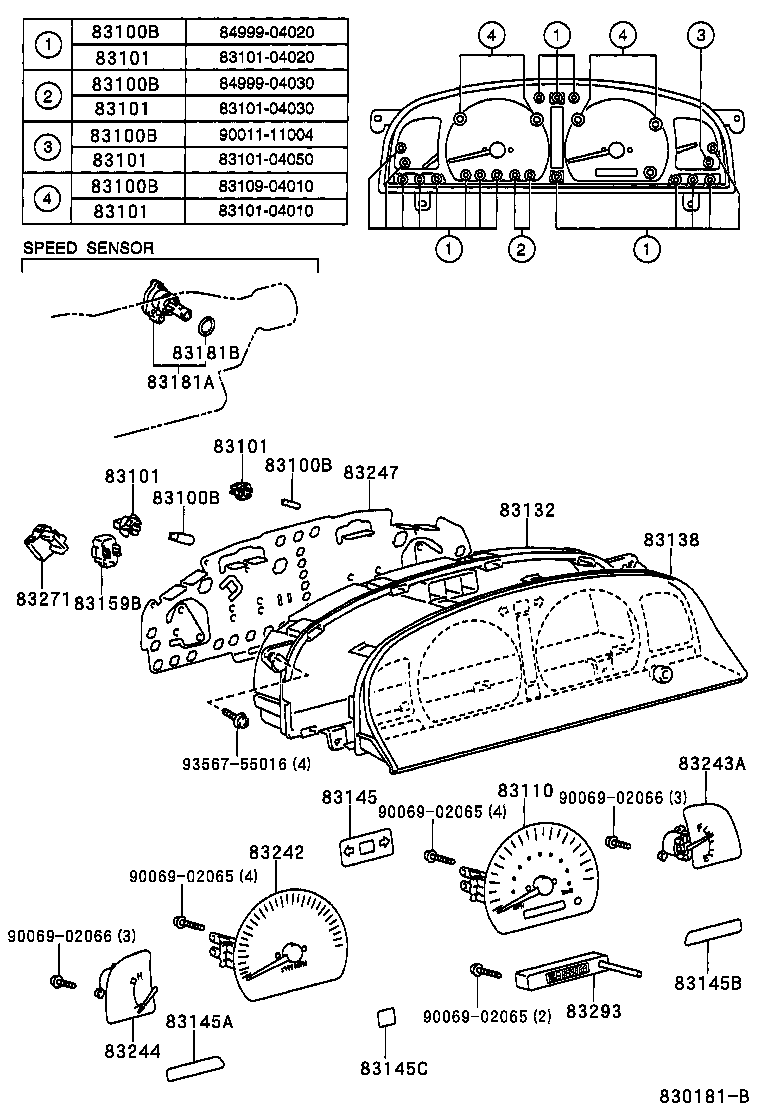

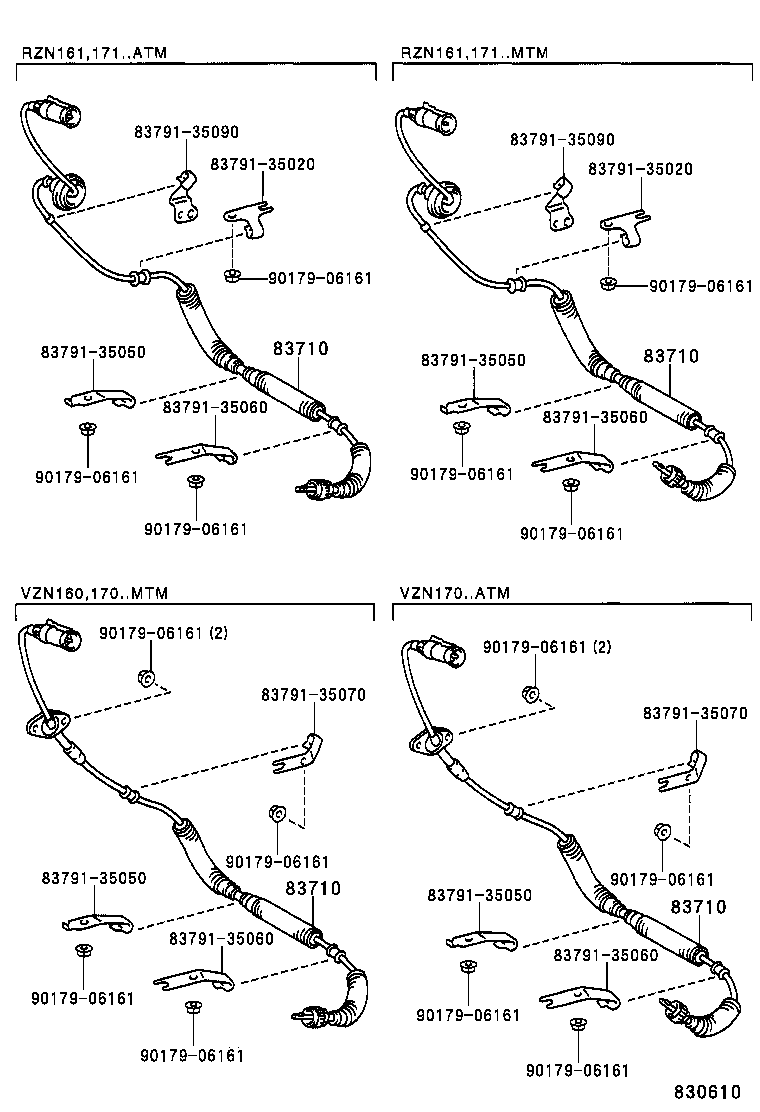

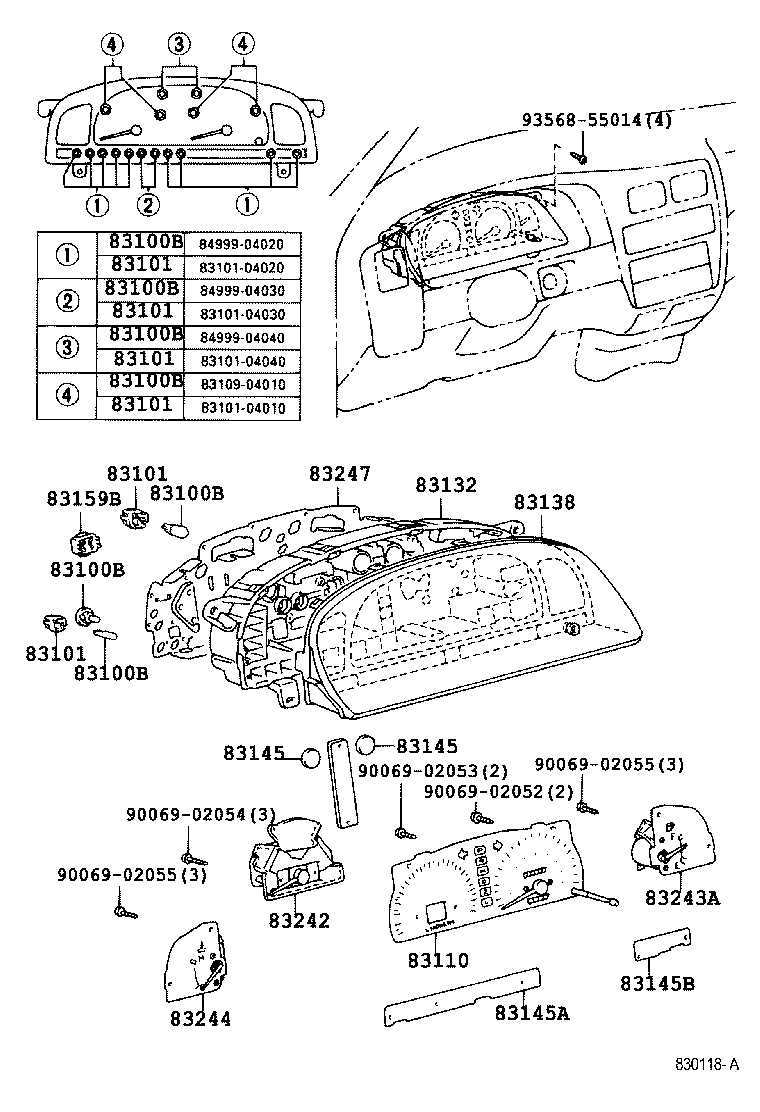

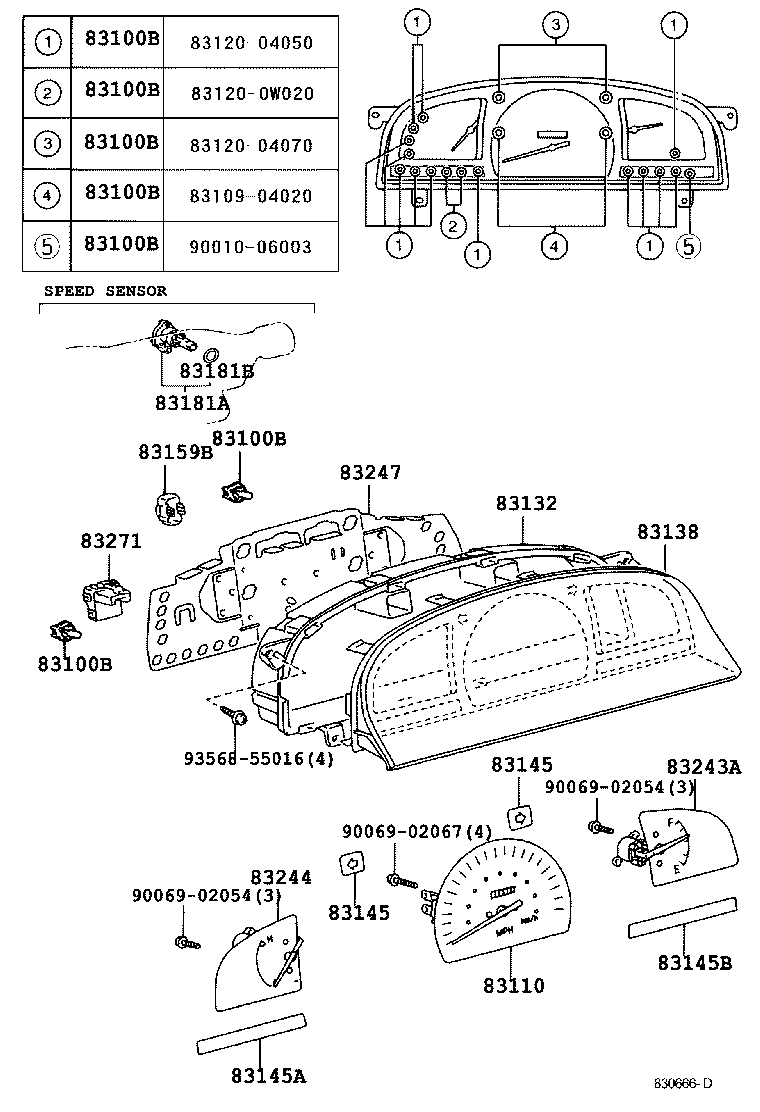

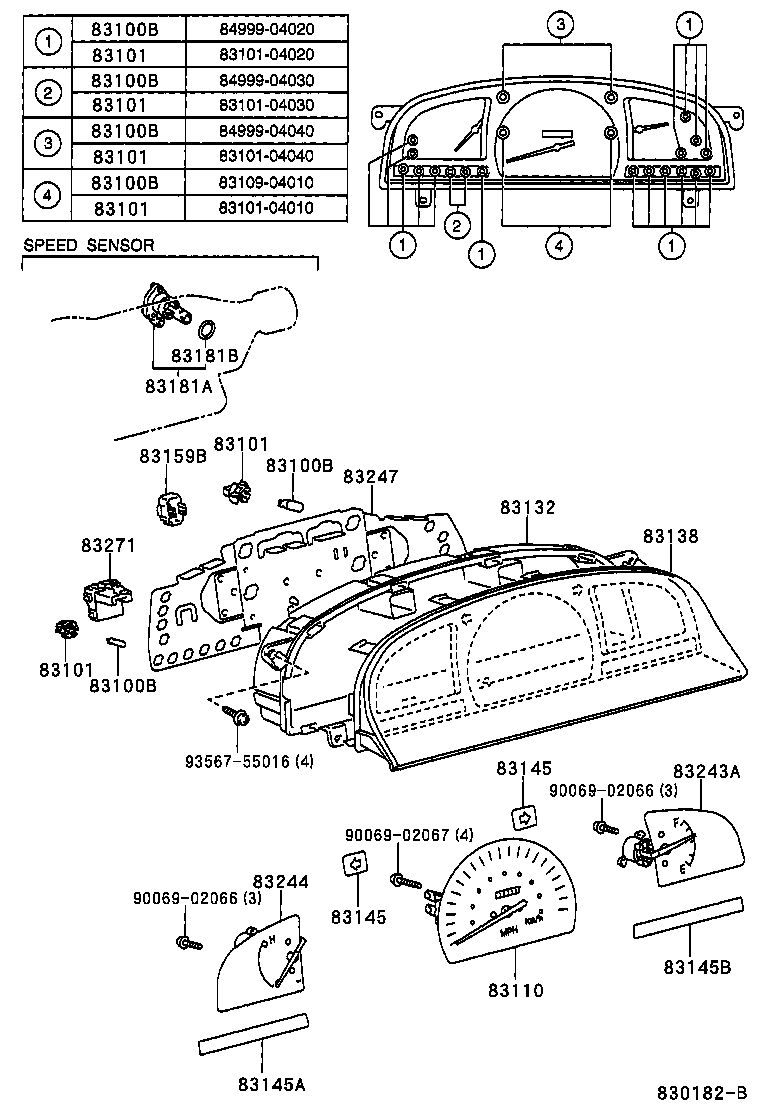

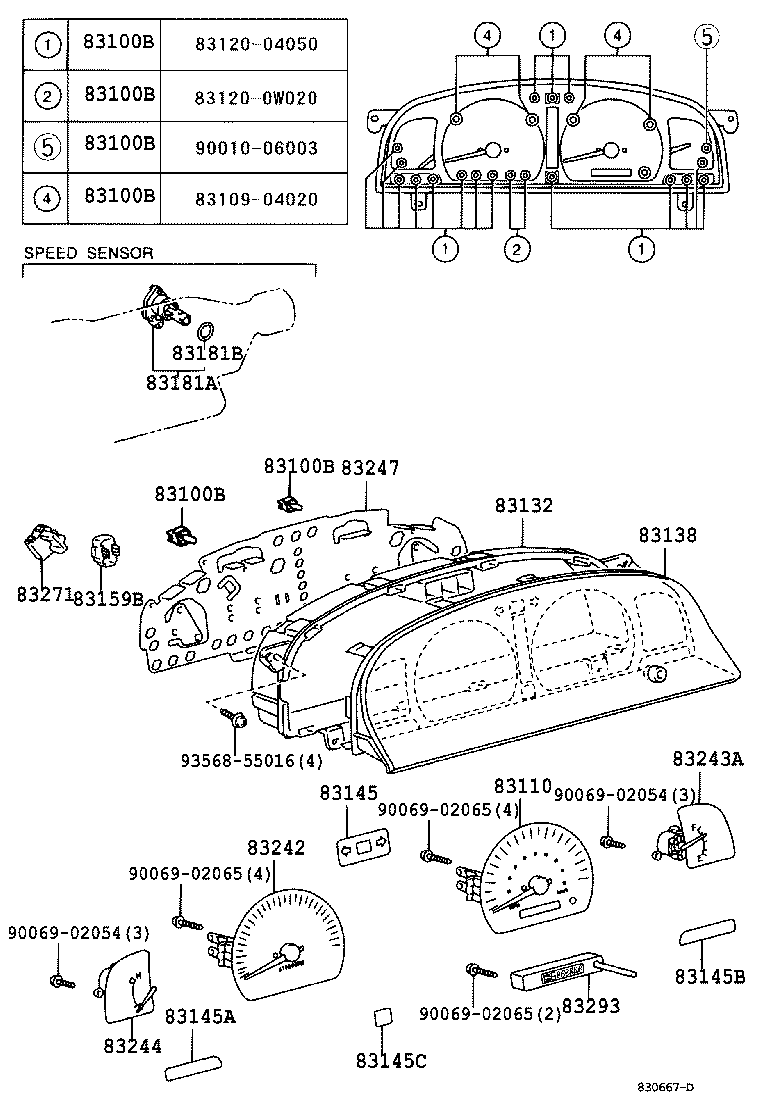

Figure 830184A 830184A 1995-01 → 1997-06 Figure 830118A 830118A 1995-01 → 1997-06 Figure 830182B 830182B 1997-06 → 2000-09 Figure 830181B 830181B 1997-06 → 2000-09 Figure 830666F 830666F 2000-09 → — Figure 830667D 830667D 2000-09 → — Figure 830610 830610 1995-01 → 1997-06 Figure 830120D 830120D 1995-01 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83159B Relay Assy, Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83271 Relay, Meter Control
83293 Computer, Total Counter Module
83710 Cable Assy, Speedometer Drive, NO.1
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
