Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

104 part groups · 13 illustrations

Illustrations

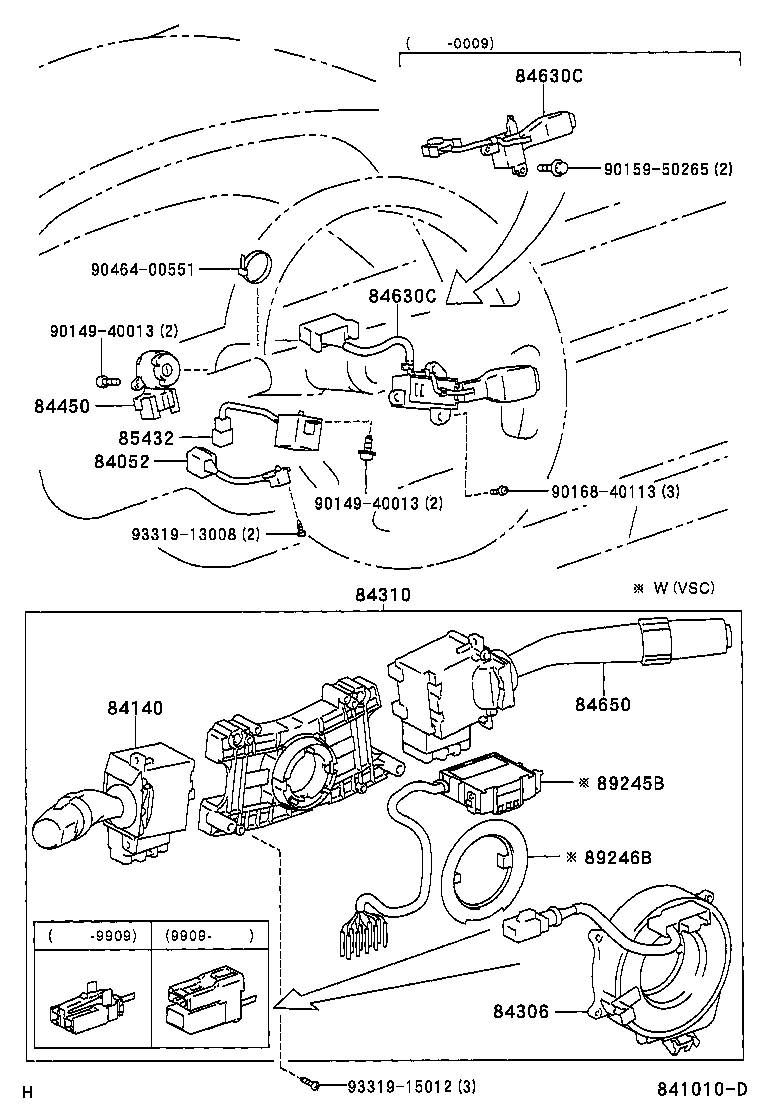

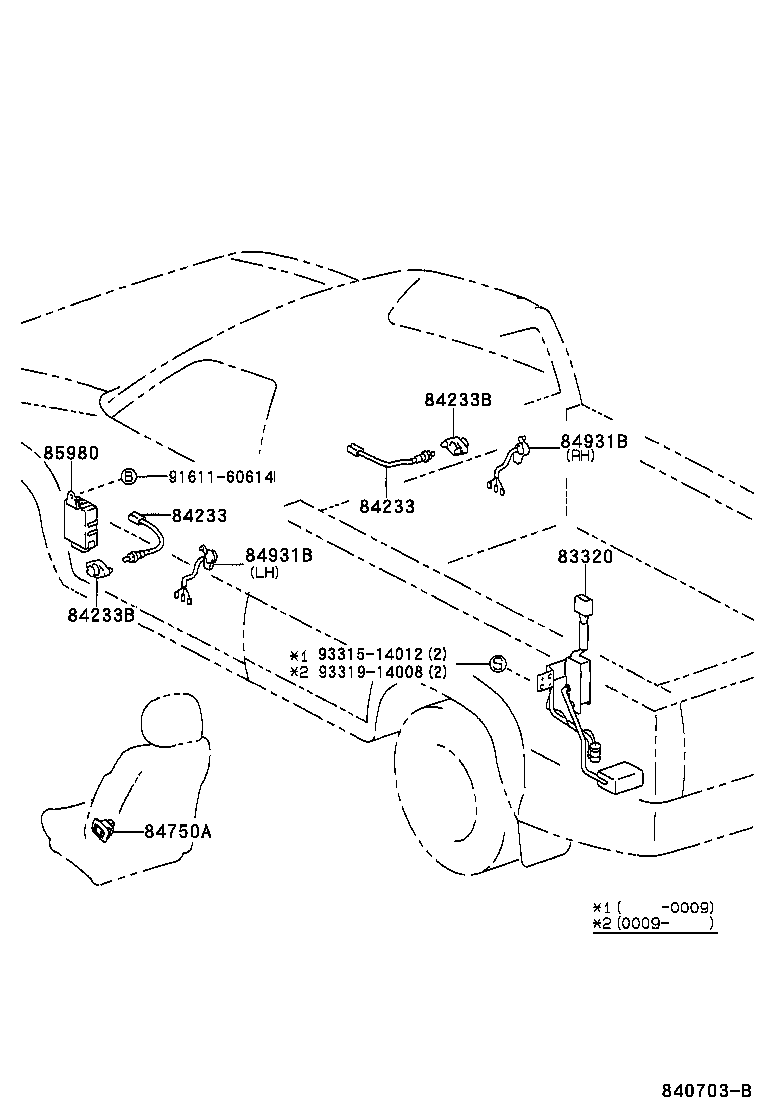

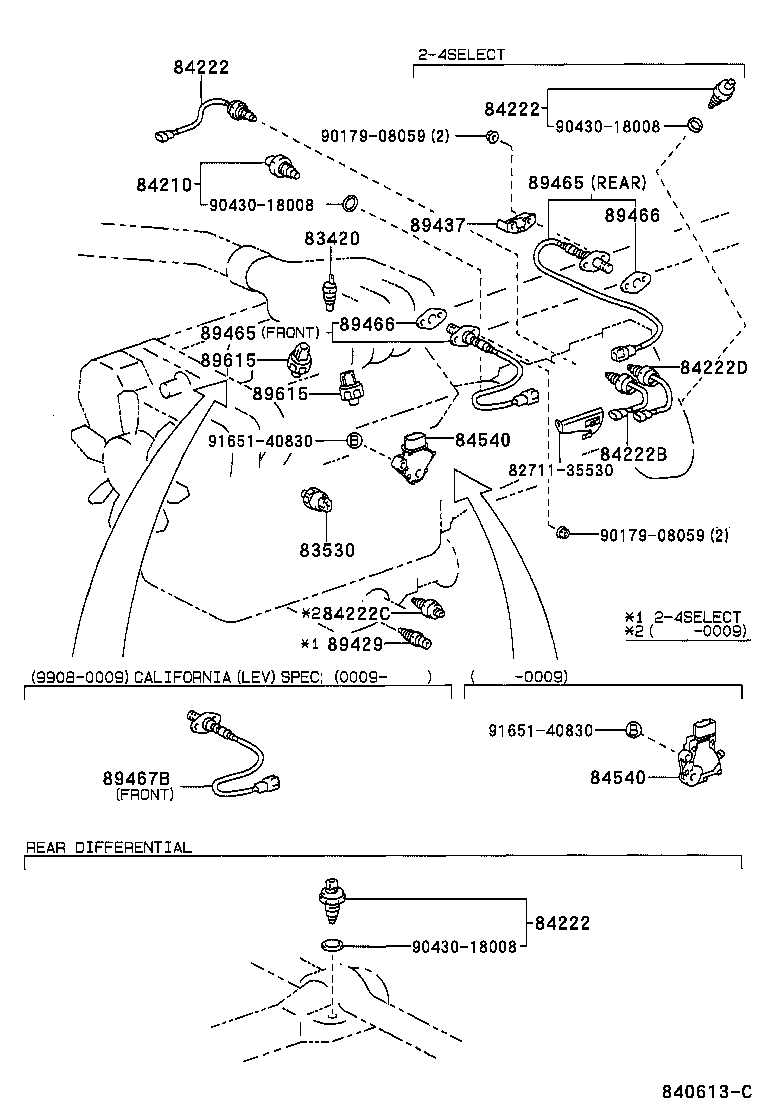

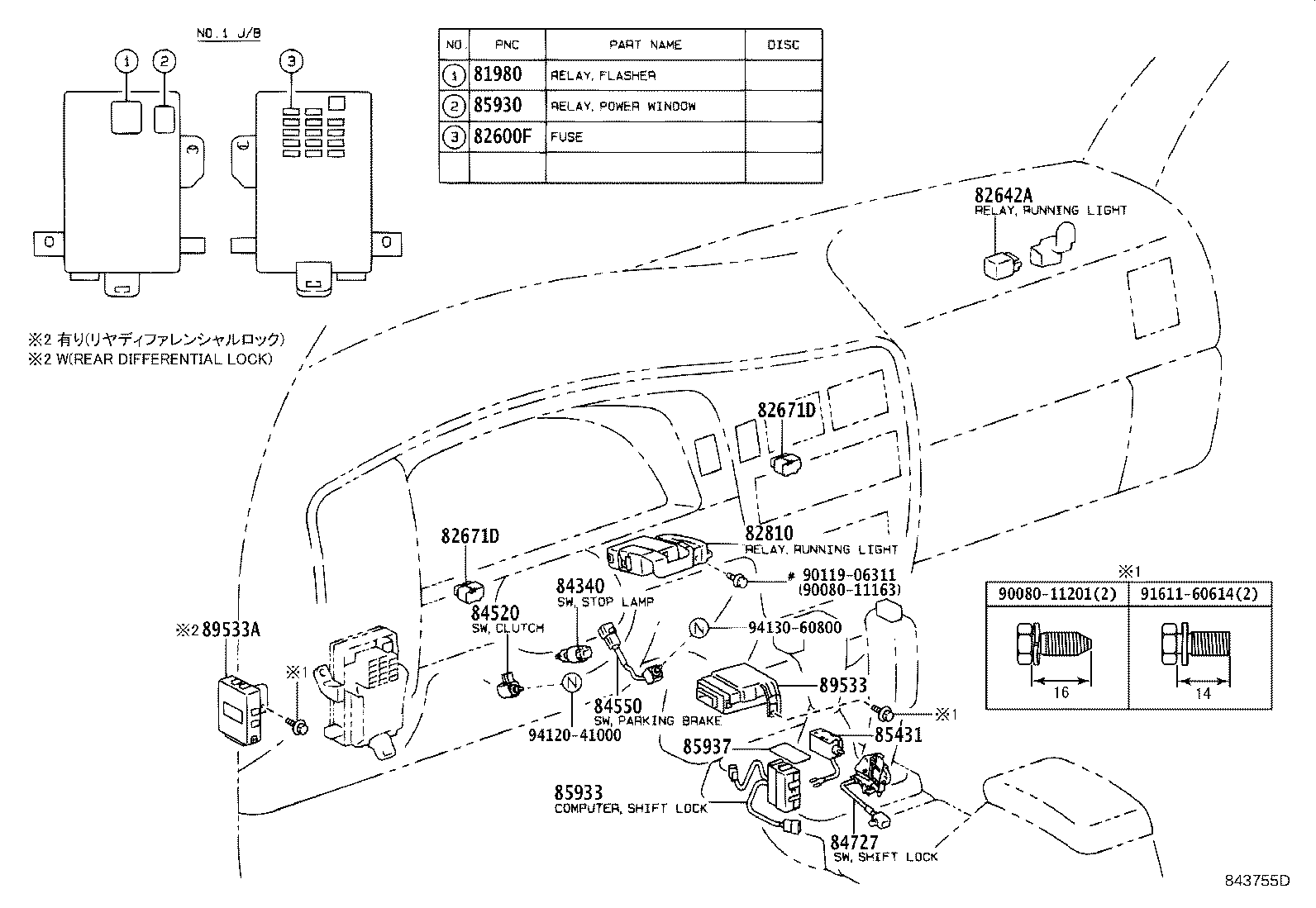

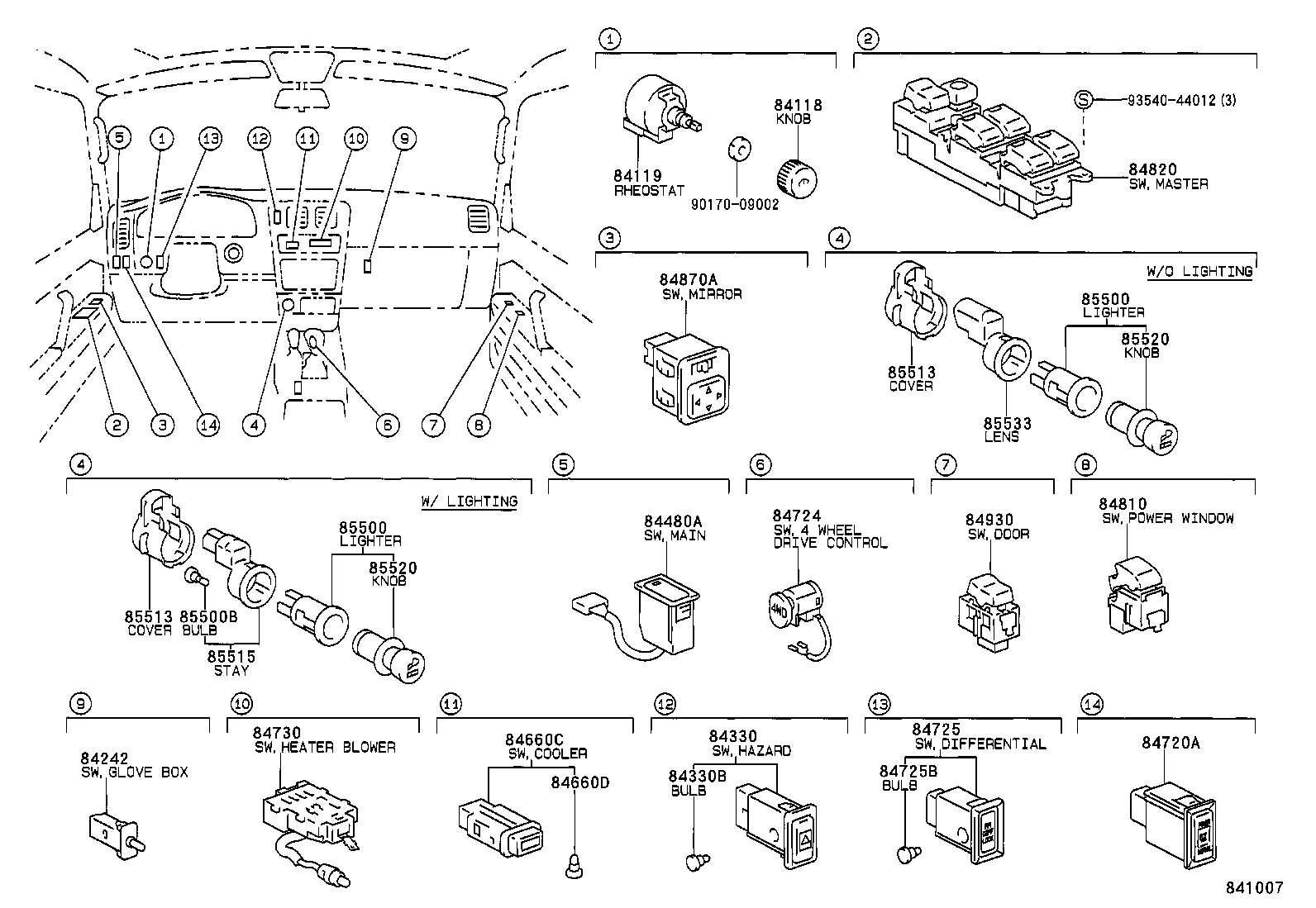

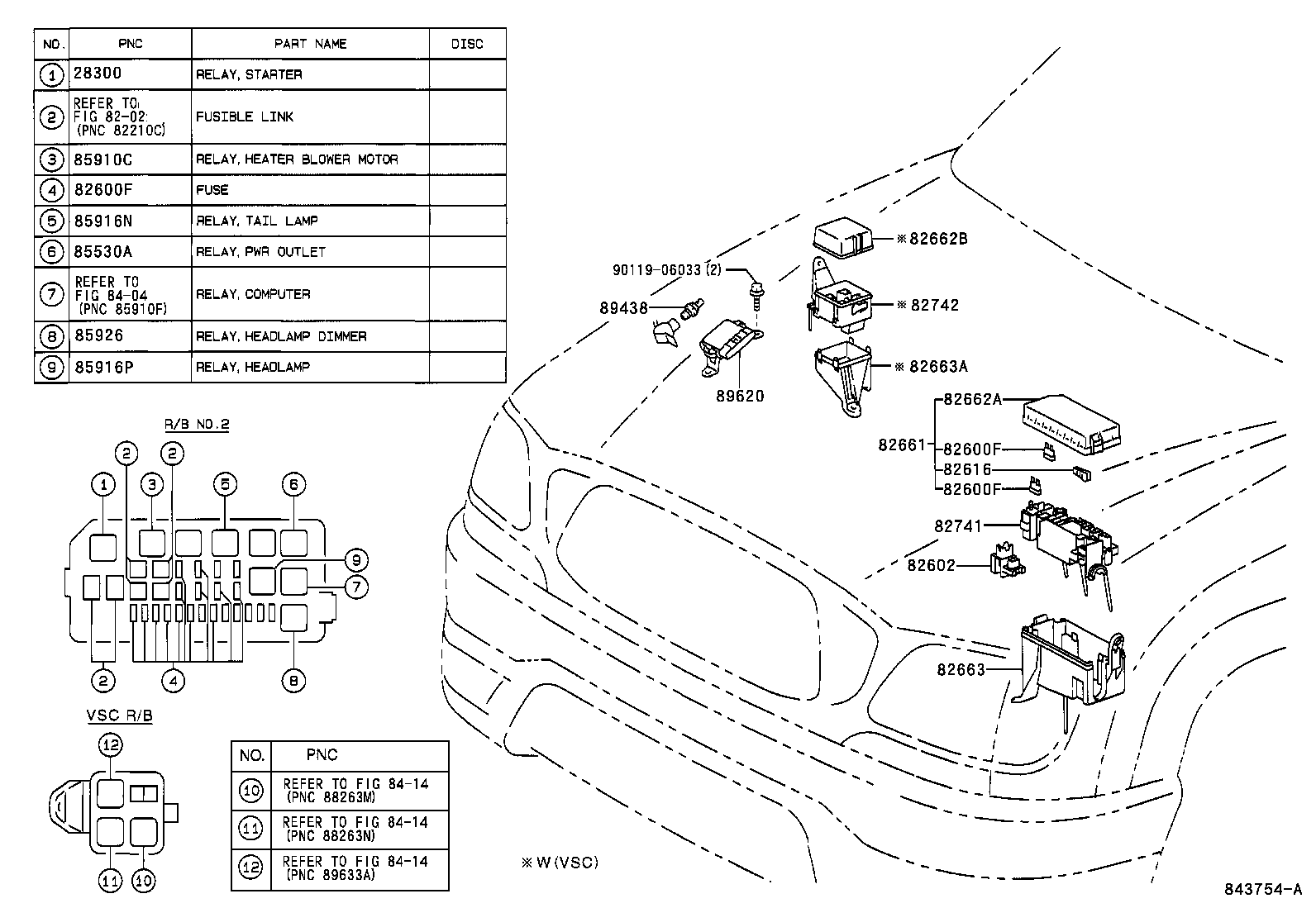

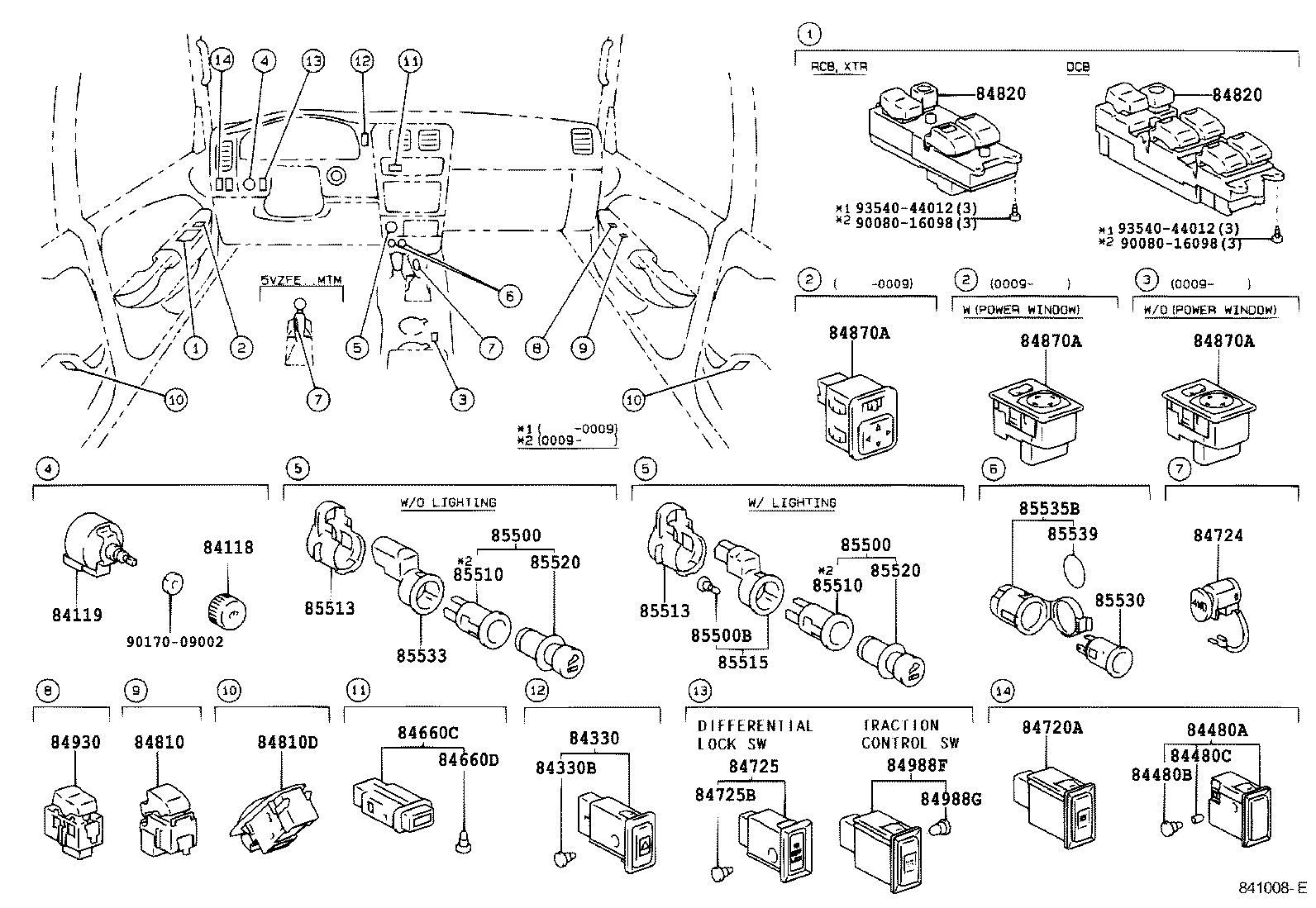

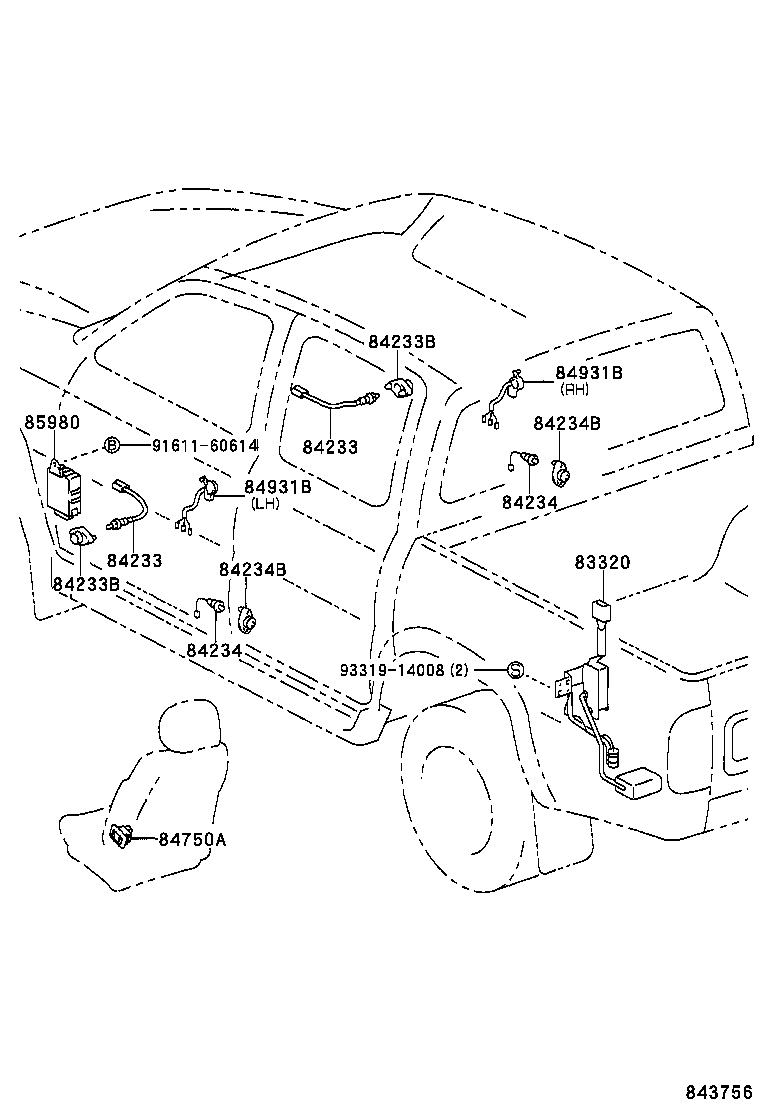

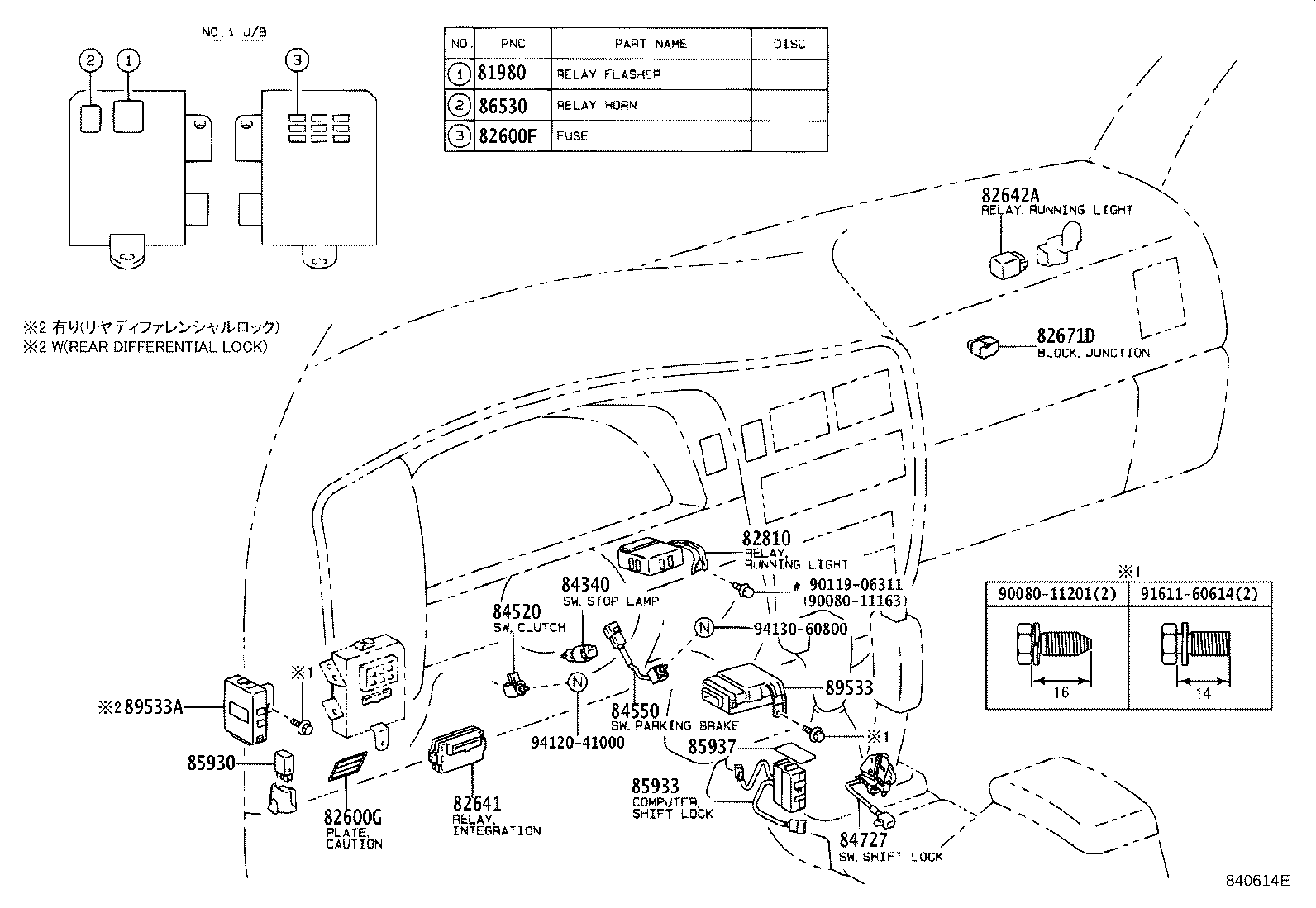

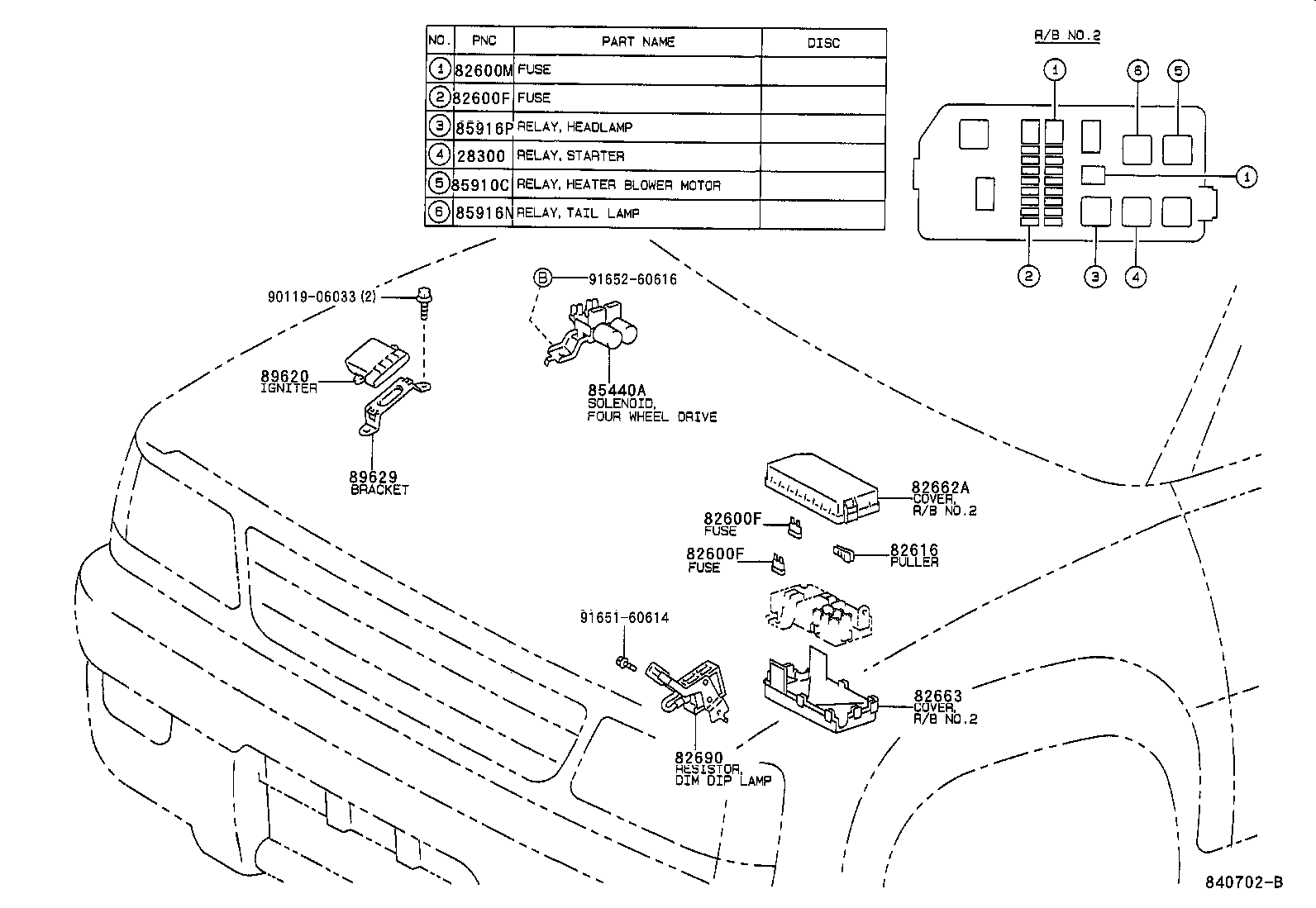

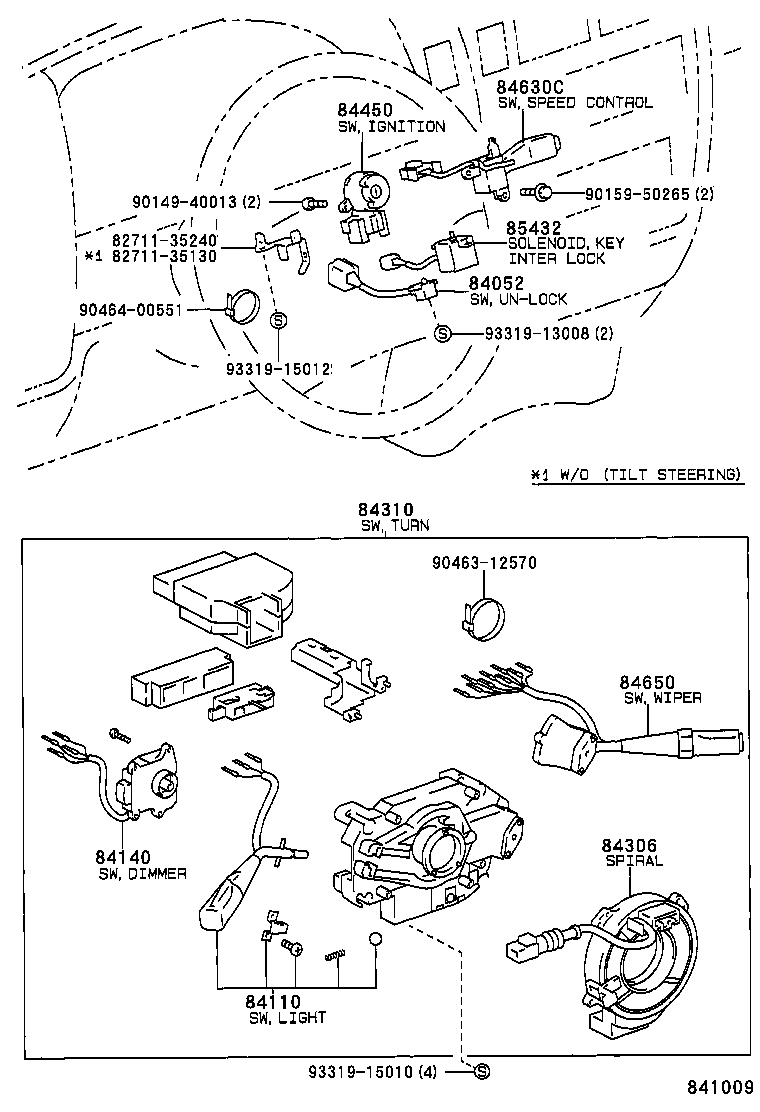

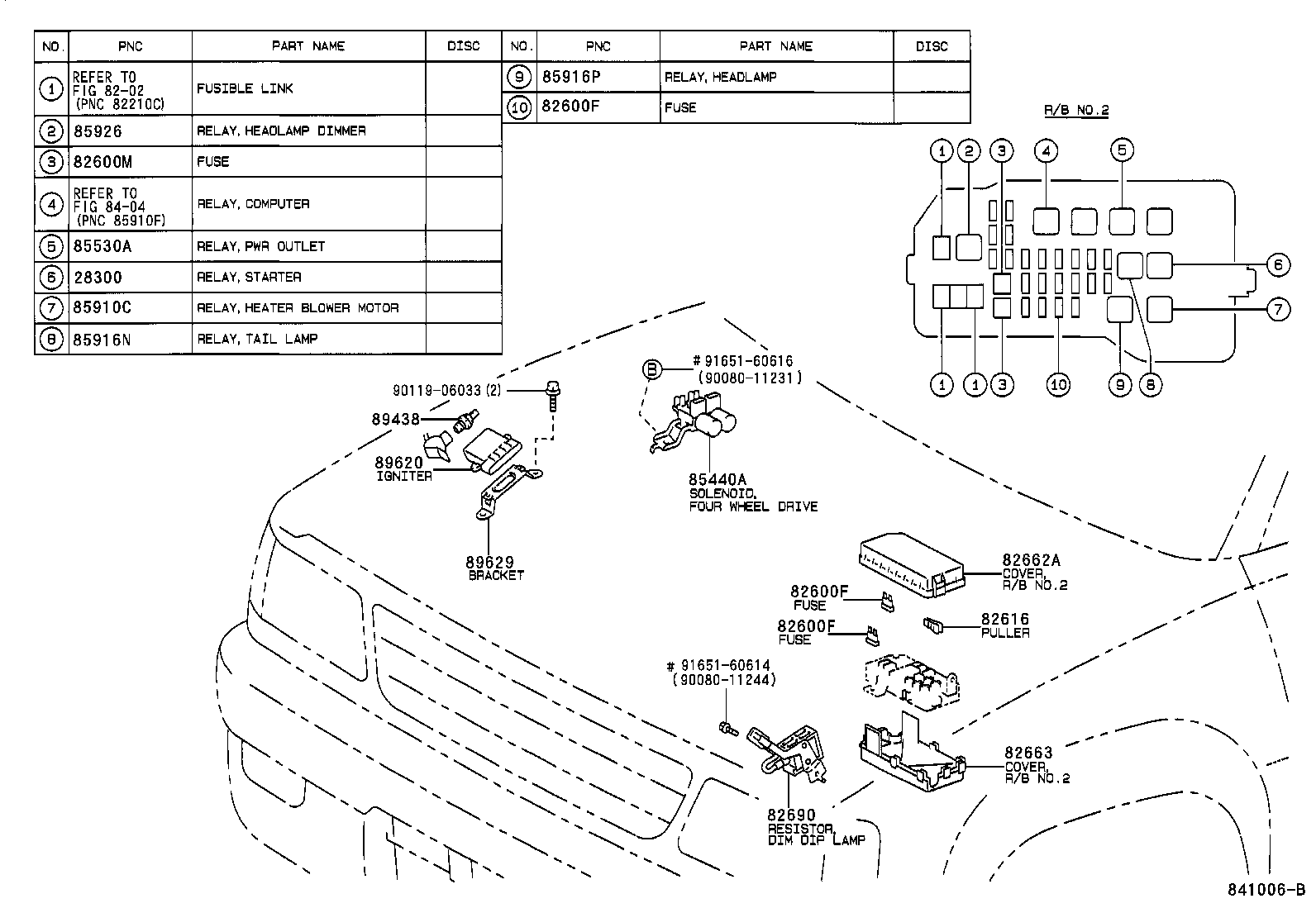

Figure 840612C 840612C 1995-01 → 2004-09 Figure 840613C 840613C 1995-01 → 2004-09 Figure 840702B 840702B 1995-01 → 1997-06 Figure 841006B 841006B 1997-06 → 2000-09 Figure 843754A 843754A 2000-09 → 2004-09 Figure 841007 841007 1995-01 → 1997-06 Figure 841008E 841008E 1997-06 → 2004-09 Figure 840614E 840614E 1995-01 → 2000-09 Figure 843755D 843755D 2000-09 → 2004-09 Figure 841009 841009 1995-01 → 1997-06 Figure 841010D 841010D 1997-06 → 2004-09 Figure 840703B 840703B 1995-01 → 2004-09 Figure 843756 843756 2000-09 → 2004-09

Part groups

PNCDescription
28300 Relay Assy, Starter
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82602 Block Sub-assy, Relay
82616 Puller, Fuse
82641 Relay, Integration NO.1
82642A Relay, Running Light
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82671D Block, Junction
82690 Resistor Assy, Dim Dip Lamp
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82810 Relay Assy, Running Light
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222C Switch, Transfer Indicator, NO.3
84222D Switch, Transfer Indicator, NO.4
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84242 Switch, Glove Box Lamp
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84480A Switch Assy, Clutch Start Cancel
84480B Bulb, Main Switch Assy
84480C Cap Bulb, Main Switch Assy
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84630C Switch Assy, Speed Control Main
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84720A Switch Assy, Pattern Select, NO.1
84724 Switch, 4 Wheel Drive Control
84725 Switch, Center Differential Lock
84725B Blub, Differential Lock Switch
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84750A Switch Assy, Seat
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85440A Solenoid Assy, Four Wheel Drive Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85539 Label, Power Outlet Notice
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85930 Relay Assy, Power Window
85933 Computer, Shift Lock Control
85937 Protector, Shift Lock Control
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
89245B Sensor, Steering
89246B Disc, Sensor Steering
89429 Sensor, Oil Temperature
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89467B Sensor, Air Fuel Ratio
89533 Computer, 4 Wheel Drive Control
89533A Computer, 4 Wheel Drive Control, NO.2
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
