Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

9 part groups · 2 illustrations

Illustrations

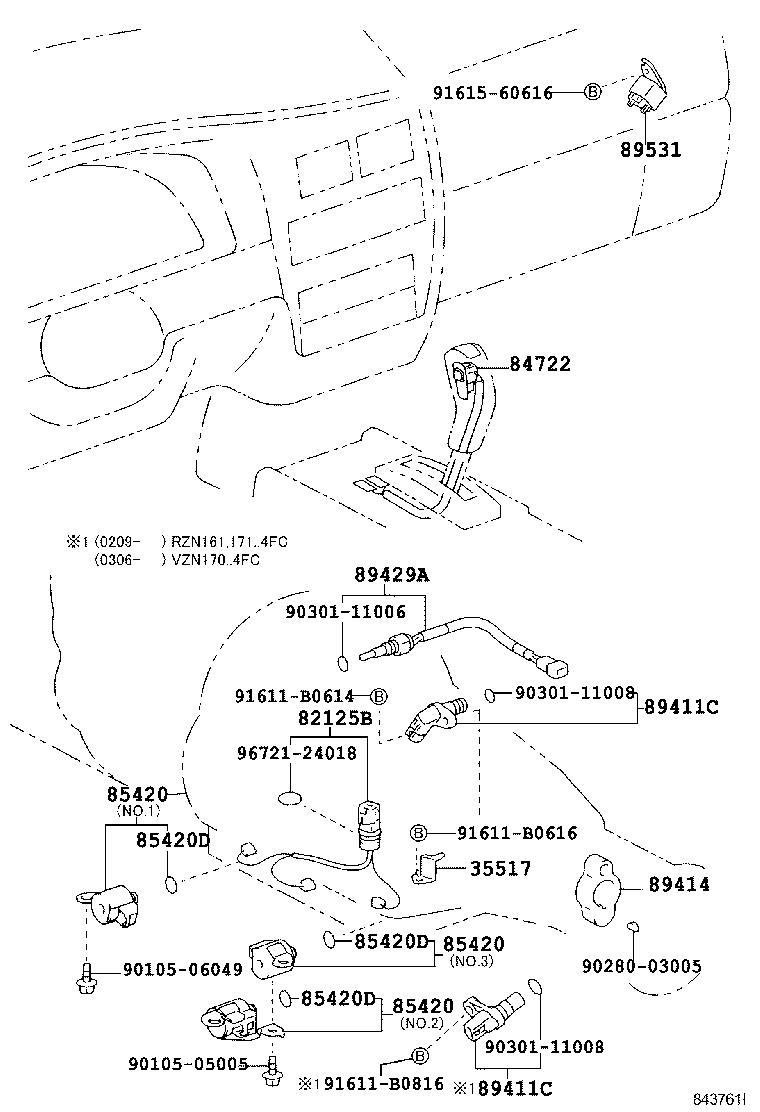

Figure 840603C 840603C 1995-01 → 2000-09 Figure 843761I 843761I 2000-09 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89429A Sensor, Temperature
89531 Relay, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
