Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

18 part groups · 3 illustrations

Illustrations

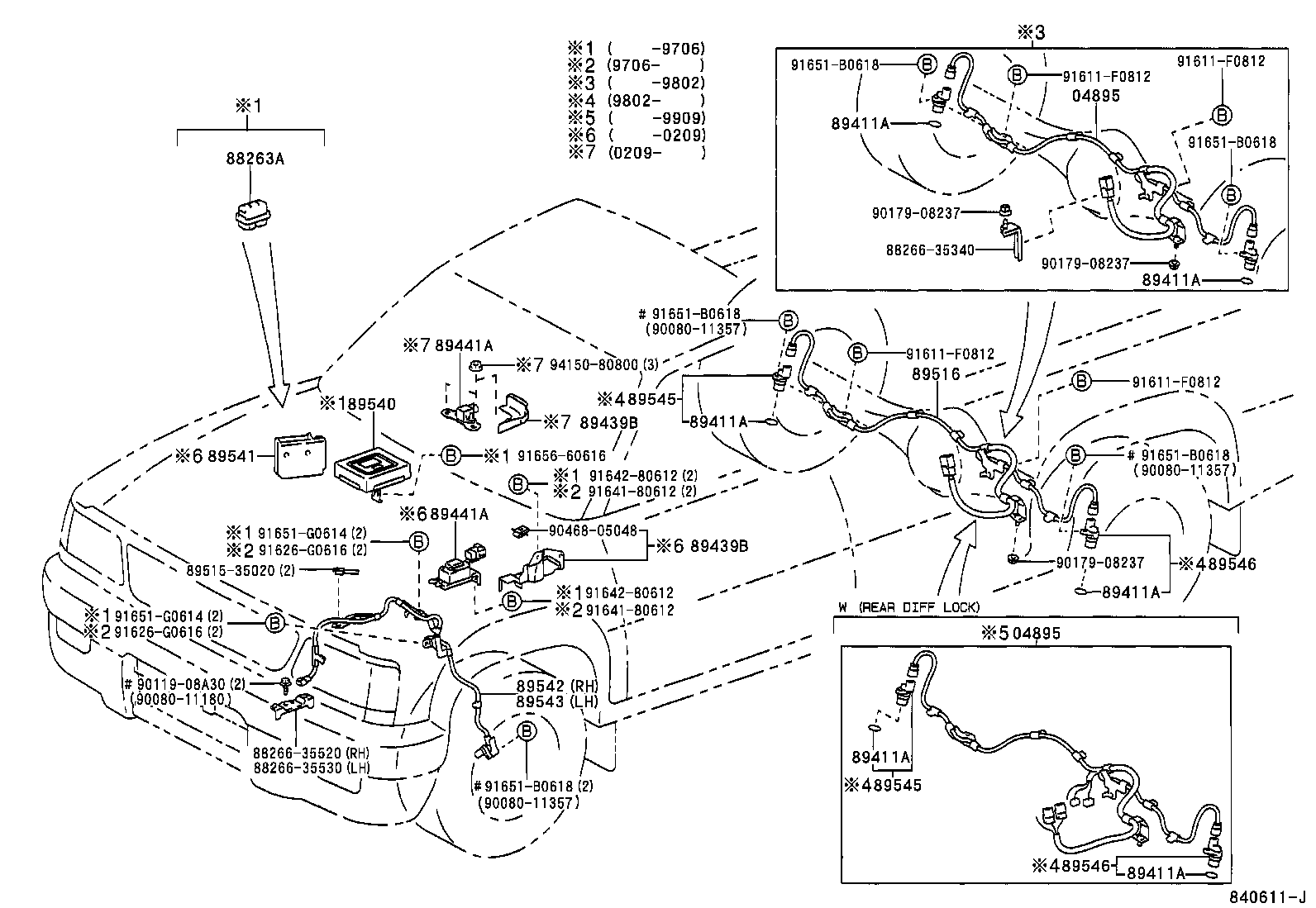

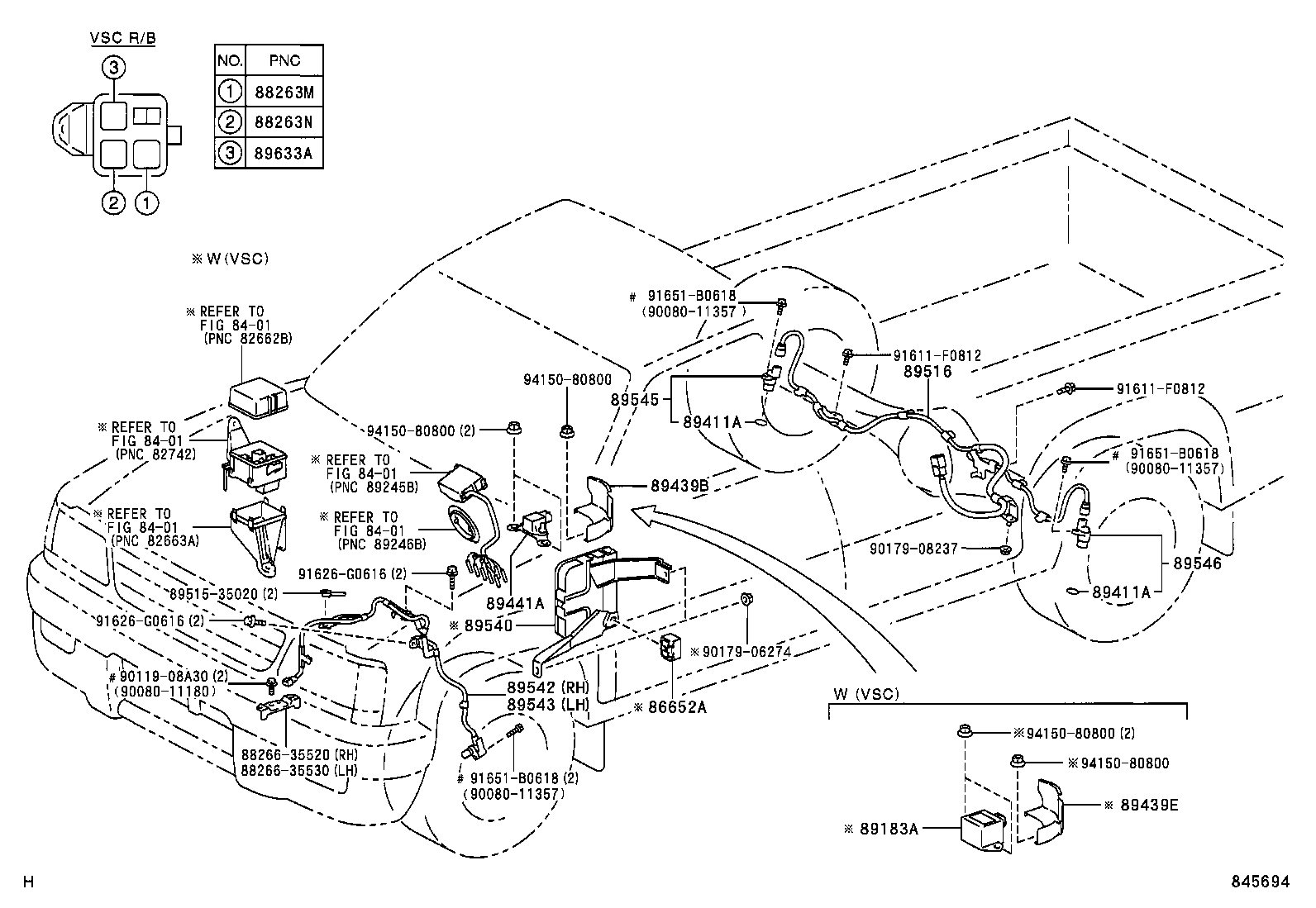

Figure 840607B 840607B 1995-01 → 1996-09 Figure 840611J 840611J 1996-09 → 2003-09 Figure 845694 845694 2003-09 → —

Part groups

PNCDescription
04895 Speed Sensor Kit, Abs
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
89183A Sensor, Yawrate
89411A Ring, O (FOR SPEED SENSOR)
89439B Bracket, Sensor
89439E Bracket, Sensor, NO.2
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89541 Computer, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89633A Relay, Traction Control OR Vsc
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
