Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

22 part groups · 3 illustrations

Illustrations

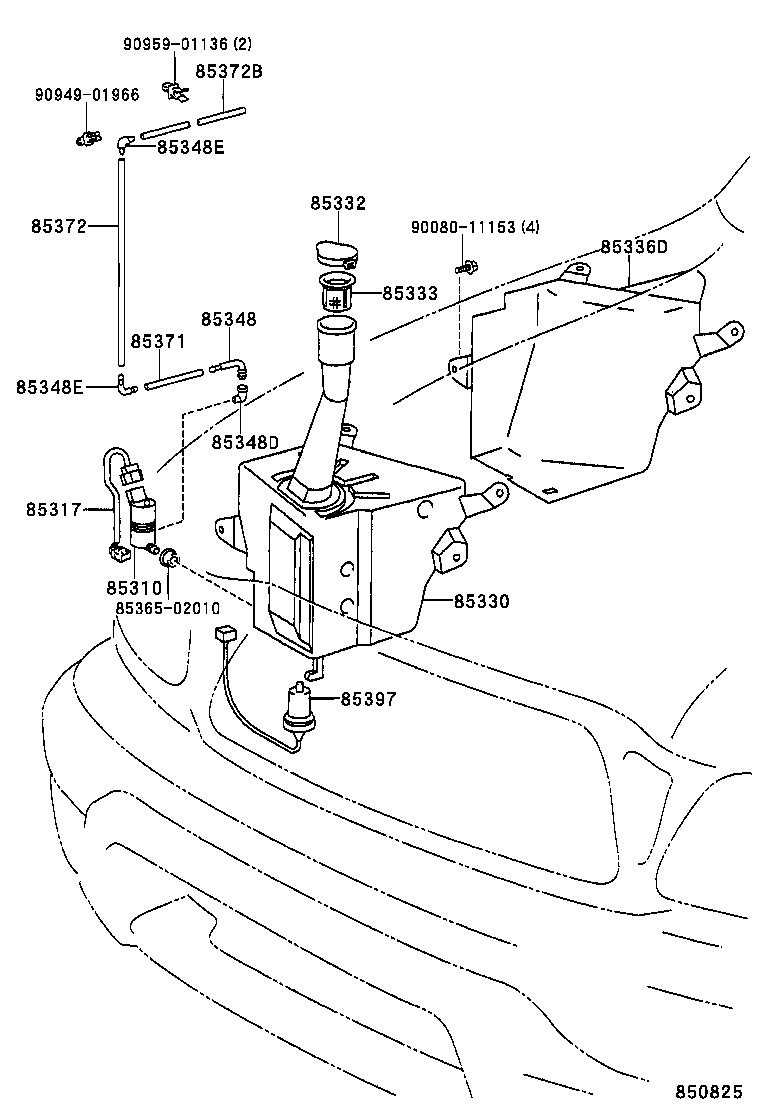

Figure 850824 850824 1995-01 → 2000-09 Figure 850825 850825 2000-09 → — Figure 850747 850747 1995-01 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85317 Wiring Assy, Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348F Joint, Windshield Washer Elbow, NO.3
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85349 Joint, Windshield Washer Hose, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
