Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

9 part groups · 2 illustrations

Illustrations

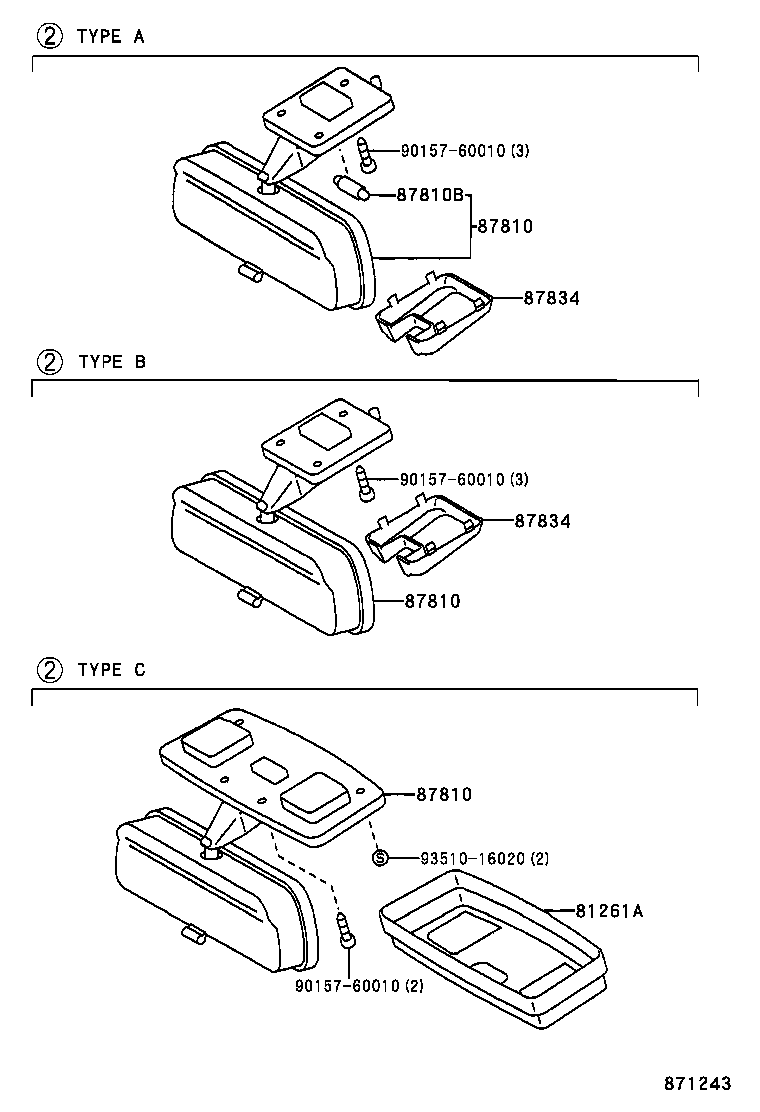

Figure 871242F 871242F 1995-01 → — Figure 871243 871243 1995-01 → —

Part groups

PNCDescription
81261A Lens And Cover, Map Lamp
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87917B Mirror, Outer Rear View, RH
87918 Knob, Control Outer Mirror
87940 Mirror Assy, Outer Rear View, LH
87947B Mirror, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
