Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 2 illustrations

Illustrations

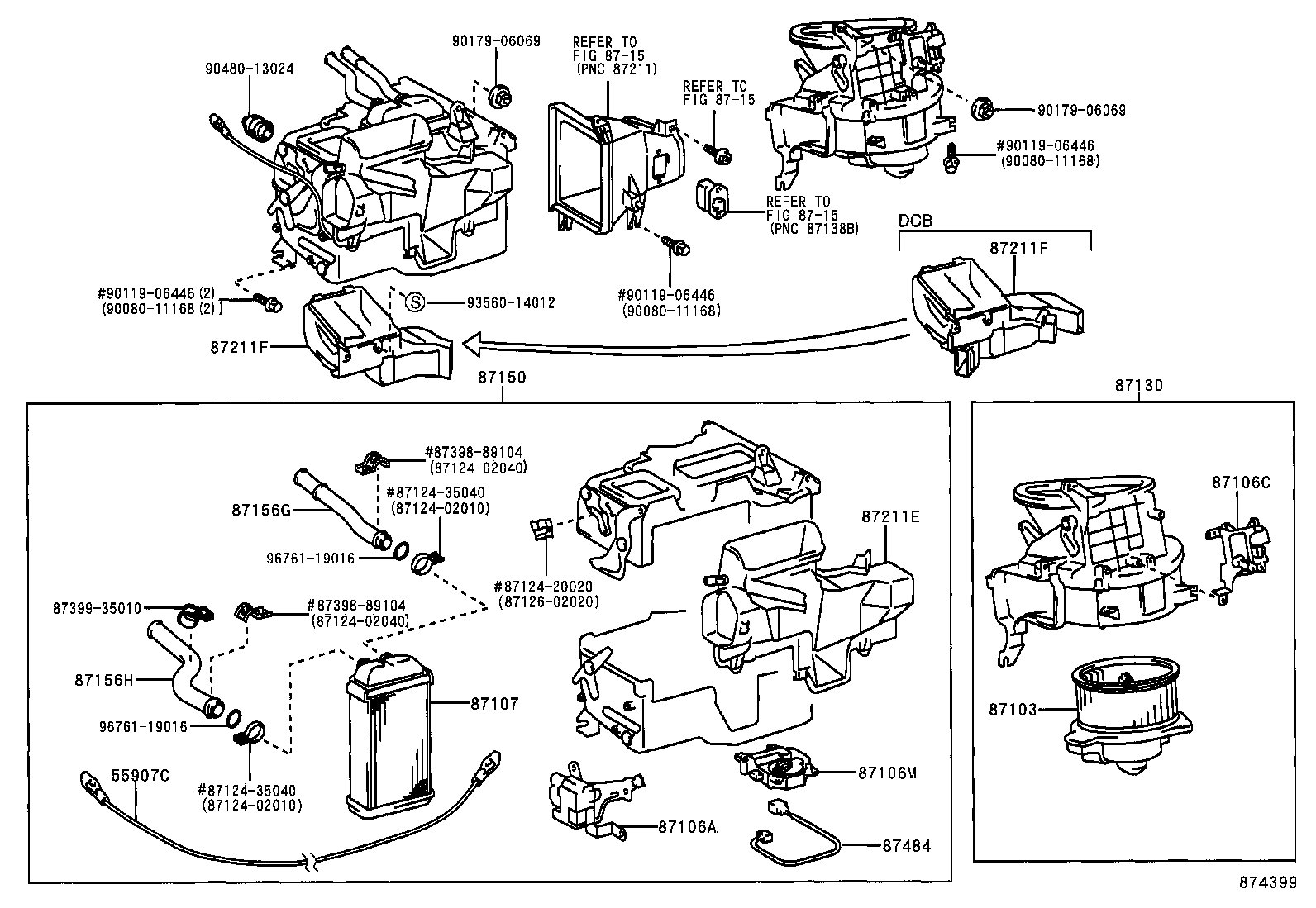

Figure 870874D 870874D 1995-01 → 2000-09 Figure 874399 874399 2000-09 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87106M Servo Sub-assy, Damper, NO.2
87107 Unit Sub-assy, Heater Radiator
87111 Case, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87156G Pipe, Heater Water, NO.1
87156H Pipe, Heater Water, NO.2
87211E Duct, Air
87211F Duct, Air
87484 Wire, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
