Toyota Tacoma

1995-01 → 2004-09 · chassis RZN161,171,VZN160,170 · catalogue 674460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

17 part groups · 8 illustrations

Illustrations

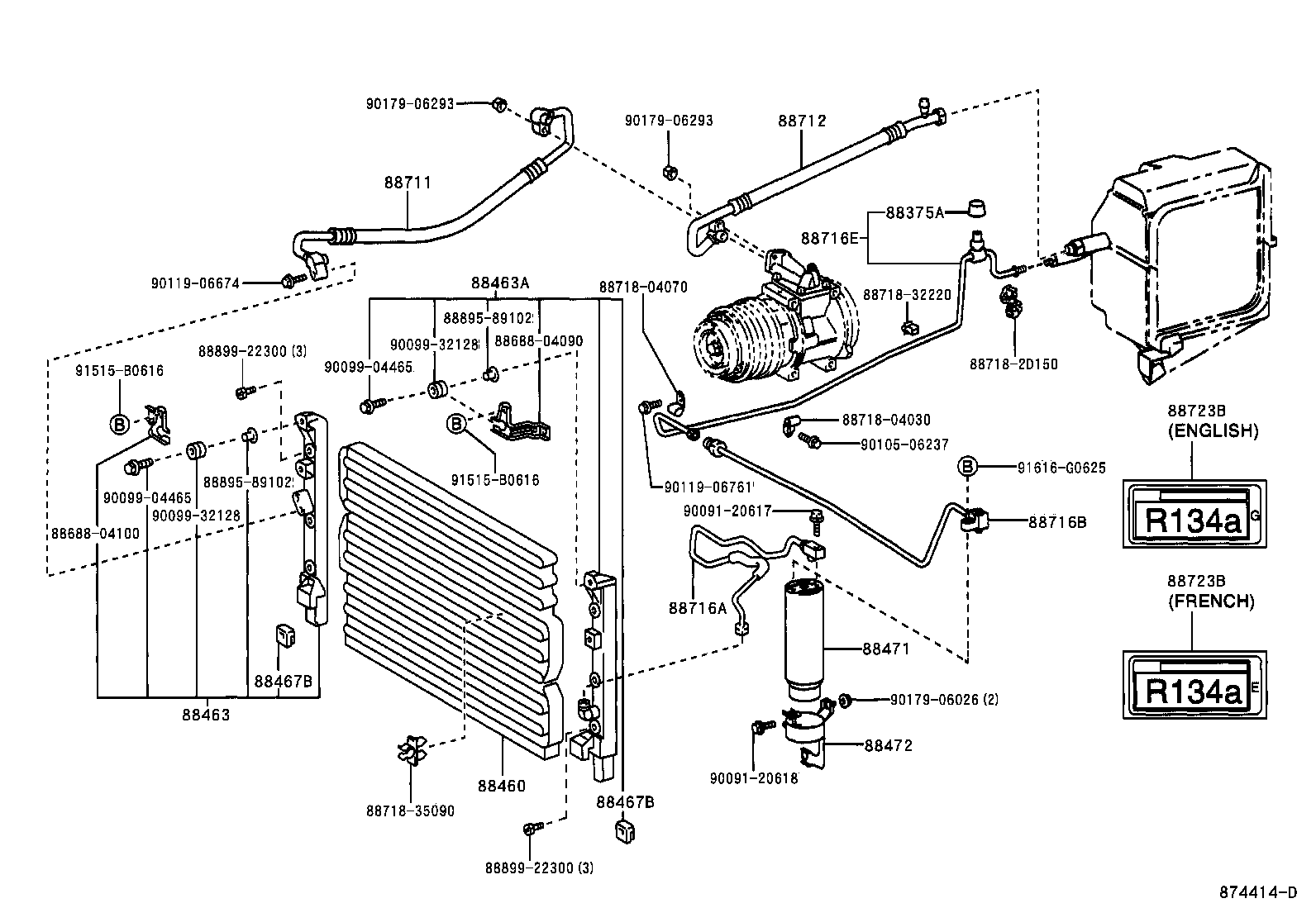

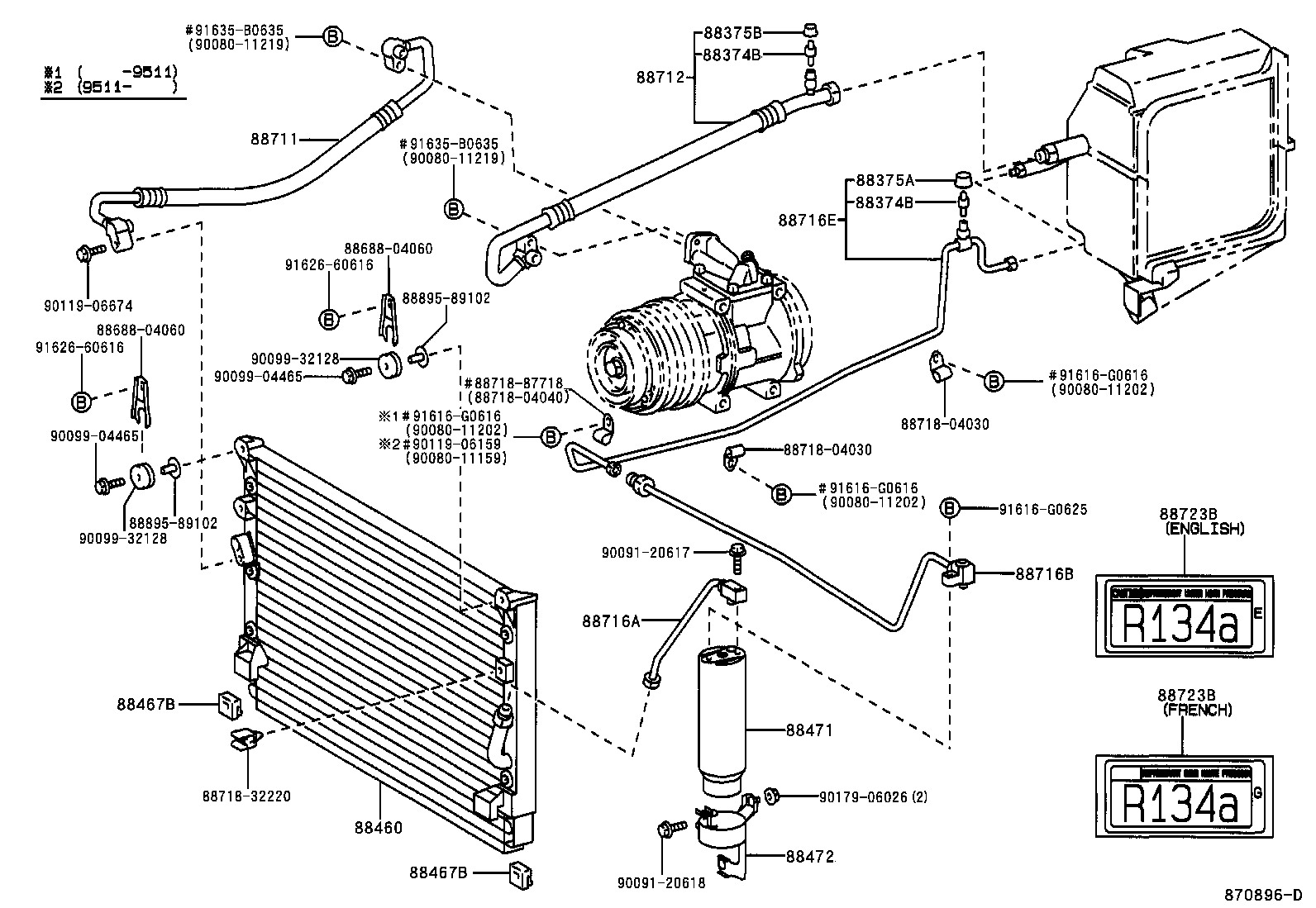

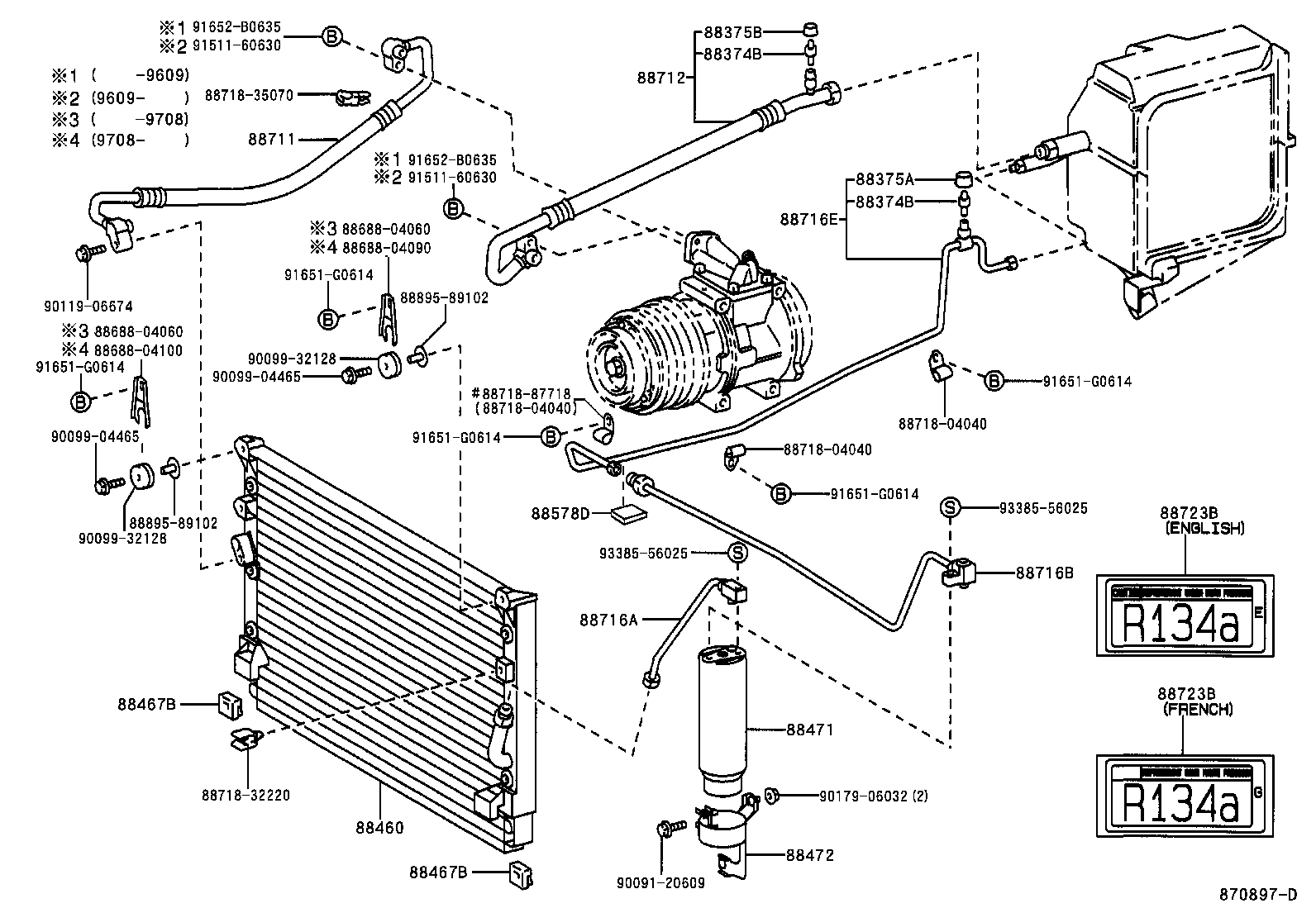

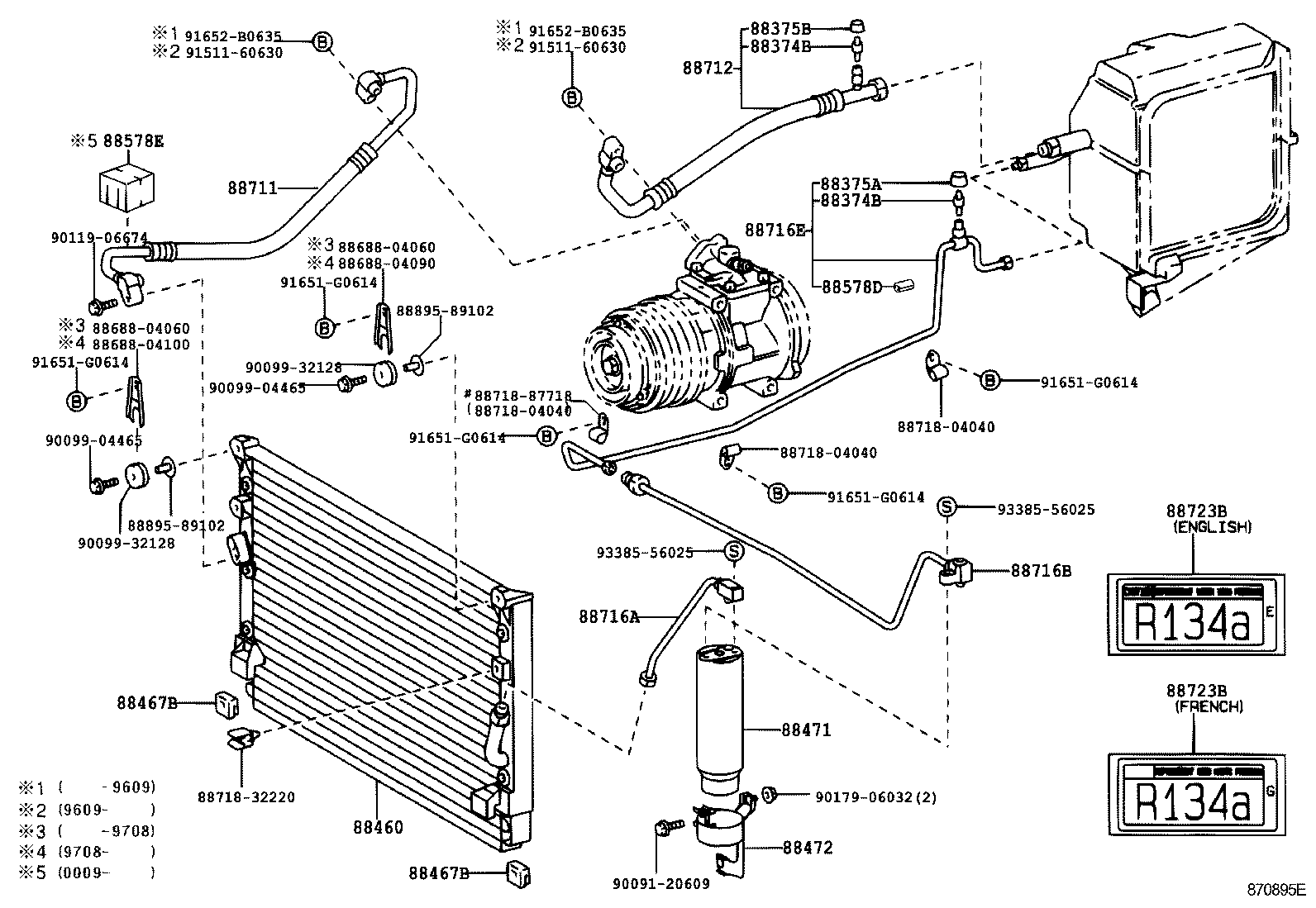

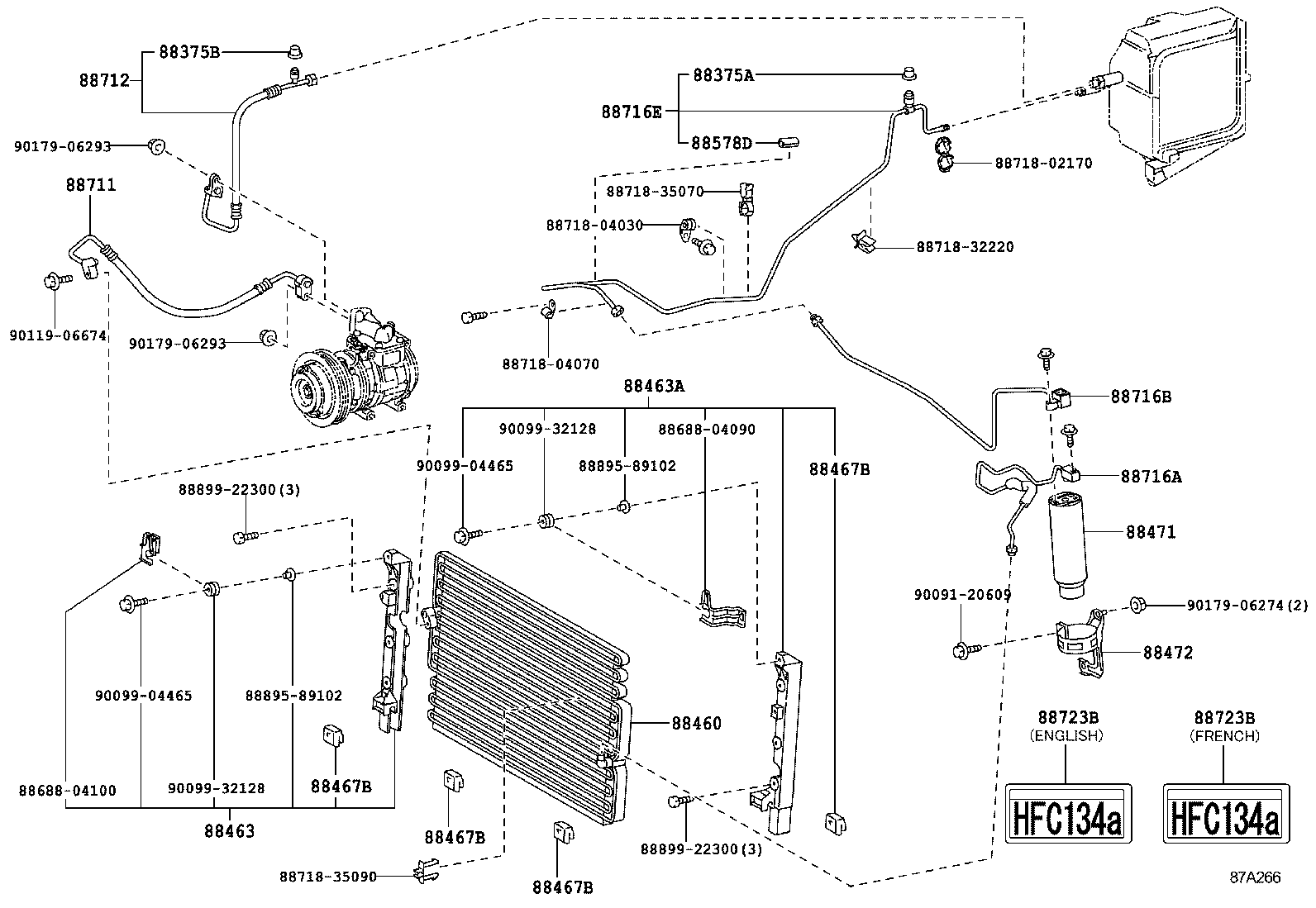

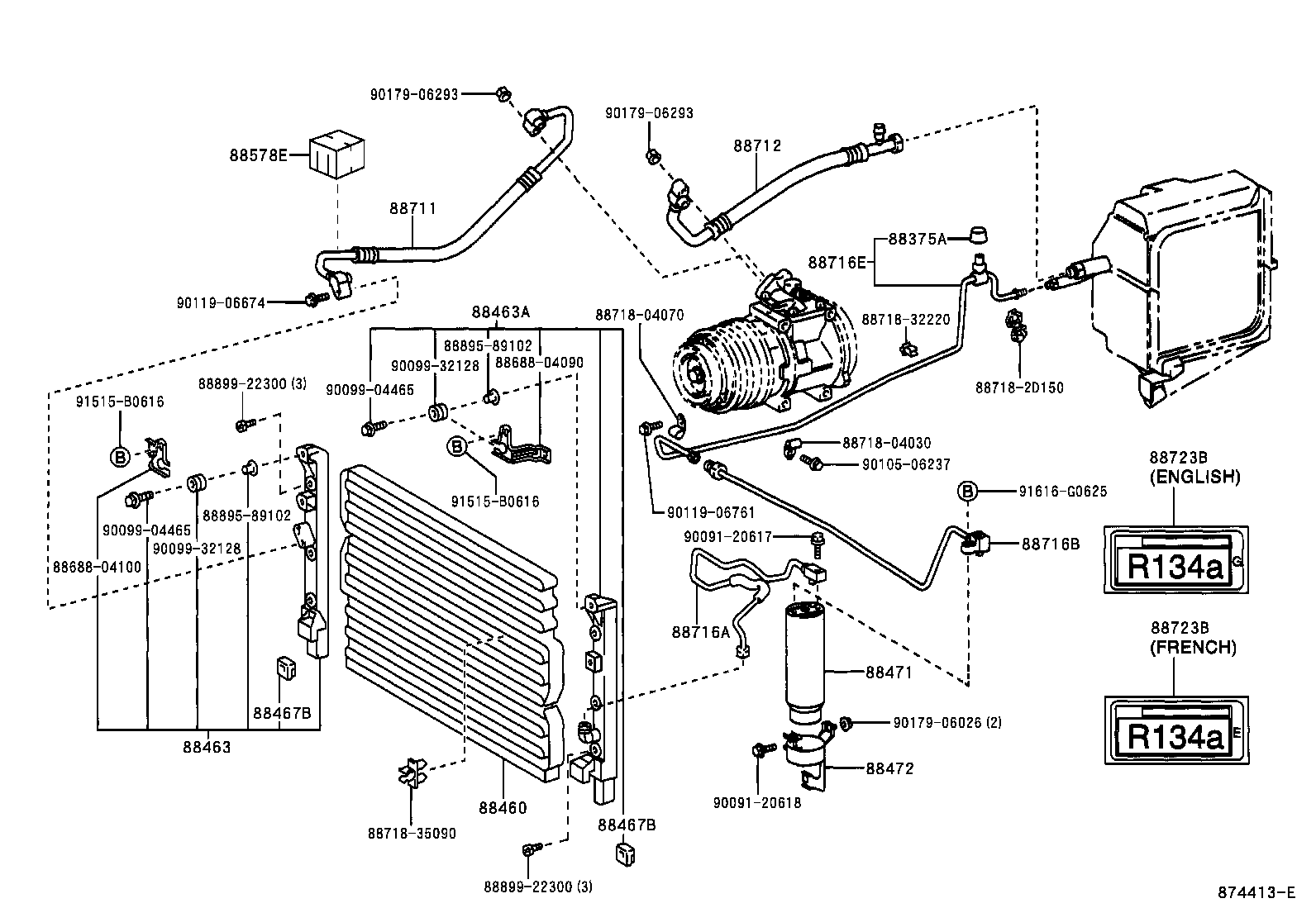

Figure 870894D 870894D 1995-01 → 2000-09 Figure 874413E 874413E 2000-09 → 2004-09 Figure 870895E 870895E 1995-01 → 2004-09 Figure 870896D 870896D 1995-01 → 2000-09 Figure 874414D 874414D 2000-09 → 2004-09 Figure 870897D 870897D 1995-01 → 2000-09 Figure 87A266 87A266 2000-09 → 2004-09 Figure 874402A 874402A 1995-01 → 2004-09

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
