Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

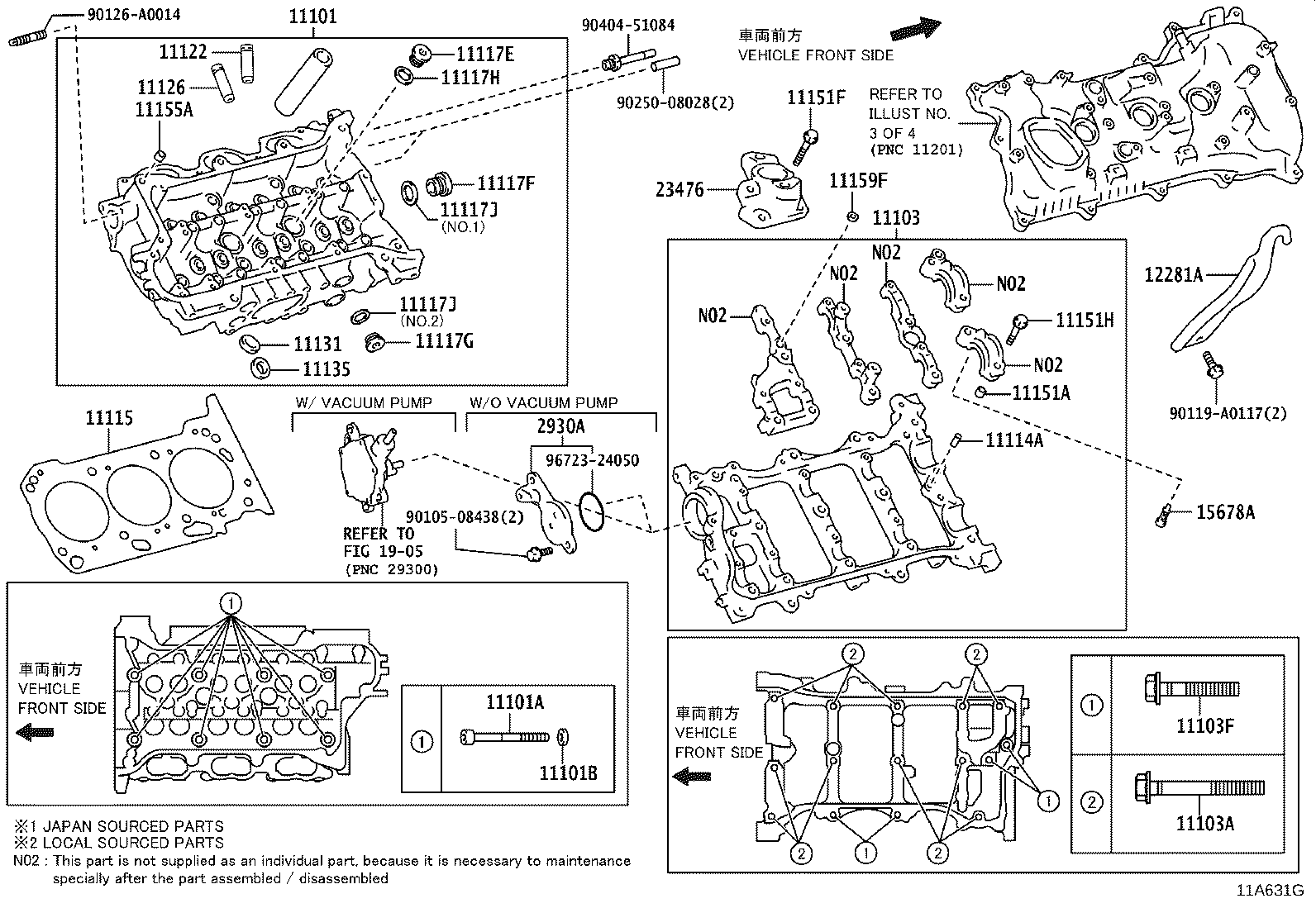

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-39755 |
Head Sub-assy, Cylinder
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11101-75150 |
Head Sub-assy, Cylinder
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11101-39755 |
Head Sub-assy, Cylinder
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11101-39755 |
Head Sub-assy, Cylinder
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11101-75150 |
Head Sub-assy, Cylinder
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11101-75150 |
Head Sub-assy, Cylinder
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11101-39755 note |
Head Sub-assy, Cylinder
2011-09 → 2015-08
ended
|
1GRFE GRN245,265 DCB 5FC | — | |
| 11101-39765 |
Head Sub-assy, Cylinder
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11101-75150 |
Head Sub-assy, Cylinder
2011-09 → 2014-03
ended
|
2TRFE TRN22#,24#,265 | — | |
| 11101-75151 |
Head Sub-assy, Cylinder
2014-04 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11101-75151 |
Head Sub-assy, Cylinder
2014-04 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11101-09550 note |
Head Sub-assy, Cylinder
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-09550 |
Head Sub-assy, Cylinder
2015-08 → 2015-12
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-75260 |
Head Sub-assy, Cylinder
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11101-80001 note |
Head Sub-assy, Cylinder
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-09550 note |
Head Sub-assy, Cylinder
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-75260 |
Head Sub-assy, Cylinder
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11101-80001 note |
Head Sub-assy, Cylinder
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-09550 note |
Head Sub-assy, Cylinder
2019-09 → 2019-10
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-09551 note |
Head Sub-assy, Cylinder
2019-10 → 2021-05
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-09552 note |
Head Sub-assy, Cylinder
2021-05 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-0C101 |
Head Sub-assy, Cylinder
2024-01 → —
|
2TRFE TRN245,265 | — | |
| 11101-75260 |
Head Sub-assy, Cylinder
2019-09 → 2022-10
ended
|
2TRFE TRN245,265 | — | |
| 11101-75261 |
Head Sub-assy, Cylinder
2022-10 → 2024-01
ended
|
2TRFE TRN245,265 | — | |
| 11101-80001 note |
Head Sub-assy, Cylinder
2019-09 → 2022-08
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11101-80017 note |
Head Sub-assy, Cylinder
2022-08 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02091 |
Bolt(FOR CYLINDER HEAD SET)
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90910-02149 |
Bolt(FOR CYLINDER HEAD SET)
2004-09 → 2005-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2005-08 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90910-02091 |
Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90910-02091 |
Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90910-02091 |
Bolt(FOR CYLINDER HEAD SET)
2011-09 → 2013-03
ended
|
2TRFE TRN22#,24#,265 | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90910-02187 |
Bolt(FOR CYLINDER HEAD SET)
2013-03 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90910-02187 |
Bolt(FOR CYLINDER HEAD SET)
2013-03 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 90910-02187 |
Bolt(FOR CYLINDER HEAD SET)
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 90910-A2009 |
Bolt(FOR CYLINDER HEAD SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90910-02187 |
Bolt(FOR CYLINDER HEAD SET)
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 90910-A2009 |
Bolt(FOR CYLINDER HEAD SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90910-02187 |
Bolt(FOR CYLINDER HEAD SET)
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 90910-A2009 |
Bolt(FOR CYLINDER HEAD SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 90201-A0008 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 90201-A0008 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90201-A0008 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11103 — Housing Sub-assy, Camshaft | ||||
| 11103-0P020 |
Housing Sub-assy, Camshaft
2015-08 → 2017-05
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11103-0P021 |
Housing Sub-assy, Camshaft
2017-06 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11103-0P022 |
Housing Sub-assy, Camshaft
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11103-0P022 |
Housing Sub-assy, Camshaft
2019-09 → 2021-03
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11103-0P023 |
Housing Sub-assy, Camshaft
2021-04 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08464 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-A0334 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-08464 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-A0334 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-08464 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-A0334 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11103F — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08465 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-A0333 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-08465 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-A0333 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-08465 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90105-A0333 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11114A — Pin, Straight | ||||
| 90250-05021 note |
Pin, Straight
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90250-A0025 note |
Pin, Straight
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90250-05021 note |
Pin, Straight
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90250-A0025 note |
Pin, Straight
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90250-05021 note |
Pin, Straight
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90250-A0025 note |
Pin, Straight
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-31030 |
Gasket, Cylinder Head
2004-09 → 2005-11
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11115-31031 |
Gasket, Cylinder Head
2005-11 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11115-75050 |
Gasket, Cylinder Head
2004-09 → 2007-09
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11115-75051 |
Gasket, Cylinder Head
2007-10 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11115-31031 |
Gasket, Cylinder Head
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11115-31031 |
Gasket, Cylinder Head
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11115-75051 |
Gasket, Cylinder Head
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11115-75051 |
Gasket, Cylinder Head
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11115-31031 |
Gasket, Cylinder Head
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11115-75051 |
Gasket, Cylinder Head
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11115-75051 |
Gasket, Cylinder Head
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11115-0P030 |
Gasket, Cylinder Head
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11115-75090 |
Gasket, Cylinder Head
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11115-0P030 |
Gasket, Cylinder Head
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11115-75090 |
Gasket, Cylinder Head
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11115-0P030 |
Gasket, Cylinder Head
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11115-75090 |
Gasket, Cylinder Head
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90341-24011 |
Plug, W/Head Straight Screw, NO.1
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90341-24011 |
Plug, W/Head Straight Screw, NO.1
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90341-24011 |
Plug, W/Head Straight Screw, NO.1
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 90341-24011 |
Plug, W/Head Straight Screw, NO.1
2011-09 → 2012-02
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2015-08 → 2016-10
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-20012 note |
Plug, W/Head Straight Screw, NO.1
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-A0006 note |
Plug, W/Head Straight Screw, NO.1
2016-10 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 90341-20012 note |
Plug, W/Head Straight Screw, NO.1
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-A0006 note |
Plug, W/Head Straight Screw, NO.1
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 90341-20012 note |
Plug, W/Head Straight Screw, NO.1
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-A0006 note |
Plug, W/Head Straight Screw, NO.1
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11117F — Plug, W/Head Straight Screw, NO.2 | ||||
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2011-09 → 2012-02
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-32002 |
Plug, W/Head Straight Screw, NO.2
2019-09 → 2024-01
ended
|
2TRFE TRN245,265 | — | |
| 90341-T0009 |
Plug, W/Head Straight Screw, NO.2
2024-01 → —
|
2TRFE TRN245,265 | — | |
| 11117G — Plug, W/Head Straight Screw, NO.3 | ||||
| 90341-20002 |
Plug, W/Head Straight Screw, NO.3
2015-08 → 2016-10
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw, NO.3
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-A0008 note |
Plug, W/Head Straight Screw, NO.3
2016-10 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw, NO.3
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-A0008 note |
Plug, W/Head Straight Screw, NO.3
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw, NO.3
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90341-A0008 note |
Plug, W/Head Straight Screw, NO.3
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-20004 |
Gasket(FOR WATER HOLE)
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90430-24013 |
Gasket(FOR WATER HOLE)
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90430-24013 |
Gasket(FOR WATER HOLE)
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90430-24013 |
Gasket(FOR WATER HOLE)
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 90430-24013 |
Gasket(FOR WATER HOLE)
2011-09 → 2012-02
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2019-09 → 2024-01
ended
|
2TRFE TRN245,265 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-T0010 |
Gasket(FOR WATER HOLE)
2024-01 → —
|
2TRFE TRN245,265 | — | |
| 11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2006-04 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90430-33001 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2004-09 → 2006-04
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-09 → 2012-02
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 16258-31020 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-27005 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 16258-31020 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-27005 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 16258-31020 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-27005 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90430-32004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-20020 note |
Bush, Intake Valve Guide
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11122-31070 note |
Bush, Intake Valve Guide
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11123-31070 note |
Bush, Intake Valve Guide
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11122-31070 note |
Bush, Intake Valve Guide
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11123-31070 note |
Bush, Intake Valve Guide
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11122-31070 note |
Bush, Intake Valve Guide
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11122-75020 note |
Bush, Intake Valve Guide
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11123-31070 note |
Bush, Intake Valve Guide
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11123-75020 note |
Bush, Intake Valve Guide
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-75020 note |
Bush, Exhaust Valve Guide
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11122-75020 note |
Bush, Exhaust Valve Guide
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11123-75020 note |
Bush, Exhaust Valve Guide
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-31010 note |
Seat, Intake Valve
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11131-75080 note |
Seat, Intake Valve
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11132-31010 note |
Seat, Intake Valve
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11132-75080 note |
Seat, Intake Valve
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11131-31010 note |
Seat, Intake Valve
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11131-31010 note |
Seat, Intake Valve
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11131-75080 note |
Seat, Intake Valve
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11131-75080 note |
Seat, Intake Valve
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11132-31010 note |
Seat, Intake Valve
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11132-31010 note |
Seat, Intake Valve
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11132-75080 note |
Seat, Intake Valve
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11132-75080 note |
Seat, Intake Valve
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11131-31010 note |
Seat, Intake Valve
2011-09 → 2012-02
ended
|
1GRFE GRN245,265 DCB 5FC | — | |
| 11131-75080 note |
Seat, Intake Valve
2011-09 → 2014-04
ended
|
2TRFE TRN22#,24#,265 | — | |
| 11131-75081 note |
Seat, Intake Valve
2014-04 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11131-75081 note |
Seat, Intake Valve
2014-04 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11132-31010 note |
Seat, Intake Valve
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11132-75080 note |
Seat, Intake Valve
2011-09 → 2014-04
ended
|
2TRFE TRN22#,24#,265 | — | |
| 11132-75081 note |
Seat, Intake Valve
2014-04 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11132-75081 note |
Seat, Intake Valve
2014-04 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11131-0P020 note |
Seat, Intake Valve
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-31050 note |
Seat, Intake Valve
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-75130 note |
Seat, Intake Valve
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11132-0P020 note |
Seat, Intake Valve
2015-08 → 2015-12
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-0P020 note |
Seat, Intake Valve
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-31050 note |
Seat, Intake Valve
2015-12 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-75130 note |
Seat, Intake Valve
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11131-0P020 note |
Seat, Intake Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-31050 note |
Seat, Intake Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-75130 note |
Seat, Intake Valve
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11132-0P020 note |
Seat, Intake Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-31050 note |
Seat, Intake Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-75130 note |
Seat, Intake Valve
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11131-0C030 note |
Seat, Intake Valve
2024-01 → —
|
2TRFE TRN245,265 | — | |
| 11131-0P020 note |
Seat, Intake Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-31050 note |
Seat, Intake Valve
2019-09 → 2022-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-31060 note |
Seat, Intake Valve
2022-10 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11131-75130 note |
Seat, Intake Valve
2019-09 → 2024-01
ended
|
2TRFE TRN245,265 | — | |
| 11132-0P020 note |
Seat, Intake Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-31050 note |
Seat, Intake Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11132-75130 note |
Seat, Intake Valve
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-31030 note |
Seat, Exhaust Valve
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11135-75100 note |
Seat, Exhaust Valve
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11136-31030 note |
Seat, Exhaust Valve
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11136-75100 note |
Seat, Exhaust Valve
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 11135-31030 note |
Seat, Exhaust Valve
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11135-31030 note |
Seat, Exhaust Valve
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11135-75100 note |
Seat, Exhaust Valve
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11135-75100 note |
Seat, Exhaust Valve
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11136-31030 note |
Seat, Exhaust Valve
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11136-31030 note |
Seat, Exhaust Valve
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11136-75100 note |
Seat, Exhaust Valve
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 11136-75100 note |
Seat, Exhaust Valve
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 11135-31030 note |
Seat, Exhaust Valve
2011-09 → 2012-02
ended
|
1GRFE GRN245,265 DCB 5FC | — | |
| 11135-75100 note |
Seat, Exhaust Valve
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11135-75100 note |
Seat, Exhaust Valve
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11136-31030 note |
Seat, Exhaust Valve
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11136-75100 note |
Seat, Exhaust Valve
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 11136-75100 note |
Seat, Exhaust Valve
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 11135-0P040 note |
Seat, Exhaust Valve
2015-08 → 2017-01
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-0P050 note |
Seat, Exhaust Valve
2017-01 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-31100 note |
Seat, Exhaust Valve
2015-12 → 2016-02
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-31110 note |
Seat, Exhaust Valve
2016-03 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-75100 note |
Seat, Exhaust Valve
2015-08 → 2017-07
ended
|
2TRFE TRN245,265 | — | |
| 11135-75160 note |
Seat, Exhaust Valve
2017-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11136-0P040 note |
Seat, Exhaust Valve
2015-08 → 2015-12
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-0P040 note |
Seat, Exhaust Valve
2015-12 → 2017-01
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-0P050 note |
Seat, Exhaust Valve
2017-01 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-31100 note |
Seat, Exhaust Valve
2015-12 → 2016-03
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-31110 note |
Seat, Exhaust Valve
2016-03 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-75100 note |
Seat, Exhaust Valve
2015-08 → 2017-07
ended
|
2TRFE TRN245,265 | — | |
| 11136-75160 note |
Seat, Exhaust Valve
2017-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 11135-0P050 note |
Seat, Exhaust Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-31110 note |
Seat, Exhaust Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-75160 note |
Seat, Exhaust Valve
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11136-0P050 note |
Seat, Exhaust Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-31110 note |
Seat, Exhaust Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-75160 note |
Seat, Exhaust Valve
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 11135-0C020 note |
Seat, Exhaust Valve
2024-01 → —
|
2TRFE TRN245,265 | — | |
| 11135-0P050 note |
Seat, Exhaust Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-31110 note |
Seat, Exhaust Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11135-75160 note |
Seat, Exhaust Valve
2019-09 → 2024-01
ended
|
2TRFE TRN245,265 | — | |
| 11136-0P050 note |
Seat, Exhaust Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-31110 note |
Seat, Exhaust Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11136-75160 note |
Seat, Exhaust Valve
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2019-09 → 2024-01
ended
|
2TRFE TRN245,265 | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90253-T0004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2024-01 → —
|
2TRFE TRN245,265 | — | |
| 11151F — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90119-07008 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-A0413 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-07008 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-A0413 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-07008 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-A0413 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-A0302 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-A0302 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90119-A0302 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-11021 |
Pin, Ring W/Head
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90253-11021 |
Pin, Ring W/Head
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90253-11021 |
Pin, Ring W/Head
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 90253-11021 |
Pin, Ring W/Head
2011-09 → 2012-02
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 90253-11021 |
Pin, Ring W/Head
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90253-11021 |
Pin, Ring W/Head
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90253-11021 |
Pin, Ring W/Head
2019-09 → 2022-08
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 90253-11021 |
Pin, Ring W/Head
2022-08 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11159F — Gasket, Camshaft Bearing Cap Oil Hole, RH | ||||
| 11159-0P040 |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11159-0P040 |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11159-0P040 |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-31060 |
Hanger, Engine, NO.1
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 12281-75040 |
Hanger, Engine, NO.1
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 12281-31060 |
Hanger, Engine, NO.1
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 12281-31060 |
Hanger, Engine, NO.1
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 12281-75040 |
Hanger, Engine, NO.1
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 12281-75040 |
Hanger, Engine, NO.1
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 12281-31060 |
Hanger, Engine, NO.1
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 12281-75050 |
Hanger, Engine, NO.1
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 12281-75050 |
Hanger, Engine, NO.1
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 12281-31121 |
Hanger, Engine, NO.1
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 12281-75050 |
Hanger, Engine, NO.1
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 12281-31121 |
Hanger, Engine, NO.1
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 12281-75050 |
Hanger, Engine, NO.1
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 12281-31121 |
Hanger, Engine, NO.1
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 12281-75050 |
Hanger, Engine, NO.1
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 15678A — Filter, Oil Control Valve | ||||
| 15678-21010 |
Filter, Oil Control Valve
2004-09 → 2008-05
ended
|
2TRFE TRN22#,24#,26# | — | |
| 15678-31010 |
Filter, Oil Control Valve
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 15678-21010 |
Filter, Oil Control Valve
2008-05 → 2010-06
ended
|
2TRFE TRN26# | — | |
| 15678-21010 |
Filter, Oil Control Valve
2008-05 → 2011-09
ended
|
2TRFE TRN22#,24#;2TRFE TRN265 4FC | — | |
| 15678-31010 |
Filter, Oil Control Valve
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 15678-31010 |
Filter, Oil Control Valve
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 15678-21010 |
Filter, Oil Control Valve
2011-09 → 2014-08
ended
|
2TRFE TRN220,240 | — | |
| 15678-21010 |
Filter, Oil Control Valve
2011-09 → 2015-08
ended
|
2TRFE TRN225,245,265 | — | |
| 15678-31010 |
Filter, Oil Control Valve
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 15678-21010 |
Filter, Oil Control Valve
2015-08 → 2017-11
ended
|
2TRFE TRN245,265 | — | |
| 15678-31020 |
Filter, Oil Control Valve
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15678-21010 |
Filter, Oil Control Valve
2017-11 → 2019-09
ended
|
2TRFE TRN245,265 | — | |
| 15678-31020 |
Filter, Oil Control Valve
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15678-21010 |
Filter, Oil Control Valve
2019-09 → —
|
2TRFE TRN245,265 | — | |
| 15678-31020 |
Filter, Oil Control Valve
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 23476 — Housing, Fuel Pump Lifter | ||||
| 23476-31020 |
Housing, Fuel Pump Lifter
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 23476-31020 |
Housing, Fuel Pump Lifter
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 23476-31020 |
Housing, Fuel Pump Lifter
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 2930A — Bracket Sub-assy, Vacuum Pump Hole Cover | ||||
| 2930A-0P010 note |
Bracket Sub-assy, Vacuum Pump Hole Cover
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310 SR5 | — | |
| 2930A-0P010 note |
Bracket Sub-assy, Vacuum Pump Hole Cover
2016-08 → 2017-11
ended
|
2GRFKS GRN305 DCB SR5 | — | |
| 2930A-0P010 note |
Bracket Sub-assy, Vacuum Pump Hole Cover
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310 SR5 | — | |
| 2930A-0P010 note |
Bracket Sub-assy, Vacuum Pump Hole Cover
2017-11 → 2019-09
ended
|
2GRFKS GRN305 DCB SR5 | — | |
| 2930A-0P010 note |
Bracket Sub-assy, Vacuum Pump Hole Cover
2019-09 → —
|
2GRFKS GRN305,310 SR5 | — | |
| 2930A-0P010 note |
Bracket Sub-assy, Vacuum Pump Hole Cover
2019-09 → —
|
2GRFKS GRN305 DCB SR5 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
