Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

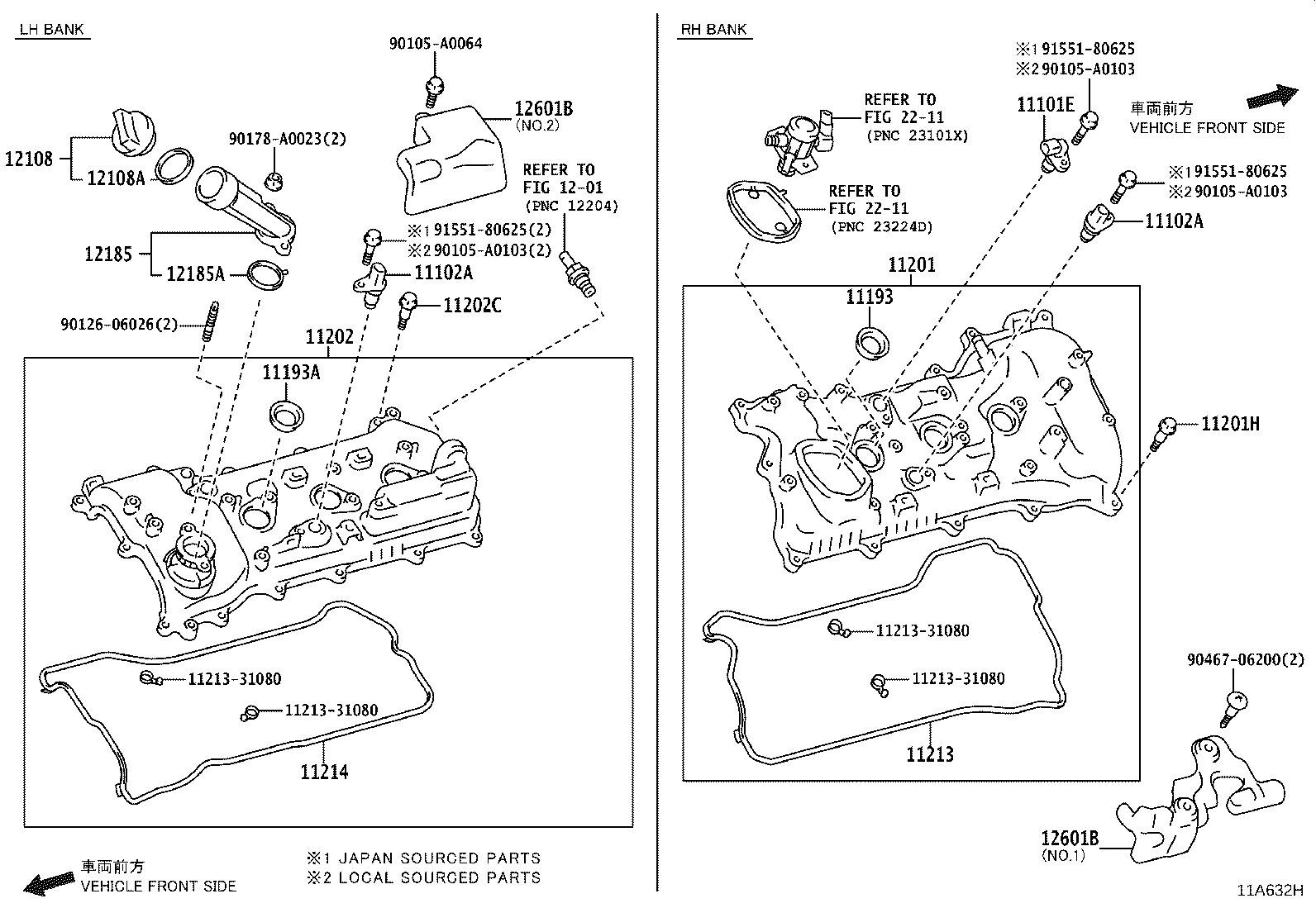

Exploded illustration 11A632H 12601B — COVER SUB-ASSY, ENGINE, NO.1 (7 parts) 12601B — COVER SUB-ASSY, ENGINE, NO.1 (7 parts) 12185 — HOUSING, OIL FILLER CAP (7 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (21 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (6 parts) 11213 — GASKET, CYLINDER HEAD COVER (17 parts) 11202 — COVER SUB-ASSY, CYLINDER HEAD, LH (10 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (15 parts) 12185A — GASKET, OIL FILLER CAP HOUSING (7 parts) 12108 — CAP SUB-ASSY, OIL FILLER (19 parts) 12108A — GASKET(FOR OIL FILLER CAP) (18 parts) 11102A — SENSOR, CAMSHAFT POSITION (3 parts) 11202C — BOLT(FOR CYLINDER HEAD COVER LH) (8 parts) 11102A — SENSOR, CAMSHAFT POSITION (3 parts) 11101E — SENSOR, CAM POSITION (3 parts) 1121331080 — not listed in this catalogue 1121331080 — not listed in this catalogue 1121331080 — not listed in this catalogue 9012606026 — not listed in this catalogue 90105A0064 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9046706200 — not listed in this catalogue 1121331080 — not listed in this catalogue 11193A — GASKET, SPARK PLUG TUBE, LH (3 parts) 11193 — GASKET, SPARK PLUG TUBE (3 parts) 1201 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105A0103 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105A0103 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105A0103 — not listed in this catalogue
11A632H · 17 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
147 parts on this figure
Part number Description Fitment Price
11101E — Sensor, Cam Position
90919-05061 Sensor, Cam Position
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90919-05061 Sensor, Cam Position
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90919-05061 Sensor, Cam Position
2019-09 → —
2GRFKS GRN305,310,325,330 —
11102A — Sensor, Camshaft Position
90919-05060 Sensor, Camshaft Position
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90919-05060 Sensor, Camshaft Position
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90919-05060 Sensor, Camshaft Position
2019-09 → —
2GRFKS GRN305,310,325,330 —
11193 — Gasket, Spark Plug Tube
11193-0P010 Gasket, Spark Plug Tube
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
11193-0P010 Gasket, Spark Plug Tube
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
11193-0P010 Gasket, Spark Plug Tube
2019-09 → —
2GRFKS GRN305,310,325,330 —
11193A — Gasket, Spark Plug Tube, LH
11193-0P010 Gasket, Spark Plug Tube, LH
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
11193-0P010 Gasket, Spark Plug Tube, LH
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
11193-0P010 Gasket, Spark Plug Tube, LH
2019-09 → —
2GRFKS GRN305,310,325,330 —
11201 — Cover Sub-assy, Cylinder Head
11201-31220 note Cover Sub-assy, Cylinder Head
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11201-75051 Cover Sub-assy, Cylinder Head
2004-09 → 2008-05 ended
2TRFE TRN22#,24#,26# —
11201-AD010 note Cover Sub-assy, Cylinder Head
2005-08 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11201-75051 Cover Sub-assy, Cylinder Head
2008-05 → 2009-08 ended
2TRFE TRN22#,24#,26# —
11201-75052 Cover Sub-assy, Cylinder Head
2009-08 → 2010-06 ended
2TRFE TRN26# —
11201-75052 Cover Sub-assy, Cylinder Head
2009-08 → 2011-09 ended
2TRFE TRN22#,24#;2TRFE TRN265 4FC —
11201-AD010 Cover Sub-assy, Cylinder Head
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
11201-AD010 Cover Sub-assy, Cylinder Head
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
11201-0P030 Cover Sub-assy, Cylinder Head
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
11201-75053 Cover Sub-assy, Cylinder Head
2011-09 → 2012-03 ended
2TRFE TRN22#,24#,265 —
11201-75054 Cover Sub-assy, Cylinder Head
2012-03 → 2013-10 ended
2TRFE TRN22#,24#,265 —
11201-75055 Cover Sub-assy, Cylinder Head
2013-10 → 2014-08 ended
2TRFE TRN220,240 —
11201-75055 Cover Sub-assy, Cylinder Head
2013-10 → 2015-08 ended
2TRFE TRN225,245,265 —
11201-AD010 note Cover Sub-assy, Cylinder Head
2011-09 → 2015-08 ended
1GRFE GRN245,265 DCB 5FC —
11201-0P010 Cover Sub-assy, Cylinder Head
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
11201-75080 Cover Sub-assy, Cylinder Head
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
11201-0P010 Cover Sub-assy, Cylinder Head
2017-11 → 2019-03 ended
2GRFKS GRN305,310,325,330 —
11201-0P012 Cover Sub-assy, Cylinder Head
2019-03 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
11201-75080 Cover Sub-assy, Cylinder Head
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
11201-0P012 Cover Sub-assy, Cylinder Head
2019-09 → —
2GRFKS GRN305,310,325,330 —
11201-75080 Cover Sub-assy, Cylinder Head
2019-09 → —
2TRFE TRN245,265 —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER)
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER)
2019-09 → —
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER)
2019-09 → —
2GRFKS GRN305,310,325,330 —
11202 — Cover Sub-assy, Cylinder Head, LH
11202-31010 note Cover Sub-assy, Cylinder Head, LH
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11202-AD010 note Cover Sub-assy, Cylinder Head, LH
2005-08 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11202-AD010 Cover Sub-assy, Cylinder Head, LH
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
11202-AD010 Cover Sub-assy, Cylinder Head, LH
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
11202-AD010 Cover Sub-assy, Cylinder Head, LH
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
11202-0P030 Cover Sub-assy, Cylinder Head, LH
2015-08 → 2017-04 ended
2GRFKS GRN305,310,325,330 —
11202-0P031 Cover Sub-assy, Cylinder Head, LH
2017-05 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
11202-0P031 Cover Sub-assy, Cylinder Head, LH
2017-11 → 2018-12 ended
2GRFKS GRN305,310,325,330 —
11202-0P032 Cover Sub-assy, Cylinder Head, LH
2019-01 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
11202-0P032 Cover Sub-assy, Cylinder Head, LH
2019-09 → —
2GRFKS GRN305,310,325,330 —
11202C — Bolt(FOR CYLINDER HEAD COVER LH)
90109-06384 note Bolt(FOR CYLINDER HEAD COVER LH)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER LH)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER LH)
2017-11 → 2018-09 ended
2GRFKS GRN305,310,325,330 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER LH)
2018-09 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER LH)
2017-11 → 2018-09 ended
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER LH)
2018-09 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90109-06384 note Bolt(FOR CYLINDER HEAD COVER LH)
2019-09 → —
2GRFKS GRN305,310,325,330 —
90109-A0050 note Bolt(FOR CYLINDER HEAD COVER LH)
2019-09 → —
2GRFKS GRN305,310,325,330 —
11213 — Gasket, Cylinder Head Cover
11213-31030 note Gasket, Cylinder Head Cover
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11213-75040 Gasket, Cylinder Head Cover
2004-09 → 2008-05 ended
2TRFE TRN22#,24#,26# —
11213-AD010 note Gasket, Cylinder Head Cover
2005-08 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11213-75040 Gasket, Cylinder Head Cover
2008-05 → 2008-08 ended
2TRFE TRN22#,24#,26# —
11213-75041 Gasket, Cylinder Head Cover
2008-08 → 2010-06 ended
2TRFE TRN26# —
11213-75041 Gasket, Cylinder Head Cover
2008-08 → 2011-09 ended
2TRFE TRN22#,24#;2TRFE TRN265 4FC —
11213-AD010 Gasket, Cylinder Head Cover
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
11213-AD010 Gasket, Cylinder Head Cover
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
11213-75041 Gasket, Cylinder Head Cover
2011-09 → 2014-08 ended
2TRFE TRN220,240 —
11213-75041 Gasket, Cylinder Head Cover
2011-09 → 2015-08 ended
2TRFE TRN225,245,265 —
11213-AD010 Gasket, Cylinder Head Cover
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
11213-0P030 Gasket, Cylinder Head Cover
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
11213-75050 Gasket, Cylinder Head Cover
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
11213-0P030 Gasket, Cylinder Head Cover
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
11213-75050 Gasket, Cylinder Head Cover
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
11213-0P030 Gasket, Cylinder Head Cover
2019-09 → —
2GRFKS GRN305,310,325,330 —
11213-75050 Gasket, Cylinder Head Cover
2019-09 → —
2TRFE TRN245,265 —
11214 — Gasket, Cylinder Head Cover, NO.2
11214-31010 note Gasket, Cylinder Head Cover, NO.2
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11214-75010 Gasket, Cylinder Head Cover, NO.2
2004-09 → 2008-05 ended
2TRFE TRN22#,24#,26# —
11214-AD010 note Gasket, Cylinder Head Cover, NO.2
2005-08 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
11214-75010 Gasket, Cylinder Head Cover, NO.2
2008-05 → 2008-08 ended
2TRFE TRN22#,24#,26# —
11214-75011 Gasket, Cylinder Head Cover, NO.2
2008-08 → 2010-06 ended
2TRFE TRN26# —
11214-75011 Gasket, Cylinder Head Cover, NO.2
2008-08 → 2011-01 ended
2TRFE TRN22#,24#;2TRFE TRN265 4FC —
11214-75012 Gasket, Cylinder Head Cover, NO.2
2011-01 → 2011-09 ended
2TRFE TRN22#,24#,265 —
11214-AD010 Gasket, Cylinder Head Cover, NO.2
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
11214-AD010 Gasket, Cylinder Head Cover, NO.2
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
11214-75012 Gasket, Cylinder Head Cover, NO.2
2011-09 → 2015-08 ended
2TRFE TRN225,245,265 —
11214-75012 Gasket, Cylinder Head Cover, NO.2
2011-09 → 2014-08 ended
2TRFE TRN220,240 —
11214-AD010 Gasket, Cylinder Head Cover, NO.2
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
11214-0P010 Gasket, Cylinder Head Cover, NO.2
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
11214-0P010 Gasket, Cylinder Head Cover, NO.2
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
11214-0P010 Gasket, Cylinder Head Cover, NO.2
2019-09 → —
2GRFKS GRN305,310,325,330 —
12108 — Cap Sub-assy, Oil Filler
12180-0H010 Cap Sub-assy, Oil Filler
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
12180-21021 Cap Sub-assy, Oil Filler
2004-09 → 2006-08 ended
2TRFE TRN22#,24#,26# —
12180-28031 Cap Sub-assy, Oil Filler
2006-08 → 2008-05 ended
2TRFE TRN22#,24#,26# —
12180-0H010 Cap Sub-assy, Oil Filler
2008-05 → 2010-01 ended
1GRFE GRN225,245,250,265,270 —
12180-0H011 Cap Sub-assy, Oil Filler
2010-02 → 2010-06 ended
1GRFE GRN265 6F —
12180-0H011 Cap Sub-assy, Oil Filler
2010-02 → 2010-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
12180-0H012 Cap Sub-assy, Oil Filler
2010-10 → 2011-09 ended
1GRFE GRN225,245,250,265,270 —
12180-28031 Cap Sub-assy, Oil Filler
2008-05 → 2010-06 ended
2TRFE TRN22#,24#,26# —
12180-31010 Cap Sub-assy, Oil Filler
2010-06 → 2011-09 ended
2TRFE TRN22#,24#,265 —
12180-0H012 Cap Sub-assy, Oil Filler
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
12180-31010 Cap Sub-assy, Oil Filler
2011-09 → 2014-08 ended
2TRFE TRN220,240 —
12180-31010 Cap Sub-assy, Oil Filler
2011-09 → 2015-08 ended
2TRFE TRN225,245,265 —
12180-31010 Cap Sub-assy, Oil Filler
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
12180-38010 Cap Sub-assy, Oil Filler
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
12180-0P021 Cap Sub-assy, Oil Filler
2019-02 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
12180-31010 Cap Sub-assy, Oil Filler
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
12180-38010 Cap Sub-assy, Oil Filler
2017-11 → 2019-01 ended
2GRFKS GRN305,310,325,330 —
12180-0P021 Cap Sub-assy, Oil Filler
2019-09 → —
2GRFKS GRN305,310,325,330 —
12180-31010 Cap Sub-assy, Oil Filler
2019-09 → —
2TRFE TRN245,265 —
12108A — Gasket(FOR OIL FILLER CAP)
90080-43025 Gasket(FOR OIL FILLER CAP)
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
90430-37004 Gasket(FOR OIL FILLER CAP)
2006-08 → 2008-05 ended
2TRFE TRN22#,24#,26# —
90430-37140 Gasket(FOR OIL FILLER CAP)
2004-09 → 2006-08 ended
2TRFE TRN22#,24#,26# —
90080-43025 Gasket(FOR OIL FILLER CAP)
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
90080-43025 Gasket(FOR OIL FILLER CAP)
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2010-06 → 2011-09 ended
2TRFE TRN22#,24#,265 —
90430-37004 Gasket(FOR OIL FILLER CAP)
2008-05 → 2010-06 ended
2TRFE TRN22#,24#,26# —
90080-43025 Gasket(FOR OIL FILLER CAP)
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2011-09 → 2014-08 ended
2TRFE TRN220,240 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2011-09 → 2015-08 ended
2TRFE TRN225,245,265 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
90080-43025 note Gasket(FOR OIL FILLER CAP)
2019-02 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90430-35001 note Gasket(FOR OIL FILLER CAP)
2017-11 → 2019-02 ended
2GRFKS GRN305,310,325,330 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
90080-43025 note Gasket(FOR OIL FILLER CAP)
2019-09 → 2023-07 ended
2GRFKS GRN305,310,325,330 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2019-09 → —
2TRFE TRN245,265 —
90430-35001 note Gasket(FOR OIL FILLER CAP)
2023-07 → —
2GRFKS GRN305,310,325,330 —
12185 — Housing, Oil Filler Cap
12185-0F010 Housing, Oil Filler Cap
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
12185-0F010 Housing, Oil Filler Cap
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
12185-0F010 Housing, Oil Filler Cap
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
12185-0F010 Housing, Oil Filler Cap
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
12190-0P010 Housing, Oil Filler Cap
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
12190-0P010 Housing, Oil Filler Cap
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
12190-0P010 Housing, Oil Filler Cap
2019-09 → —
2GRFKS GRN305,310,325,330 —
12185A — Gasket, Oil Filler Cap Housing
12196-0F010 Gasket, Oil Filler Cap Housing
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
12196-0F010 Gasket, Oil Filler Cap Housing
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
12196-0F010 Gasket, Oil Filler Cap Housing
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
12196-0F010 Gasket, Oil Filler Cap Housing
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
12196-38010 Gasket, Oil Filler Cap Housing
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
12196-38010 Gasket, Oil Filler Cap Housing
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
12196-38010 Gasket, Oil Filler Cap Housing
2019-09 → —
2GRFKS GRN305,310,325,330 —
12601B — Cover Sub-assy, Engine, NO.1
12601-0P010 note Cover Sub-assy, Engine, NO.1
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
12601-0P020 note Cover Sub-assy, Engine, NO.1
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
12601-0P010 note Cover Sub-assy, Engine, NO.1
2017-11 → 2019-02 ended
2GRFKS GRN305,310,325,330 —
12601-0P011 note Cover Sub-assy, Engine, NO.1
2019-03 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
12601-0P020 note Cover Sub-assy, Engine, NO.1
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
12601-0P011 note Cover Sub-assy, Engine, NO.1
2019-09 → —
2GRFKS GRN305,310,325,330 —
12601-0P020 note Cover Sub-assy, Engine, NO.1
2019-09 → —
2GRFKS GRN305,310,325,330 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
