Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

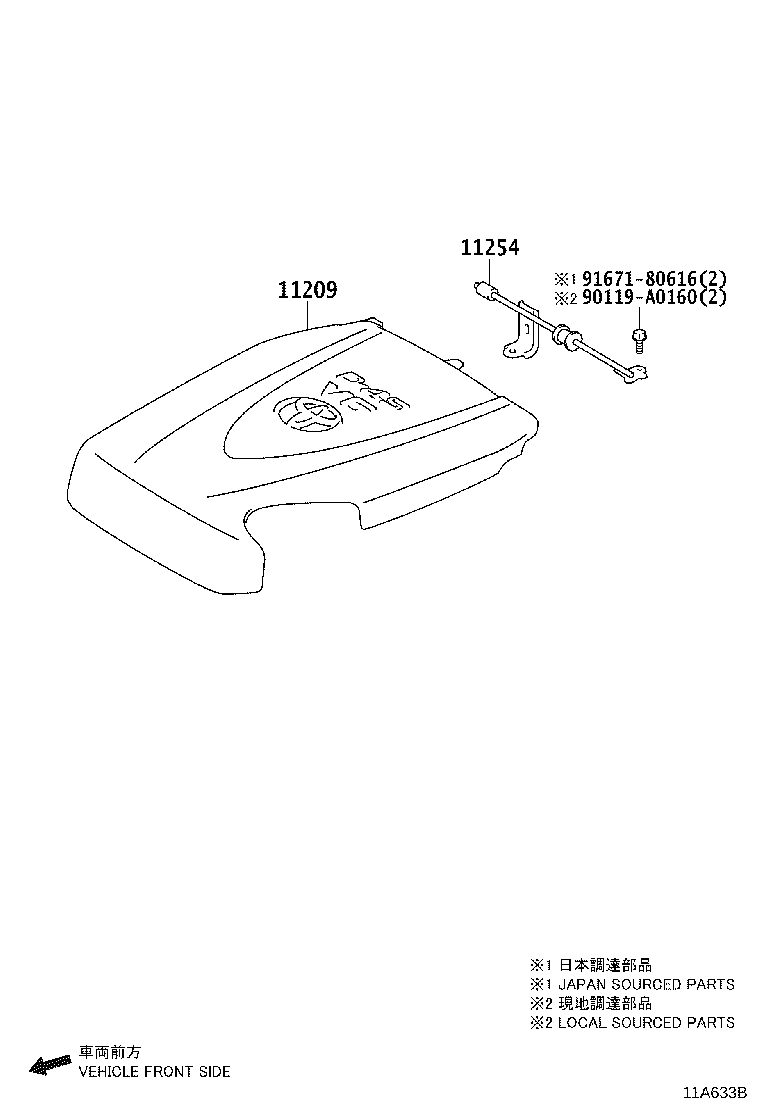

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11209 — Cover Sub-assy, V-bank | ||||
| 11209-0P100 |
Cover Sub-assy, V-bank
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11209-0P100 |
Cover Sub-assy, V-bank
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11209-0P100 |
Cover Sub-assy, V-bank
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 11254 — Bracket, V-bank Cover, NO.1 | ||||
| 11254-0P010 |
Bracket, V-bank Cover, NO.1
2004-09 → 2008-05
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11254-0P010 |
Bracket, V-bank Cover, NO.1
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 11254-0P010 |
Bracket, V-bank Cover, NO.1
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 | — | |
| 11254-0P010 |
Bracket, V-bank Cover, NO.1
2011-09 → 2015-08
ended
|
1GRFE GRN225,245,250,265,270 | — | |
| 11254-31050 |
Bracket, V-bank Cover, NO.1
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11254-31050 |
Bracket, V-bank Cover, NO.1
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 11254-31050 |
Bracket, V-bank Cover, NO.1
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
