Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

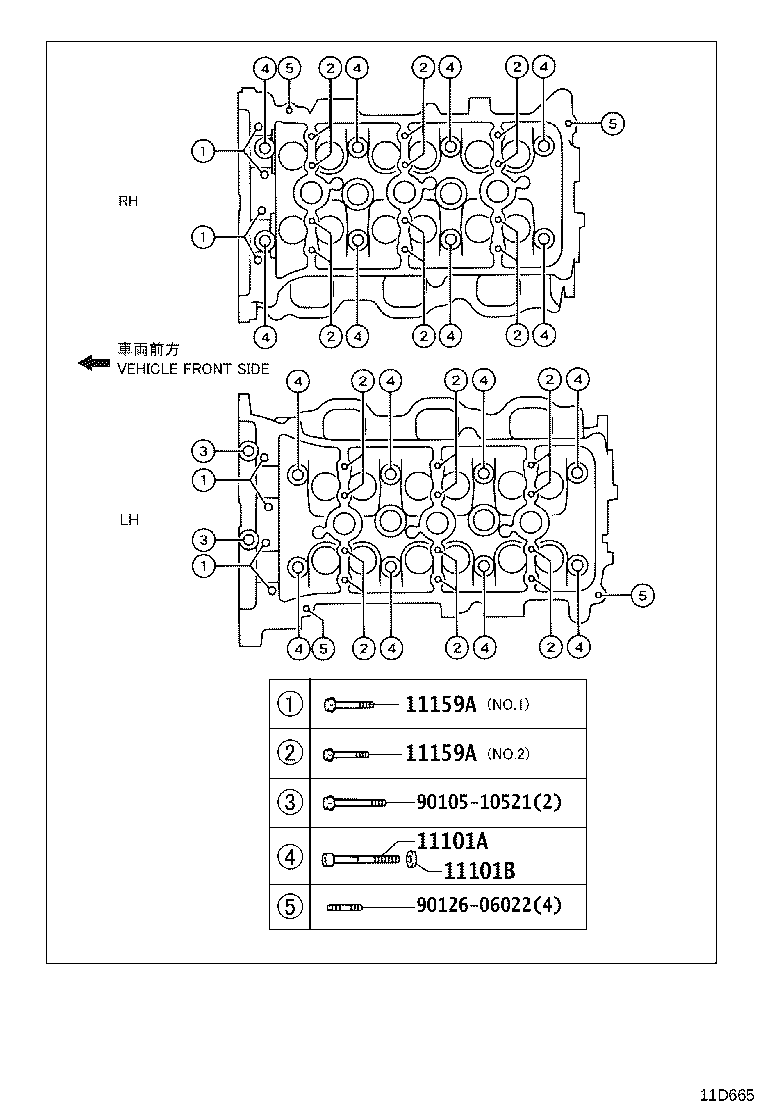

Exploded illustration 11D665 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (18 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (18 parts) 9010510521 — not listed in this catalogue 11101A — BOLT(FOR CYLINDER HEAD SET) (17 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (18 parts) 9012606022 — not listed in this catalogue
11D665 · 4 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02091 Bolt(FOR CYLINDER HEAD SET)
2004-09 → 2008-05 ended
2TRFE TRN22#,24#,26# —
90910-02149 Bolt(FOR CYLINDER HEAD SET)
2004-09 → 2005-08 ended
1GRFE GRN225,245,250,265,270 —
90910-02162 Bolt(FOR CYLINDER HEAD SET)
2005-08 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
90910-02091 Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2010-06 ended
2TRFE TRN26# —
90910-02091 Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2011-09 ended
2TRFE TRN22#,24#;2TRFE TRN265 4FC —
90910-02162 Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
90910-02162 Bolt(FOR CYLINDER HEAD SET)
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
90910-02091 Bolt(FOR CYLINDER HEAD SET)
2011-09 → 2013-03 ended
2TRFE TRN22#,24#,265 —
90910-02162 Bolt(FOR CYLINDER HEAD SET)
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
90910-02187 Bolt(FOR CYLINDER HEAD SET)
2013-03 → 2014-08 ended
2TRFE TRN220,240 —
90910-02187 Bolt(FOR CYLINDER HEAD SET)
2013-03 → 2015-08 ended
2TRFE TRN225,245,265 —
90910-02187 Bolt(FOR CYLINDER HEAD SET)
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
90910-A2009 Bolt(FOR CYLINDER HEAD SET)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90910-02187 Bolt(FOR CYLINDER HEAD SET)
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
90910-A2009 Bolt(FOR CYLINDER HEAD SET)
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90910-02187 Bolt(FOR CYLINDER HEAD SET)
2019-09 → —
2TRFE TRN245,265 —
90910-A2009 Bolt(FOR CYLINDER HEAD SET)
2019-09 → —
2GRFKS GRN305,310,325,330 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2004-09 → 2008-05 ended
2TRFE TRN22#,24#,26# —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2010-06 ended
2TRFE TRN26# —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2011-09 ended
2TRFE TRN22#,24#;2TRFE TRN265 4FC —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2011-09 → 2014-08 ended
2TRFE TRN220,240 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2011-09 → 2015-08 ended
2TRFE TRN225,245,265 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2011-09 → 2015-08 ended
1GRFE GRN225,245,250,265,270 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
90201-11034 note Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90201-A0008 note Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-11 ended
2GRFKS GRN305,310,325,330 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
90201-11034 note Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90201-A0008 note Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → 2019-09 ended
2GRFKS GRN305,310,325,330 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2019-09 → —
2TRFE TRN245,265 —
90201-11034 note Washer, Plate(FOR CYLINDER HEAD SET)
2019-09 → —
2GRFKS GRN305,310,325,330 —
90201-A0008 note Washer, Plate(FOR CYLINDER HEAD SET)
2019-09 → —
2GRFKS GRN305,310,325,330 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-08353 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
90119-06902 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-09 → 2008-05 ended
1GRFE GRN225,245,250,265,270 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2004-09 → 2008-05 ended
2TRFE TRN22#,24#,26# —
90105-08353 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
90105-08353 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
90119-06902 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-05 → 2010-06 ended
1GRFE GRN265 6F —
90119-06902 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-05 → 2011-09 ended
1GRFE GRN265 5FC;1GRFE GRN225,245,250,270 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-05 → 2010-06 ended
2TRFE TRN26# —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-05 → 2011-09 ended
2TRFE TRN22#,24#;2TRFE TRN265 4FC —
90105-08353 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2011-09 → 2012-02 ended
1GRFE GRN225,245,250,265,270 —
90119-06902 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2011-09 → 2012-02 ended
1GRFE GRN225,245,250,265,270 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2011-09 → 2014-08 ended
2TRFE TRN220,240 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2011-09 → 2015-08 ended
2TRFE TRN225,245,265 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2015-08 → 2017-11 ended
2TRFE TRN245,265 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2017-11 → 2019-09 ended
2TRFE TRN245,265 —
90119-07013 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2019-09 → 2024-01 ended
2TRFE TRN245,265 —
90119-07013 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2024-01 → —
2TRFE TRN245,265 —
90119-T0268 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2024-01 → —
2TRFE TRN245,265 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
