Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

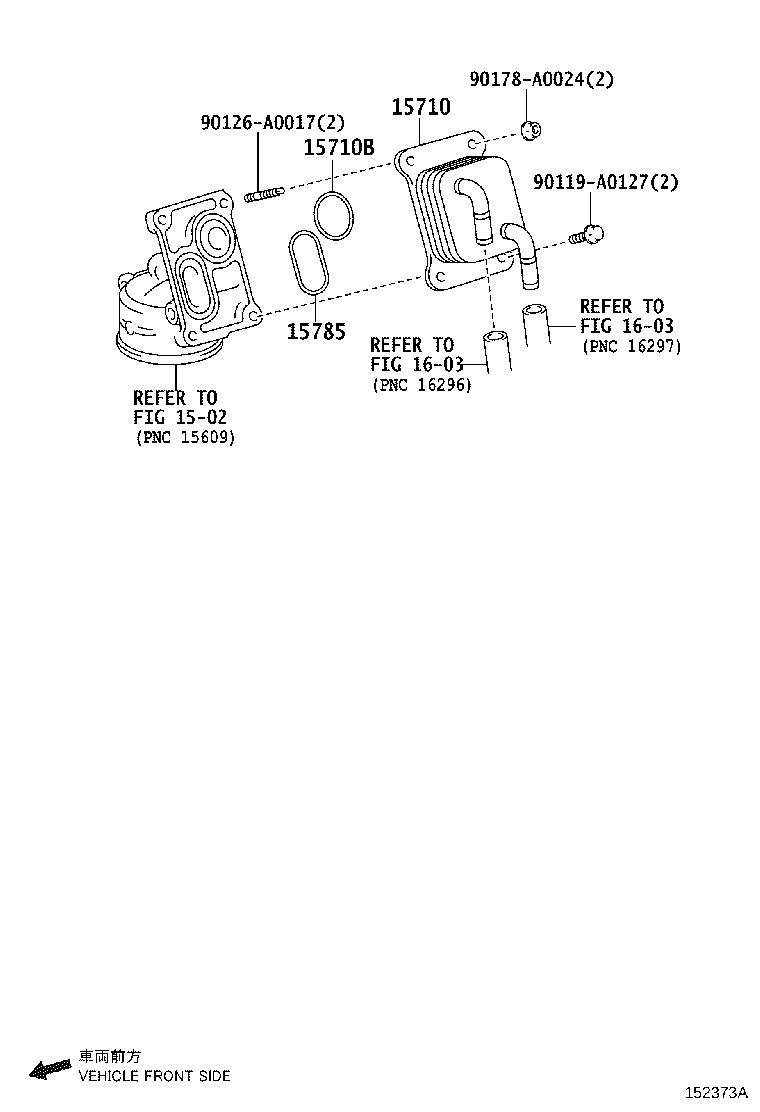

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15710 — Cooler Assy, Oil | ||||
| 15710-31010 note |
Cooler Assy, Oil
2004-09 → 2008-05
ended
|
1GRFE GRN245,250,265,270 | — | |
| 15710-31010 note |
Cooler Assy, Oil
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 15710-31010 note |
Cooler Assy, Oil
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN245,250,270 | — | |
| 15710-31010 note |
Cooler Assy, Oil
2011-09 → 2015-08
ended
|
1GRFE GRN245,250,265,270 | — | |
| 15710-0P020 note |
Cooler Assy, Oil
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15710-0P020 |
Cooler Assy, Oil
2017-11 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15710-0P020 note |
Cooler Assy, Oil
2017-11 → 2019-09
ended
|
2GRFKS GRN305,325 DCB 6FC +1 | — | |
| 15710-0P020 note |
Cooler Assy, Oil
2019-09 → 2023-12
ended
|
2GRFKS GRN325 DCB SR5 | — | |
| 15710-0P020 |
Cooler Assy, Oil
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 15710B — Ring, O(FOR OIL COOLER) | ||||
| 90301-67004 note |
Ring, O(FOR OIL COOLER)
2005-08 → 2008-05
ended
|
1GRFE GRN245,250,265,270 | — | |
| 90301-67004 note |
Ring, O(FOR OIL COOLER)
2008-05 → 2010-06
ended
|
1GRFE GRN265 6F | — | |
| 90301-67004 note |
Ring, O(FOR OIL COOLER)
2008-05 → 2011-09
ended
|
1GRFE GRN265 5FC;1GRFE GRN245,250,270 | — | |
| 90301-67004 note |
Ring, O(FOR OIL COOLER)
2011-09 → 2015-08
ended
|
1GRFE GRN245,250,265,270 | — | |
| 96723-35035 note |
Ring, O(FOR OIL COOLER)
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15785-31050 |
Ring, O(FOR OIL COOLER)
2018-06 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 96723-35035 |
Ring, O(FOR OIL COOLER)
2017-11 → 2018-05
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15785-31050 |
Ring, O(FOR OIL COOLER)
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-31030 note |
Gasket, Oil Cooler
2015-08 → 2017-11
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15785-31030 |
Gasket, Oil Cooler
2017-11 → 2018-05
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15785-31060 |
Gasket, Oil Cooler
2018-06 → 2019-09
ended
|
2GRFKS GRN305,310,325,330 | — | |
| 15785-31060 |
Gasket, Oil Cooler
2019-09 → —
|
2GRFKS GRN305,310,325,330 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
