Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

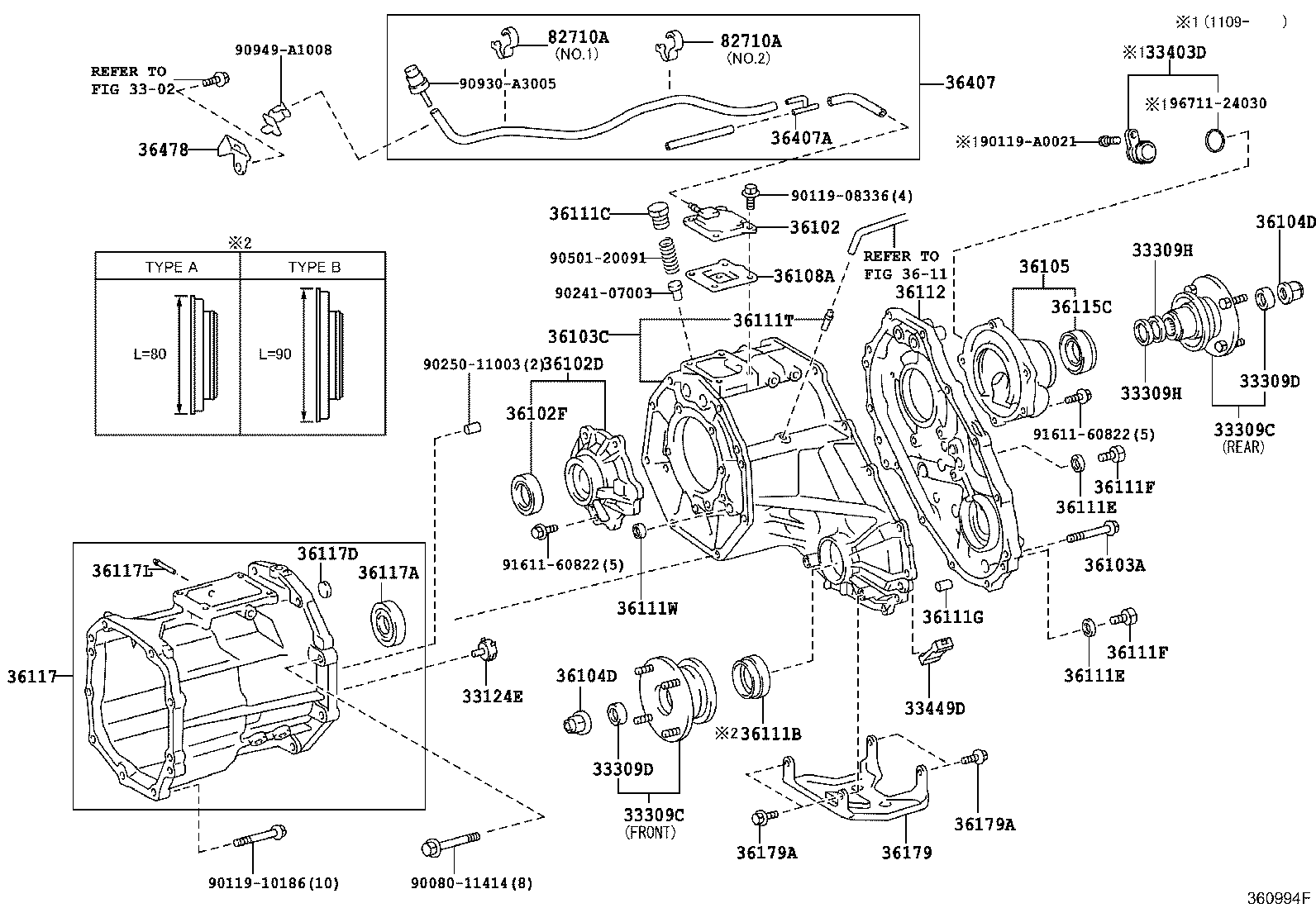

Exploded illustration 360994F 3302 — not listed in this catalogue 3611 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (8 parts) 90949A1008 — not listed in this catalogue 90930A3005 — not listed in this catalogue 36111C — PLUG (FOR TRANSFER CASE) (7 parts) 9050120091 — not listed in this catalogue 9024107003 — not listed in this catalogue 36111T — TUBE (FOR TRANSFER CASE) (4 parts) 36108A — DEFLECTOR SUB-ASSY, BREATHER OIL (4 parts) 36102 — COVER SUB-ASSY, TRANSFER CASE (7 parts) 36112 — CASE, TRANSFER, REAR (7 parts) 9011908336 — not listed in this catalogue 36407A — WAY, 3(FOR TRANSFER BREATHER HOSE) (4 parts) 36105 — HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT (4 parts) 36115C — SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) (7 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (4 parts) 33309H — WASHER, TRANSFER OUTPUT SHAFT (7 parts) 33309D — SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) (7 parts) 33309C — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (13 parts) 33309H — WASHER, TRANSFER OUTPUT SHAFT (7 parts) 9161160822 — not listed in this catalogue 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (4 parts) 33124E — PIPE, OIL RECEIVER(FOR TRANSFER) (5 parts) 33309D — SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) (7 parts) 36111W — PLUG, TIGHT NO.2(FOR TRANSFER CASE) (4 parts) 36103C — CASE, TRANSFER, FRONT (8 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (10 parts) 9161160822 — not listed in this catalogue 36102D — RETAINER SUB-ASSY, TRANSFER RH BEARING (7 parts) 36102F — SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER) (4 parts) 33309C — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (13 parts) 36179 — PROTECTOR, TRANSFER CASE LOWER (7 parts) 33449D — MAGNET (FOR TRANSFER CASE) (7 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (7 parts) 36111E — GASKET (FOR TRANSFER CASE) (4 parts) 36111F — PLUG (FOR TRANSFER CASE) (4 parts) 36103A — BOLT (FOR TRANSFER CASE) (7 parts) 36111F — PLUG (FOR TRANSFER CASE) (4 parts) 36111E — GASKET (FOR TRANSFER CASE) (4 parts) 36179A — BOLT (FOR TRANSFER CASE LOWER PROTECTOR) (7 parts) 36179A — BOLT (FOR TRANSFER CASE LOWER PROTECTOR) (7 parts) 36117A — SEAL, OIL(FOR TRANSFER ADAPTER) (8 parts) 36117 — ADAPTER, TRANSFER (9 parts) 9011910186 — not listed in this catalogue 9008011414 — not listed in this catalogue 9025011003 — not listed in this catalogue 36117D — PLUG(FOR TRANSFER ADAPTER) (5 parts) 36117L — TUBE(FOR TRANSFER ADAPTER) (7 parts) 82710A — CLAMP ASSY, WIRING HARNESS (10 parts) 82710A — CLAMP ASSY, WIRING HARNESS (10 parts) 90119A0021 — not listed in this catalogue 33403D — COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (4 parts) 9671124030 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (20 parts)
360994F · 41 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
227 parts on this figure
Part number Description Fitment Price
33124E — Pipe, Oil Receiver(FOR TRANSFER)
33124-35100 Pipe, Oil Receiver(FOR TRANSFER)
2004-09 → 2008-05 ended
TRN24# —
33124-35100 Pipe, Oil Receiver(FOR TRANSFER)
2008-05 → 2011-09 ended
TRN24# 5F —
33124-35100 Pipe, Oil Receiver(FOR TRANSFER)
2011-09 → 2015-08 ended
TRN245 5F —
33124-35100 Pipe, Oil Receiver(FOR TRANSFER)
2011-09 → 2014-08 ended
TRN240 5F —
33124-35100 Pipe, Oil Receiver(FOR TRANSFER)
2015-08 → 2017-11 ended
TRN245 5F —
33309C — Flange Sub-assy, Output Shaft Companion
33309-35110 note Flange Sub-assy, Output Shaft Companion
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
33309-35120 note Flange Sub-assy, Output Shaft Companion
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
33309-35110 note Flange Sub-assy, Output Shaft Companion
2008-05 → 2008-07 ended
GRN245,250,TRN24# —
33309-35111 note Flange Sub-assy, Output Shaft Companion
2008-07 → 2011-09 ended
GRN245,250,TRN24# —
33309-35120 note Flange Sub-assy, Output Shaft Companion
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
33309-35111 note Flange Sub-assy, Output Shaft Companion
2011-09 → 2014-08 ended
TRN240 —
33309-35111 note Flange Sub-assy, Output Shaft Companion
2011-09 → 2014-11 ended
GRN245,250,TRN245 —
33309-35112 note Flange Sub-assy, Output Shaft Companion
2014-11 → 2015-08 ended
GRN245,250,TRN245 —
33309-35120 note Flange Sub-assy, Output Shaft Companion
2011-09 → 2014-08 ended
TRN240 —
33309-35120 note Flange Sub-assy, Output Shaft Companion
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
33309-0K030 Flange Sub-assy, Output Shaft Companion
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
33309-0K030 Flange Sub-assy, Output Shaft Companion
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
33309-0K030 Flange Sub-assy, Output Shaft Companion
2019-09 → —
GRN305,310,TRN245 —
33309D — Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90312-23001 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90312-23001 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2011-09 → 2014-08 ended
TRN240 —
90312-23001 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90312-T0004 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90312-T0004 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90312-T0004 Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2019-09 → —
GRN305,310,TRN245 —
33309H — Washer, Transfer Output Shaft
36275-35010 note Washer, Transfer Output Shaft
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36275-35010 note Washer, Transfer Output Shaft
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36275-35010 note Washer, Transfer Output Shaft
2011-09 → 2014-08 ended
TRN240 —
36275-35010 note Washer, Transfer Output Shaft
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36275-71010 note Washer, Transfer Output Shaft
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36275-71010 note Washer, Transfer Output Shaft
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36275-71010 note Washer, Transfer Output Shaft
2019-09 → —
GRN305,310,TRN245 —
33403D — Cover Sub-assy, Speedometer Driven Hole
33403-35230 Cover Sub-assy, Speedometer Driven Hole
2004-09 → 2008-05 ended
GRN245,250 5FC —
33403-35230 Cover Sub-assy, Speedometer Driven Hole
2008-05 → 2011-09 ended
GRN245,250,TRN24# 4FC,5FC —
33403-35230 Cover Sub-assy, Speedometer Driven Hole
2011-09 → 2014-08 ended
TRN240 —
33403-35230 Cover Sub-assy, Speedometer Driven Hole
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
33449D — Magnet (FOR TRANSFER CASE)
33449-32020 Magnet (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
33449-32020 Magnet (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
33449-32020 Magnet (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
33449-32020 Magnet (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
33449-32020 Magnet (FOR TRANSFER CASE)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
33449-32020 Magnet (FOR TRANSFER CASE)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
33449-32020 Magnet (FOR TRANSFER CASE)
2019-09 → —
GRN305,310,TRN245 —
36102 — Cover Sub-assy, Transfer Case
36102-35040 Cover Sub-assy, Transfer Case
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36102-35040 Cover Sub-assy, Transfer Case
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36102-35040 Cover Sub-assy, Transfer Case
2011-09 → 2014-08 ended
TRN240 —
36102-35040 Cover Sub-assy, Transfer Case
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36102-0K020 Cover Sub-assy, Transfer Case
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36102-0K020 Cover Sub-assy, Transfer Case
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36102-0K020 Cover Sub-assy, Transfer Case
2019-09 → —
GRN305,310,TRN245 —
36102D — Retainer Sub-assy, Transfer RH Bearing
36102-35060 Retainer Sub-assy, Transfer RH Bearing
2004-09 → 2008-05 ended
GRN245,250,TRN24# 5F,5FC —
36102-35080 Retainer Sub-assy, Transfer RH Bearing
2004-09 → 2008-05 ended
GRN245 6F —
36102-35060 Retainer Sub-assy, Transfer RH Bearing
2008-05 → 2011-09 ended
GRN245,250,TRN24# 4FC,5F,5FC —
36102-35080 Retainer Sub-assy, Transfer RH Bearing
2008-05 → 2011-09 ended
GRN245 6F —
36102-35060 Retainer Sub-assy, Transfer RH Bearing
2011-09 → 2014-08 ended
TRN240 —
36102-35060 Retainer Sub-assy, Transfer RH Bearing
2011-09 → 2015-08 ended
GRN245,250,TRN245 4FC,5F,5FC —
36102-35080 Retainer Sub-assy, Transfer RH Bearing
2011-09 → 2015-08 ended
GRN245 6F —
36102F — Seal, Oil, NO.2 (FOR TRANSFER RH BEARING RETAINER)
90311-43008 Seal, Oil, NO.2 (FOR TRANSFER RH BEARING RETAINER)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90311-43008 Seal, Oil, NO.2 (FOR TRANSFER RH BEARING RETAINER)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90311-43008 Seal, Oil, NO.2 (FOR TRANSFER RH BEARING RETAINER)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90311-43008 Seal, Oil, NO.2 (FOR TRANSFER RH BEARING RETAINER)
2011-09 → 2014-08 ended
TRN240 —
36103A — Bolt (FOR TRANSFER CASE)
90119-08A28 note Bolt (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90119-08A28 note Bolt (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90119-08A28 note Bolt (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90119-08A28 note Bolt (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90119-T0411 note Bolt (FOR TRANSFER CASE)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90119-T0411 note Bolt (FOR TRANSFER CASE)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90119-T0411 note Bolt (FOR TRANSFER CASE)
2019-09 → —
GRN305,310,TRN245 —
36103C — Case, Transfer, Front
36103-35060 Case, Transfer, Front
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36103-35060 Case, Transfer, Front
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36103-35060 Case, Transfer, Front
2011-09 → 2014-08 ended
TRN240 —
36103-35060 Case, Transfer, Front
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36111-0K030 Case, Transfer, Front
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36111-0K030 Case, Transfer, Front
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36111-0K030 Case, Transfer, Front
2019-09 → 2023-07 ended
GRN305,310,TRN245 —
36111-0K031 Case, Transfer, Front
2023-07 → —
GRN305,310,TRN245 —
36104D — Nut (FOR TRANSFER OUTPUT SHAFT)
90179-22016 Nut (FOR TRANSFER OUTPUT SHAFT)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90179-22016 Nut (FOR TRANSFER OUTPUT SHAFT)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90179-22016 Nut (FOR TRANSFER OUTPUT SHAFT)
2011-09 → 2014-08 ended
TRN240 —
90179-22016 Nut (FOR TRANSFER OUTPUT SHAFT)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36105 — Housing Sub-assy, Transfer Extension, Front
36105-35040 Housing Sub-assy, Transfer Extension, Front
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36105-35040 Housing Sub-assy, Transfer Extension, Front
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36105-35040 Housing Sub-assy, Transfer Extension, Front
2011-09 → 2014-08 ended
TRN240 —
36105-35040 Housing Sub-assy, Transfer Extension, Front
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36108A — Deflector Sub-assy, Breather Oil
36128-35060 Deflector Sub-assy, Breather Oil
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36128-35060 Deflector Sub-assy, Breather Oil
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36128-35060 Deflector Sub-assy, Breather Oil
2011-09 → 2014-08 ended
TRN240 —
36128-35060 Deflector Sub-assy, Breather Oil
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-41010 Seal, Oil (FOR TRANSFER CASE)
2004-09 → 2006-09 ended
GRN245,250,TRN24# —
90311-41012 Seal, Oil (FOR TRANSFER CASE)
2006-09 → 2008-05 ended
GRN245,250,TRN24# —
90311-41012 Seal, Oil (FOR TRANSFER CASE)
2008-05 → 2008-07 ended
GRN245,250,TRN24# —
90311-41013 Seal, Oil (FOR TRANSFER CASE)
2008-07 → 2011-09 ended
GRN245,250,TRN24# —
90311-41013 note Seal, Oil (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90311-41013 note Seal, Oil (FOR TRANSFER CASE)
2011-09 → 2014-11 ended
GRN245,250,TRN245 —
90311-41017 note Seal, Oil (FOR TRANSFER CASE)
2014-11 → 2015-08 ended
GRN245,250,TRN245 —
90311-T0082 Seal, Oil (FOR TRANSFER CASE)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90311-T0082 Seal, Oil (FOR TRANSFER CASE)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90311-T0082 Seal, Oil (FOR TRANSFER CASE)
2019-09 → —
GRN305,310,TRN245 —
36111C — Plug (FOR TRANSFER CASE)
90341-14012 Plug (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90341-14012 Plug (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90341-14012 Plug (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90341-14012 Plug (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90341-T0013 Plug (FOR TRANSFER CASE)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90341-T0013 Plug (FOR TRANSFER CASE)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90341-T0013 Plug (FOR TRANSFER CASE)
2019-09 → —
GRN305,310,TRN245 —
36111E — Gasket (FOR TRANSFER CASE)
90430-18008 Gasket (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90430-18008 Gasket (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90430-18008 Gasket (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90430-18008 Gasket (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36111F — Plug (FOR TRANSFER CASE)
90341-18006 Plug (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90341-18006 Plug (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90341-18006 Plug (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90341-18006 Plug (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90250-T0026 note Pin, Straight (FOR TRANSFER CASE)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90250-T0026 note Pin, Straight (FOR TRANSFER CASE)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90250-T0026 note Pin, Straight (FOR TRANSFER CASE)
2019-09 → —
GRN305,310,TRN245 —
36111T — Tube (FOR TRANSFER CASE)
90441-05001 Tube (FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90441-05001 Tube (FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90441-05001 Tube (FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90441-05001 Tube (FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36111W — Plug, Tight NO.2(FOR TRANSFER CASE)
90331-15003 Plug, Tight NO.2(FOR TRANSFER CASE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90331-15003 Plug, Tight NO.2(FOR TRANSFER CASE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90331-15003 Plug, Tight NO.2(FOR TRANSFER CASE)
2011-09 → 2014-08 ended
TRN240 —
90331-15003 Plug, Tight NO.2(FOR TRANSFER CASE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36112 — Case, Transfer, Rear
36112-34010 Case, Transfer, Rear
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36112-34010 Case, Transfer, Rear
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36112-34010 Case, Transfer, Rear
2011-09 → 2014-08 ended
TRN240 —
36112-34010 Case, Transfer, Rear
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36112-0K030 Case, Transfer, Rear
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36112-0K030 Case, Transfer, Rear
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36112-0K030 Case, Transfer, Rear
2019-09 → —
GRN305,310,TRN245 —
36115C — Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
90311-41007 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90311-41007 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90311-41007 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2011-09 → 2014-08 ended
TRN240 —
90311-41007 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90311-T0072 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90311-T0072 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90311-T0072 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2019-09 → —
GRN305,310,TRN245 —
36117 — Adapter, Transfer
33102-35060 Adapter, Transfer
2004-09 → 2005-11 ended
GRN245 6F —
33102-35061 Adapter, Transfer
2005-11 → 2008-05 ended
GRN245 6F —
36107-60080 Adapter, Transfer
2004-09 → 2008-05 ended
TRN24# —
33102-35061 Adapter, Transfer
2008-05 → 2011-09 ended
GRN245 6F —
36107-60080 Adapter, Transfer
2008-05 → 2011-09 ended
TRN24# 5F —
33102-35061 Adapter, Transfer
2011-09 → 2015-08 ended
GRN245 6F —
36107-60080 Adapter, Transfer
2011-09 → 2014-08 ended
TRN240 5F —
36107-60080 Adapter, Transfer
2011-09 → 2015-08 ended
TRN245 5F —
36107-60080 Adapter, Transfer
2015-08 → 2017-11 ended
TRN245 5F —
36117A — Seal, Oil(FOR TRANSFER ADAPTER)
90311-43007 Seal, Oil(FOR TRANSFER ADAPTER)
2004-09 → 2008-05 ended
TRN24# —
90311-43007 Seal, Oil(FOR TRANSFER ADAPTER)
2008-05 → 2011-09 ended
TRN24# 5F —
90311-43007 Seal, Oil(FOR TRANSFER ADAPTER)
2011-09 → 2014-08 ended
TRN240 5F —
90311-43007 Seal, Oil(FOR TRANSFER ADAPTER)
2011-09 → 2015-08 ended
TRN245 5F —
90311-43007 Seal, Oil(FOR TRANSFER ADAPTER)
2015-08 → 2017-11 ended
TRN245 5F —
90311-43013 Seal, Oil(FOR TRANSFER ADAPTER)
2015-08 → 2017-11 ended
GRN305,310,TRN245 6FC —
90311-43013 Seal, Oil(FOR TRANSFER ADAPTER)
2017-11 → 2019-09 ended
GRN305,310,TRN245 6FC —
90311-43013 Seal, Oil(FOR TRANSFER ADAPTER)
2019-09 → —
GRN305,310,TRN245 6FC —
36117D — Plug(FOR TRANSFER ADAPTER)
90331-21003 Plug(FOR TRANSFER ADAPTER)
2004-09 → 2008-05 ended
TRN24# —
90331-21003 Plug(FOR TRANSFER ADAPTER)
2008-05 → 2011-09 ended
TRN24# 5F —
90331-21003 Plug(FOR TRANSFER ADAPTER)
2011-09 → 2014-08 ended
TRN240 5F —
90331-21003 Plug(FOR TRANSFER ADAPTER)
2011-09 → 2015-08 ended
TRN245 5F —
90331-21003 Plug(FOR TRANSFER ADAPTER)
2015-08 → 2017-11 ended
TRN245 5F —
36117L — Tube(FOR TRANSFER ADAPTER)
90441-05001 Tube(FOR TRANSFER ADAPTER)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2011-09 → 2014-08 ended
TRN240 —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2015-08 → 2017-11 ended
GRN305,310,TRN245 5F,6FC —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2017-11 → 2019-09 ended
GRN305,310,TRN245 6FC —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2019-09 → —
GRN305,310,TRN245 6FC —
36179 — Protector, Transfer Case Lower
36179-04020 Protector, Transfer Case Lower
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36179-04020 Protector, Transfer Case Lower
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36179-04020 Protector, Transfer Case Lower
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36179-04020 Protector, Transfer Case Lower
2011-09 → 2014-08 ended
TRN240 —
36179-04020 Protector, Transfer Case Lower
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36179-04020 Protector, Transfer Case Lower
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36179-04020 Protector, Transfer Case Lower
2019-09 → —
GRN305,310,TRN245 —
36179A — Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2011-09 → 2014-08 ended
TRN240 —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
90080-11251 Bolt (FOR TRANSFER CASE LOWER PROTECTOR)
2019-09 → —
GRN305,310,TRN245 —
36407 — Hose Sub-assy, Transfer Breather
36407-04010 Hose Sub-assy, Transfer Breather
2004-09 → 2008-05 ended
TRN24# —
36407-04020 Hose Sub-assy, Transfer Breather
2004-09 → 2008-05 ended
GRN245,250 —
36407-04010 Hose Sub-assy, Transfer Breather
2008-05 → 2011-09 ended
TRN24# 5F —
36407-04020 Hose Sub-assy, Transfer Breather
2008-05 → 2011-09 ended
GRN245,250 —
36407-04030 Hose Sub-assy, Transfer Breather
2010-06 → 2011-09 ended
TRN24# 4FC —
36407-04010 Hose Sub-assy, Transfer Breather
2011-09 → 2014-08 ended
TRN240 5F —
36407-04010 Hose Sub-assy, Transfer Breather
2011-09 → 2015-08 ended
TRN245 5F —
36407-04020 Hose Sub-assy, Transfer Breather
2011-09 → 2015-08 ended
GRN245,250 —
36407-04030 Hose Sub-assy, Transfer Breather
2011-09 → 2014-08 ended
TRN240 4FC —
36407-04030 Hose Sub-assy, Transfer Breather
2011-09 → 2015-08 ended
TRN245 4FC —
36407-04050 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
TRN245 5F —
36407-04060 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
TRN245 6FC —
36407-04070 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
GRN305 6F —
36407-04080 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
GRN305,310 6FC —
36407-04060 Hose Sub-assy, Transfer Breather
2017-11 → 2019-09 ended
TRN245 —
36407-04070 Hose Sub-assy, Transfer Breather
2017-11 → 2019-09 ended
GRN305 6F —
36407-04080 Hose Sub-assy, Transfer Breather
2017-11 → 2019-09 ended
GRN305,310 6FC —
36407-04060 Hose Sub-assy, Transfer Breather
2019-09 → —
TRN245 —
36407-04070 Hose Sub-assy, Transfer Breather
2019-09 → —
GRN305 6F —
36407-04080 Hose Sub-assy, Transfer Breather
2019-09 → —
GRN305,310 6FC —
36407A — Way, 3(FOR TRANSFER BREATHER HOSE)
90413-A0001 Way, 3(FOR TRANSFER BREATHER HOSE)
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
90413-A0001 Way, 3(FOR TRANSFER BREATHER HOSE)
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
90413-A0001 Way, 3(FOR TRANSFER BREATHER HOSE)
2011-09 → 2014-08 ended
TRN240 —
90413-A0001 Way, 3(FOR TRANSFER BREATHER HOSE)
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
36478 — Bracket, Transfer Breather
36478-04010 Bracket, Transfer Breather
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36478-04010 Bracket, Transfer Breather
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36478-04010 Bracket, Transfer Breather
2011-09 → 2014-08 ended
TRN240 —
36478-04010 Bracket, Transfer Breather
2011-09 → 2015-08 ended
TRN245 —
36478-04020 Bracket, Transfer Breather
2011-09 → 2015-08 ended
GRN245,250 —
36478-04050 Bracket, Transfer Breather
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36478-04050 Bracket, Transfer Breather
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36478-04050 Bracket, Transfer Breather
2019-09 → —
GRN305,310,TRN245 —
82710A — Clamp Assy, Wiring Harness
87616-04020 note Clamp Assy, Wiring Harness
2004-09 → 2008-05 ended
GRN245,250 5FC —
87616-04020 note Clamp Assy, Wiring Harness
2004-09 → 2008-05 ended
GRN245,TRN24# 5F,6F —
87616-04030 note Clamp Assy, Wiring Harness
2004-09 → 2008-05 ended
GRN245,250 5FC —
87616-04020 note Clamp Assy, Wiring Harness
2008-05 → 2011-09 ended
GRN245,250 5FC —
87616-04020 note Clamp Assy, Wiring Harness
2008-05 → 2011-09 ended
GRN245,TRN24# 4FC,5F,6F —
87616-04030 note Clamp Assy, Wiring Harness
2008-05 → 2011-09 ended
GRN245,250 5FC —
82711-10070 note Clamp Assy, Wiring Harness
2011-09 → 2014-08 ended
TRN240 —
82711-10070 note Clamp Assy, Wiring Harness
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
87616-04030 note Clamp Assy, Wiring Harness
2011-09 → 2014-08 ended
TRN240 —
87616-04030 note Clamp Assy, Wiring Harness
2011-09 → 2015-08 ended
GRN245,250,TRN245 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
