Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

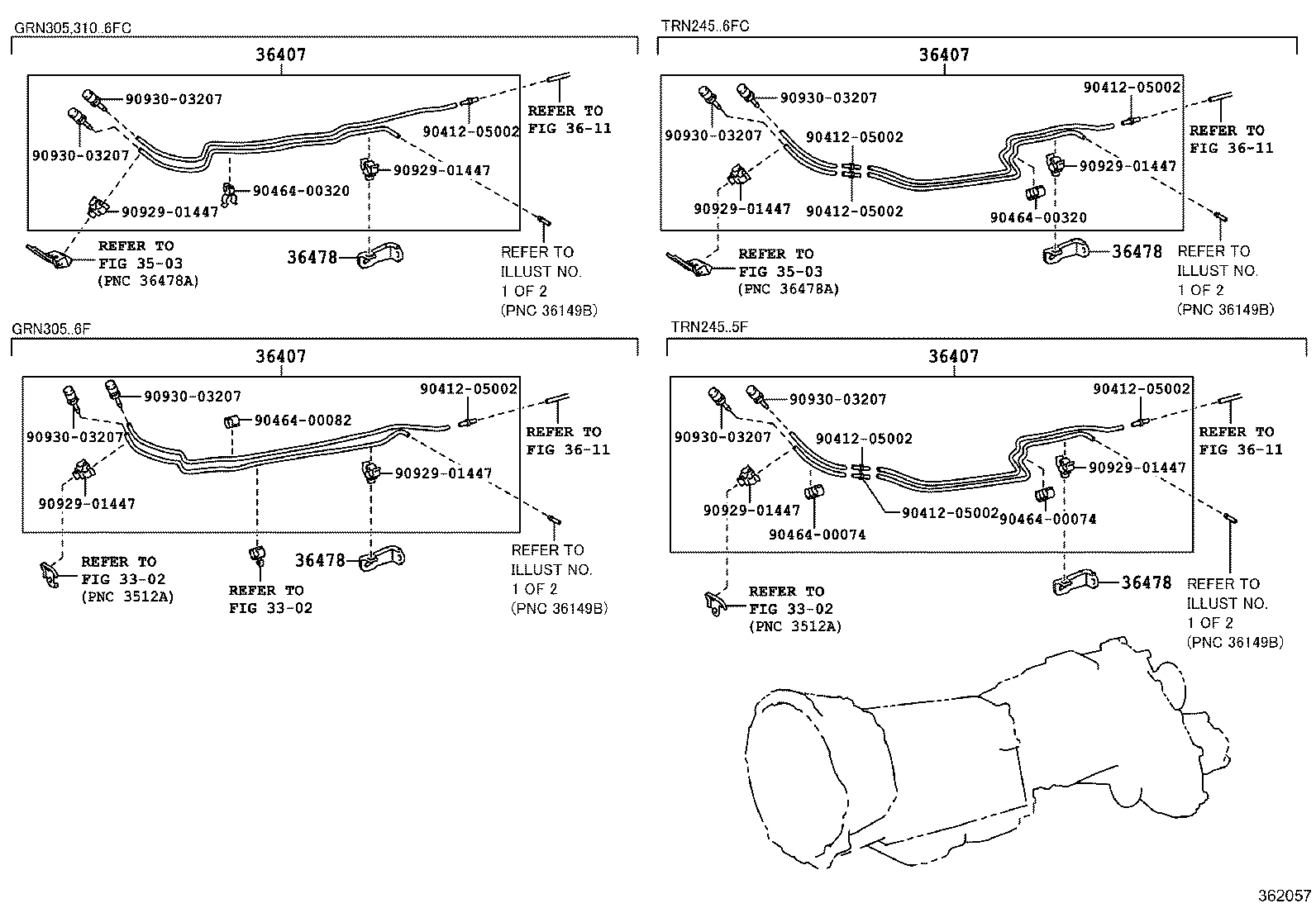

Exploded illustration 362057 3302 — not listed in this catalogue 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (8 parts) 9092901447 — not listed in this catalogue 9092901447 — not listed in this catalogue 9046400320 — not listed in this catalogue 3503 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (20 parts) 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (8 parts) 9092901447 — not listed in this catalogue 9046400082 — not listed in this catalogue 9092901447 — not listed in this catalogue 3302 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (20 parts) 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9041205002 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (8 parts) 9092901447 — not listed in this catalogue 9046400074 — not listed in this catalogue 9092901447 — not listed in this catalogue 3302 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (20 parts) 9093003207 — not listed in this catalogue 9041205002 — not listed in this catalogue 9041205002 — not listed in this catalogue 9041205002 — not listed in this catalogue 9093003207 — not listed in this catalogue 36478 — BRACKET, TRANSFER BREATHER (8 parts) 9092901447 — not listed in this catalogue 9046400320 — not listed in this catalogue 9092901447 — not listed in this catalogue 3611 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (20 parts) 3503 — not listed in this catalogue 9046400074 — not listed in this catalogue
362057 · 8 callouts, 38 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
36407 — Hose Sub-assy, Transfer Breather
36407-04010 Hose Sub-assy, Transfer Breather
2004-09 → 2008-05 ended
TRN24# —
36407-04020 Hose Sub-assy, Transfer Breather
2004-09 → 2008-05 ended
GRN245,250 —
36407-04010 Hose Sub-assy, Transfer Breather
2008-05 → 2011-09 ended
TRN24# 5F —
36407-04020 Hose Sub-assy, Transfer Breather
2008-05 → 2011-09 ended
GRN245,250 —
36407-04030 Hose Sub-assy, Transfer Breather
2010-06 → 2011-09 ended
TRN24# 4FC —
36407-04010 Hose Sub-assy, Transfer Breather
2011-09 → 2014-08 ended
TRN240 5F —
36407-04010 Hose Sub-assy, Transfer Breather
2011-09 → 2015-08 ended
TRN245 5F —
36407-04020 Hose Sub-assy, Transfer Breather
2011-09 → 2015-08 ended
GRN245,250 —
36407-04030 Hose Sub-assy, Transfer Breather
2011-09 → 2014-08 ended
TRN240 4FC —
36407-04030 Hose Sub-assy, Transfer Breather
2011-09 → 2015-08 ended
TRN245 4FC —
36407-04050 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
TRN245 5F —
36407-04060 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
TRN245 6FC —
36407-04070 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
GRN305 6F —
36407-04080 Hose Sub-assy, Transfer Breather
2015-08 → 2017-11 ended
GRN305,310 6FC —
36407-04060 Hose Sub-assy, Transfer Breather
2017-11 → 2019-09 ended
TRN245 —
36407-04070 Hose Sub-assy, Transfer Breather
2017-11 → 2019-09 ended
GRN305 6F —
36407-04080 Hose Sub-assy, Transfer Breather
2017-11 → 2019-09 ended
GRN305,310 6FC —
36407-04060 Hose Sub-assy, Transfer Breather
2019-09 → —
TRN245 —
36407-04070 Hose Sub-assy, Transfer Breather
2019-09 → —
GRN305 6F —
36407-04080 Hose Sub-assy, Transfer Breather
2019-09 → —
GRN305,310 6FC —
36478 — Bracket, Transfer Breather
36478-04010 Bracket, Transfer Breather
2004-09 → 2008-05 ended
GRN245,250,TRN24# —
36478-04010 Bracket, Transfer Breather
2008-05 → 2011-09 ended
GRN245,250,TRN24# —
36478-04010 Bracket, Transfer Breather
2011-09 → 2014-08 ended
TRN240 —
36478-04010 Bracket, Transfer Breather
2011-09 → 2015-08 ended
TRN245 —
36478-04020 Bracket, Transfer Breather
2011-09 → 2015-08 ended
GRN245,250 —
36478-04050 Bracket, Transfer Breather
2015-08 → 2017-11 ended
GRN305,310,TRN245 —
36478-04050 Bracket, Transfer Breather
2017-11 → 2019-09 ended
GRN305,310,TRN245 —
36478-04050 Bracket, Transfer Breather
2019-09 → —
GRN305,310,TRN245 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
