Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

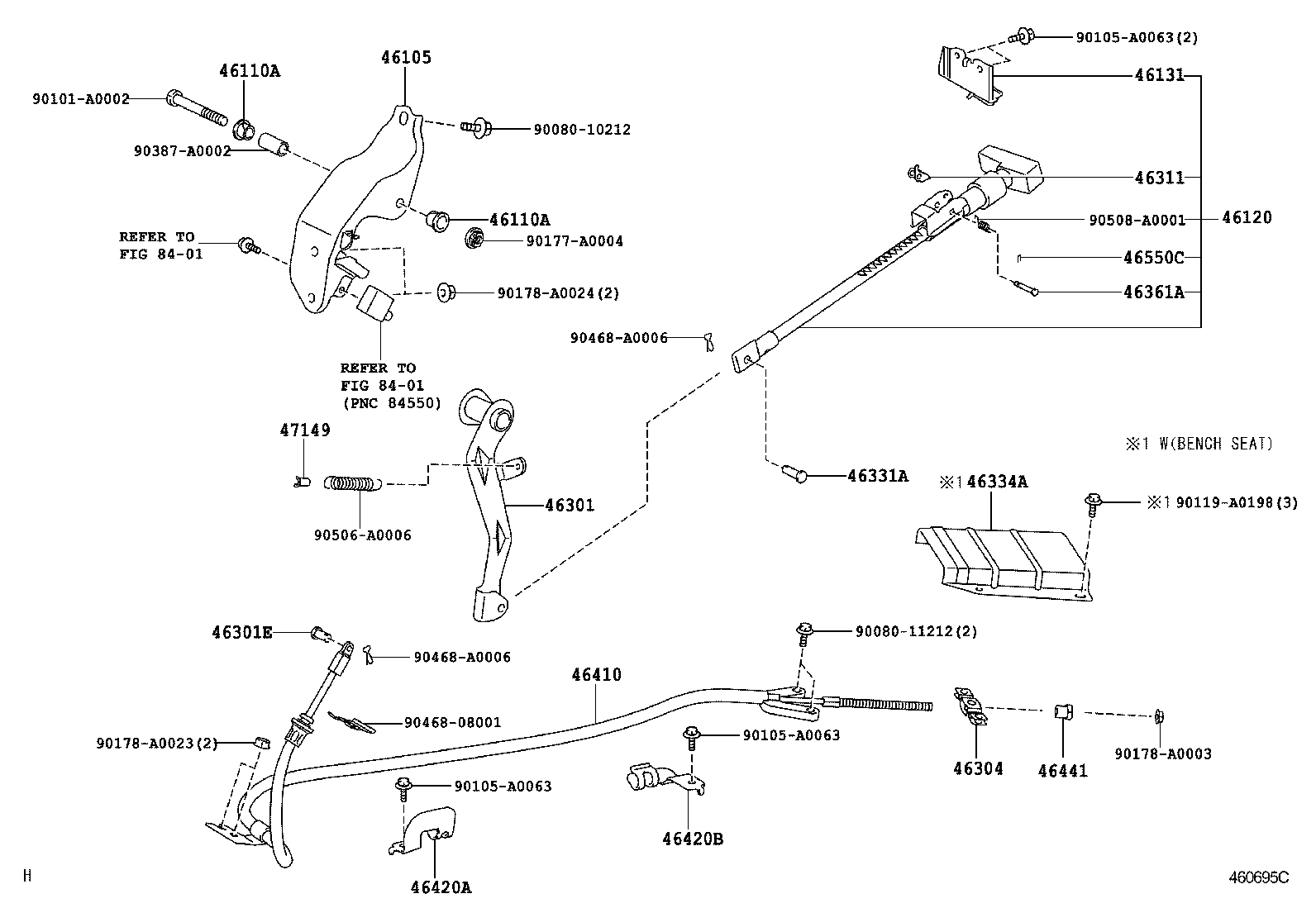

Exploded illustration 460695C 9008011212 — not listed in this catalogue 90105A0063 — not listed in this catalogue 90177A0004 — not listed in this catalogue 90101A0002 — not listed in this catalogue 90387A0002 — not listed in this catalogue 90468A0006 — not listed in this catalogue 90468A0006 — not listed in this catalogue 90506A0006 — not listed in this catalogue 9008010212 — not listed in this catalogue 9046808001 — not listed in this catalogue 90105A0063 — not listed in this catalogue 90105A0063 — not listed in this catalogue 90178A0023 — not listed in this catalogue 90178A0024 — not listed in this catalogue 90119A0198 — not listed in this catalogue 46334A — PROTECTOR, PARKING BRAKE CABLE JOINT (4 parts) 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (8 parts) 46301E — PIN, W/HOLE(FOR INTERMEDIATE LEVER) (5 parts) 46331A — PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD) (5 parts) 46110A — BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) (8 parts) 46110A — BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) (8 parts) 46420B — CLAMP, NO.2(FOR PARKING BRAKE CABLE) (9 parts) 46120 — PLUNGER ASSY, PARKING BRAKE (5 parts) 46131 — BRACKET SUB-ASSY, PARKING BRAKE (5 parts) 46105 — BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL (5 parts) 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (9 parts) 47149 — DAMPER, RETURN SPRING (5 parts) 46301 — LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE (5 parts) 46311 — PAWL, PARKING BRAKE (5 parts) 46361A — PIN, PARKING BRAKE PULL ROD (5 parts) 46550C — WASHER, TYPE C(FOR PARKING BRAKE SHOE) (5 parts) 90508A0001 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 46441 — NUT, WIRE ADJUSTING, NO.1 (8 parts) 90178A0003 — not listed in this catalogue 46304 — EQUALIZER SUB-ASSY, PARKING BRAKE (6 parts)
460695C · 18 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
46105 — Bracket Sub-assy, Parking Brake Planger OR Pedal
46105-04010 Bracket Sub-assy, Parking Brake Planger OR Pedal
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
46105-04010 Bracket Sub-assy, Parking Brake Planger OR Pedal
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46105-04010 Bracket Sub-assy, Parking Brake Planger OR Pedal
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
46105-04010 Bracket Sub-assy, Parking Brake Planger OR Pedal
2011-09 → 2014-08 ended
TRN220,240 5F —
46105-04010 Bracket Sub-assy, Parking Brake Planger OR Pedal
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46110A — Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
90386-13007 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
90386-13007 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
90386-13007 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
90386-13007 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2011-09 → 2014-08 ended
TRN220,240 5F —
90386-13007 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
90386-08036 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
90386-08036 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
90386-08036 Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
2019-09 → —
GRN305,310,325,330,TRN245,265 —
46120 — Plunger Assy, Parking Brake
46120-04010 Plunger Assy, Parking Brake
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
46120-04010 Plunger Assy, Parking Brake
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
46120-04010 Plunger Assy, Parking Brake
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46120-04010 Plunger Assy, Parking Brake
2011-09 → 2014-08 ended
TRN220,240 5F —
46120-04010 Plunger Assy, Parking Brake
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46131 — Bracket Sub-assy, Parking Brake
46131-04020 Bracket Sub-assy, Parking Brake
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
46131-04020 Bracket Sub-assy, Parking Brake
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46131-04020 Bracket Sub-assy, Parking Brake
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
46131-04020 Bracket Sub-assy, Parking Brake
2011-09 → 2014-08 ended
TRN220,240 5F —
46131-04020 Bracket Sub-assy, Parking Brake
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46301 — Lever Sub-assy, Parking Brake Intermediate
46301-04030 Lever Sub-assy, Parking Brake Intermediate
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
46301-04030 Lever Sub-assy, Parking Brake Intermediate
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46301-04030 Lever Sub-assy, Parking Brake Intermediate
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
46301-04030 Lever Sub-assy, Parking Brake Intermediate
2011-09 → 2014-08 ended
TRN220,240 5F —
46301-04030 Lever Sub-assy, Parking Brake Intermediate
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46301E — Pin, W/Hole(FOR INTERMEDIATE LEVER)
90240-A0002 Pin, W/Hole(FOR INTERMEDIATE LEVER)
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
90240-A0002 Pin, W/Hole(FOR INTERMEDIATE LEVER)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
90240-A0002 Pin, W/Hole(FOR INTERMEDIATE LEVER)
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
90240-A0002 Pin, W/Hole(FOR INTERMEDIATE LEVER)
2011-09 → 2014-08 ended
TRN220,240 5F —
90240-A0002 Pin, W/Hole(FOR INTERMEDIATE LEVER)
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46304 — Equalizer Sub-assy, Parking Brake
46304-17020 Equalizer Sub-assy, Parking Brake
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46304-17020 Equalizer Sub-assy, Parking Brake
2008-05 → 2009-12 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46304-35020 Equalizer Sub-assy, Parking Brake
2009-12 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46304-35020 Equalizer Sub-assy, Parking Brake
2009-12 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
46304-35020 Equalizer Sub-assy, Parking Brake
2011-09 → 2014-08 ended
TRN220,240 —
46304-35020 Equalizer Sub-assy, Parking Brake
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46311 — Pawl, Parking Brake
46311-26010 Pawl, Parking Brake
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
46311-26010 Pawl, Parking Brake
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46311-26010 Pawl, Parking Brake
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
46311-26010 Pawl, Parking Brake
2011-09 → 2014-08 ended
TRN220,240 5F —
46311-26010 Pawl, Parking Brake
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46331A — Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
90240-A0003 Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
90240-A0003 Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
90240-A0003 Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
90240-A0003 Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
2011-09 → 2014-08 ended
TRN220,240 5F —
90240-A0003 Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46334A — Protector, Parking Brake Cable Joint
46334-35010 Protector, Parking Brake Cable Joint
2004-09 → 2008-05 ended
TRN220,240,260 —
46334-35010 Protector, Parking Brake Cable Joint
2008-05 → 2011-09 ended
TRN220;TRN240 5F —
46334-35010 Protector, Parking Brake Cable Joint
2008-05 → 2010-06 ended
TRN260 —
46334-35010 Protector, Parking Brake Cable Joint
2011-09 → 2014-08 ended
TRN220;TRN240 5F —
46361A — Pin, Parking Brake Pull Rod
90240-A0004 Pin, Parking Brake Pull Rod
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
90240-A0004 Pin, Parking Brake Pull Rod
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
90240-A0004 Pin, Parking Brake Pull Rod
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
90240-A0004 Pin, Parking Brake Pull Rod
2011-09 → 2014-08 ended
TRN220,240 5F —
90240-A0004 Pin, Parking Brake Pull Rod
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46410 — Cable Assy, Parking Brake, NO.1
46410-04030 Cable Assy, Parking Brake, NO.1
2004-09 → 2008-05 ended
GRN245,250,265,270,TRN22# 4FC,5FC —
46410-04040 Cable Assy, Parking Brake, NO.1
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
46410-04030 Cable Assy, Parking Brake, NO.1
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN22#,24#,265 4FC,5FC —
46410-04040 Cable Assy, Parking Brake, NO.1
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46410-04040 Cable Assy, Parking Brake, NO.1
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
46410-04030 Cable Assy, Parking Brake, NO.1
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,245,265 4FC,5FC —
46410-04030 Cable Assy, Parking Brake, NO.1
2011-09 → 2014-08 ended
TRN220,240 4FC —
46410-04040 Cable Assy, Parking Brake, NO.1
2011-09 → 2014-08 ended
TRN220,240 5F —
46410-04040 Cable Assy, Parking Brake, NO.1
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE)
46411-04010 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46411-04010 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46411-04010 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
46411-04010 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2011-09 → 2014-08 ended
TRN220,240 —
46411-04010 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46431-04020 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
46431-04020 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
46431-04020 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2019-09 → —
GRN305,310,325,330,TRN245,265 —
46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE)
46411-04020 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46411-04020 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46411-04020 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
46411-04020 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2011-09 → 2014-08 ended
TRN220,240 —
46411-04020 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46421-04030 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
46421-04030 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2017-11 → 2019-04 ended
GRN305,310,325,330,TRN245,265 —
46421-04070 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2019-05 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
46421-04070 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2019-09 → —
GRN305,310,325,330,TRN245,265 —
46441 — Nut, Wire Adjusting, NO.1
46441-04010 Nut, Wire Adjusting, NO.1
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46441-04010 Nut, Wire Adjusting, NO.1
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46441-04010 Nut, Wire Adjusting, NO.1
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
46441-04010 Nut, Wire Adjusting, NO.1
2011-09 → 2014-08 ended
TRN220,240 —
46441-04010 Nut, Wire Adjusting, NO.1
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46441-04020 Nut, Wire Adjusting, NO.1
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
46441-04020 Nut, Wire Adjusting, NO.1
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
46441-04020 Nut, Wire Adjusting, NO.1
2019-09 → —
GRN305,310,325,330,TRN245,265 —
46550C — Washer, Type C(FOR PARKING BRAKE SHOE)
90213-03007 Washer, Type C(FOR PARKING BRAKE SHOE)
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
90213-03007 Washer, Type C(FOR PARKING BRAKE SHOE)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
90213-03007 Washer, Type C(FOR PARKING BRAKE SHOE)
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
90213-03007 Washer, Type C(FOR PARKING BRAKE SHOE)
2011-09 → 2014-08 ended
TRN220,240 5F —
90213-03007 Washer, Type C(FOR PARKING BRAKE SHOE)
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
47149 — Damper, Return Spring
47149-22010 Damper, Return Spring
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# 5F,6F —
47149-22010 Damper, Return Spring
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
47149-22010 Damper, Return Spring
2008-05 → 2011-09 ended
GRN225,245,TRN22#,24# 5F,6F —
47149-22010 Damper, Return Spring
2011-09 → 2014-08 ended
TRN220,240 5F —
47149-22010 Damper, Return Spring
2011-09 → 2015-08 ended
GRN225,245,TRN225,245 5F,6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
