Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

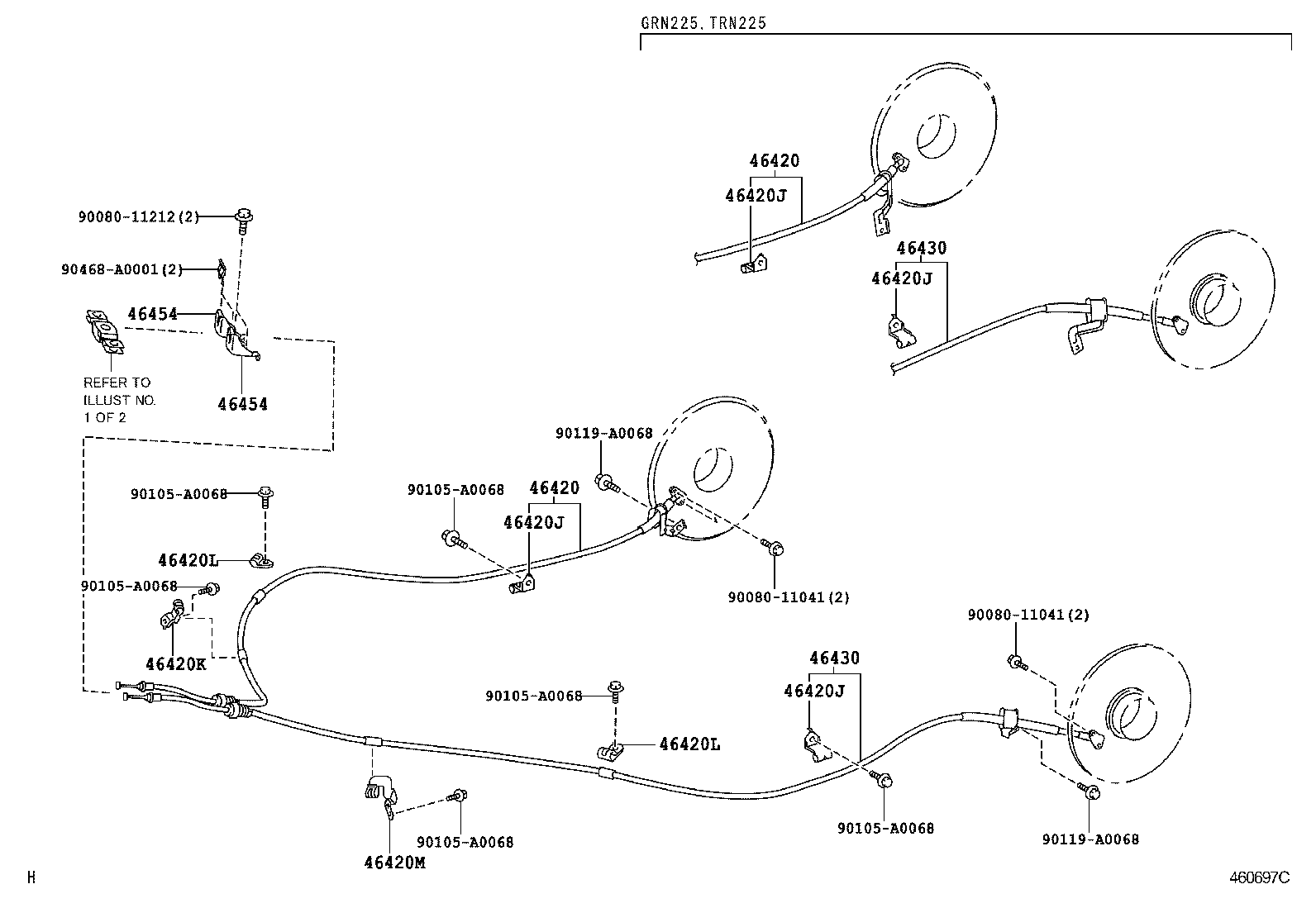

Exploded illustration 460697C 9008011041 — not listed in this catalogue 9008011041 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90119A0068 — not listed in this catalogue 90119A0068 — not listed in this catalogue 46420K — CLAMP, NO.4(FOR PARKING BRAKE CABLE) (12 parts) 46420L — CLAMP, NO.5(FOR PARKING BRAKE CABLE) (8 parts) 46420L — CLAMP, NO.5(FOR PARKING BRAKE CABLE) (8 parts) 46420M — CLAMP, NO.6(FOR PARKING BRAKE CABLE) (8 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (38 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (38 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (9 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (9 parts) 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (38 parts) 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (38 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (9 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (9 parts) 90468A0001 — not listed in this catalogue 9008011212 — not listed in this catalogue 46454 — BRACKET, CABLE RETAINER, FRONT (5 parts) 46454 — BRACKET, CABLE RETAINER, FRONT (5 parts)
460697C · 14 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
118 parts on this figure
Part number Description Fitment Price
46420 — Cable Assy, Parking Brake, NO.2
46420-04070 Cable Assy, Parking Brake, NO.2
2004-09 → 2008-05 ended
TRN220 —
46420-04080 Cable Assy, Parking Brake, NO.2
2004-09 → 2008-05 ended
TRN240,260 —
46420-04090 Cable Assy, Parking Brake, NO.2
2004-09 → 2008-05 ended
GRN225,TRN225 —
46420-04100 Cable Assy, Parking Brake, NO.2
2004-09 → 2008-05 ended
GRN245,265,TRN245,265 —
46420-04110 Cable Assy, Parking Brake, NO.2
2004-09 → 2008-05 ended
GRN270 —
46420-04120 Cable Assy, Parking Brake, NO.2
2004-09 → 2008-05 ended
GRN250 —
46420-04070 Cable Assy, Parking Brake, NO.2
2008-05 → 2011-09 ended
TRN220 —
46420-04080 Cable Assy, Parking Brake, NO.2
2008-05 → 2010-06 ended
TRN260 —
46420-04080 Cable Assy, Parking Brake, NO.2
2008-05 → 2011-09 ended
TRN240 —
46420-04090 Cable Assy, Parking Brake, NO.2
2008-05 → 2011-09 ended
GRN225,TRN225 —
46420-04100 Cable Assy, Parking Brake, NO.2
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
46420-04100 Cable Assy, Parking Brake, NO.2
2008-05 → 2011-09 ended
GRN245,TRN245;GRN265,TRN265 4FC,5FC —
46420-04110 Cable Assy, Parking Brake, NO.2
2008-05 → 2011-09 ended
GRN270 —
46420-04120 Cable Assy, Parking Brake, NO.2
2008-05 → 2011-09 ended
GRN250 —
46420-04070 Cable Assy, Parking Brake, NO.2
2011-09 → 2012-12 ended
TRN220 —
46420-04071 Cable Assy, Parking Brake, NO.2
2013-01 → 2014-08 ended
TRN220 —
46420-04080 Cable Assy, Parking Brake, NO.2
2011-09 → 2012-12 ended
TRN240 —
46420-04081 Cable Assy, Parking Brake, NO.2
2013-01 → 2014-08 ended
TRN240 —
46420-04090 Cable Assy, Parking Brake, NO.2
2011-09 → 2012-12 ended
GRN225,TRN225 —
46420-04091 Cable Assy, Parking Brake, NO.2
2013-01 → 2015-08 ended
GRN225,TRN225 —
46420-04100 Cable Assy, Parking Brake, NO.2
2011-09 → 2012-12 ended
GRN245,265,TRN245,265 —
46420-04101 Cable Assy, Parking Brake, NO.2
2013-01 → 2015-08 ended
GRN245,265,TRN245,265 —
46420-04110 Cable Assy, Parking Brake, NO.2
2011-09 → 2012-12 ended
GRN270 —
46420-04111 Cable Assy, Parking Brake, NO.2
2013-01 → 2015-08 ended
GRN270 —
46420-04120 Cable Assy, Parking Brake, NO.2
2011-09 → 2012-12 ended
GRN250 —
46420-04121 Cable Assy, Parking Brake, NO.2
2013-01 → 2015-08 ended
GRN250 —
46420-04130 Cable Assy, Parking Brake, NO.2
2015-08 → 2017-11 ended
GRN305,325,TRN245,265 —
46420-04140 Cable Assy, Parking Brake, NO.2
2015-08 → 2017-11 ended
GRN310 —
46420-04150 Cable Assy, Parking Brake, NO.2
2015-08 → 2017-11 ended
GRN330 —
46420-04130 Cable Assy, Parking Brake, NO.2
2017-11 → 2019-04 ended
GRN305,325,TRN245,265 —
46420-04131 Cable Assy, Parking Brake, NO.2
2019-05 → 2019-09 ended
GRN305,325,TRN245,265 —
46420-04140 Cable Assy, Parking Brake, NO.2
2017-11 → 2019-04 ended
GRN310 —
46420-04141 Cable Assy, Parking Brake, NO.2
2019-05 → 2019-09 ended
GRN310 —
46420-04150 Cable Assy, Parking Brake, NO.2
2017-11 → 2019-04 ended
GRN330 —
46420-04151 Cable Assy, Parking Brake, NO.2
2019-05 → 2019-09 ended
GRN330 —
46420-04131 Cable Assy, Parking Brake, NO.2
2019-09 → —
GRN305,325,TRN245,265 —
46420-04141 Cable Assy, Parking Brake, NO.2
2019-09 → —
GRN310 —
46420-04151 Cable Assy, Parking Brake, NO.2
2019-09 → —
GRN330 —
46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE)
46421-04020 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46421-04020 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46421-04020 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
46421-04020 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2011-09 → 2014-08 ended
TRN220,240 —
46421-04020 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46421-04040 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
46421-04040 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2017-11 → 2019-04 ended
GRN305,310,325,330,TRN245,265 —
46421-04080 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2019-05 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
46421-04080 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2019-09 → —
GRN305,310,325,330,TRN245,265 —
46420K — Clamp, NO.4(FOR PARKING BRAKE CABLE)
46421-04010 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
TRN220,240,260 —
46421-04030 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN225,245,265 —
46421-04010 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
TRN260 —
46421-04010 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
TRN220,240 —
46421-04030 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
46421-04030 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN225,245 —
46421-04010 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2011-09 → 2014-08 ended
TRN220,240 —
46421-04030 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46421-04020 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
46421-04020 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2017-11 → 2019-04 ended
GRN305,310,325,330,TRN245,265 —
46421-04060 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2019-05 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
46421-04060 Clamp, NO.4(FOR PARKING BRAKE CABLE)
2019-09 → —
GRN305,310,325,330,TRN245,265 —
46420L — Clamp, NO.5(FOR PARKING BRAKE CABLE)
46421-04040 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN225,245,265 —
46421-04050 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
TRN220,240,260 —
46421-04040 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
46421-04040 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN225,245 —
46421-04050 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
TRN220,240 —
46421-04050 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
TRN260 —
46421-04040 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46421-04050 Clamp, NO.5(FOR PARKING BRAKE CABLE)
2011-09 → 2014-08 ended
TRN220,240 —
46420M — Clamp, NO.6(FOR PARKING BRAKE CABLE)
46431-04010 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
TRN220,240,260 —
46431-04020 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN225,245,265 —
46431-04010 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
TRN260 —
46431-04010 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
TRN220,240 —
46431-04020 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
46431-04020 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN225,245 —
46431-04010 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2011-09 → 2014-08 ended
TRN220,240 —
46431-04020 Clamp, NO.6(FOR PARKING BRAKE CABLE)
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
46430 — Cable Assy, Parking Brake, NO.3
46430-04040 Cable Assy, Parking Brake, NO.3
2004-09 → 2008-05 ended
TRN220 —
46430-04050 Cable Assy, Parking Brake, NO.3
2004-09 → 2008-05 ended
TRN240,260 —
46430-04060 Cable Assy, Parking Brake, NO.3
2004-09 → 2008-05 ended
GRN225,TRN225 —
46430-04070 Cable Assy, Parking Brake, NO.3
2004-09 → 2008-05 ended
GRN245,265,TRN245,265 —
46430-04080 Cable Assy, Parking Brake, NO.3
2004-09 → 2008-05 ended
GRN270 —
46430-04090 Cable Assy, Parking Brake, NO.3
2004-09 → 2008-05 ended
GRN250 —
46430-04040 Cable Assy, Parking Brake, NO.3
2008-05 → 2011-09 ended
TRN220 —
46430-04050 Cable Assy, Parking Brake, NO.3
2008-05 → 2010-06 ended
TRN260 —
46430-04050 Cable Assy, Parking Brake, NO.3
2008-05 → 2011-09 ended
TRN240 —
46430-04060 Cable Assy, Parking Brake, NO.3
2008-05 → 2011-09 ended
GRN225,TRN225 —
46430-04070 Cable Assy, Parking Brake, NO.3
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
46430-04070 Cable Assy, Parking Brake, NO.3
2008-05 → 2011-09 ended
GRN245,TRN245;GRN265,TRN265 4FC,5FC —
46430-04080 Cable Assy, Parking Brake, NO.3
2008-05 → 2011-09 ended
GRN270 —
46430-04090 Cable Assy, Parking Brake, NO.3
2008-05 → 2011-09 ended
GRN250 —
46430-04040 Cable Assy, Parking Brake, NO.3
2011-09 → 2012-12 ended
TRN220 —
46430-04041 Cable Assy, Parking Brake, NO.3
2013-01 → 2014-08 ended
TRN220 —
46430-04050 Cable Assy, Parking Brake, NO.3
2011-09 → 2012-12 ended
TRN240 —
46430-04051 Cable Assy, Parking Brake, NO.3
2013-01 → 2014-08 ended
TRN240 —
46430-04060 Cable Assy, Parking Brake, NO.3
2011-09 → 2012-12 ended
GRN225,TRN225 —
46430-04061 Cable Assy, Parking Brake, NO.3
2013-01 → 2015-08 ended
GRN225,TRN225 —
46430-04070 Cable Assy, Parking Brake, NO.3
2011-09 → 2012-12 ended
GRN245,265,TRN245,265 —
46430-04071 Cable Assy, Parking Brake, NO.3
2013-01 → 2015-08 ended
GRN245,265,TRN245,265 —
46430-04080 Cable Assy, Parking Brake, NO.3
2011-09 → 2012-12 ended
GRN270 —
46430-04081 Cable Assy, Parking Brake, NO.3
2013-01 → 2015-08 ended
GRN270 —
46430-04090 Cable Assy, Parking Brake, NO.3
2011-09 → 2012-12 ended
GRN250 —
46430-04091 Cable Assy, Parking Brake, NO.3
2013-01 → 2015-08 ended
GRN250 —
46430-04100 Cable Assy, Parking Brake, NO.3
2015-08 → 2017-11 ended
GRN305,325,TRN245,265 —
46430-04110 Cable Assy, Parking Brake, NO.3
2015-08 → 2017-11 ended
GRN310 —
46430-04120 Cable Assy, Parking Brake, NO.3
2015-08 → 2017-11 ended
GRN330 —
46430-04100 Cable Assy, Parking Brake, NO.3
2017-11 → 2019-04 ended
GRN305,325,TRN245,265 —
46430-04101 Cable Assy, Parking Brake, NO.3
2019-05 → 2019-09 ended
GRN305,325,TRN245,265 —
46430-04110 Cable Assy, Parking Brake, NO.3
2017-11 → 2019-04 ended
GRN310 —
46430-04111 Cable Assy, Parking Brake, NO.3
2019-05 → 2019-09 ended
GRN310 —
46430-04120 Cable Assy, Parking Brake, NO.3
2017-11 → 2019-04 ended
GRN330 —
46430-04121 Cable Assy, Parking Brake, NO.3
2019-05 → 2019-09 ended
GRN330 —
46430-04101 Cable Assy, Parking Brake, NO.3
2019-09 → —
GRN305,325,TRN245,265 —
46430-04111 Cable Assy, Parking Brake, NO.3
2019-09 → —
GRN310 —
46430-04121 Cable Assy, Parking Brake, NO.3
2019-09 → —
GRN330 —
46454 — Bracket, Cable Retainer, Front
46454-04010 Bracket, Cable Retainer, Front
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
46454-04010 Bracket, Cable Retainer, Front
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
46454-04010 Bracket, Cable Retainer, Front
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
46454-04010 Bracket, Cable Retainer, Front
2011-09 → 2014-08 ended
TRN220,240 —
46454-04010 Bracket, Cable Retainer, Front
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
