Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

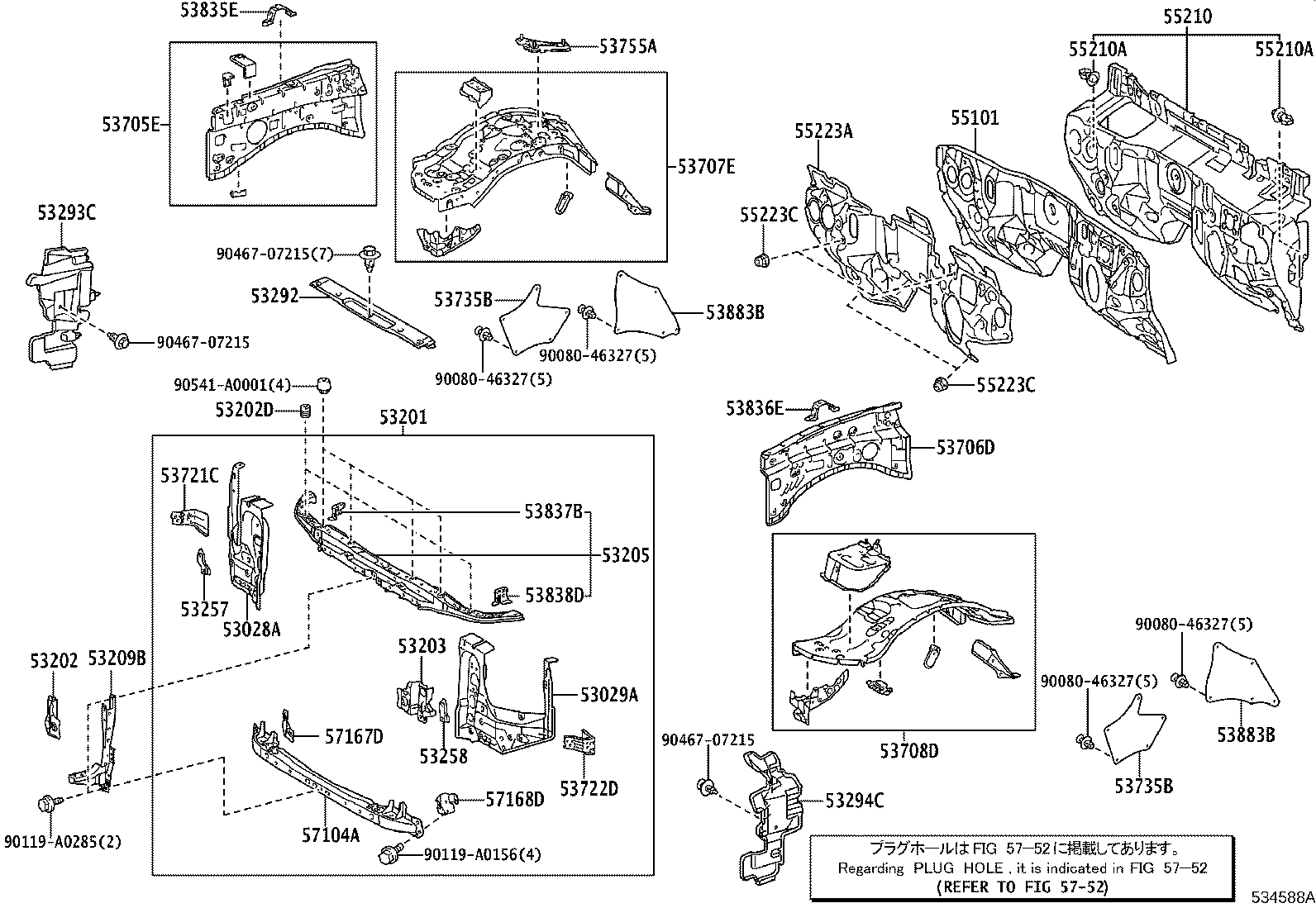

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53028A — Support Sub-assy, Radiator, Lower RH | ||||
| 53028-04010 |
Support Sub-assy, Radiator, Lower RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53028-04010 |
Support Sub-assy, Radiator, Lower RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53028-04010 |
Support Sub-assy, Radiator, Lower RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53029A — Support Sub-assy, Radiator, Lower LH | ||||
| 53029-04010 |
Support Sub-assy, Radiator, Lower LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53029-04010 |
Support Sub-assy, Radiator, Lower LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53029-04010 |
Support Sub-assy, Radiator, Lower LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53201 — Support Sub-assy, Radiator | ||||
| 53201-04090 |
Support Sub-assy, Radiator
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53201-04090 |
Support Sub-assy, Radiator
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53201-04090 |
Support Sub-assy, Radiator
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53201-04090 |
Support Sub-assy, Radiator
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53201-04090 |
Support Sub-assy, Radiator
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53201-04130 |
Support Sub-assy, Radiator
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53201-04130 |
Support Sub-assy, Radiator
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53201-04130 |
Support Sub-assy, Radiator
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53202 — Support Sub-assy, Radiator, RH | ||||
| 53202-04010 |
Support Sub-assy, Radiator, RH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53202-04010 |
Support Sub-assy, Radiator, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53202D — Cushion, Radiator Support | ||||
| 90541-15019 |
Cushion, Radiator Support
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 90541-15019 |
Cushion, Radiator Support
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 90541-15019 |
Cushion, Radiator Support
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53203 — Support Sub-assy, Radiator, LH | ||||
| 53203-04010 |
Support Sub-assy, Radiator, LH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53203-04010 |
Support Sub-assy, Radiator, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53205 — Support Sub-assy, Radiator, Upper | ||||
| 53205-04010 |
Support Sub-assy, Radiator, Upper
2004-09 → 2005-12
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53205-04011 |
Support Sub-assy, Radiator, Upper
2006-01 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53205-04011 |
Support Sub-assy, Radiator, Upper
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53205-04011 |
Support Sub-assy, Radiator, Upper
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53205-04011 |
Support Sub-assy, Radiator, Upper
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53205-04011 |
Support Sub-assy, Radiator, Upper
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53205-04020 |
Support Sub-assy, Radiator, Upper
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53205-04020 |
Support Sub-assy, Radiator, Upper
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53205-04020 |
Support Sub-assy, Radiator, Upper
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53209B — Brace Sub-assy, Hood Lock Support | ||||
| 53209-04010 |
Brace Sub-assy, Hood Lock Support
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53209-04010 |
Brace Sub-assy, Hood Lock Support
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53209-04010 |
Brace Sub-assy, Hood Lock Support
2008-05 → 2010-07
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53209-04011 |
Brace Sub-assy, Hood Lock Support
2010-08 → 2011-09
ended
|
GRN225,245,250,265,270,TRN22#,24#,265 | — | |
| 53209-04020 |
Brace Sub-assy, Hood Lock Support
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53209-04020 |
Brace Sub-assy, Hood Lock Support
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53209-04030 |
Brace Sub-assy, Hood Lock Support
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53209-04030 |
Brace Sub-assy, Hood Lock Support
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53209-04030 |
Brace Sub-assy, Hood Lock Support
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53257 — Bracket, Front End Panel Mounting, RH | ||||
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53257-04020 |
Bracket, Front End Panel Mounting, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53258 — Bracket, Front End Panel Mounting, LH | ||||
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53258-04010 |
Bracket, Front End Panel Mounting, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53292 — Seal, Radiator Support TO Frame, LH | ||||
| 53292-04020 |
Seal, Radiator Support TO Frame, LH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53292-04020 |
Seal, Radiator Support TO Frame, LH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53292-04020 |
Seal, Radiator Support TO Frame, LH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53292-04020 |
Seal, Radiator Support TO Frame, LH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53292-04020 |
Seal, Radiator Support TO Frame, LH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53292-04030 |
Seal, Radiator Support TO Frame, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53292-04030 |
Seal, Radiator Support TO Frame, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53292-04030 |
Seal, Radiator Support TO Frame, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53293C — Deflector, Radiator Side, RH | ||||
| 53293-04010 |
Deflector, Radiator Side, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53293-04010 |
Deflector, Radiator Side, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53293-04010 |
Deflector, Radiator Side, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53294C — Deflector, Radiator Side, LH | ||||
| 53294-04010 |
Deflector, Radiator Side, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53294-04010 |
Deflector, Radiator Side, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53294-04010 |
Deflector, Radiator Side, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53705E — Member Sub-assy, Front Apron TO Cowl Side, RH | ||||
| 53705-04900 |
Member Sub-assy, Front Apron TO Cowl Side, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 | — | |
| 53705-04901 |
Member Sub-assy, Front Apron TO Cowl Side, RH
2015-08 → 2017-11
ended
|
TRN245,265 | — | |
| 53705-04900 |
Member Sub-assy, Front Apron TO Cowl Side, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 | — | |
| 53705-04901 |
Member Sub-assy, Front Apron TO Cowl Side, RH
2017-11 → 2019-09
ended
|
TRN245,265 | — | |
| 53705-04900 |
Member Sub-assy, Front Apron TO Cowl Side, RH
2019-09 → —
|
GRN305,310,325,330 | — | |
| 53705-04901 |
Member Sub-assy, Front Apron TO Cowl Side, RH
2019-09 → —
|
TRN245,265 | — | |
| 53706D — Member Sub-assy, Front Apron TO Cowl Side, LH | ||||
| 53706-04030 |
Member Sub-assy, Front Apron TO Cowl Side, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53706-04030 |
Member Sub-assy, Front Apron TO Cowl Side, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53706-04030 |
Member Sub-assy, Front Apron TO Cowl Side, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53707E — Apron Sub-assy, Fender Side, RH | ||||
| 53707-04900 |
Apron Sub-assy, Fender Side, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 | — | |
| 53707-04901 |
Apron Sub-assy, Fender Side, RH
2015-08 → 2017-11
ended
|
TRN245,265 | — | |
| 53707-04900 |
Apron Sub-assy, Fender Side, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 | — | |
| 53707-04901 |
Apron Sub-assy, Fender Side, RH
2017-11 → 2019-09
ended
|
TRN245,265 | — | |
| 53707-04900 |
Apron Sub-assy, Fender Side, RH
2019-09 → —
|
GRN305,310,325,330 | — | |
| 53707-04901 |
Apron Sub-assy, Fender Side, RH
2019-09 → —
|
TRN245,265 | — | |
| 53708D — Apron Sub-assy, Fender Side, LH | ||||
| 53708-04900 |
Apron Sub-assy, Fender Side, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53708-04900 |
Apron Sub-assy, Fender Side, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53708-04900 |
Apron Sub-assy, Fender Side, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53721C — Retainer, Fender Apron, RH | ||||
| 53721-04010 |
Retainer, Fender Apron, RH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53721-04010 |
Retainer, Fender Apron, RH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53721-04010 |
Retainer, Fender Apron, RH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53721-04010 |
Retainer, Fender Apron, RH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53721-04010 |
Retainer, Fender Apron, RH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53721-04020 |
Retainer, Fender Apron, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53721-04020 |
Retainer, Fender Apron, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53721-04020 |
Retainer, Fender Apron, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53722D — Retainer, Fender Apron, LH | ||||
| 53722-04010 |
Retainer, Fender Apron, LH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53722-04010 |
Retainer, Fender Apron, LH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53722-04010 |
Retainer, Fender Apron, LH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53722-04010 |
Retainer, Fender Apron, LH
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53722-04010 |
Retainer, Fender Apron, LH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53722-04020 |
Retainer, Fender Apron, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53722-04020 |
Retainer, Fender Apron, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53722-04020 |
Retainer, Fender Apron, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53735B — Seal, Front Fender Apron, Upper | ||||
| 53735-04060 |
Seal, Front Fender Apron, Upper
2004-09 → 2008-05
ended
|
GRN245,250,265,270,TRN24#,26# | — | |
| 53735-04070 |
Seal, Front Fender Apron, Upper
2004-09 → 2008-05
ended
|
GRN225,TRN22# | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2008-05 → 2011-09
ended
|
GRN245,250,270,TRN24#;GRN265,TRN265 4FC,5FC | — | |
| 53735-04070 |
Seal, Front Fender Apron, Upper
2008-05 → 2011-09
ended
|
GRN225,TRN22# | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN245,265 | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2011-09 → 2014-08
ended
|
TRN240 | — | |
| 53735-04070 |
Seal, Front Fender Apron, Upper
2011-09 → 2014-08
ended
|
TRN220 | — | |
| 53735-04070 |
Seal, Front Fender Apron, Upper
2011-09 → 2015-08
ended
|
GRN225,TRN225 | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53735-04060 |
Seal, Front Fender Apron, Upper
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53755A — Reinforcement, Brake Actuator Mounting, NO.1 | ||||
| 53755-35060 |
Reinforcement, Brake Actuator Mounting, NO.1
2004-09 → 2005-12
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53755-35061 |
Reinforcement, Brake Actuator Mounting, NO.1
2006-01 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 53755-04010 |
Reinforcement, Brake Actuator Mounting, NO.1
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53755-04010 |
Reinforcement, Brake Actuator Mounting, NO.1
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 53755-04010 |
Reinforcement, Brake Actuator Mounting, NO.1
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 53755-04010 |
Reinforcement, Brake Actuator Mounting, NO.1
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 53755-04020 |
Reinforcement, Brake Actuator Mounting, NO.1
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53755-04020 |
Reinforcement, Brake Actuator Mounting, NO.1
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53755-04020 |
Reinforcement, Brake Actuator Mounting, NO.1
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53835E — Brace, Front Fender TO Apron, RH | ||||
| 53835-04010 |
Brace, Front Fender TO Apron, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53835-04010 |
Brace, Front Fender TO Apron, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53835-04010 |
Brace, Front Fender TO Apron, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53836E — Brace, Front Fender TO Apron, LH | ||||
| 53836-04010 |
Brace, Front Fender TO Apron, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53836-04010 |
Brace, Front Fender TO Apron, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53836-04010 |
Brace, Front Fender TO Apron, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53837B — Bracket, Front Side Panel, NO.2 | ||||
| 53837-04010 |
Bracket, Front Side Panel, NO.2
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53837-04010 |
Bracket, Front Side Panel, NO.2
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53837-04010 |
Bracket, Front Side Panel, NO.2
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53838D — Bracket, Front Side Panel, NO.2 LH | ||||
| 53838-04010 |
Bracket, Front Side Panel, NO.2 LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53838-04010 |
Bracket, Front Side Panel, NO.2 LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53838-04010 |
Bracket, Front Side Panel, NO.2 LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 53883B — Seal, Front Fender, LH | ||||
| 53883-04010 |
Seal, Front Fender, LH
2004-09 → 2008-05
ended
|
GRN245,250,265,270,TRN24#,26# | — | |
| 53883-04020 |
Seal, Front Fender, LH
2004-09 → 2008-05
ended
|
GRN225,TRN22# | — | |
| 53883-04010 |
Seal, Front Fender, LH
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 53883-04010 |
Seal, Front Fender, LH
2008-05 → 2011-09
ended
|
GRN245,250,270,TRN24#;GRN265,TRN265 4FC,5FC | — | |
| 53883-04020 |
Seal, Front Fender, LH
2008-05 → 2011-09
ended
|
GRN225,TRN22# | — | |
| 53883-04010 |
Seal, Front Fender, LH
2011-09 → 2014-08
ended
|
TRN240 | — | |
| 53883-04010 |
Seal, Front Fender, LH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN245,265 | — | |
| 53883-04020 |
Seal, Front Fender, LH
2011-09 → 2015-08
ended
|
GRN225,TRN225 | — | |
| 53883-04020 |
Seal, Front Fender, LH
2011-09 → 2014-08
ended
|
TRN220 | — | |
| 53883-04030 |
Seal, Front Fender, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53883-04030 |
Seal, Front Fender, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 53883-04030 |
Seal, Front Fender, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-04450 |
Panel Sub-assy, Dash
2004-09 → 2007-01
ended
|
GRN245,250,265,270 5FC | — | |
| 55101-04451 |
Panel Sub-assy, Dash
2007-02 → 2008-05
ended
|
GRN245,250,265,270 5FC | — | |
| 55101-04470 |
Panel Sub-assy, Dash
2004-09 → 2007-01
ended
|
GRN225,245,265 6F | — | |
| 55101-04471 |
Panel Sub-assy, Dash
2007-02 → 2008-05
ended
|
GRN225,245,265 6F | — | |
| 55101-04480 |
Panel Sub-assy, Dash
2004-09 → 2007-01
ended
|
TRN22# 4FC | — | |
| 55101-04481 |
Panel Sub-assy, Dash
2007-02 → 2008-05
ended
|
TRN22# 4FC | — | |
| 55101-04490 |
Panel Sub-assy, Dash
2004-09 → 2007-01
ended
|
TRN22#,24#,26# 5F | — | |
| 55101-04491 |
Panel Sub-assy, Dash
2007-02 → 2008-05
ended
|
TRN22#,24#,26# 5F | — | |
| 55101-04451 |
Panel Sub-assy, Dash
2008-05 → 2011-09
ended
|
GRN245,250,265,270 5FC | — | |
| 55101-04471 |
Panel Sub-assy, Dash
2008-05 → 2010-06
ended
|
GRN265 6F | — | |
| 55101-04471 |
Panel Sub-assy, Dash
2008-05 → 2011-09
ended
|
GRN225,245 6F | — | |
| 55101-04481 |
Panel Sub-assy, Dash
2008-05 → 2011-09
ended
|
TRN22#,24#,265 4FC | — | |
| 55101-04491 |
Panel Sub-assy, Dash
2008-05 → 2010-06
ended
|
TRN26# | — | |
| 55101-04491 |
Panel Sub-assy, Dash
2008-05 → 2011-09
ended
|
TRN22#,24# 5F | — | |
| 55101-04451 |
Panel Sub-assy, Dash
2011-09 → 2015-08
ended
|
GRN245,250,265,270 5FC | — | |
| 55101-04471 |
Panel Sub-assy, Dash
2011-09 → 2015-08
ended
|
GRN225,245 6F | — | |
| 55101-04481 |
Panel Sub-assy, Dash
2011-09 → 2014-08
ended
|
TRN220,240 4FC | — | |
| 55101-04481 |
Panel Sub-assy, Dash
2011-09 → 2015-08
ended
|
TRN225,245,265 4FC | — | |
| 55101-04491 |
Panel Sub-assy, Dash
2011-09 → 2014-08
ended
|
TRN220,240 5F | — | |
| 55101-04491 |
Panel Sub-assy, Dash
2011-09 → 2015-08
ended
|
TRN225,245 5F | — | |
| 55101-04500 |
Panel Sub-assy, Dash
2015-08 → 2017-11
ended
|
GRN305 6F | — | |
| 55101-04510 |
Panel Sub-assy, Dash
2015-08 → 2017-11
ended
|
TRN245 5F | — | |
| 55101-04520 |
Panel Sub-assy, Dash
2015-08 → 2017-11
ended
|
GRN305,310,325,330 6FC | — | |
| 55101-04530 |
Panel Sub-assy, Dash
2015-08 → 2017-11
ended
|
TRN245,265 6FC | — | |
| 55101-04500 |
Panel Sub-assy, Dash
2017-11 → 2019-09
ended
|
GRN305 6F | — | |
| 55101-04520 |
Panel Sub-assy, Dash
2017-11 → 2019-09
ended
|
GRN305,310,325,330 6FC | — | |
| 55101-04530 |
Panel Sub-assy, Dash
2017-11 → 2019-09
ended
|
TRN245,265 | — | |
| 55101-04500 |
Panel Sub-assy, Dash
2019-09 → —
|
GRN305 6F | — | |
| 55101-04520 |
Panel Sub-assy, Dash
2019-09 → —
|
GRN305,310,325,330 6FC | — | |
| 55101-04530 |
Panel Sub-assy, Dash
2019-09 → —
|
TRN245,265 | — | |
| 55210 — Insulator Assy, Dash Panel | ||||
| 55210-04120 |
Insulator Assy, Dash Panel
2004-09 → 2005-10
ended
|
GRN245,250,265,270,TRN22# 4FC,5FC | — | |
| 55210-04121 |
Insulator Assy, Dash Panel
2005-11 → 2006-12
ended
|
GRN245,250,265,270,TRN22# 4FC,5FC | — | |
| 55210-04122 |
Insulator Assy, Dash Panel
2007-01 → 2008-05
ended
|
GRN245,250,265,270,TRN22# 4FC,5FC | — | |
| 55210-04130 |
Insulator Assy, Dash Panel
2004-09 → 2005-10
ended
|
GRN225,245,265,TRN22#,24#,26# 5F,6F | — | |
| 55210-04131 |
Insulator Assy, Dash Panel
2005-11 → 2006-12
ended
|
GRN225,245,265,TRN22#,24#,26# 5F,6F | — | |
| 55210-04132 |
Insulator Assy, Dash Panel
2007-01 → 2008-05
ended
|
GRN225,245,265,TRN22#,24#,26# 5F,6F | — | |
| 55210-04122 |
Insulator Assy, Dash Panel
2008-05 → 2011-06
ended
|
GRN245,250,265,270,TRN22#,24#,265 4FC,5FC | — | |
| 55210-04132 |
Insulator Assy, Dash Panel
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 55210-04132 |
Insulator Assy, Dash Panel
2008-05 → 2011-06
ended
|
GRN225,245,TRN22#,24# 5F,6F | — | |
| 55210-04123 |
Insulator Assy, Dash Panel
2011-09 → 2014-08
ended
|
TRN220,240 4FC | — | |
| 55210-04123 |
Insulator Assy, Dash Panel
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,245,265 4FC,5FC | — | |
| 55210-04133 |
Insulator Assy, Dash Panel
2011-09 → 2014-08
ended
|
TRN220,240 5F | — | |
| 55210-04133 |
Insulator Assy, Dash Panel
2011-09 → 2015-08
ended
|
GRN225,245,TRN225,245 5F,6F | — | |
| 55210-04140 |
Insulator Assy, Dash Panel
2015-08 → 2017-11
ended
|
GRN305,TRN245 5F,6F | — | |
| 55210-04150 |
Insulator Assy, Dash Panel
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 6FC | — | |
| 55210-04140 |
Insulator Assy, Dash Panel
2017-11 → 2019-09
ended
|
GRN305 6F | — | |
| 55210-04150 |
Insulator Assy, Dash Panel
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 6FC | — | |
| 55210-04140 |
Insulator Assy, Dash Panel
2019-09 → —
|
GRN305 6F | — | |
| 55210-04150 |
Insulator Assy, Dash Panel
2019-09 → —
|
GRN305,310,325,330,TRN245,265 6FC | — | |
| 55210A — Clip | ||||
| 90467-08124 |
Clip
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 90467-08124 |
Clip
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 90467-08124 |
Clip
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 90467-08124 |
Clip
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 90467-08124 |
Clip
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 90467-13079 |
Clip
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 90467-13079 |
Clip
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 90467-13079 |
Clip
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 55223A — Insulator, Dash Panel, Outer | ||||
| 55223-04030 |
Insulator, Dash Panel, Outer
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 55223-04030 |
Insulator, Dash Panel, Outer
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 55223-04030 |
Insulator, Dash Panel, Outer
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN225,245 | — | |
| 55223-04030 |
Insulator, Dash Panel, Outer
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 55223-04050 |
Insulator, Dash Panel, Outer
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 55223-04050 |
Insulator, Dash Panel, Outer
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 55223-04050 |
Insulator, Dash Panel, Outer
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 55223C — Clip | ||||
| 90467-06169 |
Clip
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 90467-06169 |
Clip
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 90467-06169 |
Clip
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN225,245 | — | |
| 90467-06169 |
Clip
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 90467-06169 |
Clip
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 90467-06169 |
Clip
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 90467-06169 |
Clip
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 57104A — Member Sub-assy, Front Cross | ||||
| 57104-04030 |
Member Sub-assy, Front Cross
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 57104-04030 |
Member Sub-assy, Front Cross
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 57104-04030 |
Member Sub-assy, Front Cross
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 57104-04030 |
Member Sub-assy, Front Cross
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 57104-04030 |
Member Sub-assy, Front Cross
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 57104-04040 |
Member Sub-assy, Front Cross
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 57104-04040 |
Member Sub-assy, Front Cross
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 57104-04040 |
Member Sub-assy, Front Cross
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 57167D — Reinforcement, Front Crossmember Side, RH | ||||
| 57167-04010 |
Reinforcement, Front Crossmember Side, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 57167-04010 |
Reinforcement, Front Crossmember Side, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 57167-04010 |
Reinforcement, Front Crossmember Side, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 57168D — Reinforcement, Front Crossmember Side, LH | ||||
| 57168-04010 |
Reinforcement, Front Crossmember Side, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 57168-04010 |
Reinforcement, Front Crossmember Side, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 57168-04010 |
Reinforcement, Front Crossmember Side, LH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
