Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

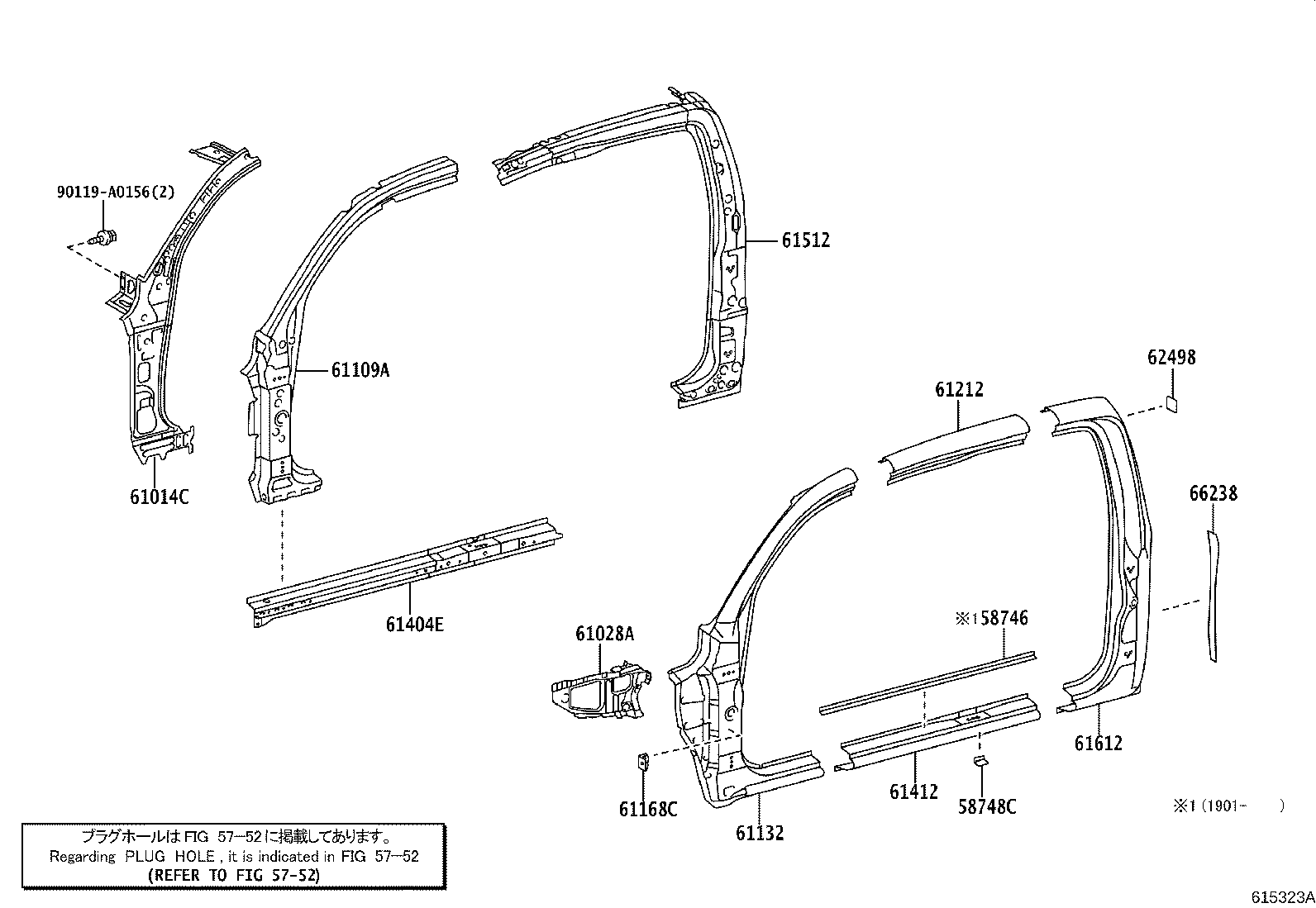

Exploded illustration 615323A 58748C — PROTECTOR, QUARTER PANEL, REAR LH (11 parts) 61014C — PANEL SUB-ASSY, SIDE, INNER LH (11 parts) 61028A — PILLAR SUB-ASSY, FRONT BODY, OUTER LH (8 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (8 parts) 61132 — PILLAR, FRONT BODY, UPPER OUTER LH (16 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (11 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (14 parts) 61412 — PANEL, ROCKER, OUTER LH (15 parts) 61512 — PILLAR, QUARTER LOCK, LH (21 parts) 61612 — PANEL, QUARTER, LH (19 parts) 58746 — PROTECTOR, QUARTER PANEL, FRONT LH (4 parts) 66238 — PROTECTOR, QUARTER PANEL OUTER, LH (6 parts) 90119A0156 — not listed in this catalogue 61168C — BRACKET, NO.6 PILLAR OUTER (3 parts) 62498 — SEAL, ROOF SIDE, INNER REAR (7 parts) 5752 — not listed in this catalogue
615323A · 14 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
154 parts on this figure
Part number Description Fitment Price
58746 — Protector, Quarter Panel, Front LH
58745-04010 Protector, Quarter Panel, Front LH
2019-01 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
58745-04020 Protector, Quarter Panel, Front LH
2019-01 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
58745-04010 Protector, Quarter Panel, Front LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
58745-04020 Protector, Quarter Panel, Front LH
2019-09 → —
GRN305,310,325,330,TRN265 DCB —
58748C — Protector, Quarter Panel, Rear LH
58748-04010 Protector, Quarter Panel, Rear LH
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN225,245,265 —
58748-04010 Protector, Quarter Panel, Rear LH
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
58748-04010 Protector, Quarter Panel, Rear LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
58748-04010 Protector, Quarter Panel, Rear LH
2008-05 → 2011-04 ended
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) —
58748-04020 Protector, Quarter Panel, Rear LH
2011-04 → 2011-09 ended
GRN225,245,265,TRN225,245,265 LCB —
58748-04010 Protector, Quarter Panel, Rear LH
2011-09 → 2011-10 ended
GRN245,250,265,270,TRN225,265 DCB —
58748-04020 Protector, Quarter Panel, Rear LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
58748-04020 Protector, Quarter Panel, Rear LH
2011-10 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
58748-04020 Protector, Quarter Panel, Rear LH
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
58748-04020 Protector, Quarter Panel, Rear LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
58748-04020 Protector, Quarter Panel, Rear LH
2019-09 → —
GRN305,310,325,330,TRN245,265 —
61014C — Panel Sub-assy, Side, Inner LH
61014-04010 Panel Sub-assy, Side, Inner LH
2004-09 → 2008-04 ended
GRN225,245,265,TRN22#,24#,26# LCB,RCB —
61014-04020 Panel Sub-assy, Side, Inner LH
2004-09 → 2008-05 ended
GRN245,250,265,270 DCB —
61014-04011 Panel Sub-assy, Side, Inner LH
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
61014-04011 Panel Sub-assy, Side, Inner LH
2008-05 → 2011-09 ended
GRN265,TRN265 LCB (4FC,5FC);GRN225,245,TRN22#,24# LCB,RCB —
61014-04020 Panel Sub-assy, Side, Inner LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
61014-04011 Panel Sub-assy, Side, Inner LH
2011-09 → 2014-08 ended
TRN220,240 —
61014-04011 Panel Sub-assy, Side, Inner LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61014-04020 Panel Sub-assy, Side, Inner LH
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
61014-04030 Panel Sub-assy, Side, Inner LH
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
61014-04030 Panel Sub-assy, Side, Inner LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
61014-04030 Panel Sub-assy, Side, Inner LH
2019-09 → —
GRN305,310,325,330,TRN245,265 —
61028A — Pillar Sub-assy, Front Body, Outer LH
61028-04030 Pillar Sub-assy, Front Body, Outer LH
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
61028-04030 Pillar Sub-assy, Front Body, Outer LH
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
61028-04030 Pillar Sub-assy, Front Body, Outer LH
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
61028-04030 Pillar Sub-assy, Front Body, Outer LH
2011-09 → 2014-08 ended
TRN220,240 —
61028-04030 Pillar Sub-assy, Front Body, Outer LH
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
61028-04040 Pillar Sub-assy, Front Body, Outer LH
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
61028-04040 Pillar Sub-assy, Front Body, Outer LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
61028-04040 Pillar Sub-assy, Front Body, Outer LH
2019-09 → —
GRN305,310,325,330,TRN245,265 —
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-04020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
61109-04020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
61109-04020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
61109-04020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2011-09 → 2014-08 ended
TRN220,240 —
61109-04020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
61109-04030 Reinforce Sub-assy, Front Body Pillar, Lower LH
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
61109-04030 Reinforce Sub-assy, Front Body Pillar, Lower LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
61109-04030 Reinforce Sub-assy, Front Body Pillar, Lower LH
2019-09 → —
GRN305,310,325,330,TRN245,265 —
61132 — Pillar, Front Body, Upper Outer LH
61132-04040 Pillar, Front Body, Upper Outer LH
2004-09 → 2008-05 ended
GRN225,245,265,TRN22#,24#,26# LCB,RCB —
61132-04050 Pillar, Front Body, Upper Outer LH
2004-09 → 2008-05 ended
GRN245,250,265,270 DCB —
61132-04040 Pillar, Front Body, Upper Outer LH
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
61132-04040 Pillar, Front Body, Upper Outer LH
2008-05 → 2011-09 ended
GRN265,TRN265 LCB (4FC,5FC);GRN225,245,TRN22#,24# LCB,RCB —
61132-04050 Pillar, Front Body, Upper Outer LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
61132-04040 Pillar, Front Body, Upper Outer LH
2011-09 → 2014-08 ended
TRN220,240 —
61132-04040 Pillar, Front Body, Upper Outer LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61132-04050 Pillar, Front Body, Upper Outer LH
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
61132-04060 Pillar, Front Body, Upper Outer LH
2015-08 → 2016-08 ended
GRN305,325,TRN245,265 LCB —
61132-04061 Pillar, Front Body, Upper Outer LH
2016-09 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
61132-04070 Pillar, Front Body, Upper Outer LH
2015-08 → 2016-08 ended
GRN305,310,325,330,TRN265 DCB —
61132-04071 Pillar, Front Body, Upper Outer LH
2016-09 → 2017-11 ended
GRN305,310,325,330,TRN265 DCB —
61132-04061 Pillar, Front Body, Upper Outer LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
61132-04071 Pillar, Front Body, Upper Outer LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
61132-04061 Pillar, Front Body, Upper Outer LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
61132-04071 Pillar, Front Body, Upper Outer LH
2019-09 → —
GRN305,310,325,330,TRN265 DCB —
61168C — Bracket, NO.6 Pillar Outer
61168-06010 Bracket, NO.6 Pillar Outer
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
61168-06010 Bracket, NO.6 Pillar Outer
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
61168-06010 Bracket, NO.6 Pillar Outer
2019-09 → —
GRN305,310,325,330,TRN245,265 —
61212 — Rail, Roof Side, Outer LH
61212-04020 Rail, Roof Side, Outer LH
2004-09 → 2008-05 ended
TRN220,240,260 —
61212-04030 Rail, Roof Side, Outer LH
2004-09 → 2008-05 ended
GRN225,245,265,TRN225,245,265 LCB —
61212-04020 Rail, Roof Side, Outer LH
2008-05 → 2010-06 ended
TRN260 —
61212-04020 Rail, Roof Side, Outer LH
2008-05 → 2011-09 ended
TRN220,240 —
61212-04030 Rail, Roof Side, Outer LH
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
61212-04030 Rail, Roof Side, Outer LH
2008-05 → 2011-09 ended
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) —
61212-04020 Rail, Roof Side, Outer LH
2011-09 → 2014-08 ended
TRN220,240 —
61212-04030 Rail, Roof Side, Outer LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61212-04040 Rail, Roof Side, Outer LH
2015-08 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
61212-04040 Rail, Roof Side, Outer LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
61212-04040 Rail, Roof Side, Outer LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-04020 Reinforce Sub-assy, Rocker, Outer LH
2004-09 → 2006-12 ended
GRN225,245,265,TRN225,245,265 LCB —
61404-04020 Reinforce Sub-assy, Rocker, Outer LH
2007-01 → 2008-05 ended
GRN225,245,265,TRN225,245,265 LCB —
61404-04030 Reinforce Sub-assy, Rocker, Outer LH
2004-09 → 2008-05 ended
GRN245,250,265,270 DCB —
61404-04010 Reinforce Sub-assy, Rocker, Outer LH
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
61404-04010 Reinforce Sub-assy, Rocker, Outer LH
2008-05 → 2011-09 ended
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) —
61404-04030 Reinforce Sub-assy, Rocker, Outer LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
61404-04010 Reinforce Sub-assy, Rocker, Outer LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61404-04030 Reinforce Sub-assy, Rocker, Outer LH
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
61402-04900 Reinforce Sub-assy, Rocker, Outer LH
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN265 DCB —
61404-04900 Reinforce Sub-assy, Rocker, Outer LH
2015-08 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
61402-04900 Reinforce Sub-assy, Rocker, Outer LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
61404-04900 Reinforce Sub-assy, Rocker, Outer LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
61402-04900 Reinforce Sub-assy, Rocker, Outer LH
2019-09 → —
GRN305,310,325,330,TRN265 DCB —
61404-04900 Reinforce Sub-assy, Rocker, Outer LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
61412 — Panel, Rocker, Outer LH
61412-04040 Panel, Rocker, Outer LH
2004-09 → 2008-05 ended
GRN225,245,265,TRN225,245,265 LCB —
61412-04050 Panel, Rocker, Outer LH
2004-09 → 2008-05 ended
GRN245,250,265,270 DCB —
61412-04040 Panel, Rocker, Outer LH
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
61412-04040 Panel, Rocker, Outer LH
2008-05 → 2011-09 ended
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) —
61412-04050 Panel, Rocker, Outer LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
61412-04040 Panel, Rocker, Outer LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61412-04050 Panel, Rocker, Outer LH
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
61412-04060 Panel, Rocker, Outer LH
2015-08 → 2016-08 ended
GRN305,325,TRN245,265 LCB —
61412-04061 Panel, Rocker, Outer LH
2016-09 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
61412-04070 Panel, Rocker, Outer LH
2015-08 → 2016-08 ended
GRN305,310,325,330,TRN265 DCB —
61412-04071 Panel, Rocker, Outer LH
2016-09 → 2017-11 ended
GRN305,310,325,330,TRN265 DCB —
61412-04061 Panel, Rocker, Outer LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
61412-04071 Panel, Rocker, Outer LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
61412-04061 Panel, Rocker, Outer LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
61412-04071 Panel, Rocker, Outer LH
2019-09 → —
GRN305,310,325,330,TRN265 DCB —
61512 — Pillar, Quarter Lock, LH
61502-04901 Pillar, Quarter Lock, LH
2004-09 → 2008-05 ended
TRN220,240,260 —
61502-04902 Pillar, Quarter Lock, LH
2004-09 → 2008-05 ended
GRN225,245,265,TRN225,245,265 LCB —
61502-04903 Pillar, Quarter Lock, LH
2004-09 → 2008-05 ended
GRN245,250,265,270 DCB —
61502-04901 Pillar, Quarter Lock, LH
2008-05 → 2010-06 ended
TRN260 —
61502-04901 Pillar, Quarter Lock, LH
2008-05 → 2011-09 ended
TRN220,240 —
61502-04902 Pillar, Quarter Lock, LH
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
61502-04902 Pillar, Quarter Lock, LH
2008-05 → 2011-09 ended
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) —
61502-04903 Pillar, Quarter Lock, LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
61502-04901 Pillar, Quarter Lock, LH
2011-09 → 2014-08 ended
TRN220,240 —
61502-04902 Pillar, Quarter Lock, LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61502-04903 Pillar, Quarter Lock, LH
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
61502-04905 Pillar, Quarter Lock, LH
2015-08 → 2017-08 ended
GRN305,325,TRN245,265 LCB —
61502-04906 Pillar, Quarter Lock, LH
2015-08 → 2017-08 ended
GRN305,310,325,330,TRN265 DCB —
61502-04907 Pillar, Quarter Lock, LH
2017-09 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
61502-04908 Pillar, Quarter Lock, LH
2017-09 → 2017-11 ended
GRN305,310,325,330,TRN265 DCB —
61502-04905 Pillar, Quarter Lock, LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
61502-04906 Pillar, Quarter Lock, LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
61502-04907 Pillar, Quarter Lock, LH
2019-09 → 2020-06 ended
GRN305,325,TRN245,265 LCB —
61502-04908 Pillar, Quarter Lock, LH
2019-09 → 2020-06 ended
GRN305,310,325,330,TRN265 DCB —
61502-04909 Pillar, Quarter Lock, LH
2020-06 → —
GRN305,325,TRN245,265 LCB —
61502-04910 Pillar, Quarter Lock, LH
2020-06 → —
GRN305,310,325,330,TRN265 DCB —
61612 — Panel, Quarter, LH
61612-04030 Panel, Quarter, LH
2004-09 → 2008-05 ended
TRN220,240,260 —
61612-04040 Panel, Quarter, LH
2004-09 → 2008-05 ended
GRN225,245,265,TRN225,245,265 LCB —
61612-04050 Panel, Quarter, LH
2004-09 → 2008-05 ended
GRN245,250,265,270 DCB —
61612-04030 Panel, Quarter, LH
2008-05 → 2010-06 ended
TRN260 —
61612-04030 Panel, Quarter, LH
2008-05 → 2011-09 ended
TRN220,240 —
61612-04040 Panel, Quarter, LH
2008-05 → 2010-06 ended
GRN265,TRN265 5F,6F —
61612-04040 Panel, Quarter, LH
2008-05 → 2011-09 ended
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) —
61612-04050 Panel, Quarter, LH
2008-05 → 2011-09 ended
GRN245,250,265,270,TRN225,265 DCB —
61612-04030 Panel, Quarter, LH
2011-09 → 2014-08 ended
TRN220,240 —
61612-04040 Panel, Quarter, LH
2011-09 → 2015-08 ended
GRN225,245,265,TRN225,245,265 LCB —
61612-04050 Panel, Quarter, LH
2011-09 → 2015-08 ended
GRN245,250,265,270,TRN225,265 DCB —
61612-04060 Panel, Quarter, LH
2015-08 → 2016-08 ended
GRN305,325,TRN245,265 LCB —
61612-04061 Panel, Quarter, LH
2016-09 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
61612-04070 Panel, Quarter, LH
2015-08 → 2016-08 ended
GRN305,310,325,330,TRN265 DCB —
61612-04071 Panel, Quarter, LH
2016-09 → 2017-11 ended
GRN305,310,325,330,TRN265 DCB —
61612-04061 Panel, Quarter, LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
61612-04071 Panel, Quarter, LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
61612-04061 Panel, Quarter, LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
61612-04071 Panel, Quarter, LH
2019-09 → —
GRN305,310,325,330,TRN265 DCB —
62498 — Seal, Roof Side, Inner Rear
62498-04010 Seal, Roof Side, Inner Rear
2004-09 → 2008-05 ended
GRN225,245,250,265,270,TRN22#,24#,26# —
62498-04020 Seal, Roof Side, Inner Rear
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
62498-04020 Seal, Roof Side, Inner Rear
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
62498-04020 Seal, Roof Side, Inner Rear
2011-09 → 2014-08 ended
TRN220,240 —
62498-04020 Seal, Roof Side, Inner Rear
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
62498-04020 Seal, Roof Side, Inner Rear
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
62498-04020 Seal, Roof Side, Inner Rear
2019-09 → —
GRN305,310,325,330,TRN245,265 —
66238 — Protector, Quarter Panel Outer, LH
58744-04020 Protector, Quarter Panel Outer, LH
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN265 DCB —
58744-04030 Protector, Quarter Panel Outer, LH
2015-08 → 2017-11 ended
GRN305,325,TRN245,265 LCB —
58744-04020 Protector, Quarter Panel Outer, LH
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN265 DCB —
58744-04030 Protector, Quarter Panel Outer, LH
2017-11 → 2019-09 ended
GRN305,325,TRN245,265 LCB —
58744-04020 Protector, Quarter Panel Outer, LH
2019-09 → —
GRN305,310,325,330,TRN265 DCB —
58744-04030 Protector, Quarter Panel Outer, LH
2019-09 → —
GRN305,325,TRN245,265 LCB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
