Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09

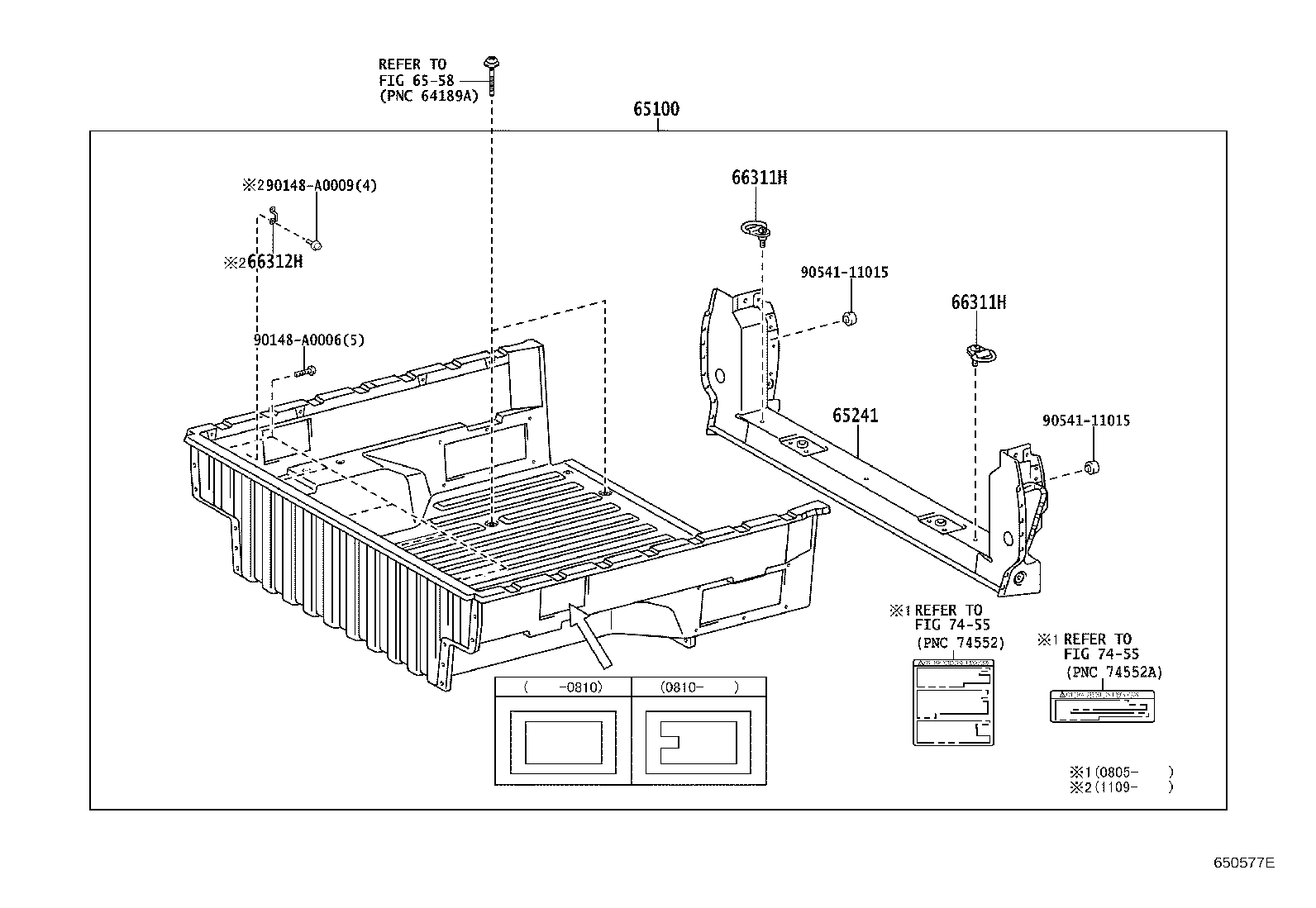

Exploded illustration 650577E 65100 — FLOOR ASSY, REAR BODY (19 parts) 65241 — SILL, REAR CROSS (12 parts) 66311H — HOOK, ROPE (12 parts) 66311H — HOOK, ROPE (12 parts) 90148A0006 — not listed in this catalogue 9054111015 — not listed in this catalogue 9054111015 — not listed in this catalogue 7455 — not listed in this catalogue 7455 — not listed in this catalogue 90148A0009 — not listed in this catalogue 66312H — HOOK, ROPE (5 parts) 6558 — not listed in this catalogue
650577E · 5 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
65100 — Floor Assy, Rear Body
65100-04430 Floor Assy, Rear Body
2004-09 → 2008-05 ended
GRN250,270;GRN225,245,265,TRN22#,24#,26# LCB,RCB —
65100-04450 Floor Assy, Rear Body
2004-09 → 2005-03 ended
GRN245,265 DCB —
65100-04451 Floor Assy, Rear Body
2005-03 → 2008-05 ended
GRN245,265 DCB —
65100-04433 Floor Assy, Rear Body
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
65100-04433 Floor Assy, Rear Body
2008-05 → 2011-09 ended
GRN250,270;GRN265,TRN265 LCB (4FC,5FC);GRN225,245,TRN22#,24# LCB,RCB —
65100-04454 Floor Assy, Rear Body
2008-05 → 2011-09 ended
GRN245,265,TRN225,265 DCB —
65100-04460 Floor Assy, Rear Body
2011-09 → 2012-08 ended
GRN250,270;GRN225,245,265,TRN22#,24#,265 LCB,RCB —
65100-04470 Floor Assy, Rear Body
2011-09 → 2012-08 ended
GRN245,265,TRN225,265 DCB —
65100-04480 Floor Assy, Rear Body
2012-08 → 2014-08 ended
TRN220,240 —
65100-04480 Floor Assy, Rear Body
2012-08 → 2015-08 ended
GRN250,270;GRN225,245,265,TRN225,245,265 LCB —
65100-04490 Floor Assy, Rear Body
2012-08 → 2015-08 ended
GRN245,265,TRN225,265 DCB —
65100-04500 Floor Assy, Rear Body
2015-08 → 2017-11 ended
GRN305,325,TRN265 DCB —
65100-04510 Floor Assy, Rear Body
2015-08 → 2017-11 ended
GRN310,330;GRN305,325,TRN245,265 LCB —
65100-04500 Floor Assy, Rear Body
2017-11 → 2018-09 ended
GRN305,325,TRN265 DCB —
65100-04501 Floor Assy, Rear Body
2018-09 → 2019-09 ended
GRN305,325,TRN265 DCB —
65100-04510 Floor Assy, Rear Body
2017-11 → 2018-09 ended
GRN310,330;GRN305,325,TRN245,265 LCB —
65100-04511 Floor Assy, Rear Body
2018-09 → 2019-09 ended
GRN310,330;GRN305,325,TRN245,265 LCB —
65100-04520 Floor Assy, Rear Body
2019-09 → —
GRN305,325,TRN265 DCB —
65100-04530 Floor Assy, Rear Body
2019-09 → —
GRN310,330;GRN305,325,TRN245,265 LCB —
65241 — Sill, Rear Cross
65240-04160 Sill, Rear Cross
2004-09 → 2005-02 ended
GRN245,265 DCB —
65240-04160 Sill, Rear Cross
2004-09 → 2006-01 ended
GRN250,270;GRN225,245,265,TRN22#,24#,26# LCB,RCB —
65240-04160 Sill, Rear Cross
2005-03 → 2006-01 ended
GRN245,265 DCB —
65240-04160 Sill, Rear Cross
2006-02 → 2008-05 ended
GRN250,270;GRN225,245,265,TRN22#,24#,26# LCB,RCB —
65240-04160 Sill, Rear Cross
2006-03 → 2008-05 ended
GRN245,265 DCB —
65240-04161 Sill, Rear Cross
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
65240-04161 Sill, Rear Cross
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
65240-04161 Sill, Rear Cross
2011-09 → 2014-08 ended
TRN220,240 —
65240-04161 Sill, Rear Cross
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
65204-04010 Sill, Rear Cross
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
65204-04010 Sill, Rear Cross
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
65204-04020 Sill, Rear Cross
2019-09 → —
GRN305,310,325,330,TRN245,265 —
66311H — Hook, Rope
66310-04010 Hook, Rope
2004-09 → 2005-02 ended
GRN245,265 DCB —
66310-04010 Hook, Rope
2004-09 → 2006-01 ended
GRN250,270;GRN225,245,265,TRN22#,24#,26# LCB,RCB —
66310-04010 Hook, Rope
2005-03 → 2006-01 ended
GRN245,265 DCB —
66310-04010 Hook, Rope
2006-02 → 2008-05 ended
GRN250,270;GRN225,245,265,TRN22#,24#,26# LCB,RCB —
66310-04010 Hook, Rope
2006-03 → 2008-05 ended
GRN245,265 DCB —
66310-04010 Hook, Rope
2008-05 → 2010-06 ended
GRN265,TRN26# 5F,6F —
66310-04010 Hook, Rope
2008-05 → 2011-09 ended
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# —
66310-04010 Hook, Rope
2011-09 → 2014-08 ended
TRN220,240 —
66310-04010 Hook, Rope
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
66310-04010 Hook, Rope
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
66310-04010 Hook, Rope
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
66310-04010 Hook, Rope
2019-09 → —
GRN305,310,325,330,TRN245,265 —
66312H — Hook, Rope
66312-0C010 Hook, Rope
2011-09 → 2014-08 ended
TRN220,240 —
66312-0C010 Hook, Rope
2011-09 → 2015-08 ended
GRN225,245,250,265,270,TRN225,245,265 —
66312-0C010 Hook, Rope
2015-08 → 2017-11 ended
GRN305,310,325,330,TRN245,265 —
66312-0C010 Hook, Rope
2017-11 → 2019-09 ended
GRN305,310,325,330,TRN245,265 —
66312-0C010 Hook, Rope
2019-09 → —
GRN305,310,325,330,TRN245,265 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
