Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

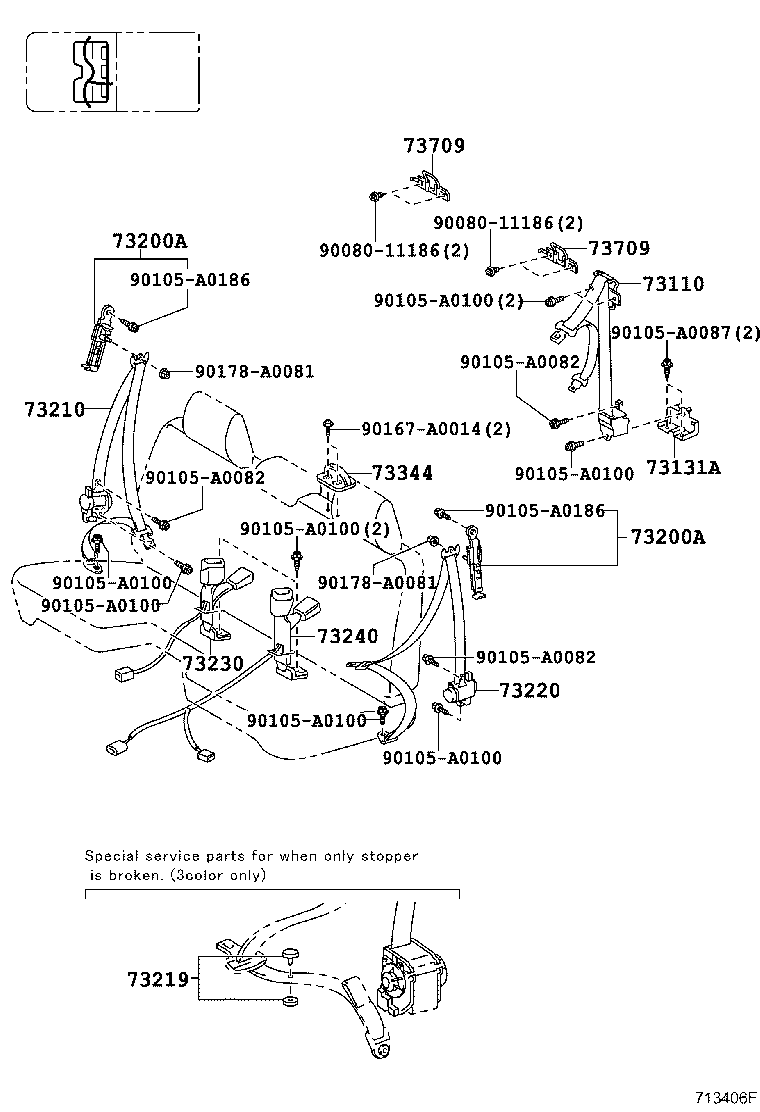

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73110 — Belt Assy, Front Seat 3 Point Type, RH | ||||
| 73110-04011-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2004-09 → 2007-08
ended
|
TRN220,240,260 | — | |
| 73110-04020-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2007-08 → 2008-03
ended
|
TRN220,240,260 | — | |
| 73110-04021-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2008-04 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73110-04021-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2008-05 → 2008-07
ended
|
TRN220,240,260 | — | |
| 73110-04022-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2008-08 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73110-04022-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2008-08 → 2010-06
ended
|
TRN260 | — | |
| 73110-04022-B0 note |
Belt Assy, Front Seat 3 Point Type, RH
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73131A — Bracket, Seat Belt | ||||
| 73147-04010 |
Bracket, Seat Belt
2004-09 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73147-04010 |
Bracket, Seat Belt
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73147-04010 |
Bracket, Seat Belt
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73147-04010 |
Bracket, Seat Belt
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73200A — Adjuster Assy, Front Shoulder Belt Anchor | ||||
| 73200-AE010 |
Adjuster Assy, Front Shoulder Belt Anchor
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 73200-AE010 |
Adjuster Assy, Front Shoulder Belt Anchor
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 73200-AE010 |
Adjuster Assy, Front Shoulder Belt Anchor
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 73200-04040 note |
Adjuster Assy, Front Shoulder Belt Anchor
2012-04 → 2015-08
ended
|
TRN225,245,265 LCB | — | |
| 73200-04040 |
Adjuster Assy, Front Shoulder Belt Anchor
2012-04 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 73200-04040 |
Adjuster Assy, Front Shoulder Belt Anchor
2012-04 → 2014-08
ended
|
TRN220,240 | — | |
| 73200-AE010 note |
Adjuster Assy, Front Shoulder Belt Anchor
2011-09 → 2012-04
ended
|
TRN225,245,265 LCB | — | |
| 73200-AE010 |
Adjuster Assy, Front Shoulder Belt Anchor
2011-09 → 2012-04
ended
|
GRN225,245,250,265,270,TRN22#,24#,265 | — | |
| 73200-04050 |
Adjuster Assy, Front Shoulder Belt Anchor
2015-08 → 2017-11
ended
|
GRN305,325,TRN245,265 LCB | — | |
| 73200-0C020 |
Adjuster Assy, Front Shoulder Belt Anchor
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN265 DCB | — | |
| 73200-04050 |
Adjuster Assy, Front Shoulder Belt Anchor
2017-11 → 2019-09
ended
|
GRN305,325,TRN245,265 LCB | — | |
| 73200-0C020 |
Adjuster Assy, Front Shoulder Belt Anchor
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN265 DCB | — | |
| 73200-04050 |
Adjuster Assy, Front Shoulder Belt Anchor
2019-09 → —
|
GRN305,325,TRN245,265 LCB | — | |
| 73200-0C020 |
Adjuster Assy, Front Shoulder Belt Anchor
2019-09 → —
|
GRN305,310,325,330,TRN265 DCB | — | |
| 73210 — Belt Assy, Front Seat Outer, RH | ||||
| 73210-04171-B0 note |
Belt Assy, Front Seat Outer, RH
2004-09 → 2007-08
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73210-04171-E0 note |
Belt Assy, Front Seat Outer, RH
2004-09 → 2007-08
ended
|
GRN245,265,TRN225,245,265 LCB | — | |
| 73210-04172-B0 note |
Belt Assy, Front Seat Outer, RH
2007-08 → 2008-05
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73210-04172-E0 note |
Belt Assy, Front Seat Outer, RH
2007-08 → 2008-05
ended
|
GRN245,265,TRN225,245,265 LCB | — | |
| 73210-04181-B0 note |
Belt Assy, Front Seat Outer, RH
2004-09 → 2007-08
ended
|
GRN245,250,265,270 DCB | — | |
| 73210-04181-E0 note |
Belt Assy, Front Seat Outer, RH
2004-09 → 2007-08
ended
|
GRN245,250,265,270 DCB | — | |
| 73210-04182-B0 note |
Belt Assy, Front Seat Outer, RH
2007-08 → 2008-05
ended
|
GRN245,250,265,270 DCB | — | |
| 73210-04182-E0 note |
Belt Assy, Front Seat Outer, RH
2007-08 → 2008-05
ended
|
GRN245,250,265,270 DCB | — | |
| 73210-04190-B0 note |
Belt Assy, Front Seat Outer, RH
2004-09 → 2005-08
ended
|
TRN220,240,260 | — | |
| 73210-04200-B0 note |
Belt Assy, Front Seat Outer, RH
2004-09 → 2007-08
ended
|
TRN220,240,260 | — | |
| 73210-04201-B0 note |
Belt Assy, Front Seat Outer, RH
2007-08 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73210-04210-B0 note |
Belt Assy, Front Seat Outer, RH
2005-08 → 2007-08
ended
|
TRN220,240,260 | — | |
| 73210-04211-B0 note |
Belt Assy, Front Seat Outer, RH
2007-08 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73210-04172-A0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73210-04172-A0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2011-09
ended
|
GRN245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) | — | |
| 73210-04172-B0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73210-04172-B0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2011-09
ended
|
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) | — | |
| 73210-04182-A0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2011-09
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73210-04182-B0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2011-09
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73210-04202-B0 note |
Belt Assy, Front Seat Outer, RH
2010-06 → 2011-09
ended
|
TRN240 4FC | — | |
| 73210-04211-B0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73210-04211-B0 note |
Belt Assy, Front Seat Outer, RH
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73210-04220-B0 note |
Belt Assy, Front Seat Outer, RH
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73210-04230-B0 note |
Belt Assy, Front Seat Outer, RH
2011-09 → 2014-08
ended
|
TRN240 4FC | — | |
| 73210-04240-A0 note |
Belt Assy, Front Seat Outer, RH
2011-09 → 2015-08
ended
|
GRN245,265,TRN225,245,265 LCB | — | |
| 73210-04240-B0 note |
Belt Assy, Front Seat Outer, RH
2011-09 → 2015-08
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73210-04250-A0 note |
Belt Assy, Front Seat Outer, RH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73210-04250-B0 note |
Belt Assy, Front Seat Outer, RH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73210-04160-C1 note |
Belt Assy, Front Seat Outer, RH
2015-08 → 2017-11
ended
|
GRN305,325,TRN245,265 LCB | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 DCB SR5 | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2015-08 → 2017-11
ended
|
TRN265 DCB | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 LIMD | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2015-08 → 2017-11
ended
|
GRN305 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2015-08 → 2017-11
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73210-04160-C1 note |
Belt Assy, Front Seat Outer, RH
2017-11 → 2019-09
ended
|
GRN305,325,TRN245,265 LCB | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 DCB SR5 | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2017-11 → 2019-09
ended
|
TRN265 DCB | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2017-11 → 2019-09
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2017-11 → 2019-09
ended
|
GRN305 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 LIMD | — | |
| 73210-04160-C1 note |
Belt Assy, Front Seat Outer, RH
2019-09 → —
|
GRN305,325,TRN245,265 LCB | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2019-09 → 2020-09
ended
|
GRN305,310,325,330 DCB SR5 | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2020-09 → —
|
GRN305,310,325,330 DCB SR5 | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2019-09 → —
|
GRN310,330 SR5;GRN305 DCB 6F | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2019-09 → —
|
TRN265 DCB | — | |
| 73210-04260-C0 note |
Belt Assy, Front Seat Outer, RH
2019-09 → —
|
GRN305,325 DCB 6FC SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2023-05 → —
|
GRN310,325,330 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2023-05 → —
|
GRN305 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2023-05 → —
|
GRN305,310,325,330 LIMD | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2019-09 → 2023-03
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2019-09 → 2023-03
ended
|
GRN305 DCB SR5 | — | |
| 73210-04260-C1 note |
Belt Assy, Front Seat Outer, RH
2019-09 → 2023-03
ended
|
GRN305,310,325,330 LIMD | — | |
| 73210-04260-C3 note |
Belt Assy, Front Seat Outer, RH
2023-03 → 2023-05
ended
|
GRN305 DCB SR5 | — | |
| 73210-04260-C3 note |
Belt Assy, Front Seat Outer, RH
2023-03 → 2023-05
ended
|
GRN305,310,325,330 LIMD | — | |
| 73210-04260-C3 note |
Belt Assy, Front Seat Outer, RH
2023-03 → 2023-05
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-02010 note |
Stopper, Tongue Plate
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN22#,24#,26# | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2008-05 → 2010-06
ended
|
GRN265,TRN26# 5F,6F | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN225,245,250,270,TRN22#,24# | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2011-09 → 2014-08
ended
|
TRN220,240 | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02010 note |
Stopper, Tongue Plate
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2019-09 → —
|
GRN305,310,325,330,TRN245,265 | — | |
| 73220 — Belt Assy, Front Seat Outer, LH | ||||
| 73220-04180-B0 note |
Belt Assy, Front Seat Outer, LH
2004-09 → 2007-08
ended
|
TRN220,240,260 | — | |
| 73220-04181-B0 note |
Belt Assy, Front Seat Outer, LH
2007-08 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73220-04191-B0 note |
Belt Assy, Front Seat Outer, LH
2004-09 → 2007-08
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73220-04191-E0 note |
Belt Assy, Front Seat Outer, LH
2004-09 → 2007-08
ended
|
GRN245,265,TRN225,245,265 LCB | — | |
| 73220-04192-B0 note |
Belt Assy, Front Seat Outer, LH
2007-08 → 2008-05
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73220-04192-E0 note |
Belt Assy, Front Seat Outer, LH
2007-08 → 2008-05
ended
|
GRN245,265,TRN225,245,265 LCB | — | |
| 73220-04201-B0 note |
Belt Assy, Front Seat Outer, LH
2004-09 → 2007-08
ended
|
GRN245,250,265,270 DCB | — | |
| 73220-04201-E0 note |
Belt Assy, Front Seat Outer, LH
2004-09 → 2007-08
ended
|
GRN245,250,265,270 DCB | — | |
| 73220-04202-B0 note |
Belt Assy, Front Seat Outer, LH
2007-08 → 2008-05
ended
|
GRN245,250,265,270 DCB | — | |
| 73220-04202-E0 note |
Belt Assy, Front Seat Outer, LH
2007-08 → 2008-05
ended
|
GRN245,250,265,270 DCB | — | |
| 73220-04210-B0 note |
Belt Assy, Front Seat Outer, LH
2004-09 → 2007-08
ended
|
TRN220,240,260 | — | |
| 73220-04211-B0 note |
Belt Assy, Front Seat Outer, LH
2007-08 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73220-04181-B0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73220-04181-B0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73220-04192-A0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73220-04192-A0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2011-09
ended
|
GRN245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) | — | |
| 73220-04192-B0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73220-04192-B0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2011-09
ended
|
GRN225,245,TRN225,245 LCB;GRN265,TRN265 LCB (4FC,5FC) | — | |
| 73220-04202-A0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2011-09
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73220-04202-B0 note |
Belt Assy, Front Seat Outer, LH
2008-05 → 2011-09
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73220-04212-B0 note |
Belt Assy, Front Seat Outer, LH
2010-06 → 2011-09
ended
|
TRN240 4FC | — | |
| 73220-04220-B0 note |
Belt Assy, Front Seat Outer, LH
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73220-04230-B0 note |
Belt Assy, Front Seat Outer, LH
2011-09 → 2014-08
ended
|
TRN240 4FC | — | |
| 73220-04240-A0 note |
Belt Assy, Front Seat Outer, LH
2011-09 → 2015-08
ended
|
GRN245,265,TRN225,245,265 LCB | — | |
| 73220-04240-B0 note |
Belt Assy, Front Seat Outer, LH
2011-09 → 2015-08
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73220-04250-A0 note |
Belt Assy, Front Seat Outer, LH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73220-04250-B0 note |
Belt Assy, Front Seat Outer, LH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,265 DCB | — | |
| 73220-04170-C1 note |
Belt Assy, Front Seat Outer, LH
2015-08 → 2017-11
ended
|
GRN305,325,TRN245,265 LCB | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 DCB SR5 | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2015-08 → 2017-11
ended
|
TRN265 DCB | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 LIMD | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2015-08 → 2017-11
ended
|
GRN305 DCB SR5 | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2015-08 → 2017-11
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73220-04170-C1 note |
Belt Assy, Front Seat Outer, LH
2017-11 → 2019-09
ended
|
GRN305,325,TRN245,265 LCB | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 DCB SR5 | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2017-11 → 2019-09
ended
|
TRN265 DCB | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 LIMD | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2017-11 → 2019-09
ended
|
GRN305 DCB SR5 | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2017-11 → 2019-09
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73220-04170-C1 note |
Belt Assy, Front Seat Outer, LH
2019-09 → —
|
GRN305,325,TRN245,265 LCB | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2019-09 → 2020-09
ended
|
GRN305,310,325,330 DCB SR5 | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2020-09 → —
|
GRN305,310,325,330 DCB SR5 | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2019-09 → —
|
GRN310,330 SR5;GRN305 DCB 6F | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2019-09 → —
|
TRN265 DCB | — | |
| 73220-04260-C0 note |
Belt Assy, Front Seat Outer, LH
2019-09 → —
|
GRN305,325 DCB 6FC SR5 | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2019-09 → 2023-03
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2019-09 → 2023-03
ended
|
GRN305 DCB SR5 | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2019-09 → 2023-03
ended
|
GRN305,310,325,330 LIMD | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2023-05 → —
|
GRN305,310,325,330 LIMD | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2023-05 → —
|
GRN305 DCB SR5 | — | |
| 73220-04260-C1 note |
Belt Assy, Front Seat Outer, LH
2023-05 → —
|
GRN310,325,330 DCB SR5 | — | |
| 73220-04260-C3 note |
Belt Assy, Front Seat Outer, LH
2023-03 → 2023-05
ended
|
GRN310,325,330 DCB SR5 | — | |
| 73220-04260-C3 note |
Belt Assy, Front Seat Outer, LH
2023-03 → 2023-05
ended
|
GRN305 DCB SR5 | — | |
| 73220-04260-C3 note |
Belt Assy, Front Seat Outer, LH
2023-03 → 2023-05
ended
|
GRN305,310,325,330 LIMD | — | |
| 73230 — Belt Assy, Front Seat Inner, RH | ||||
| 73230-04151-B0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2005-08
ended
|
TRN220,240,260 | — | |
| 73230-04160-B0 note |
Belt Assy, Front Seat Inner, RH
2005-08 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2008-05
ended
|
GRN225 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2007-08 → 2008-05
ended
|
GRN245,265 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2008-05
ended
|
GRN245,250,265,270 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2008-05
ended
|
GRN245,265 | — | |
| 73230-AD021-B0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73230-AD021-B0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2008-05
ended
|
GRN245,250,265,270,TRN225,245,265 | — | |
| 73230-AD021-E0 note |
Belt Assy, Front Seat Inner, RH
2004-09 → 2008-05
ended
|
GRN245,250,265,270,TRN225,245,265 | — | |
| 73230-04160-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73230-04160-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2011-09
ended
|
GRN245;GRN265 5FC | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2011-09
ended
|
GRN265 5FC;GRN245,250,270 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2011-09
ended
|
GRN225 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2010-06
ended
|
GRN265 6F | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2010-06
ended
|
GRN265 6F | — | |
| 73230-AD021-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73230-AD021-B0 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2011-09
ended
|
GRN245,250,270,TRN225,245;GRN265,TRN240,265 4FC,5FC | — | |
| 73230-AD021-E1 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73230-AD021-E1 note |
Belt Assy, Front Seat Inner, RH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN245,250,270,TRN225,245 | — | |
| 73230-04160-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2014-08 → 2015-08
ended
|
GRN245,265 DCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2012-08 → 2015-08
ended
|
GRN245,250,265,270 DCB 5FC | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2012-08 → 2015-08
ended
|
GRN245,250,265,270 DCB 5FC | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2012-08 → 2015-08
ended
|
GRN245,265 DCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2012-08 → 2015-08
ended
|
GRN245,265 LCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2012-08 → 2015-08
ended
|
GRN245,265 LCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2014-08 → 2015-08
ended
|
GRN245,265 DCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2015-08
ended
|
GRN245,250,265,270 DCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2015-08
ended
|
GRN245,250,265,270 DCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2015-08
ended
|
GRN245,265 DCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2015-08
ended
|
GRN225 | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2014-08 → 2015-08
ended
|
GRN245,265 LCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2012-08
ended
|
GRN245,265 LCB | — | |
| 73230-AD011-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2012-08
ended
|
GRN245,265 LCB | — | |
| 73230-AD021-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,245,265 | — | |
| 73230-AD021-B0 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2014-08
ended
|
TRN240 4FC | — | |
| 73230-AD021-E1 note |
Belt Assy, Front Seat Inner, RH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,245,265 | — | |
| 73230-04180-C0 note |
Belt Assy, Front Seat Inner, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 LIMD | — | |
| 73230-04180-C0 note |
Belt Assy, Front Seat Inner, RH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 SR5 | — | |
| 73230-04180-C0 note |
Belt Assy, Front Seat Inner, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 LIMD | — | |
| 73230-04180-C0 note |
Belt Assy, Front Seat Inner, RH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 SR5 | — | |
| 73230-04180-C0 note |
Belt Assy, Front Seat Inner, RH
2019-09 → —
|
GRN305,310,325,330 LIMD | — | |
| 73230-04180-C0 note |
Belt Assy, Front Seat Inner, RH
2019-09 → —
|
GRN305,310,325,330,TRN245,265 SR5 | — | |
| 73240 — Belt Assy, Front Seat Inner, LH | ||||
| 73240-04171-B0 note |
Belt Assy, Front Seat Inner, LH
2004-09 → 2007-08
ended
|
TRN220,240,260 | — | |
| 73240-04180-B0 note |
Belt Assy, Front Seat Inner, LH
2007-08 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73240-AD011-B0 note |
Belt Assy, Front Seat Inner, LH
2004-09 → 2008-05
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 73240-AD011-B0 note |
Belt Assy, Front Seat Inner, LH
2004-09 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73240-AD011-E0 note |
Belt Assy, Front Seat Inner, LH
2004-09 → 2008-05
ended
|
GRN245,250,265,270,TRN225,245,265 | — | |
| 73240-04180-B0 note |
Belt Assy, Front Seat Inner, LH
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73240-04180-B0 note |
Belt Assy, Front Seat Inner, LH
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73240-AD011-B0 note |
Belt Assy, Front Seat Inner, LH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73240-AD011-B0 note |
Belt Assy, Front Seat Inner, LH
2008-05 → 2011-09
ended
|
GRN265,TRN240,265 4FC,5FC;GRN225,245,250,270,TRN225,245 | — | |
| 73240-AD011-E1 note |
Belt Assy, Front Seat Inner, LH
2008-05 → 2010-06
ended
|
GRN265,TRN265 5F,6F | — | |
| 73240-AD011-E1 note |
Belt Assy, Front Seat Inner, LH
2008-05 → 2011-09
ended
|
GRN265,TRN265 4FC,5FC;GRN245,250,270,TRN225,245 | — | |
| 73240-04180-B0 note |
Belt Assy, Front Seat Inner, LH
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73240-AD011-B0 note |
Belt Assy, Front Seat Inner, LH
2011-09 → 2014-08
ended
|
TRN240 4FC | — | |
| 73240-AD011-B0 note |
Belt Assy, Front Seat Inner, LH
2011-09 → 2015-08
ended
|
GRN225,245,250,265,270,TRN225,245,265 | — | |
| 73240-AD011-E1 note |
Belt Assy, Front Seat Inner, LH
2011-09 → 2015-08
ended
|
GRN245,250,265,270,TRN225,245,265 | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330 LIMD | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2015-08 → 2017-11
ended
|
GRN305,310,325,330,TRN245,265 SR5 | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330 LIMD | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2017-11 → 2019-09
ended
|
GRN305,310,325,330,TRN245,265 SR5 | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2019-09 → 2020-09
ended
|
GRN305,310,325,330 SR5 | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2020-09 → —
|
GRN305,310,325,330 SR5 | — | |
| 73240-04210-C0 note |
Belt Assy, Front Seat Inner, LH
2019-09 → —
|
TRN245,265 | — | |
| 73240-04220-C0 note |
Belt Assy, Front Seat Inner, LH
2019-09 → 2023-03
ended
|
GRN305,310,325,330 SR5 | — | |
| 73240-04220-C0 note |
Belt Assy, Front Seat Inner, LH
2019-09 → 2023-03
ended
|
GRN305,310,325,330 LIMD | — | |
| 73240-04220-C0 note |
Belt Assy, Front Seat Inner, LH
2023-05 → —
|
GRN305,310,325,330 LIMD | — | |
| 73240-04220-C0 note |
Belt Assy, Front Seat Inner, LH
2023-05 → —
|
GRN305,310,325,330 SR5 | — | |
| 73240-04220-C1 note |
Belt Assy, Front Seat Inner, LH
2023-03 → 2023-05
ended
|
GRN305,310,325,330 SR5 | — | |
| 73240-04220-C1 note |
Belt Assy, Front Seat Inner, LH
2023-03 → 2023-05
ended
|
GRN305,310,325,330 LIMD | — | |
| 73344 — Guide, Rear Seat Shoulder Belt, LH | ||||
| 73344-AA010-B2 note |
Guide, Rear Seat Shoulder Belt, LH
2004-09 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73344-AA010-B2 note |
Guide, Rear Seat Shoulder Belt, LH
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73344-AA010-B2 note |
Guide, Rear Seat Shoulder Belt, LH
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73344-AA010-B2 note |
Guide, Rear Seat Shoulder Belt, LH
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73709 — Bracket Sub-assy, Tether Anchor | ||||
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2004-09 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2004-09 → 2008-05
ended
|
TRN220,240,260 | — | |
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2004-09 → 2008-05
ended
|
GRN225,245,265,TRN225,245,265 LCB | — | |
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2008-05 → 2010-06
ended
|
TRN260 | — | |
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2008-05 → 2011-09
ended
|
TRN220;TRN240 5F | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2008-05 → 2011-09
ended
|
TRN240 5F | — | |
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2010-06 → 2011-09
ended
|
TRN240 4FC | — | |
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2011-09 → 2014-08
ended
|
TRN240 4FC | — | |
| 73709-04020 |
Bracket Sub-assy, Tether Anchor
2011-09 → 2014-08
ended
|
TRN220;TRN240 5F | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2014-08 → 2015-08
ended
|
TRN225,245,265 LCB | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2015-08 → 2017-11
ended
|
TRN245,265 LCB | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2017-11 → 2019-09
ended
|
TRN245,265 LCB | — | |
| 73709-04020 note |
Bracket Sub-assy, Tether Anchor
2019-09 → —
|
TRN245,265 LCB | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
