Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

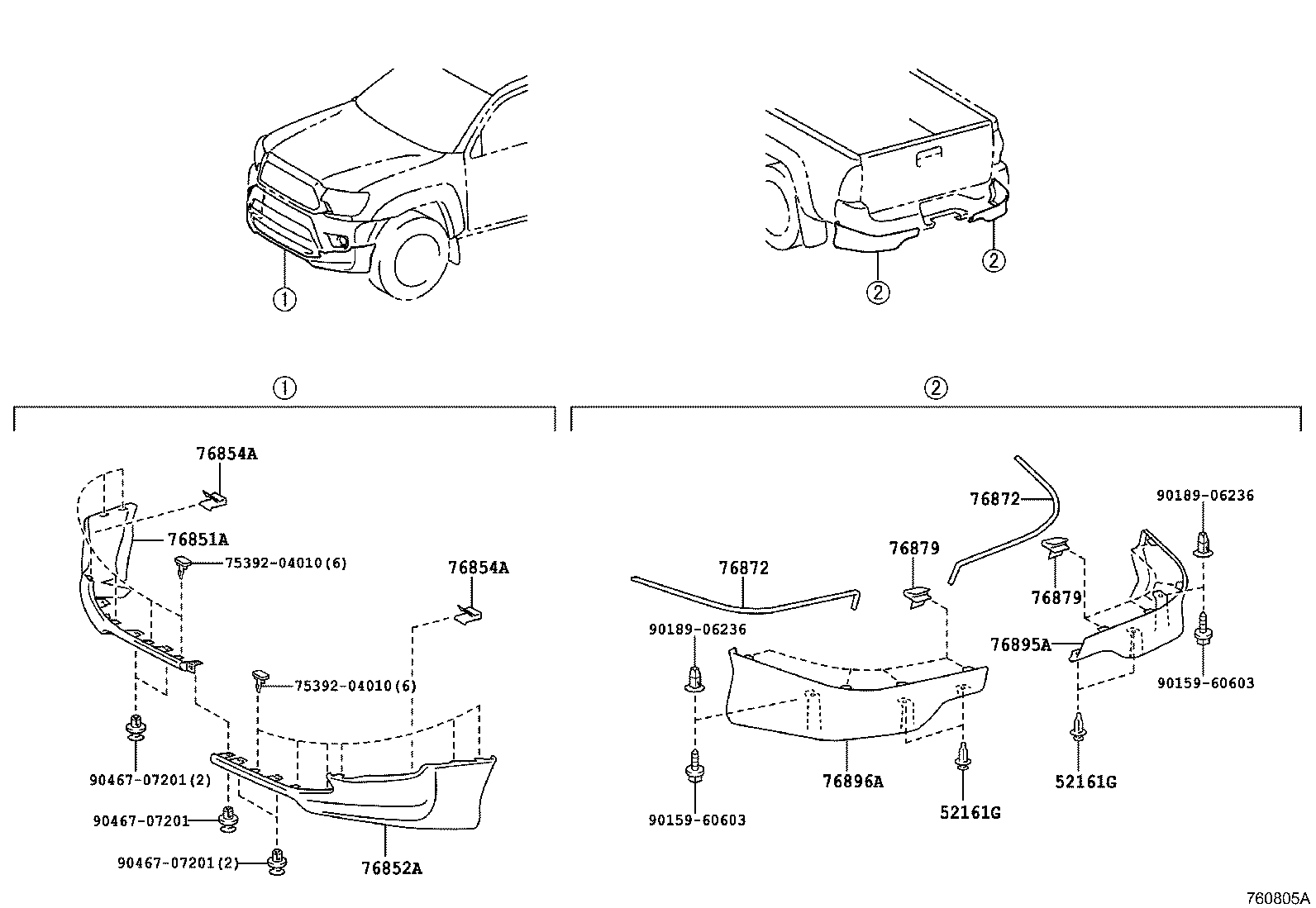

Exploded illustration 760805A 7539204010 — not listed in this catalogue 7539204010 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 52161G — PIECE, REAR BUMPER (4 parts) 52161G — PIECE, REAR BUMPER (4 parts) 76872 — PROTECTOR, REAR SPOILER, NO.1 (4 parts) 76854A — RETAINER, FRONT SPOILER, NO.2 (3 parts) 76854A — RETAINER, FRONT SPOILER, NO.2 (3 parts) 76872 — PROTECTOR, REAR SPOILER, NO.1 (4 parts) 76879 — CLIP, REAR SPOILER, NO.1 (4 parts) 76879 — CLIP, REAR SPOILER, NO.1 (4 parts) 76895A — SPOILER, REAR BUMPER, RH (4 parts) 76896A — SPOILER, REAR BUMPER, LH (4 parts) 76851A — COVER, FRONT SPOILER, RH (4 parts) 76852A — COVER, FRONT SPOILER, LH (4 parts) 9015960603 — not listed in this catalogue 9015960603 — not listed in this catalogue 9018906236 — not listed in this catalogue 9018906236 — not listed in this catalogue
760805A · 12 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
52161G — Piece, Rear Bumper
52161-02020 Piece, Rear Bumper
2004-09 → 2008-05 ended
GRN225 —
52161-02020 Piece, Rear Bumper
2008-05 → 2011-09 ended
GRN225 —
52161-02020 note Piece, Rear Bumper
2011-09 → 2012-08 ended
TRN225 LCB —
52161-02020 Piece, Rear Bumper
2011-09 → 2015-08 ended
GRN225 —
76851A — Cover, Front Spoiler, RH
76851-04902 Cover, Front Spoiler, RH
2004-09 → 2008-05 ended
GRN225 —
76851-04902 Cover, Front Spoiler, RH
2008-05 → 2011-09 ended
GRN225 —
76851-04903 note Cover, Front Spoiler, RH
2011-09 → 2012-08 ended
TRN225 LCB —
76851-04903 Cover, Front Spoiler, RH
2011-09 → 2015-08 ended
GRN225 —
76852A — Cover, Front Spoiler, LH
76852-04902 Cover, Front Spoiler, LH
2004-09 → 2008-05 ended
GRN225 —
76852-04902 Cover, Front Spoiler, LH
2008-05 → 2011-09 ended
GRN225 —
76852-04903 note Cover, Front Spoiler, LH
2011-09 → 2012-08 ended
TRN225 LCB —
76852-04903 Cover, Front Spoiler, LH
2011-09 → 2015-08 ended
GRN225 —
76854A — Retainer, Front Spoiler, NO.2
76854-44010 Retainer, Front Spoiler, NO.2
2004-09 → 2008-05 ended
GRN225 —
76854-44010 Retainer, Front Spoiler, NO.2
2008-05 → 2011-09 ended
GRN225 —
76854-44010 Retainer, Front Spoiler, NO.2
2011-09 → 2015-08 ended
GRN225 —
76872 — Protector, Rear Spoiler, NO.1
76872-04010 Protector, Rear Spoiler, NO.1
2004-09 → 2008-05 ended
GRN225 —
76872-04010 Protector, Rear Spoiler, NO.1
2008-05 → 2011-09 ended
GRN225 —
76872-04010 note Protector, Rear Spoiler, NO.1
2011-09 → 2012-08 ended
TRN225 LCB —
76872-04010 Protector, Rear Spoiler, NO.1
2011-09 → 2015-08 ended
GRN225 —
76879 — Clip, Rear Spoiler, NO.1
76879-04010 Clip, Rear Spoiler, NO.1
2004-09 → 2008-05 ended
GRN225 —
76879-04010 Clip, Rear Spoiler, NO.1
2008-05 → 2011-09 ended
GRN225 —
76879-04010 note Clip, Rear Spoiler, NO.1
2011-09 → 2012-08 ended
TRN225 LCB —
76879-04010 Clip, Rear Spoiler, NO.1
2011-09 → 2015-08 ended
GRN225 —
76895A — Spoiler, Rear Bumper, RH
76895-04901 Spoiler, Rear Bumper, RH
2004-09 → 2008-05 ended
GRN225 —
76895-04901 Spoiler, Rear Bumper, RH
2008-05 → 2011-09 ended
GRN225 —
76895-04901 note Spoiler, Rear Bumper, RH
2011-09 → 2012-08 ended
TRN225 LCB —
76895-04901 Spoiler, Rear Bumper, RH
2011-09 → 2015-08 ended
GRN225 —
76896A — Spoiler, Rear Bumper, LH
76896-04901 Spoiler, Rear Bumper, LH
2004-09 → 2008-05 ended
GRN225 —
76896-04901 Spoiler, Rear Bumper, LH
2008-05 → 2011-09 ended
GRN225 —
76896-04901 note Spoiler, Rear Bumper, LH
2011-09 → 2012-08 ended
TRN225 LCB —
76896-04901 Spoiler, Rear Bumper, LH
2011-09 → 2015-08 ended
GRN225 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
