Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 8 illustrations

Illustrations

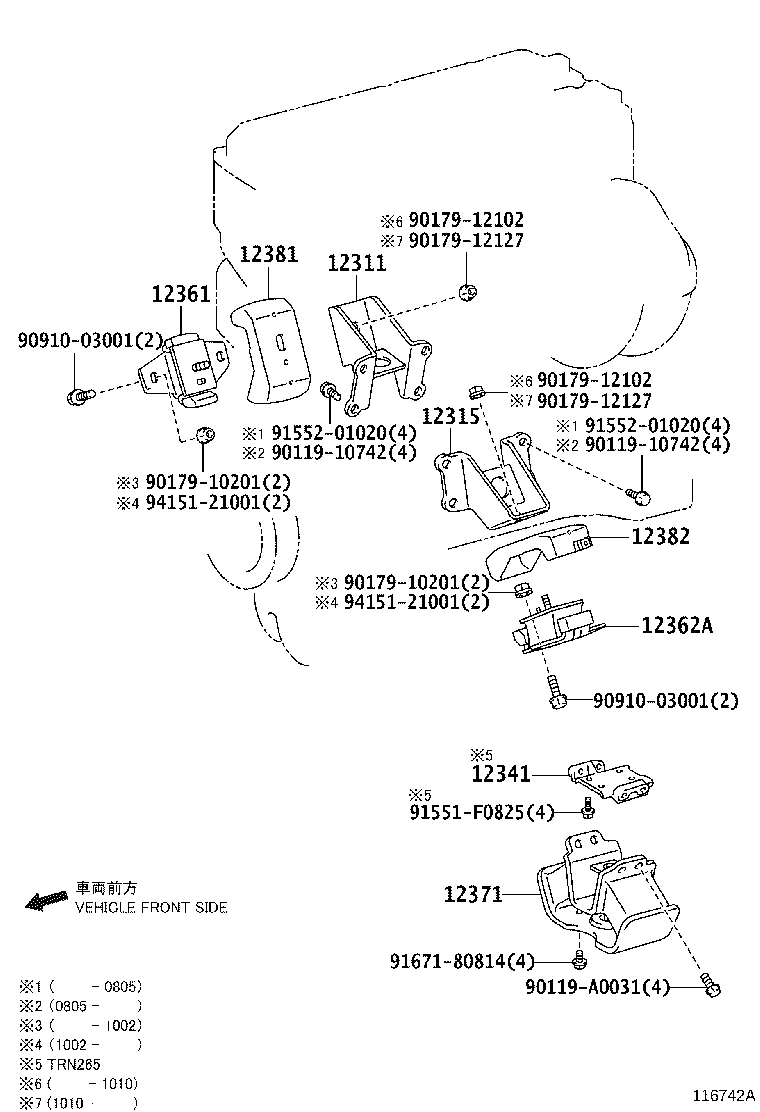

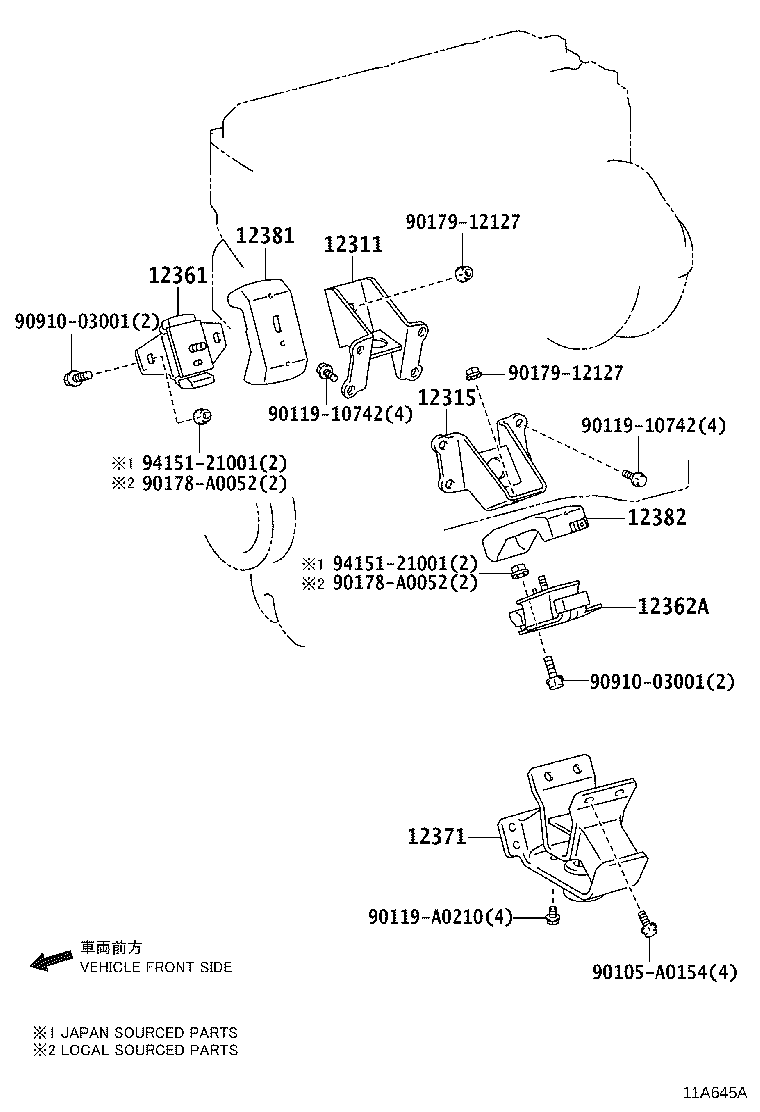

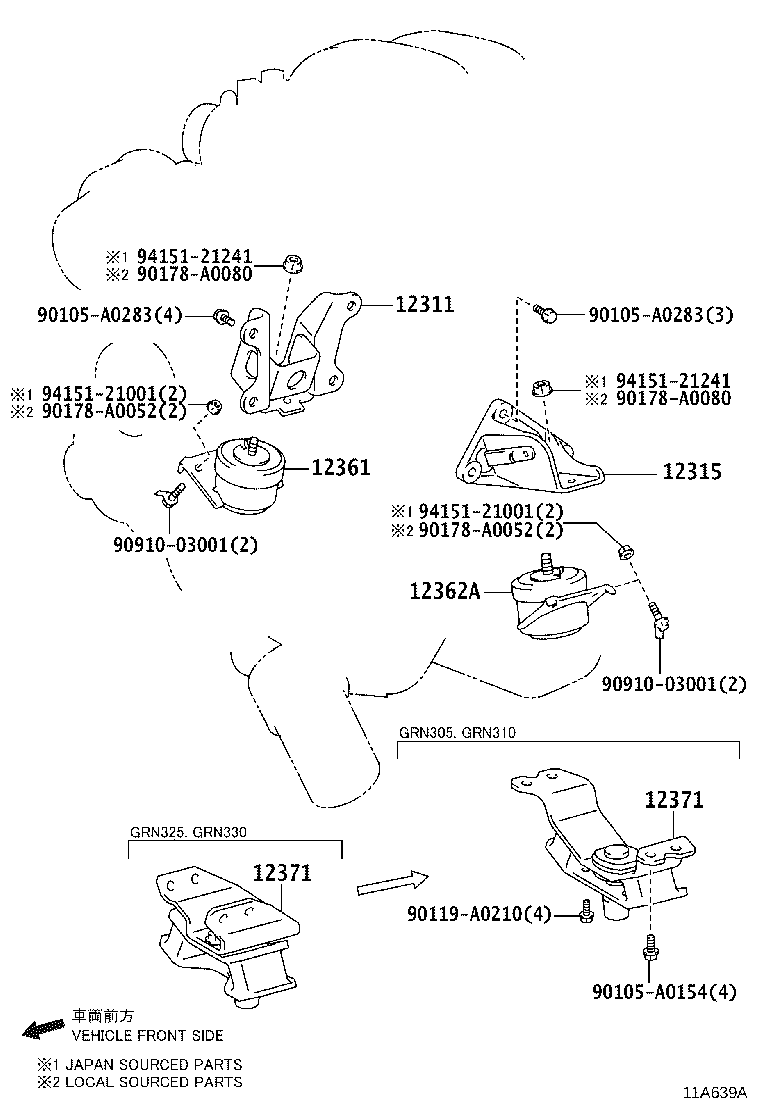

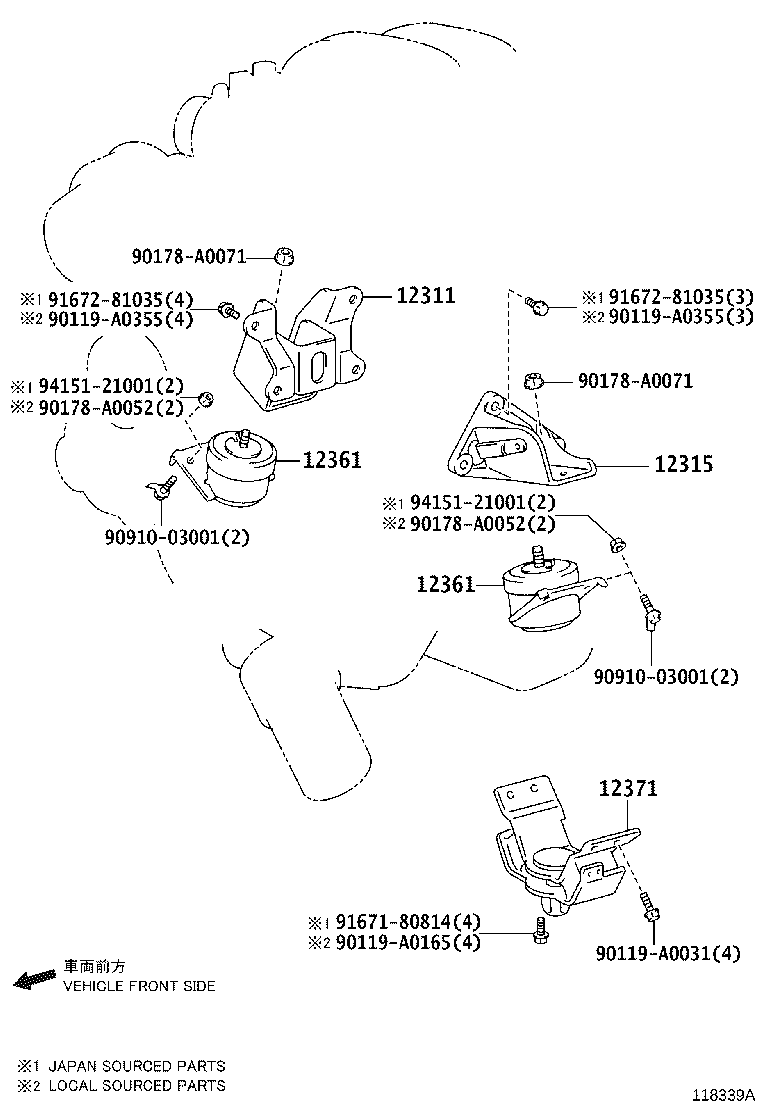

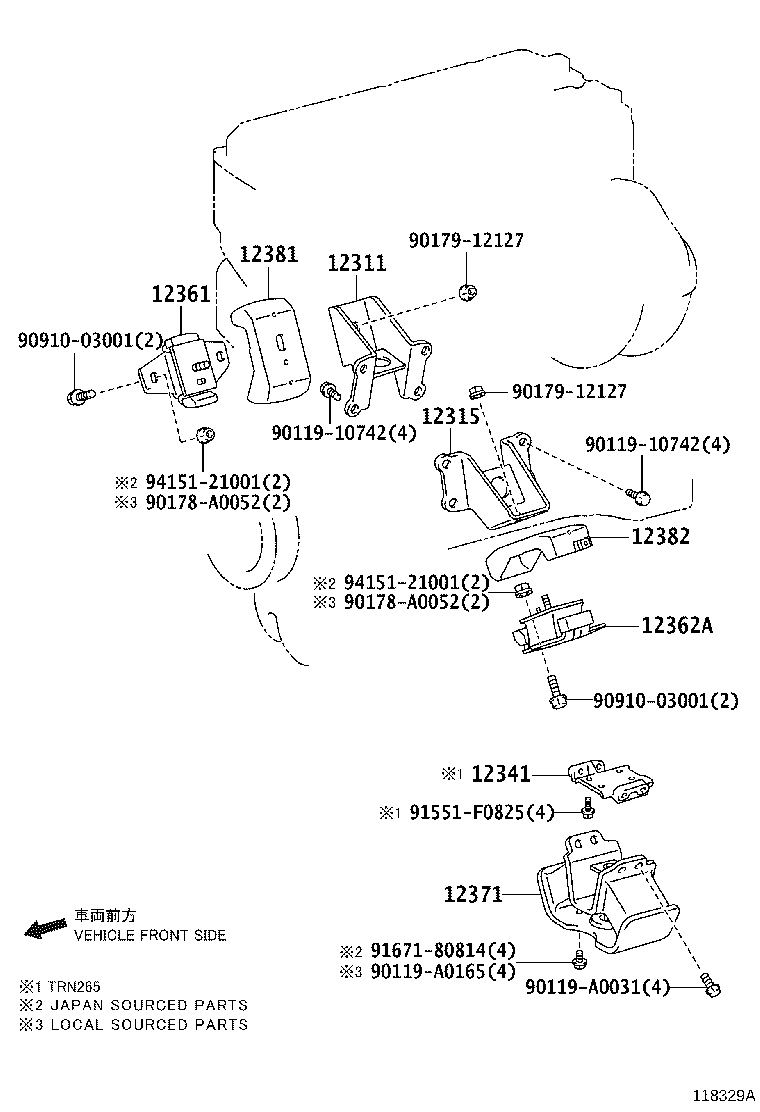

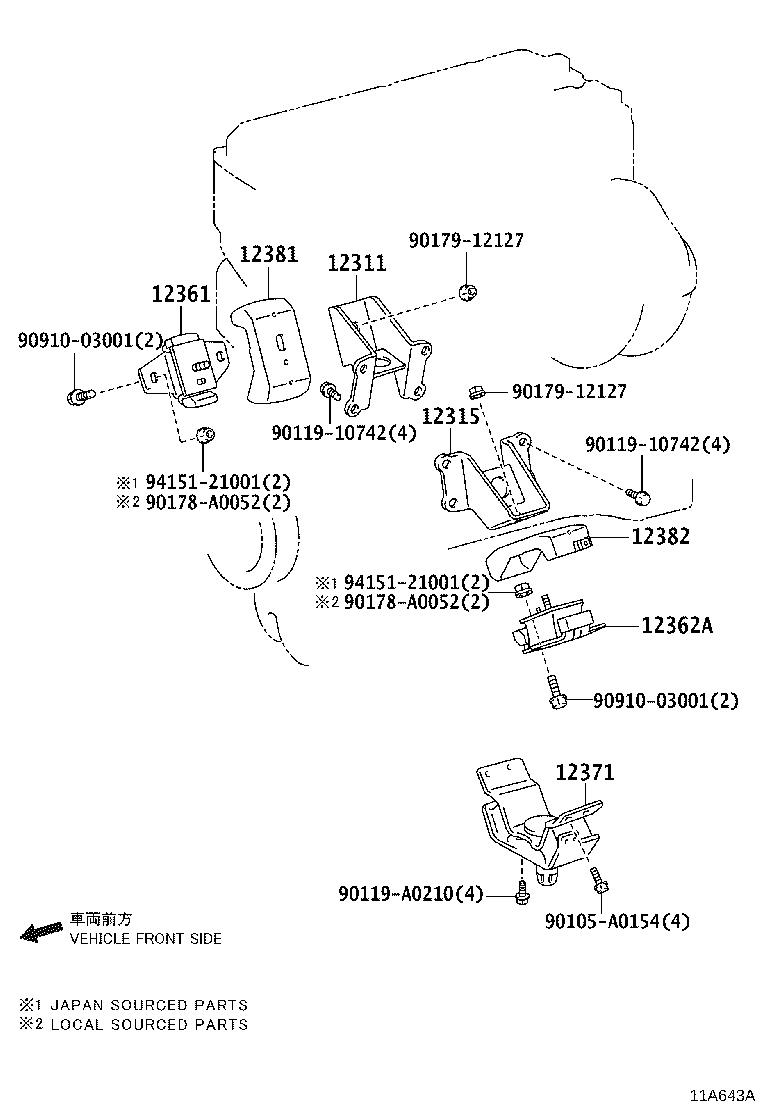

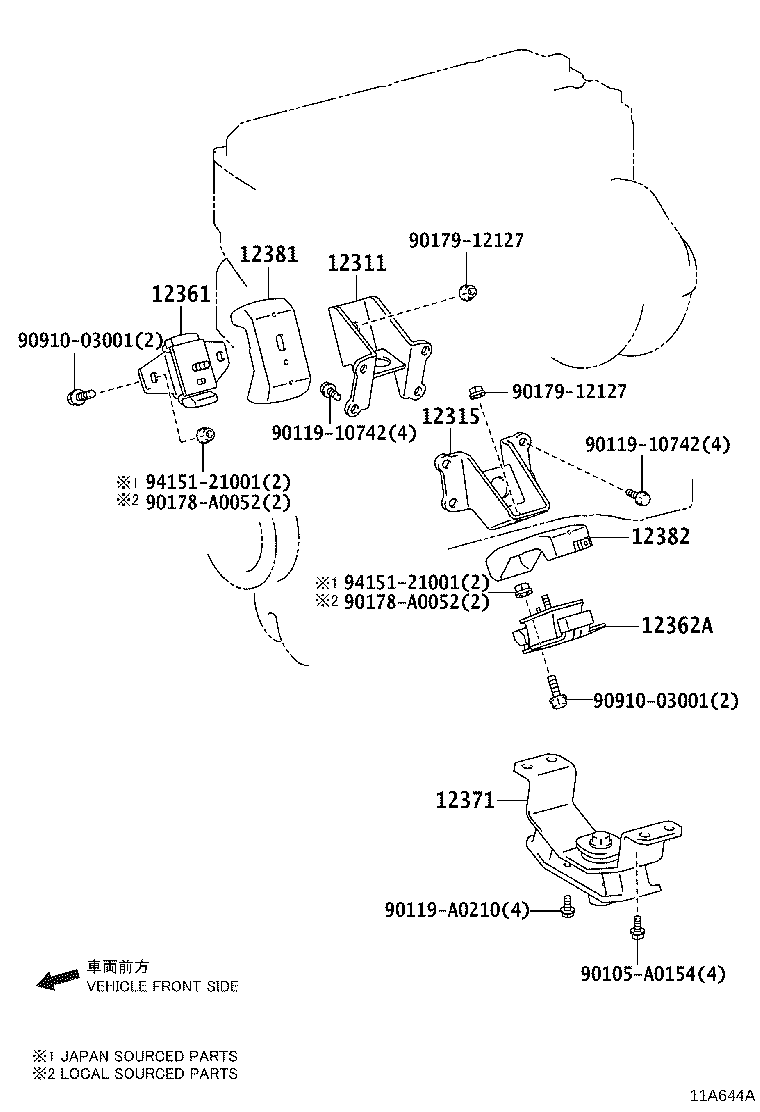

Figure 116403C 116403C 2004-09 → 2013-02 Figure 118339A 118339A 2013-02 → — Figure 11A639A 11A639A 2015-08 → — Figure 116742A 116742A 2004-09 → 2013-02 Figure 118329A 118329A 2013-02 → 2015-08 Figure 11A643A 11A643A 2015-08 → — Figure 11A644A 11A644A 2015-08 → — Figure 11A645A 11A645A 2015-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12341 Spacer, Engine Mounting
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
