Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

15 part groups · 7 illustrations

Illustrations

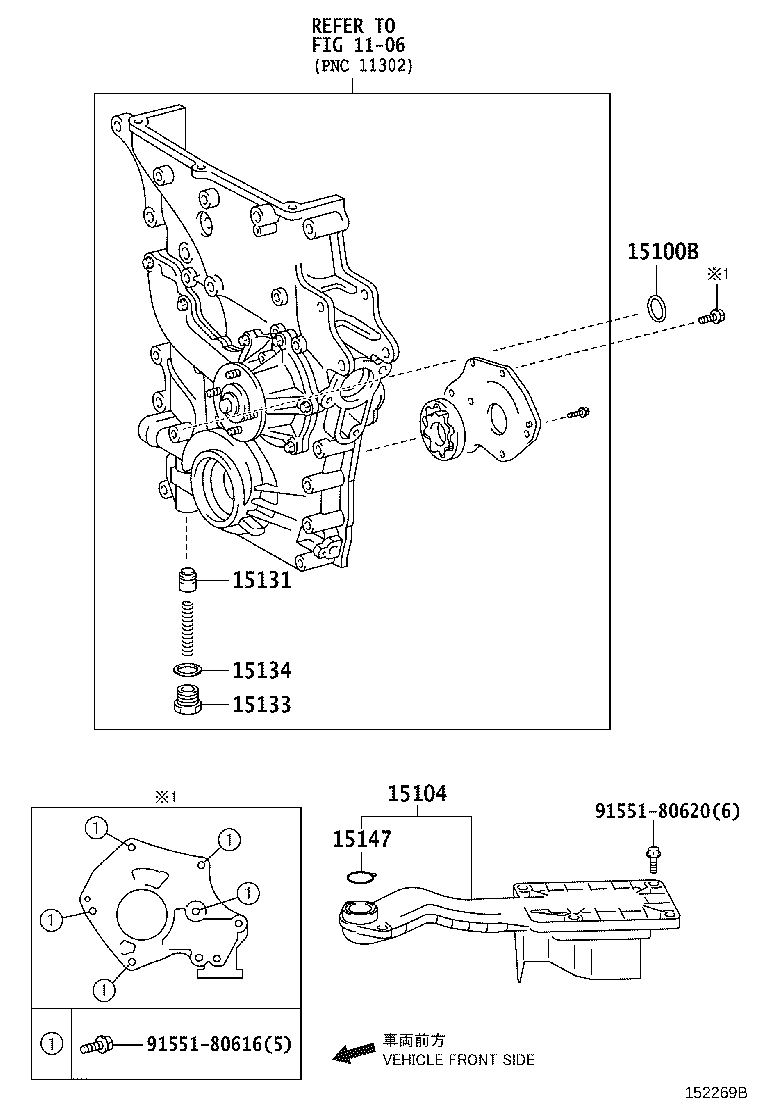

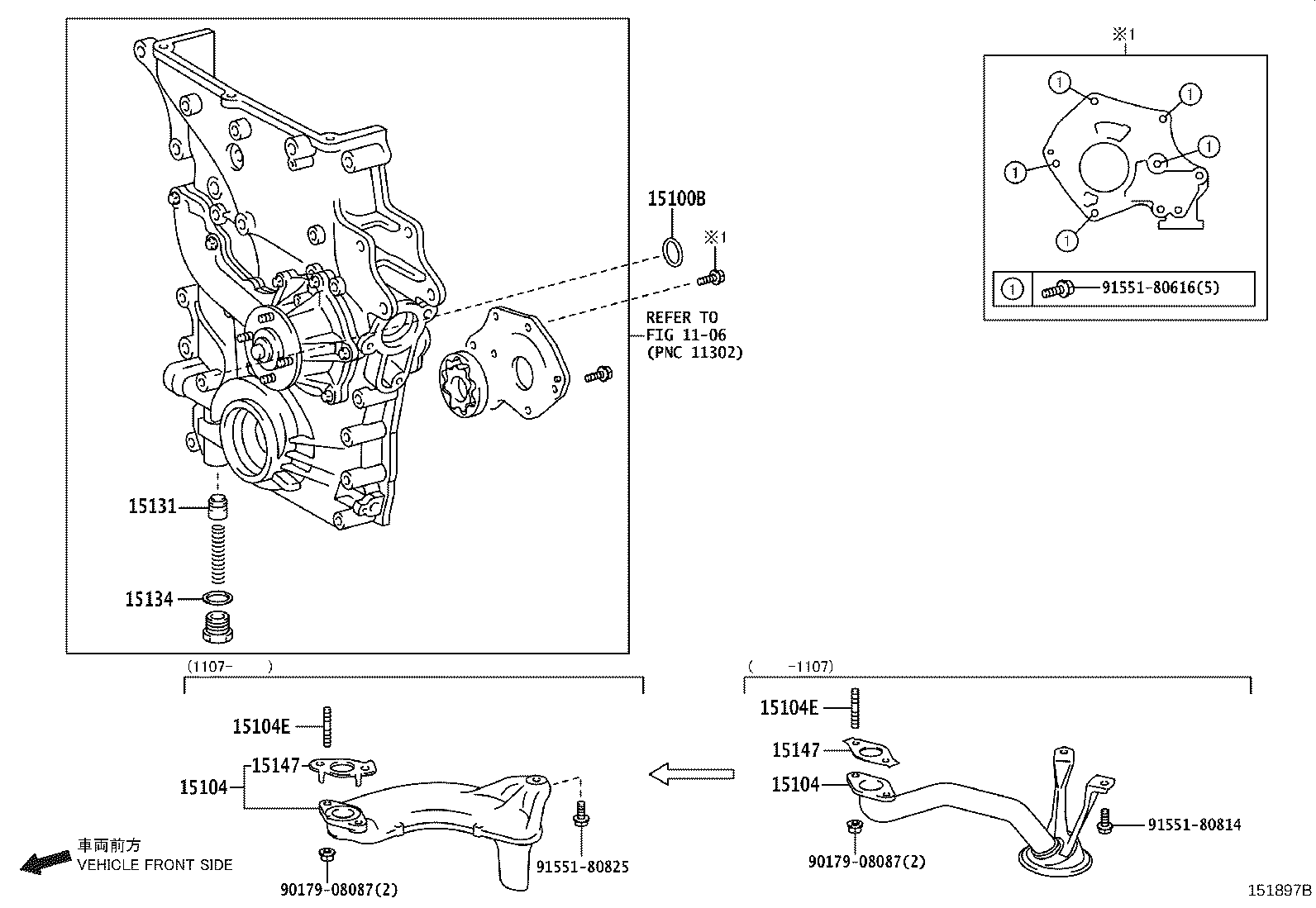

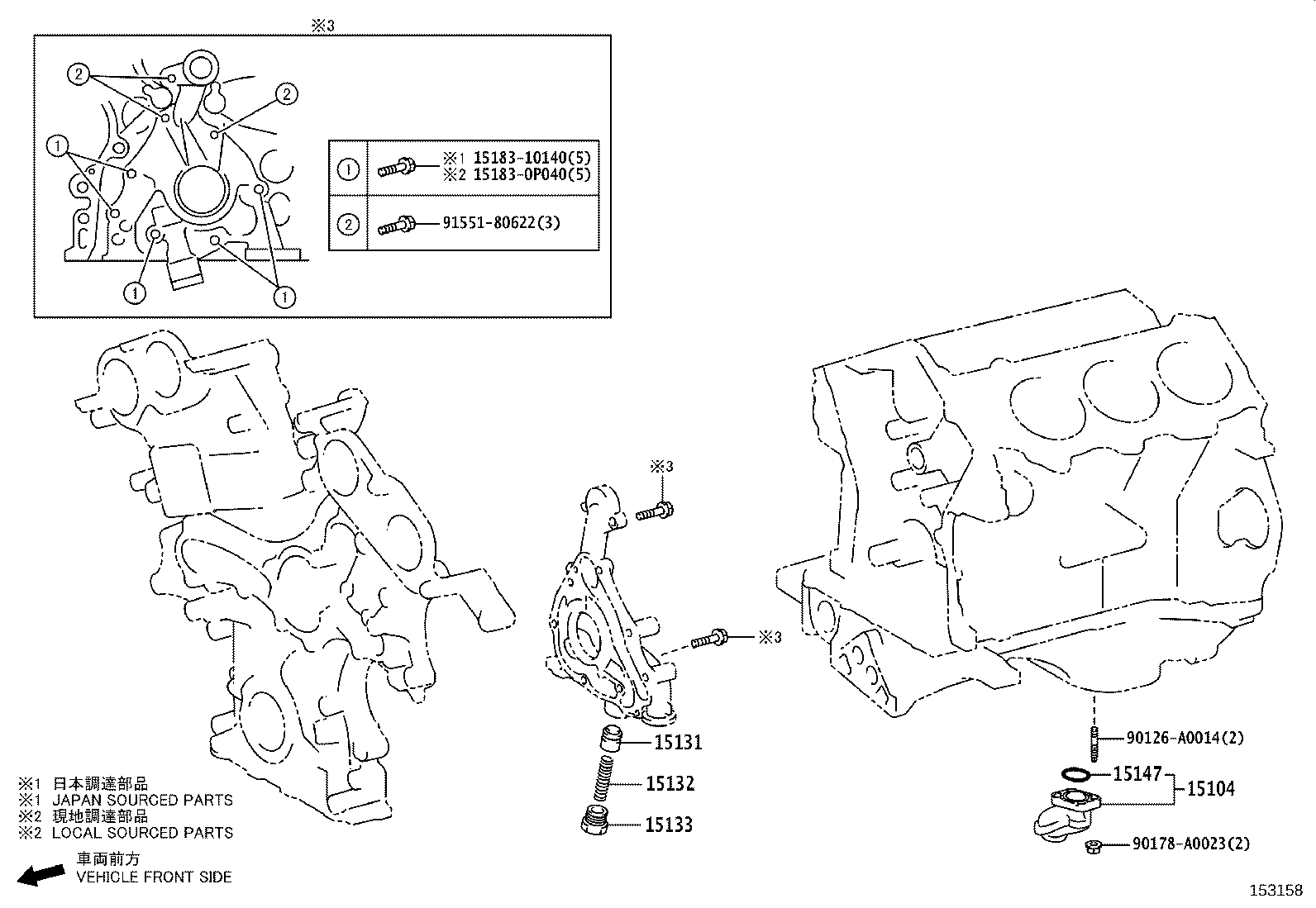

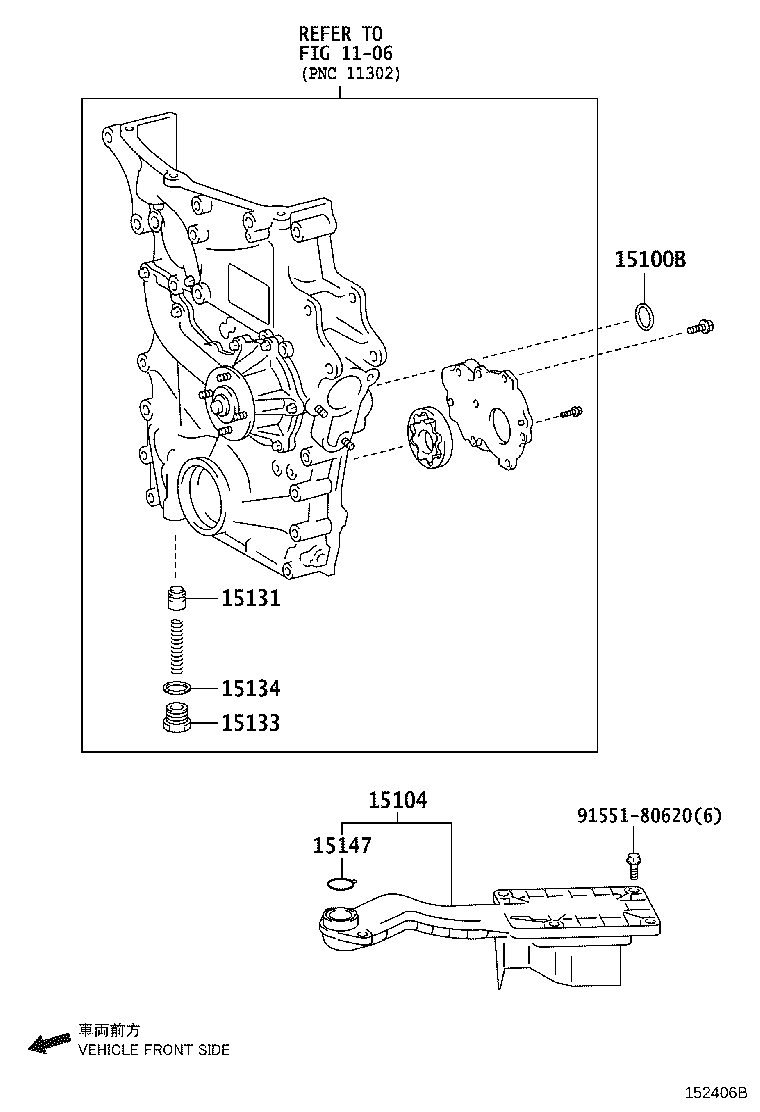

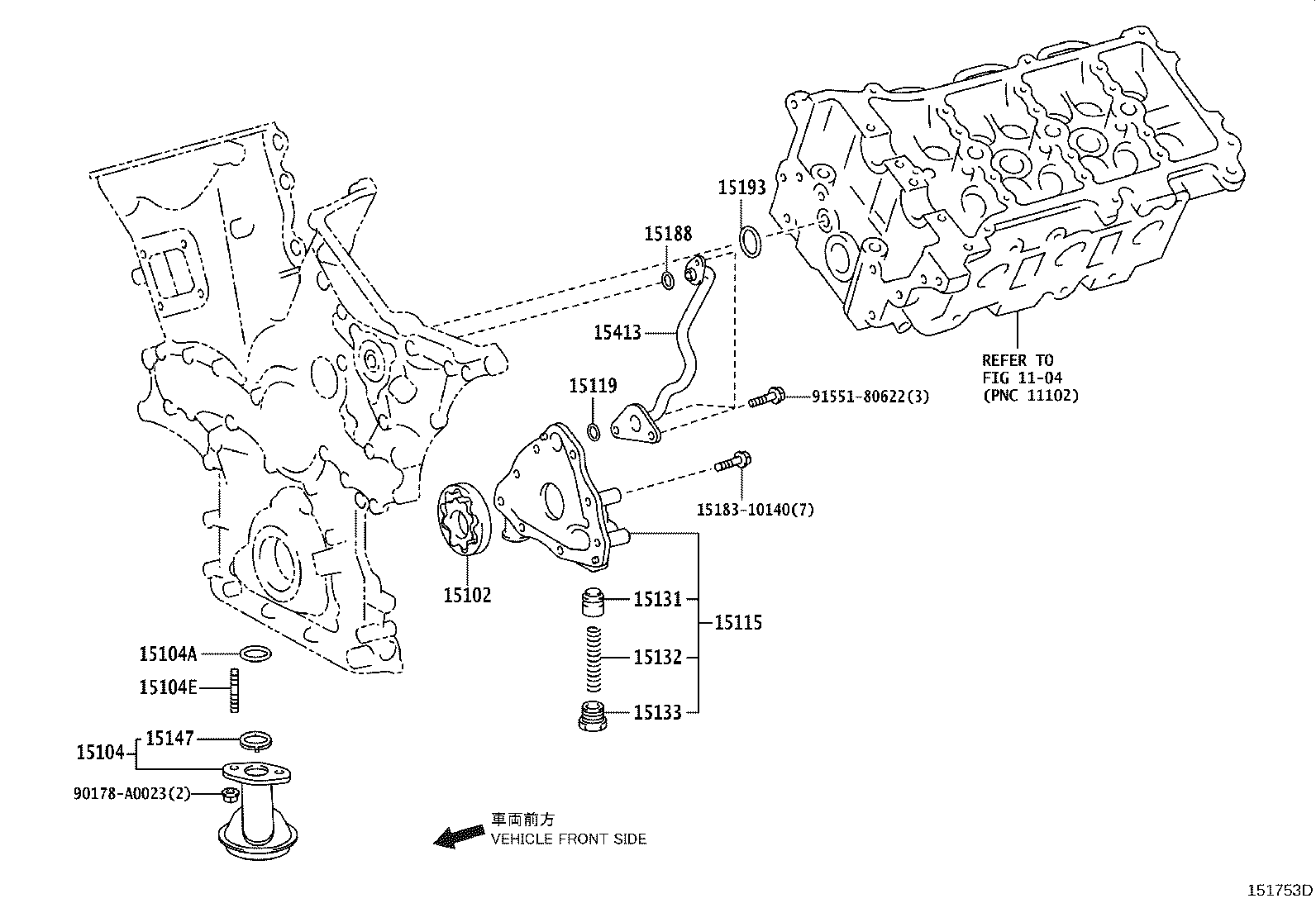

Figure 151754C 151754C 2004-09 → 2010-06 Figure 151753D 151753D 2010-06 → — Figure 153158 153158 2015-08 → — Figure 151897B 151897B 2004-09 → 2014-11 Figure 151897B 151897B 2004-09 → — Figure 152269B 152269B 2014-11 → 2015-08 Figure 152406B 152406B 2015-08 → —

Part groups

PNCDescription
15100B Ring, O(FOR OIL PUMP)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15188 Gasket, Oil Pump
15193 Gasket, Oil Pump
15413 Pipe, Oil Pump Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
