Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 4 illustrations

Illustrations

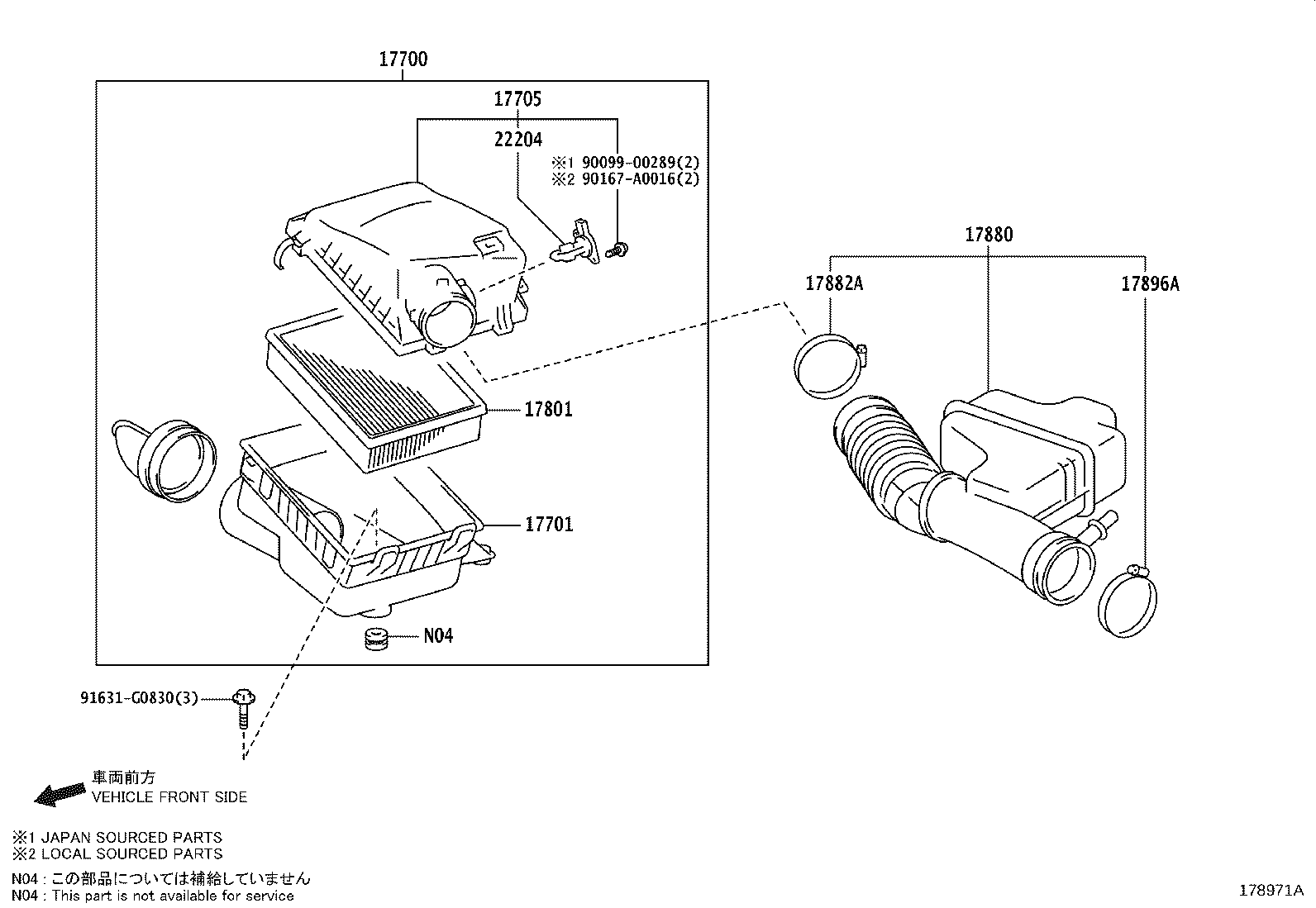

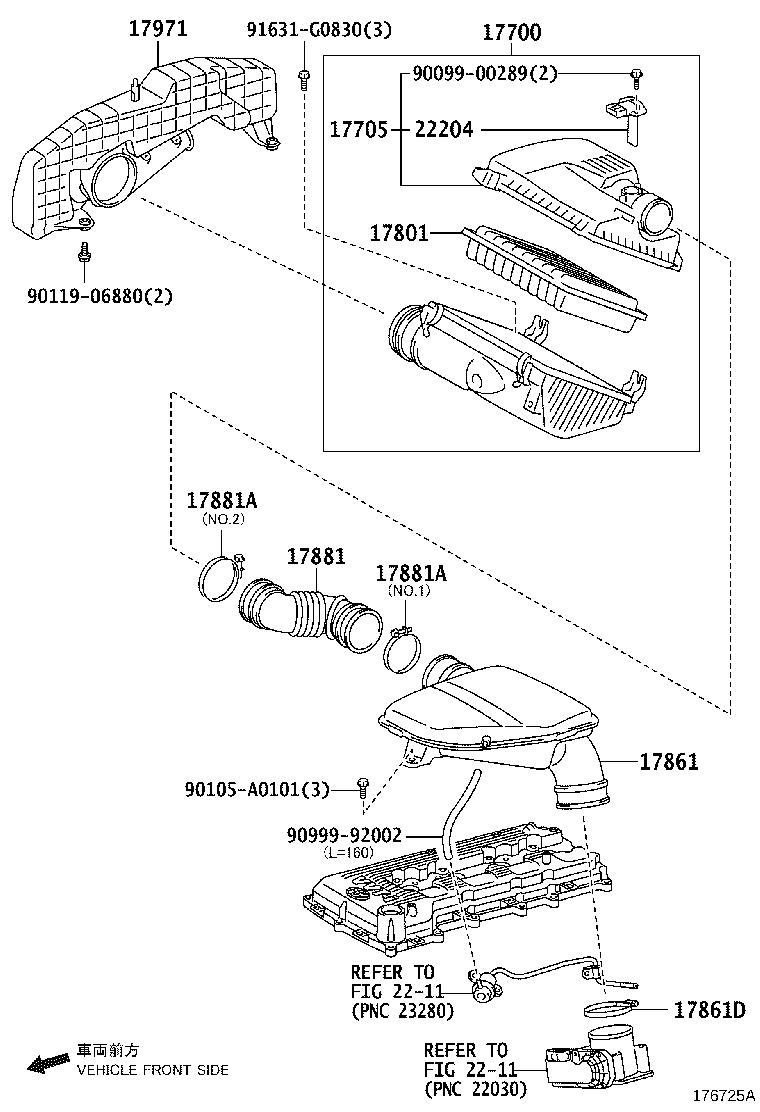

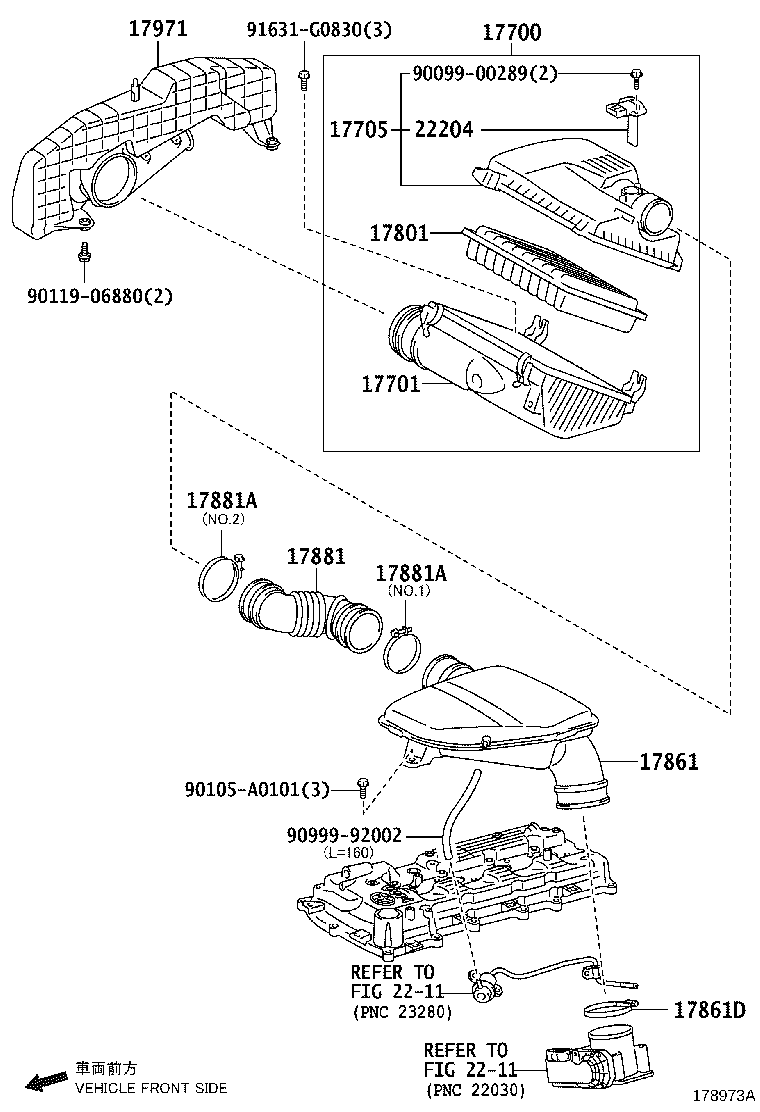

Figure 174217F 174217F 2004-09 → — Figure 178971A 178971A 2015-08 → — Figure 176725A 176725A 2004-09 → 2015-08 Figure 178973A 178973A 2015-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
17971 Inlet, Cool Air, NO.1
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
