Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

16 part groups · 2 illustrations

Illustrations

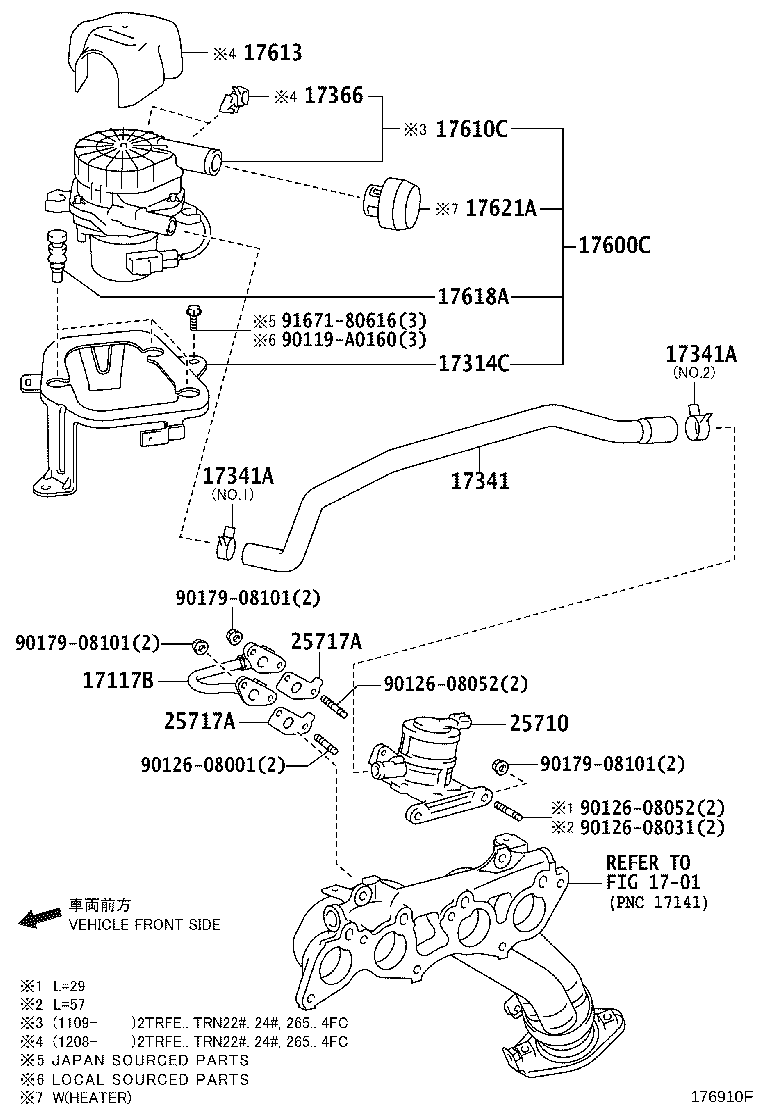

Figure 177960B 177960B 2011-08 → — Figure 176910F 176910F 2004-09 → —

Part groups

PNCDescription
17117B Pipe, Intake, NO.4
17314C Bracket, Air Pump
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17361 Tube, Air
17362 Tube, Air, NO.2
17366 Clamp, Air Injection Hose, NO.1
17376D Gasket, Air Tube, NO.2
17377 Gasket, Air Tube, NO.2
17600C Pump Assy, Air
17610C Pump Assy, Air
17613 Cover, Air Pump
17618A Insulator, Air Pump
17621A Inlet, Air Pump
25710 Valve Assy, Air Switching
25717A Gasket, Air Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
