Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 8 illustrations

Illustrations

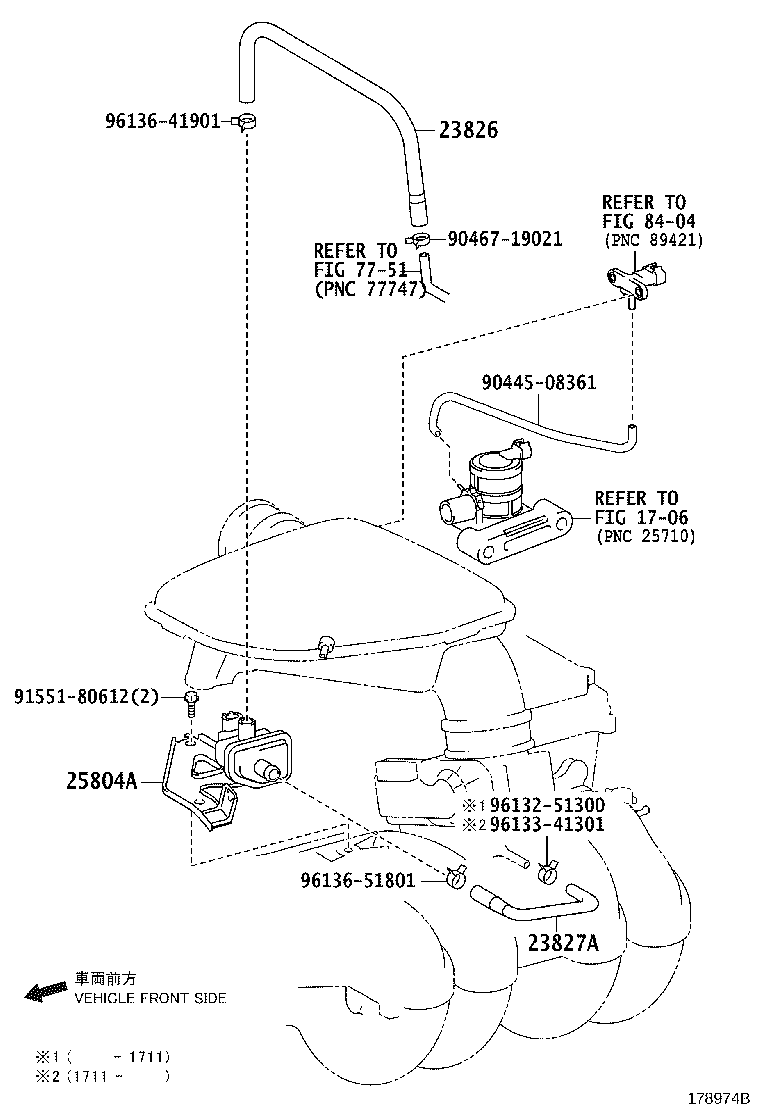

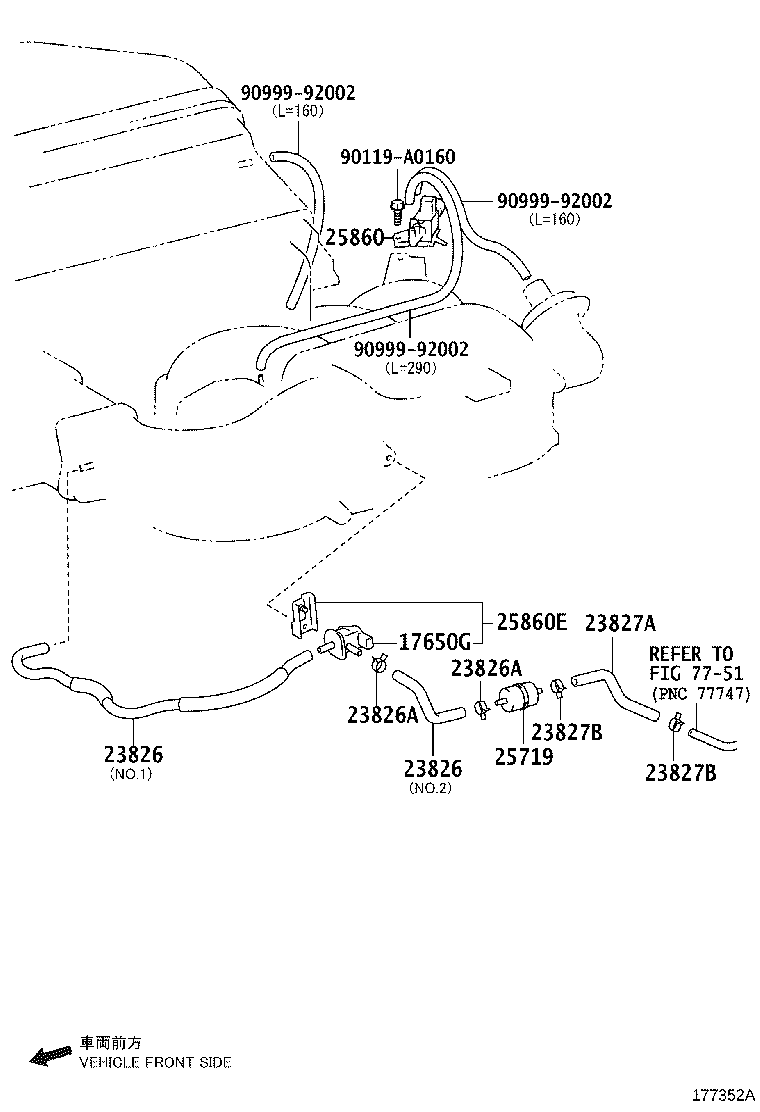

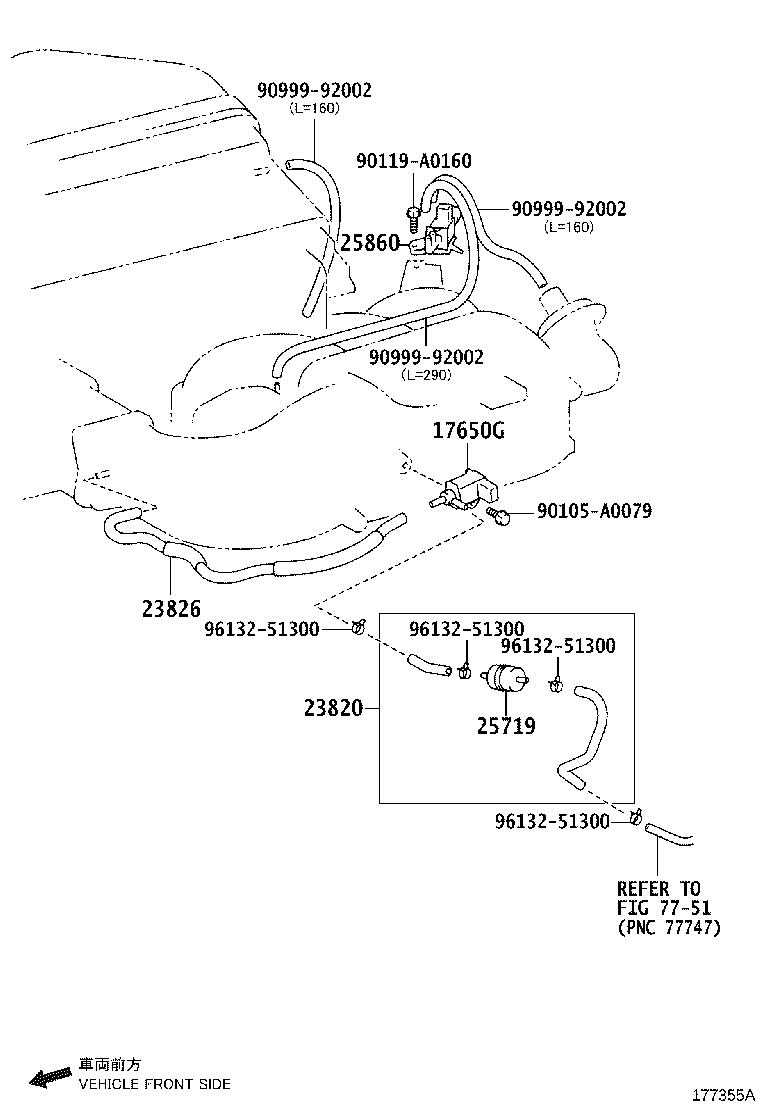

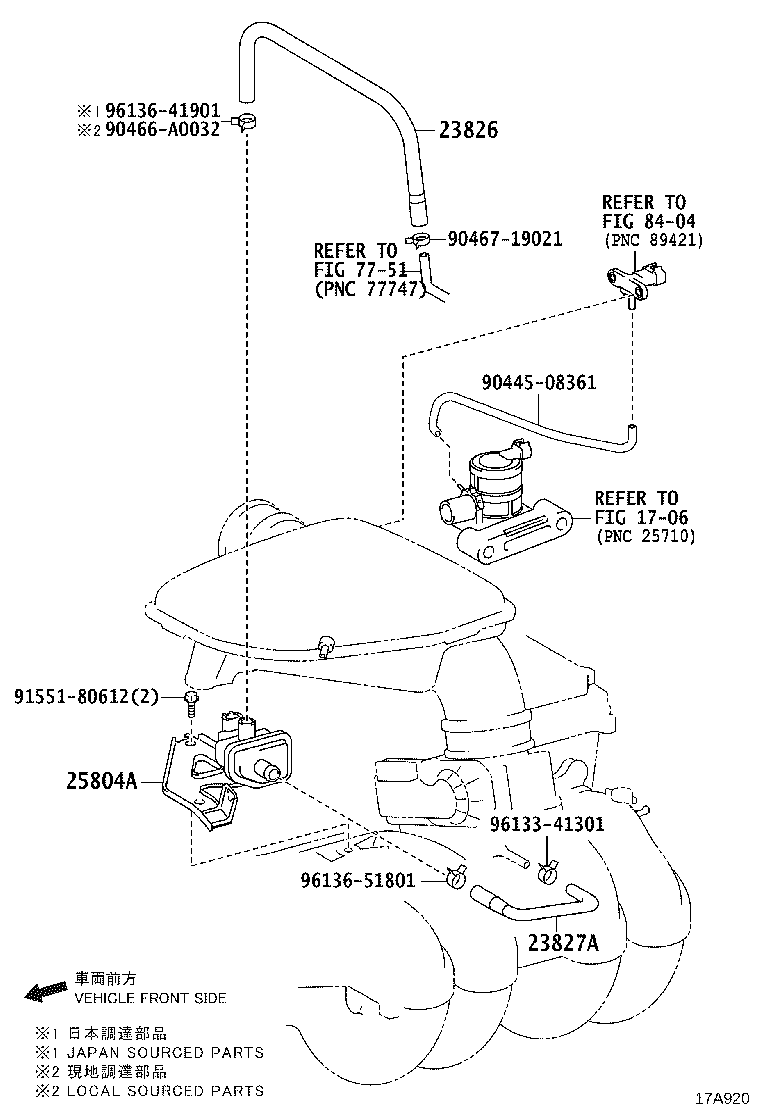

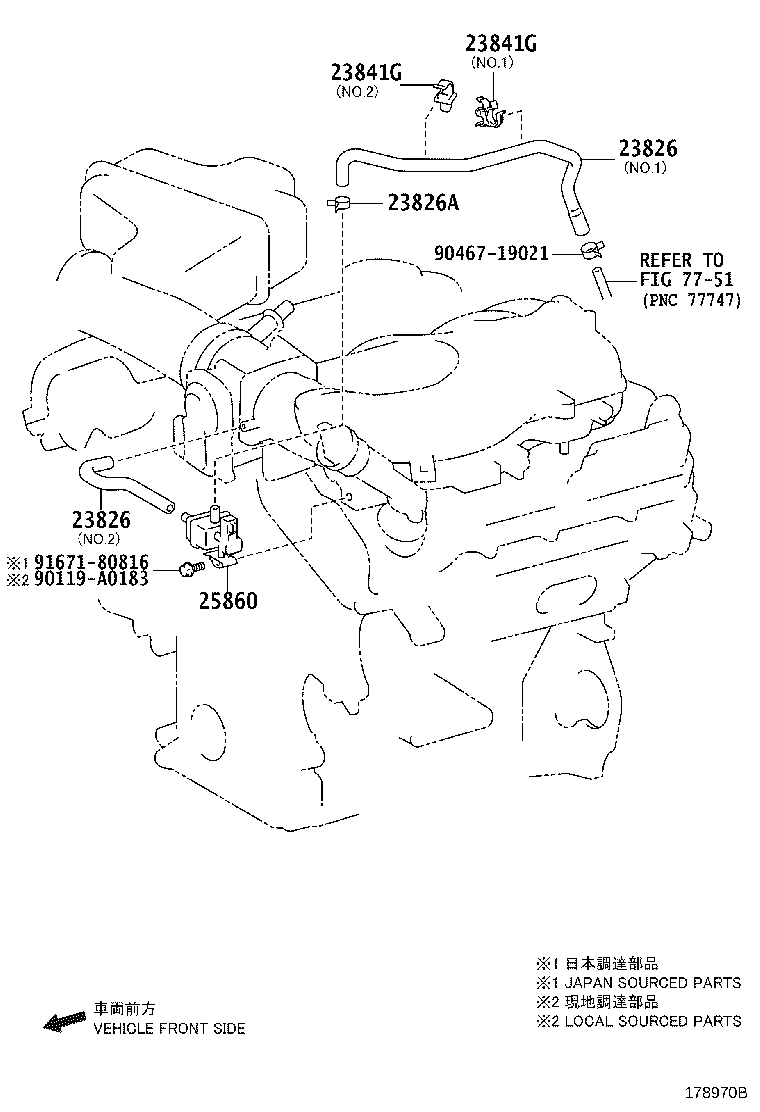

Figure 174216C 174216C 2004-09 → 2005-09 Figure 177355A 177355A 2005-09 → — Figure 177352A 177352A 2011-09 → — Figure 178970B 178970B 2015-08 → — Figure 176723A 176723A 2004-09 → 2005-09 Figure 176726A 176726A 2005-09 → 2015-08 Figure 178974B 178974B 2015-08 → 2019-09 Figure 17A920 17A920 2019-09 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23841G Clamp, Fuel Hose
25719 Tank, Vacuum Surge
25804A Valve Sub-assy, Vacuum Switching
25860 Valve Assy, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
