Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09
Clutch Pedal & Flexible Hose

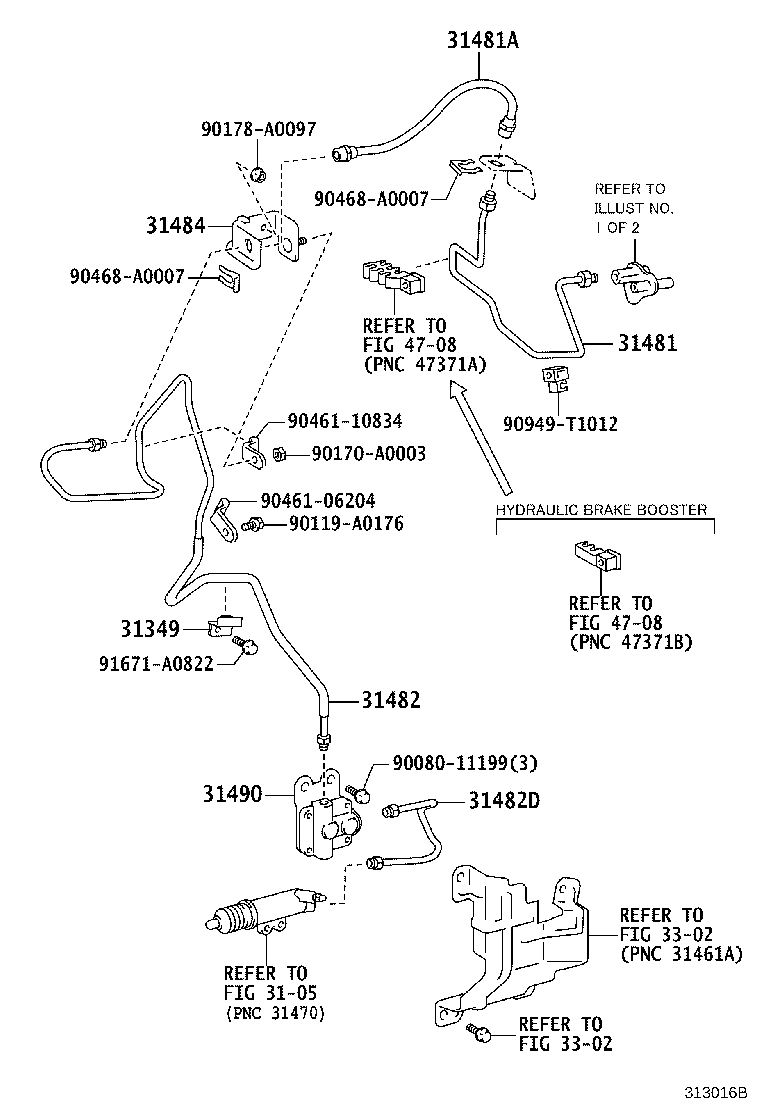

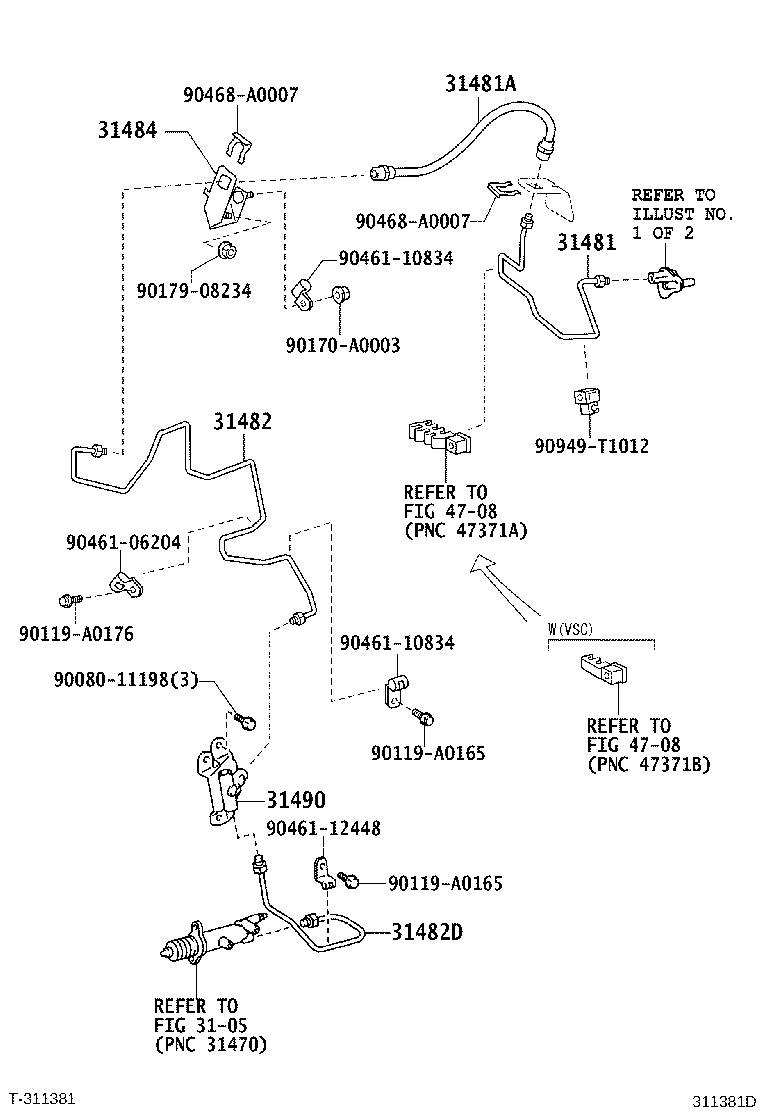

24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31321 | Pad, Clutch Pedal |
| 31323 | Bracket, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31331B | Way, Clutch Pedal Support |
| 31332 | Grommet, Clutch Pedal Support |
| 31349 | Insulator, Clutch Cable Heat |
| 31353 | Holder, Clutch Pedal Spring |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31481J | Tube, Clutch Master Cylinder TO 2 Way |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31490 | Accumulator Assy, Clutch |
| 31495 | Way, Clutch Tube |
| 55107A | Support Sub-assy, Clutch Pedal |
| 55196A | Bracket, Clutch Start Switch Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
